A general purpose Smoothed Particle Hydrodynamics framework

Project description

PySPH: a Python-based SPH framework

CI Status MPI Build Status Documentation Status

PySPH is an open source framework for Smoothed Particle Hydrodynamics (SPH) simulations. It is implemented in Python and the performance critical parts are implemented in Cython and PyOpenCL.

PySPH allows users to write their high-level code in pure Python. This Python code is automatically converted to high-performance Cython or OpenCL which is compiled and executed. PySPH can also be configured to work seamlessly with OpenMP, OpenCL, and MPI.

The latest documentation for PySPH is available at

Here are videos of some example problems solved using PySPH.


  • Flexibility to define arbitrary SPH equations operating on particles in pure Python.

  • Define your own multi-step integrators in pure Python.

  • High-performance: our performance is comparable to hand-written solvers implemented in FORTRAN.

  • Seamless multi-core support with OpenMP.

  • Seamless GPU support with PyOpenCL.

  • Seamless parallel support using Zoltan and PyZoltan.

SPH formulations

PySPH ships with a variety of standard SPH formulations along with basic examples. Some of the formulations available are:

Boundary conditions from the following papers are implemented:

Corrections proposed in the following papers are also the part for PySPH:

Surface tension models are implemented from:


Up-to-date details on how to install PySPH on Linux/OS X and Windows are available from here.

If you wish to see a working build/test script please see our shippable.yml. For Windows platforms see the appveyor.yml.

Running the examples

You can verify the installation by exploring some examples. A fairly quick running example (taking about 20 seconds) would be the following:

$ pysph run elliptical_drop

This requires that Mayavi be installed. The saved output data can be viewed by running:

$ pysph view elliptical_drop_output/

A more interesting example would be a 2D dam-break example (this takes about 30 minutes in total to run):

$ pysph run dam_break_2d

The solution can be viewed live by running (on another shell):

$ pysph view

The generated output can also be viewed and the newly generated output files can be refreshed on the viewer UI.

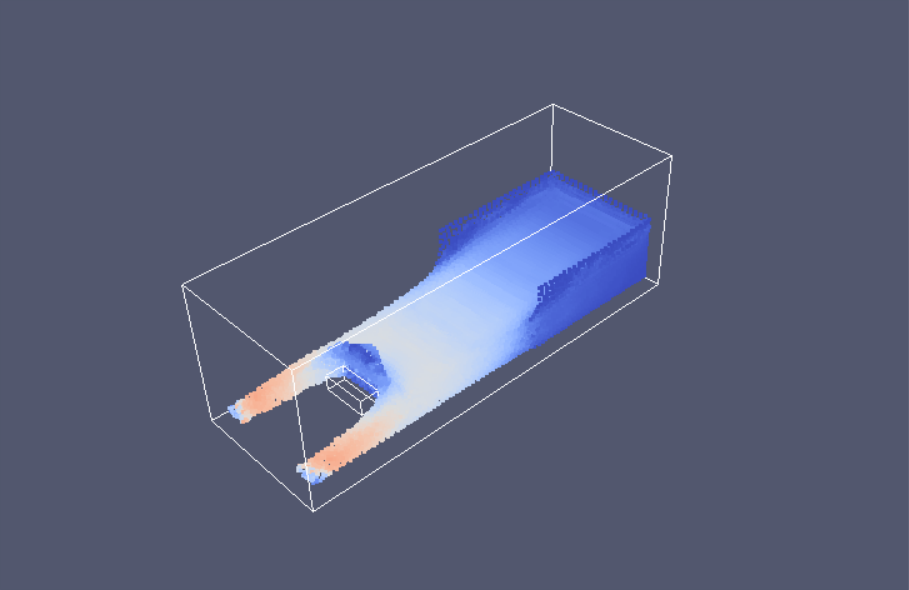

A 3D version of the dam-break problem is also available, and may be run as:

$ pysph run dam_break_3d

This runs the 3D dam-break problem which is also a SPHERIC benchmark Test 2

Three-dimensional dam-break example

PySPH is more than a tool for wave-body interactions::

$ pysph run cavity

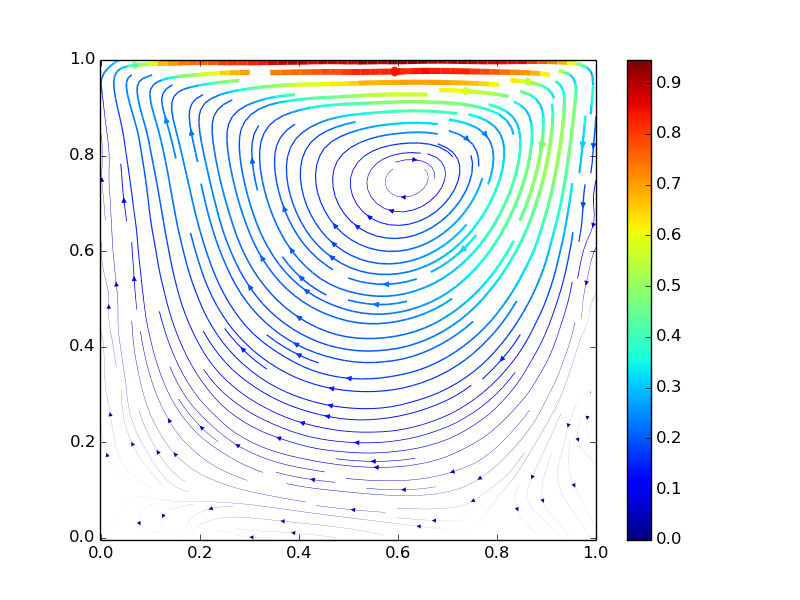

This runs the driven cavity problem using the transport velocity formulation of Adami et al. The output directory cavity_output will also contain streamlines and other post-processed results after the simulation completes. For example the streamlines look like the following image:

Lid-driven-cavity example

If you want to use PySPH for elastic dynamics, you can try some of the examples from the pysph.examples.solid_mech package:

$ pysph run solid_mech.rings

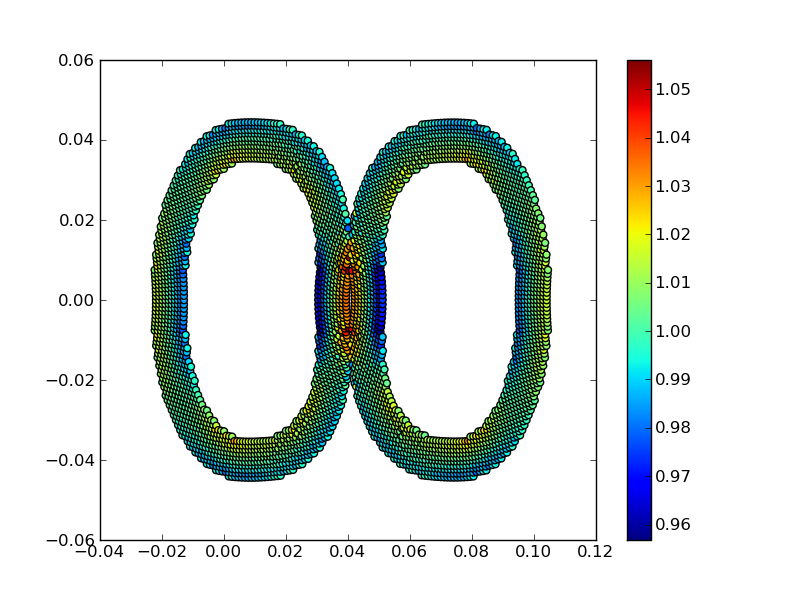

Which runs the problem of the collision of two elastic rings:

Collision of two steel rings

The auto-generated code for the example resides in the directory ~/.pysph/source. A note of caution however, it’s not for the faint hearted.

There are many more examples, they can be listed by simply running:

$ pysph run

Research papers using PySPH

The following are some of the works that use PySPH,


PySPH is primarily developed at the Department of Aerospace Engineering, IIT Bombay. We are grateful to IIT Bombay for their support. Our primary goal is to build a powerful SPH based tool for both application and research. We hope that this makes it easy to perform reproducible computational research.

To see the list of contributors the see github contributors page

Some earlier developers not listed on the above are:

  • Pankaj Pandey (stress solver and improved load balancing, 2011)

  • Chandrashekhar Kaushik (original parallel and serial implementation in 2009)

Citing PySPH

You may use the following article to formally refer to PySPH, a freely-available arXiv copy of the below paper is at,

  • Prabhu Ramachandran, Aditya Bhosale, Kunal Puri, Pawan Negi, Abhinav Muta, A. Dinesh, Dileep Menon, Rahul Govind, Suraj Sanka, Amal S Sebastian, Ananyo Sen, Rohan Kaushik, Anshuman Kumar, Vikas Kurapati, Mrinalgouda Patil, Deep Tavker, Pankaj Pandey, Chandrashekhar Kaushik, Arkopal Dutt, Arpit Agarwal. “PySPH: A Python-Based Framework for Smoothed Particle Hydrodynamics”. ACM Transactions on Mathematical Software 47, no. 4 (31 December 2021): 1–38. DOI:

The bibtex entry is::

    title = {{{PySPH}}: {{A Python-based Framework}} for {{Smoothed Particle Hydrodynamics}}},
    shorttitle = {{{PySPH}}},
    author = {Ramachandran, Prabhu and Bhosale, Aditya and Puri,
    Kunal and Negi, Pawan and Muta, Abhinav and Dinesh,
    A. and Menon, Dileep and Govind, Rahul and Sanka, Suraj and Sebastian,
    Amal S. and Sen, Ananyo and Kaushik, Rohan and Kumar,
    Anshuman and Kurapati, Vikas and Patil, Mrinalgouda and Tavker,
    Deep and Pandey, Pankaj and Kaushik, Chandrashekhar and Dutt,
    Arkopal and Agarwal, Arpit},
    year = {2021},
    month = dec,
    journal = {ACM Transactions on Mathematical Software},
    volume = {47},
    number = {4},
    pages = {1--38},
    issn = {0098-3500, 1557-7295},
    doi = {10.1145/3460773},
    langid = {english}


If you have any questions or are running into any difficulties with PySPH, you can use the PySPH discussions.

Please also take a look at the PySPH issue tracker if you have bugs or issues to report.

You could also email or post your questions on the pysph-users mailing list here:
