A library to drive a Bosch BME280 temperature, humidity, pressure sensor over I2C

Project Description

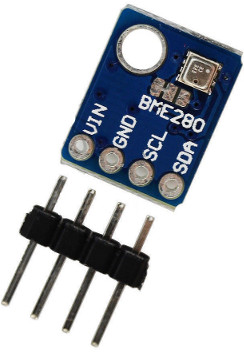

Interfacing a Bosch BME280 digital sensor module (capable of sensing temperature, humidity and pressure) in Python 2 or 3 using I2C on the Raspberry Pi. The particular kit I bought can be acquired for a few pounds from eBay. Further technical details for the BME280 sensor can be found in the datasheet [PDF].

GPIO pin-outs

The BME280 is an I2C device, so connecting to the RPi is very straightforward:

P1 Header

For prototyping, the P1 header pins should be connected as follows:

Board Pin Name Remarks RPi Pin RPi Function
1 VIN +3.3V Power P01-1 3V3
2 GND Ground P01-6 GND
3 SCL Clock P01-5 GPIO 3 (SCL)
4 SDA Data P01-3 GPIO 2 (SDA)

Pre-requisites

Ensure that the I2C kernel driver is enabled:

$ dmesg | grep i2c
[    4.925554] bcm2708_i2c 20804000.i2c: BSC1 Controller at 0x20804000 (irq 79) (baudrate 100000)
[    4.929325] i2c /dev entries driver

or:

$ lsmod | grep i2c
i2c_dev                 5769  0
i2c_bcm2708             4943  0
regmap_i2c              1661  3 snd_soc_pcm512x,snd_soc_wm8804,snd_soc_core

If you have no kernel modules listed and nothing is showing using dmesg then this implies the kernel I2C driver is not loaded. Enable the I2C as follows:

  1. Run sudo raspi-config
  2. Use the down arrow to select 9 Advanced Options
  3. Arrow down to A7 I2C
  4. Select yes when it asks you to enable I2C
  5. Also select yes when it asks about automatically loading the kernel module
  6. Use the right arrow to select the <Finish> button
  7. Select yes when it asks to reboot

After rebooting re-check that the dmesg | grep i2c command shows whether I2C driver is loaded before proceeding.

Optionally, to improve permformance, increase the I2C baudrate from the default of 100KHz to 400KHz by altering /boot/config.txt to include:

dtparam=i2c_arm=on,i2c_baudrate=400000

Then reboot.

Then add your user to the i2c group:

$ sudo adduser pi i2c

Install some packages:

$ sudo apt-get install i2c-tools python-pip

Next check that the device is communicating properly (if using a rev.1 board, use 0 for the bus not 1):

$ i2cdetect -y 1
       0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
  00:          -- -- -- -- -- -- -- -- -- -- -- -- --
  10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
  20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
  30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
  40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
  50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
  60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
  70: -- -- -- -- -- -- 76 --

Installing the Python Package

For python2, from the bash prompt, enter:

$ sudo python setup.py install

This will install the Python files in /usr/local/lib/python2.7 making them ready for use in other programs.

Alternatively for python3, type:

$ sudo python3 setup.py install

Cheeseshop install

Alternatively, a version on PyPi is available, just do:

$ sudo pip install RPi.bme280

Software Driver - Example Usage

Once installed, confirm the I2C address (see prerequisites, it will most likely be 0x76 or 0x77) and port.

Then in a python script or REPL:

import smbus2
import bme280

port = 1
address = 0x76
bus = smbus2.SMBus(port)

bme280.load_calibration_params(bus, address)

# the sample method will take a single reading and return a
# compensated_reading object
data = bme280.sample(bus, address)

# the compensated_reading class has the following attributes
print(data.id)
print(data.timestamp)
print(data.temperature)
print(data.pressure)
print(data.humidity)

# there is a handy string representation too
print(data)

This then should print something like:

ee50df9c-3aa3-4772-8767-73b6bb74f30f
2016-11-18 17:33:28.937863
20.563
980.91
48.41
compensated_reading(id=ee50df9c-3aa3-4772-8767-73b6bb74f30f,
    timestamp=2016-11-18 17:33:28.937863, temp=20.563 °C,
    pressure=980.91 hPa, humidity=48.41 % rH)

For a data-logger like application, periodically call bme2.sample(bus, address) to get time-based readings.

See the weatherstation project for a more complete example usage.
