T4SEfinder 0.1.0

A bioinformatics tool for genome-scale prediction of bacterial type IV secreted effectors using pre-trained protein language model.

T4SEfinder:

T4SEfinder Website

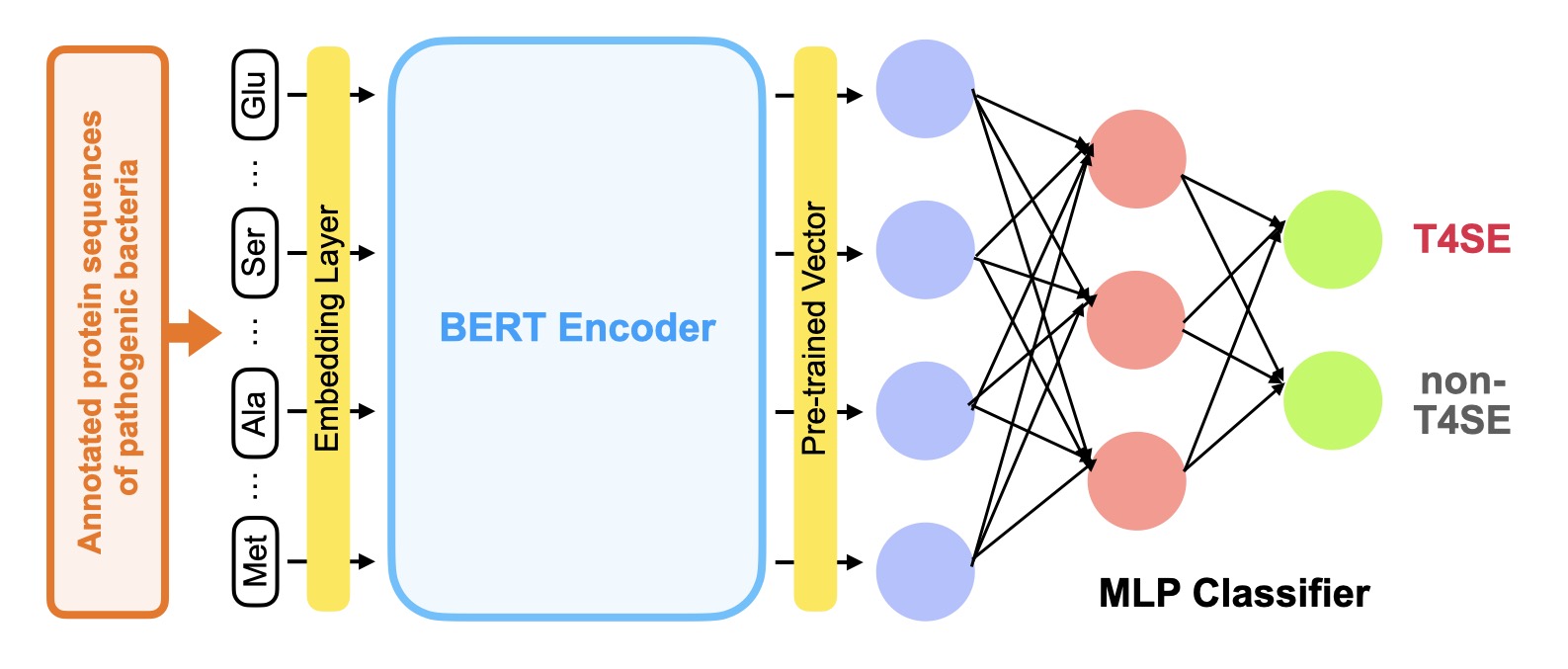

Pytorch implementation of T4SEfinder, a genome-scale annotation tool for bacterial type IV secretion system effectors (T4SEs) using pre-trained model. T4SEfinder integrates experimental verified T4SEs in SecReT4 database and those in other studies as the training dataset. It applies protein pre-trained language model(provided by TAPE repository) to the prediction task and achieves high testing accuracy(97.2%). It also provides genome-scale prediction for T4SEs.

Set up

The stand-alone version of T4SEfinder has been tested in Linux version 3.10.0-1062.12.1.el7.x86_64 as well as macOS Big Sur 11.2.3.

Before using the T4SEfinder, please ensure that Python has been installed in your server. Please check the requirements.txt file for more details on required Python packages. You can create new environment and install all required packages with:

pip install -r requirements.txt

The model paramter files can be download at here.

Using T4SEfinder

T4SEfinder can predict T4SEs from protein sequences in the FASTA format.

python main.py -in example/demo.fasta -weights weights/mlp/ -vote tapebert_mlp

The prediction results can be found in results/, including predicted probabilities by model weights from 5-fold cross validation and putative T4SEs after voting.

Besides the most recommended model TAPEBert_MLP, T4SEfinder provides another three approaches in T4SEs prediction.

• TAPEBert_SVM: replaces the downstream classifier into SVM.
• PSSM_CNN: based on positional-specific scoring matrix(PSSM) and CNN.
• HybridBiLSTM: conbines pre-trained feature and PSSM at C terminal in BiLSTM. If you want to used the model base on PSSM feature, NCBI BLAST+ 2.10.0 is required(can be downloaded from ftp.ncbi.nlm.nih.gov), and the Swissprot database can be downloaded at here.

T4SEfinder can annotate bacteria genome to discover T4SE-encoding genes.

./pred_all_model <NCBI Accession Number> #  e.g. NC012442

You can receive the summarized results obtained by various methods in summary.csv.

Testing Result

We have compared T4SEfinder(TAPEBert_MLP) with existing prediction tools according to the perfomance on an independent test set(30 T4SEs + 150 none-T4SEs).

Method	ACC	SN	SP	PR	F1	MCC
T4SEpre_psAac	90.0%	63.3%	95.3%	73.1%	0.679	0.622
T4SEpre_bpbAac	88.3%	66.7%	92.7%	64.5%	0.656	0.586
DeepT4	86.7%	80.0%	88.0%	57.1%	0.667	0.599
BastionX	93.3%	100.0%	92.0%	71.4%	0.833	0.811
CNNT4SE_Vote	97.8%	86.7%	100.0%	100.0%	0.929	0.919
TAPEBert_MLP	97.2%	93.3%	98.0%	90.3%	0.918	0.901

Apart from the considerable prediction accuracy, T4SEfinder shows a major advantage in computational efficiency due to the adoptation of protein pre-trained langugae model.

Contact

Please contact Yumeng Zhang at [e-mail] for questions.
