arcjetcv 1.1.17

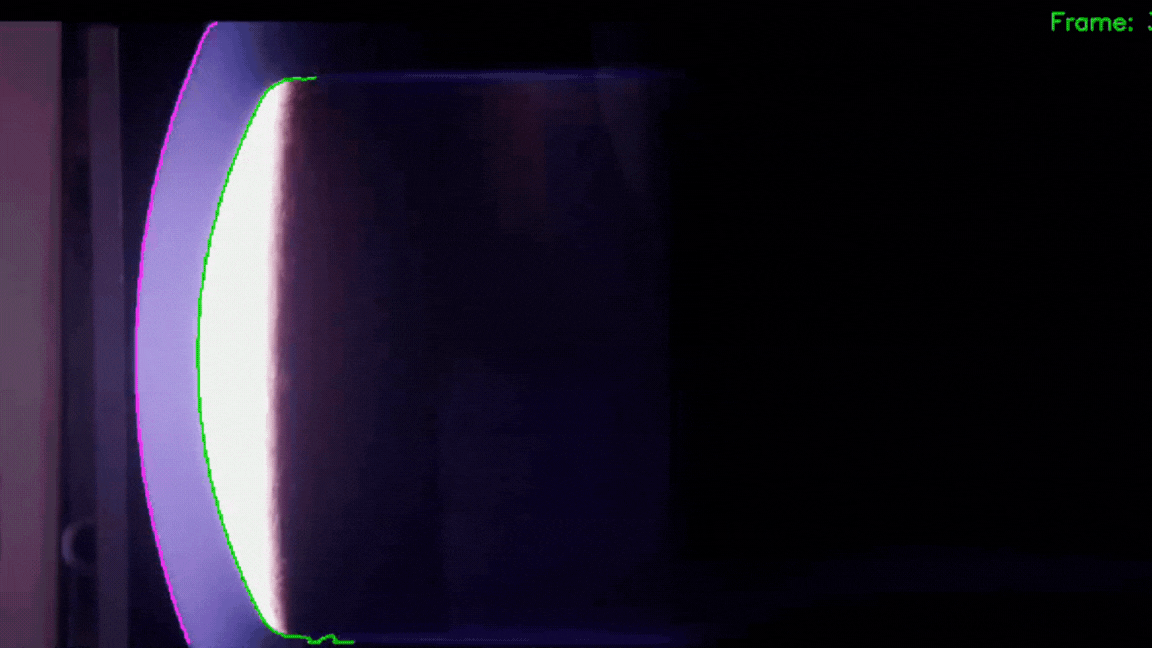

Package to process arcjet videos and segment the edge of the shock and of the sample

---

arcjetCV

Package to process arcjet videos and segment the edge of the shock and of the sample.

Installation

PyPi Installation (Universal)

Prerequisites:

• Ensure you have Python 3.8 or higher installed.

To install arcjetCV via pip from PyPi, run:

pip install arcjetCV

This will install arcjetCV along with its dependencies.

Note for macOS Users:

You might need to install Xcode Command Line Tools:

xcode-select --install

Note for Linux Users:

You may need to install libxcb-cursor. Use your package manager to install it:

For Ubuntu/Debian-based distributions:

sudo apt-get install libxcb-cursor0

For Fedora:

sudo dnf install libxcb-cursor

For Arch Linux:

sudo pacman -S libxcb

Developer Installation

Prerequisites:

• A valid git installation.
• Miniconda or Anaconda for environment and package management:
  • Miniconda
  • Anaconda
• For macOS users, make sure the Xcode Command Line Tools are installed:

xcode-select --install

To install arcjetCV for development, follow these steps:

1. Install git-lfs:

   Download and install it from here.

2. Clone the repository and install the package:

git clone https://github.com/magnus-haw/arcjetCV.git
cd arcjetCV

# CPU environment (recommended default)
conda env create -f env/arcjetCV_env_cpu.yml

# GPU environment (NVIDIA GPU + CUDA required)
# conda env create -f env/arcjetCV_env_gpu.yml

conda activate arcjetcv
python -m pip install -e .

The -e flag stands for 'editable' and means that any changes to the local source code will immediately affect the arcjetCV package and GUI.

Choose the environment file based on your hardware:

• env/arcjetCV_env_cpu.yml: works on any machine (recommended default).
• env/arcjetCV_env_gpu.yml: use this only when you have a compatible NVIDIA GPU and drivers/CUDA stack configured.

How to Run

PyPI Users

Launch the GUI:

arcjetcv

Developer Users

Activate your conda environment first:

conda activate arcjetcv

Then launch the GUI:

arcjetcv

Or use arcjetCV's Python API inside a Python script, e.g., test.py:

import arcjetCV as arcv
video = arcv.Video("tests/arcjet_test.mp4")

Run the script with:

python test.py

Citing

If you use arcjetCV in your research, please use the following BibTeX entry to cite our paper:

@article{doi:10.2514/1.A36132,
author = {Quintart, Alexandre M. and Haw, Magnus A. and Semeraro, Federico},
title = {arcjetCV: Open-Source Software to Analyze Material Ablation},
journal = {Journal of Spacecraft and Rockets},
volume = {62},
number = {5},
pages = {1644-1653},
year = {2025},
doi = {10.2514/1.A36132},
URL = {https://doi.org/10.2514/1.A36132},
eprint = {https://doi.org/10.2514/1.A36132},
abstract = { ArcjetCV is an open-source Python software designed to automate time-resolved measurements of heat shield material ablation and recession rates from arcjet test video footage. This new automated and accessible capability enables two-dimensional in situ recession characterization from profile video. ArcjetCV automates the video segmentation process using two primary machine-learning models: a one-dimensional (1D) Convolutional Neural Network (CNN) to infer the time window of interest and a two-dimensional CNN for image segmentation. A graphical user interface simplifies the user experience and an application programming interface allows users to call the core functions from scripts, enabling batch video processing. ArcjetCV’s capability to measure time-resolved recession the enables characterization of nonlinear processes (nonlinear recession, shrinkage, swelling, etc.), contributing to higher-fidelity validation and improved modeling of heat shield material performance. The source code associated with this paper can be found at https://github.com/magnus-haw/arcjetCV. }}
