asmagic

A Python library for receiving data streams from asMagic iOS App.

Working with asMagic App:

Table of Contents

• Features
• Install
• Quick Start
  • AR Data
  • IMU Data
  • Joystick Data
• Usage Examples
  • AR Data Examples
  • IMU Data Examples
  • Joystick Data Examples
• Data Format Reference
  • AR Data
  • IMU Data
  • Joystick Data
• API Reference
  • ARDataSubscriber
  • IMUDataSubscriber
  • JoystickDataSubscriber

Features

AR Data Streaming

• 6DOF camera pose (position + orientation)
• RGB camera images
• Depth maps
• Camera intrinsics
• Device velocity

IMU Data Streaming

• Accelerometer (3-axis)
• Gyroscope (3-axis)
• Magnetometer (3-axis)
• Gravity vector
• User acceleration
• Device attitude (quaternion)

Joystick Data Streaming

• Dual joystick positions (left and right)
• 4 button states
• Real-time control data
• 0-1 normalized values

Install

pip install asmagic

Quick Start

AR Data

from asmagic import ARDataSubscriber

# Create subscriber with your iPhone's IP address
sub = ARDataSubscriber("192.168.1.100")

try:
    # Continuous data streaming
    for data in sub:
        # All sensor data in one frame
        print(f"Timestamp: {data.timestamp}")
        print(f"Velocity: {data.velocity}")
        print(f"Local Pose: {data.local_pose}")
        print(f"Global Pose: {data.global_pose}")
        print(f"Camera Intrinsics: {data.camera_intrinsics}")

        # Access image data
        if data.has_color_image:
            # Color: bytes(jpeg format) or array
            color_bytes = data.color_bytes
            color_array = data.color_array  # or shortcut: data.color
            print(f"Color: {len(color_bytes)} bytes, array shape: {color_array.shape}")

        if data.has_depth_image:
            # Depth: Numpy array
            depth = data.depth_array  # or shortcut: data.depth
            print(f"Depth: {depth.shape}")

except KeyboardInterrupt:
    print("\nStopped by user")
finally:
    sub.close()

IMU Data

from asmagic import IMUDataSubscriber

# Create IMU subscriber (port 8002 is fixed)
sub = IMUDataSubscriber("192.168.1.100")

try:
    # Continuous IMU data streaming
    for data in sub:
        print(f"Timestamp: {data.timestamp}")
        print(f"Accelerometer (G): {data.accelerometer}")
        print(f"Gyroscope (rad/s): {data.gyroscope}")
        print(f"Magnetometer (μT): {data.magnetometer}")
        print(f"Gravity (G): {data.gravity}")
        print(f"User Acceleration (G): {data.user_acceleration}")
        print(f"Attitude (quat): {data.attitude}")

except KeyboardInterrupt:
    print("\nStopped by user")
finally:
    sub.close()

Joystick Data

from asmagic import JoystickDataSubscriber

# Create joystick subscriber (port 8020 is default)
sub = JoystickDataSubscriber("192.168.1.100")

try:
    # Continuous joystick data streaming
    while True:
        data = sub.get()
        if data:
            # Joystick positions: 0.0 to 1.0 range
            # X-axis: right is positive, Y-axis: up is positive
            print(f"Left:  ({data.left_x:.3f}, {data.left_y:.3f})")
            print(f"Right: ({data.right_x:.3f}, {data.right_y:.3f})")
            print(f"Buttons: {data.buttons}")

except KeyboardInterrupt:
    print("\nStopped by user")
finally:
    sub.close()

Usage Examples

AR Data Examples

Note: Example 1 and Example 2 achieve the same goal of continuous data reading.

Example 1: Continuous AR Data Reading

from asmagic import ARDataSubscriber

# Connect to iPhone
sub = ARDataSubscriber("192.168.1.100")

try:
    for data in sub:
        # Print all available data
        print(f"\n--- Frame at {data.timestamp} ---")
        print(f"Velocity: {data.velocity}")
        print(f"Local Pose: {data.local_pose}")
        print(f"Global Pose: {data.global_pose}")
        print(f"Camera Intrinsics: {data.camera_intrinsics}")

        if data.has_depth_image:
            depth = data.depth  # or data.depth_array
            print(f"Depth shape: {depth.shape}, min: {depth.min()}, max: {depth.max()}")

except KeyboardInterrupt:
    print("\nStopped")
finally:
    sub.close()

Example 2: Continuous Reading with get()

from asmagic import ARDataSubscriber

sub = ARDataSubscriber("192.168.1.100")

try:
    while True:
        data = sub.get()
        if data:
            print(f"Timestamp: {data.timestamp}")
            print(f"Velocity: {data.velocity}")
            print(f"Local Pose: {data.local_pose}")
            print(f"Global Pose: {data.global_pose}")
            print(f"Camera Intrinsics: {data.camera_intrinsics}")

            # Access images
            if data.has_color_image:
                print(f"Color bytes: {len(data.color_bytes)} bytes")
                print(f"Color array: {data.color_array.shape}")

            if data.has_depth_image:
                print(f"Depth array: {data.depth_array.shape}")

except KeyboardInterrupt:
    print("\nStopped")
finally:
    sub.close()

Example 3: Display Color and Depth Images

from asmagic import ARDataSubscriber
import cv2

# Connect to iPhone
sub = ARDataSubscriber("192.168.1.100")

try:
    for data in sub:
        # Display both images side by side
        data.show_images()

        # Or display individually:
        # data.show_color()  # RGB image
        # data.show_depth()  # Depth map with colormap

        # Press ESC to exit
        if cv2.waitKey(1) == 27:
            break

except KeyboardInterrupt:
    print("\nStopped")
finally:
    sub.close()
    cv2.destroyAllWindows()

Example 4: Process Image Data

from asmagic import ARDataSubscriber
import numpy as np

sub = ARDataSubscriber("192.168.1.100")

try:
    for data in sub:

        # Color image: process as numpy array
        if data.has_color_image:
            color = data.color_array  # RGB numpy array
            print(f"Color shape: {color.shape}")

        # Depth image: always as numpy array
        if data.has_depth_image:
            depth = data.depth_array  # uint16 numpy array
            depth_meters = depth.astype(np.float32) / 10000.0
            print(f"Depth range: {depth_meters.min():.2f}m - {depth_meters.max():.2f}m")

except KeyboardInterrupt:
    pass
finally:
    sub.close()

Example 5: Using Pose Data

from asmagic import ARDataSubscriber
import numpy as np

sub = ARDataSubscriber("192.168.1.100")

try:
    for data in sub:
        # Extract position from pose (first 3 elements)
        position = data.local_pose[:3] # [tx, ty, tz]

        # Extract quaternion from pose (last 4 elements)
        quaternion = data.local_pose[3:]  # [qx, qy, qz, qw]

        print(f"Position (m): x={position[0]:.3f}, y={position[1]:.3f}, z={position[2]:.3f}")
        print(f"Quaternion: {quaternion}")
        print(f"Velocity (m/s): {data.velocity}")   # [vx, vy, vz]

except KeyboardInterrupt:
    pass
finally:
    sub.close()

Example 6: Get Individual AR Data Fields

from asmagic import ARDataSubscriber
import numpy as np

sub = ARDataSubscriber("192.168.1.100")

try:
    while True:
        # Get only specific data fields
        timestamp = sub.get_timestamp()
        print(f"Timestamp: {timestamp}")

except KeyboardInterrupt:
    print("\nStopped")
finally:
    sub.close()

Note: Use get_*() methods when you need specific data fields. This is more efficient than receiving the full frame.

IMU Data Examples

Note: Example 7 and Example 8 achieve the same goal of continuous data reading.

Example 7: Continuous IMU Data Reading

from asmagic import IMUDataSubscriber

sub = IMUDataSubscriber("192.168.1.100")

try:
    for data in sub:
        print(f"\n--- IMU Frame at {data.timestamp} ---")
        print(f"Accelerometer (G): {data.accelerometer}")
        print(f"Gyroscope (rad/s): {data.gyroscope}")
        print(f"Magnetometer (μT): {data.magnetometer}")
        print(f"Gravity (G): {data.gravity}")
        print(f"User Acceleration (G): {data.user_acceleration}")
        print(f"Attitude (quat): {data.attitude}")

except KeyboardInterrupt:
    print("\nStopped")
finally:
    sub.close()

Example 8: Continuous Reading with get()

from asmagic import IMUDataSubscriber

sub = IMUDataSubscriber("192.168.1.100")

try:
    while True:
        data = sub.get()
        if data:
            print(f"\n--- IMU Frame at {data.timestamp} ---")
            print(f"Accelerometer (G): {data.accelerometer}")
            print(f"Gyroscope (rad/s): {data.gyroscope}")
            print(f"Magnetometer (μT): {data.magnetometer}")
            print(f"Gravity (G): {data.gravity}")
            print(f"User Acceleration (G): {data.user_acceleration}")
            print(f"Attitude (quat): {data.attitude}")

except KeyboardInterrupt:
    print("\nStopped")
finally:
    sub.close()

Example 9: Get Individual IMU Data Fields

from asmagic import IMUDataSubscriber
import numpy as np

sub = IMUDataSubscriber("192.168.1.100")

try:
    while True:
        # Get only specific IMU fields
        accel = sub.get_accelerometer()
        gyro = sub.get_gyroscope()

        if accel is not None and gyro is not None:
            # Calculate magnitudes
            accel_mag = np.linalg.norm(accel)
            gyro_mag = np.linalg.norm(gyro)

            print(f"Accel: {accel}, |a| = {accel_mag:.3f} G")
            print(f"Gyro: {gyro}, |ω| = {gyro_mag:.3f} rad/s")

except KeyboardInterrupt:
    print("\nStopped")
finally:
    sub.close()

Note: Use get_*() methods when you need specific data fields. This is more efficient than receiving the full frame.

Joystick Data Examples

Example 10: Continuous Joystick Data Reading

from asmagic import JoystickDataSubscriber

sub = JoystickDataSubscriber("192.168.1.100")

try:
    while True:
        data = sub.get()
        if data:
            print(f"\n--- Frame at {data.timestamp:.3f} ---")
            print(f"Left Joystick:  X={data.left_x:.3f}, Y={data.left_y:.3f}")
            print(f"Right Joystick: X={data.right_x:.3f}, Y={data.right_y:.3f}")
            print(f"Buttons: {data.buttons}")

            if data.button1:
                print("  Button 1 pressed!")

except KeyboardInterrupt:
    print("\nStopped")
finally:
    sub.close()

Example 11: Iterator Style

from asmagic import JoystickDataSubscriber

with JoystickDataSubscriber("192.168.1.100") as sub:
    for data in sub:
        print(f"L({data.left_x:.3f}, {data.left_y:.3f}) "
              f"R({data.right_x:.3f}, {data.right_y:.3f})")

Note: Use get_*() methods when you need specific data fields. This is more efficient than receiving the full frame.

Data Format Reference

AR Data

Coordinate System

Pose Format: $[t_x, t_y, t_z, q_x, q_y, q_z, q_w]$

• Translation (first 3 values): Position in meters
  • $t_x, t_y, t_z$: X, Y, Z coordinates
• Rotation (last 4 values): Orientation as quaternion
  • $q_x, q_y, q_z$: Imaginary part
  • $q_w$: Real part
  • Normalized: $q_x^2 + q_y^2 + q_z^2 + q_w^2 = 1$

Coordinate Frame:

• X-axis: Right
• Y-axis: Up
• Z-axis: Forward

Difference between local_pose and global_pose:

• local_pose: Position relative to device starting point
• global_pose: Position in shared world coordinate (when multiple devices collaborate)

Note: When using a single device, local_pose and global_pose are identical

Velocity

Format: $[v_x, v_y, v_z]$

• Calculated as: $\vec{v} = \frac{\Delta \vec{p}}{\Delta t}$
• Unit: meters per second (m/s)
• In the same coordinate frame as pose

Camera Intrinsics

Format: $[f_x, 0, 0, 0, f_y, 0, c_x, c_y, 1]$

Represents 3×3 matrix:

$$ K = \begin{bmatrix} f_x & 0 & c_x \ 0 & f_y & c_y \ 0 & 0 & 1 \end{bmatrix} $$

Where:

• $f_x, f_y$: Focal length in pixels
• $c_x, c_y$: Principal point (optical center) in pixels

Depth Image

• Format: 16-bit unsigned integer (uint16)
• Unit: $10^{-4}$ m (0.1 mm, scaled by 10000 from meters)
• Conversion to meters: $d_{meters} = \frac{d_{raw}}{10000}$
• Range: $0 \leq d_{raw} \leq 65535$ → $0$ to $6.5535$ m
• Access: Use data.depth or data.depth_array to get numpy array

Image Data Format

Color Image: Two formats available

• color_bytes: JPEG compressed bytes
• color_array: RGB numpy array (640×480×3)
• color: Shortcut for color_array

Depth Image: Numpy array only

• depth_array: uint16 numpy array (256×192)
• depth: Shortcut for depth_array

IMU Data

For detailed field descriptions, see IMUFrame Properties in API Reference.

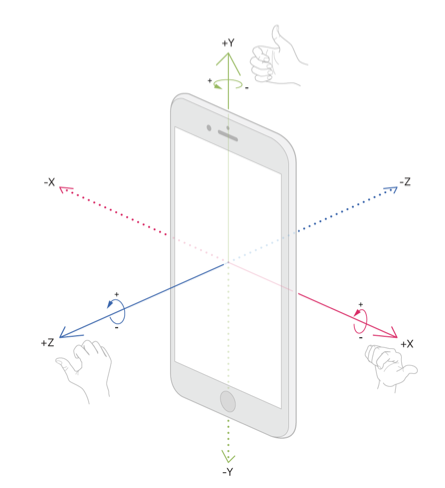

IMU Coordinate System

Coordinate Frame (iPhone device frame):

• X-axis: Right (when holding phone in portrait)
• Y-axis: Up (toward top of device)
• Z-axis: Forward (out of screen)

IMU Data Explained

The IMU data follows Apple's CoreMotion framework conventions. For comprehensive details, refer to Apple's CoreMotion Documentation.

1. Accelerometer

Total acceleration measured by the device's accelerometer hardware.

• Unit: G (gravitational force units, where $1G = 9.81 \text{ m/s}^2$)

2. Gyroscope

Angular velocity around each axis.

• Unit: rad/s (radians per second)

3. Magnetometer

Magnetic field strength detected by the device.

• Unit: μT (microteslas)

4. Gravity Vector

Component of acceleration due to Earth's gravitational pull, isolated from user motion.

• Unit: G (gravitational force units)
• Magnitude: $|\vec{g}| \approx 1.0G$ when stationary
• Usage: Determining device orientation relative to Earth
• Reference: CMDeviceMotion.gravity

5. User Acceleration

Acceleration from user motion, with gravity removed.

• Unit: G (gravitational force units)
• Formula: $\vec{a}{user} = \vec{a}{total} - \vec{g}$
• Reference: CMDeviceMotion.userAcceleration

6. Attitude (Quaternion)

Device orientation in 3D space.

• Format: $[q_x, q_y, q_z, q_w]$ (quaternion)
• Normalized: $q_x^2 + q_y^2 + q_z^2 + q_w^2 = 1$
• Reference: CMAttitude

Joystick Data

Joystick Position Values

The joystick data uses a 0.0 to 1.0 range for both axes:

• Value range: 0.0 to 1.0 (floating point)
• Center position: (0.5, 0.5)
• X-axis:
  • 0.0 = Full left
  • 0.5 = Center
  • 1.0 = Full right
  • Right is positive
• Y-axis:
  • 0.0 = Full down
  • 0.5 = Center
  • 1.0 = Full up
  • Up is positive

Coordinate System

        Y (1.0) ↑ UP
                |
                |
LEFT (0.0) ←----+----→ (1.0) RIGHT X
                |
                |
         DOWN ↓ (0.0)

Examples:

• Move joystick right: X increases (0.5 → 1.0)
• Move joystick up: Y increases (0.5 → 1.0)
• Move joystick to upper-right corner: (1.0, 1.0)
• Joystick at center: (0.5, 0.5)

Button Data

• Type: List of boolean values
• States: True (pressed), False (released)
• Count: 4 buttons
• Access: data.buttons or data.button1, data.button2, etc.

API Reference

ARDataSubscriber

Constructor:

ARDataSubscriber(ip, port=8000, hwm=1, conflate=True, verbose=False)

Parameters:

• ip (str): iPhone's IP address
• port (int): Port number (default: 8000)
• hwm (int): High water mark (default: 1, keeps only latest message)
• conflate (bool): Message conflation (default: True)
• verbose (bool): Print connection info (default: False)

Usage:

# Create subscriber
sub = ARDataSubscriber("192.168.1.100")

# Continuously receive data
for data in sub:
    print(data.timestamp)
    print(data.velocity)

# Close when done
sub.close()

Main Methods:

Method	Returns	Description
get()	ARFrame or None	Get latest data frame
get_timestamp()	float or None	Get timestamp only
get_velocity()	np.ndarray or None	Get velocity only
get_local_pose()	np.ndarray or None	Get local pose only
get_global_pose()	np.ndarray or None	Get global pose only
get_camera_intrinsics()	np.ndarray or None	Get camera intrinsics only
get_color_image()	bytes or None	Get color image bytes only
get_depth_image()	np.ndarray or None	Get depth array only
close()	None	Close connection

Note:

• The subscriber is iterable, so you can use for data in sub: to receive frames continuously.
• All get_*() methods accept an optional timeout parameter (default: 1000ms).

ARFrame

Data object returned by get() or when iterating. For data format details, see AR Data Format Reference above.

Properties:

Property	Type	Description
timestamp	float	Unix timestamp in seconds
velocity	np.ndarray	Velocity $[v_x, v_y, v_z]$ in m/s
local_pose	np.ndarray	Local pose $[t_x, t_y, t_z, q_x, q_y, q_z, q_w]$
global_pose	np.ndarray	Global pose $[t_x, t_y, t_z, q_x, q_y, q_z, q_w]$
camera_intrinsics	np.ndarray	Camera intrinsics (3×3 flattened)
Color Image
color_bytes	bytes	JPEG image bytes (for saving/forwarding)
color_array	np.ndarray	Decoded RGB image array (H×W×3)
color	np.ndarray	Shortcut for color_array
Depth Image
depth_array	np.ndarray	Depth image array (uint16, H×W)
depth	np.ndarray	Shortcut for depth_array
depth_width	int	Depth image width
depth_height	int	Depth image height
Helpers
has_color_image	bool	Check if color image exists
has_depth_image	bool	Check if depth image exists

Methods:

Method	Returns	Description
show_color(window_name)	bool	Display color image with OpenCV
show_depth(window_name, colormap)	bool	Display depth image with colormap
show_images(show_color, show_depth)	tuple	Display both images side by side

IMUDataSubscriber

Constructor:

IMUDataSubscriber(ip, port=8002, hwm=1, conflate=True, verbose=False)

Parameters:

• ip (str): iPhone's IP address
• port (int): Port number (default: 8002, fixed for IMU data)
• hwm (int): High water mark (default: 1, keeps only latest message)
• conflate (bool): Message conflation (default: True)
• verbose (bool): Print connection info (default: False)

Usage:

# Create IMU subscriber
sub = IMUDataSubscriber("192.168.1.100")

# Continuously receive IMU data
for data in sub:
    print(data.accelerometer)
    print(data.gyroscope)

# Close when done
sub.close()

Main Methods:

Method	Returns	Description
get()	IMUFrame or None	Get latest IMU data frame
get_timestamp()	float or None	Get timestamp only
get_accelerometer()	np.ndarray or None	Get accelerometer only
get_gyroscope()	np.ndarray or None	Get gyroscope only
get_magnetometer()	np.ndarray or None	Get magnetometer only
get_gravity()	np.ndarray or None	Get gravity vector only
get_user_acceleration()	np.ndarray or None	Get user acceleration only
get_attitude()	np.ndarray or None	Get attitude quaternion only
close()	None	Close connection

Note:

• The subscriber is iterable, so you can use for data in sub: to receive frames continuously.
• All get_*() methods accept an optional timeout parameter (default: 1000ms).

IMUFrame

Data object returned by get() or when iterating. For data format details and physical meanings, see IMU Data Format Reference above.

Properties:

Property	Type	Description
timestamp	float	Unix timestamp in seconds
accelerometer	np.ndarray	Accelerometer $[a_x, a_y, a_z]$ in G
gyroscope	np.ndarray	Gyroscope $[\omega_x, \omega_y, \omega_z]$ in rad/s
magnetometer	np.ndarray	Magnetometer $[m_x, m_y, m_z]$ in μT
gravity	np.ndarray	Gravity $[g_x, g_y, g_z]$ in G
user_acceleration	np.ndarray	User acceleration $[u_x, u_y, u_z]$ in G
attitude	np.ndarray	Attitude quaternion $[q_x, q_y, q_z, q_w]$

Helper Properties:

Property	Type	Description
has_accelerometer	bool	Check if accelerometer data exists
has_gyroscope	bool	Check if gyroscope data exists
has_magnetometer	bool	Check if magnetometer data exists
has_gravity	bool	Check if gravity data exists
has_user_acceleration	bool	Check if user acceleration exists
has_attitude	bool	Check if attitude data exists

JoystickDataSubscriber

Constructor:

JoystickDataSubscriber(ip, port=8020, hwm=1, conflate=True, verbose=False)

Parameters:

• ip (str): Publisher's IP address
• port (int): Port number (default: 8020)
• hwm (int): High water mark (default: 1, keeps only latest message)
• conflate (bool): Message conflation (default: True)
• verbose (bool): Print connection info (default: False)

Usage:

# Create subscriber
sub = JoystickDataSubscriber("192.168.1.100")

# Continuously receive data
for data in sub:
    print(f"Left: ({data.left_x}, {data.left_y})")
    print(f"Buttons: {data.buttons}")

# Close when done
sub.close()

Main Methods:

Method	Returns	Description
get()	JoystickFrame or None	Get latest data frame
get_timestamp()	float or None	Get timestamp only
get_left_joystick()	np.ndarray or None	Get left joystick only
get_right_joystick()	np.ndarray or None	Get right joystick only
get_buttons()	List[bool] or None	Get button states only
close()	None	Close connection

Note:

• The subscriber is iterable, so you can use for data in sub: to receive frames continuously.
• All get_*() methods accept an optional timeout parameter (default: 1000ms).

JoystickFrame

Data object returned by get() or when iterating.

Properties:

Property	Type	Description
timestamp	float	Unix timestamp in seconds
left_joystick	np.ndarray	Left joystick position [x, y] (0.0-1.0)
right_joystick	np.ndarray	Right joystick position [x, y] (0.0-1.0)
buttons	List[bool]	Button states [button1, button2, button3, button4]
left_x	float	Left joystick X (0.0-1.0, right is positive)
left_y	float	Left joystick Y (0.0-1.0, up is positive)
right_x	float	Right joystick X (0.0-1.0, right is positive)
right_y	float	Right joystick Y (0.0-1.0, up is positive)
button1	bool	Button 1 state
button2	bool	Button 2 state
button3	bool	Button 3 state
button4	bool	Button 4 state

Helper Properties:

Property	Type	Description
has_left_joystick	bool	Check if left joystick data exists
has_right_joystick	bool	Check if right joystick data exists
has_buttons	bool	Check if button data exists

Requirements

• Python >= 3.8
• numpy >= 1.20.0
• pyzmq >= 22.0.0
• protobuf >= 4.0.0
• opencv-python >= 4.5.0
• Pillow >= 8.0.0

License

MIT License
