asv-tachyon
Modern web UI for airspeed velocity results.
ASV’s built-in site is still jQuery + Flot + Bootstrap 3. asv-tachyon is a
drop-in shell over the same static data that asv publish already writes
(index.json, graphs/**, regressions.json). No server-side app, no new
result format, no second benchmark type.

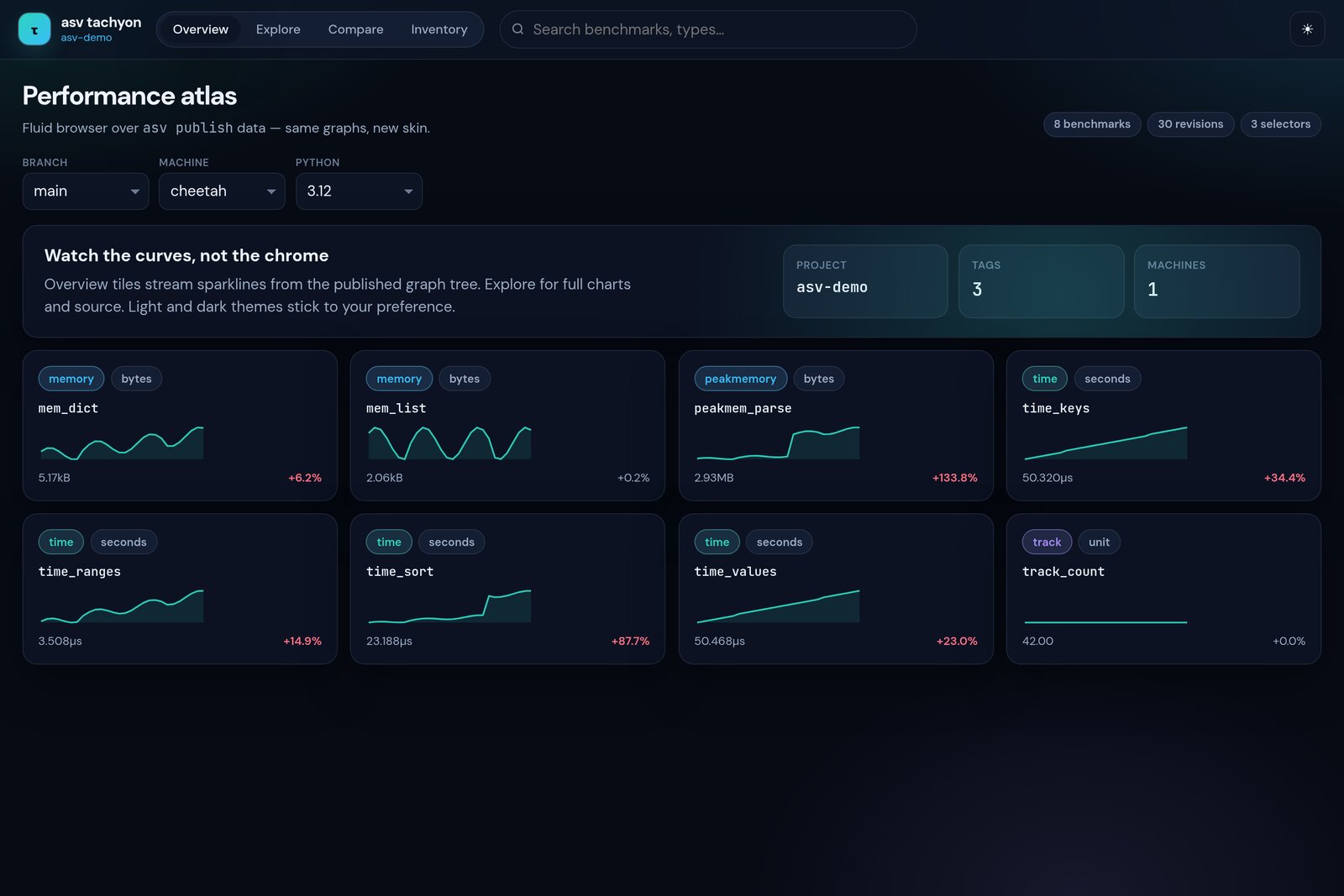

Overview — sparkline tiles over published ASV graphs
Gallery
| Compare (spyglass-style ratios) | Inventory (SBOM-style env lock) |
|---|---|
| Env or revision pairs · Before / After / Ratio · factor gate | added · removed · version-bumped · drop result JSON files |
| Tool | Job |
|---|---|
| asv | run benchmarks, write results, asv publish data |
| asv-tachyon | modern UI over that published tree |
| asv-spyglass | CLI compare + SBOM-style env-diff on result files |
| asv-perch | PR comment tables (CI) |
| asv_bench_tachyon | sample_* metric plugin (separate package) |
Install
pip install asv-tachyon
# or from a checkout after building the UI once
cd web && npm install && npm run build && cd ..
pip install -e .
Usage
asv run
asv publish
asv-tachyon serve .asv/html --open
Or replace the legacy index.html in place (keeps all graph JSON):
asv publish
asv-tachyon install .asv/html
asv-tachyon serve .asv/html
Demo without a project:
asv-tachyon serve fixtures/sample_site --open
What you get
- Overview — virtualized sparkline atlas, type/machine filter chips with counts, only-regressed filter, light/dark themes
- Explore — uPlot with CI bands, brush zoom, dual-cursor delta, tag
markers, commit tooltips (
commits.json), distribution violin/strip when samples exist, Report subview, multi-machine overlay, profile link (profiles.json) - Heatmap — last-N revision ratios ("what regressed"); click opens Explore
- Grid — multi-param summary table at latest revision
- Multiples — small-multiples sparkline wall

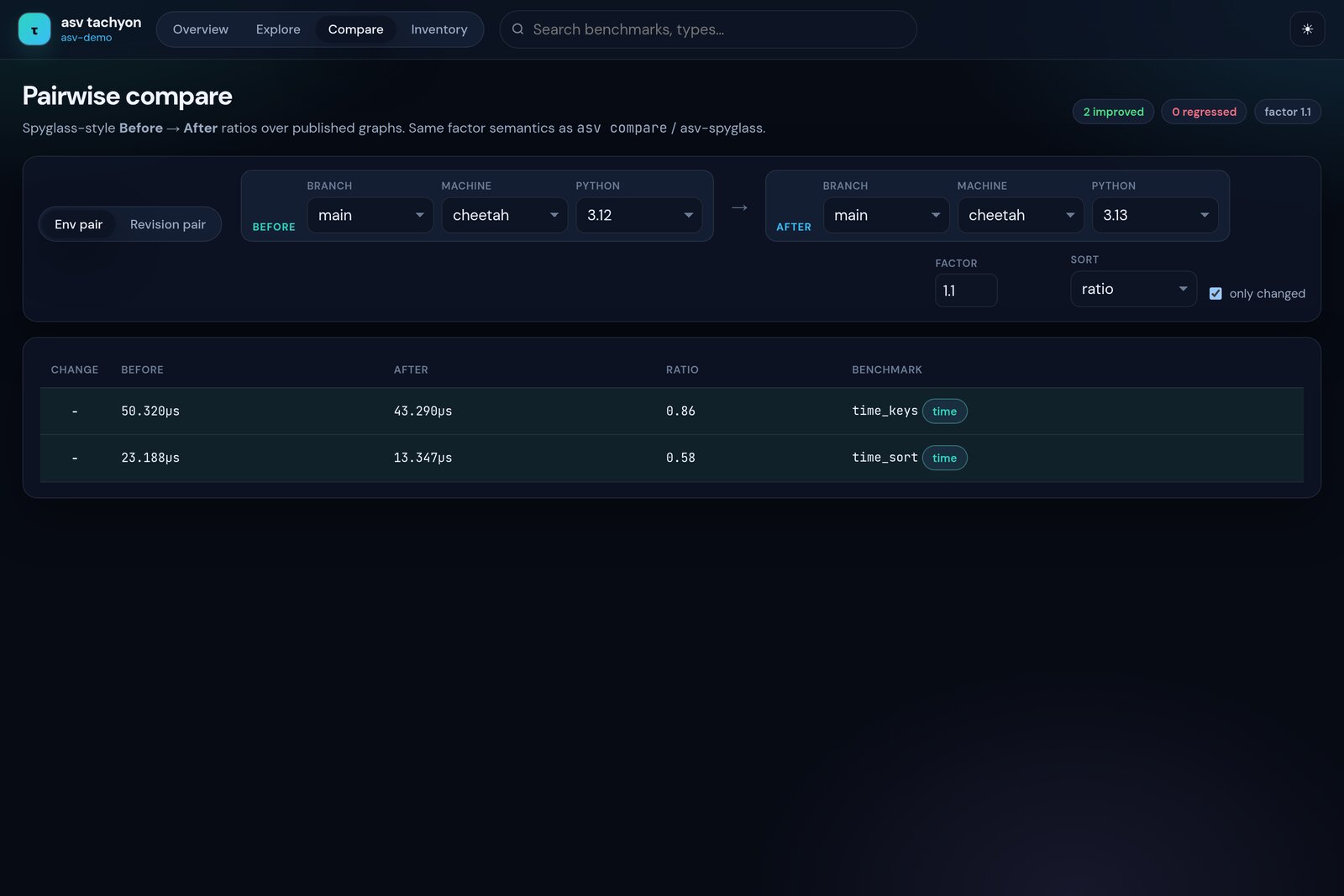

- Compare — multi-env compare-many columns from
graph_param_list, or revision pairs (same factor semantics asasv compare/ asv-spyglass) - Regressions —

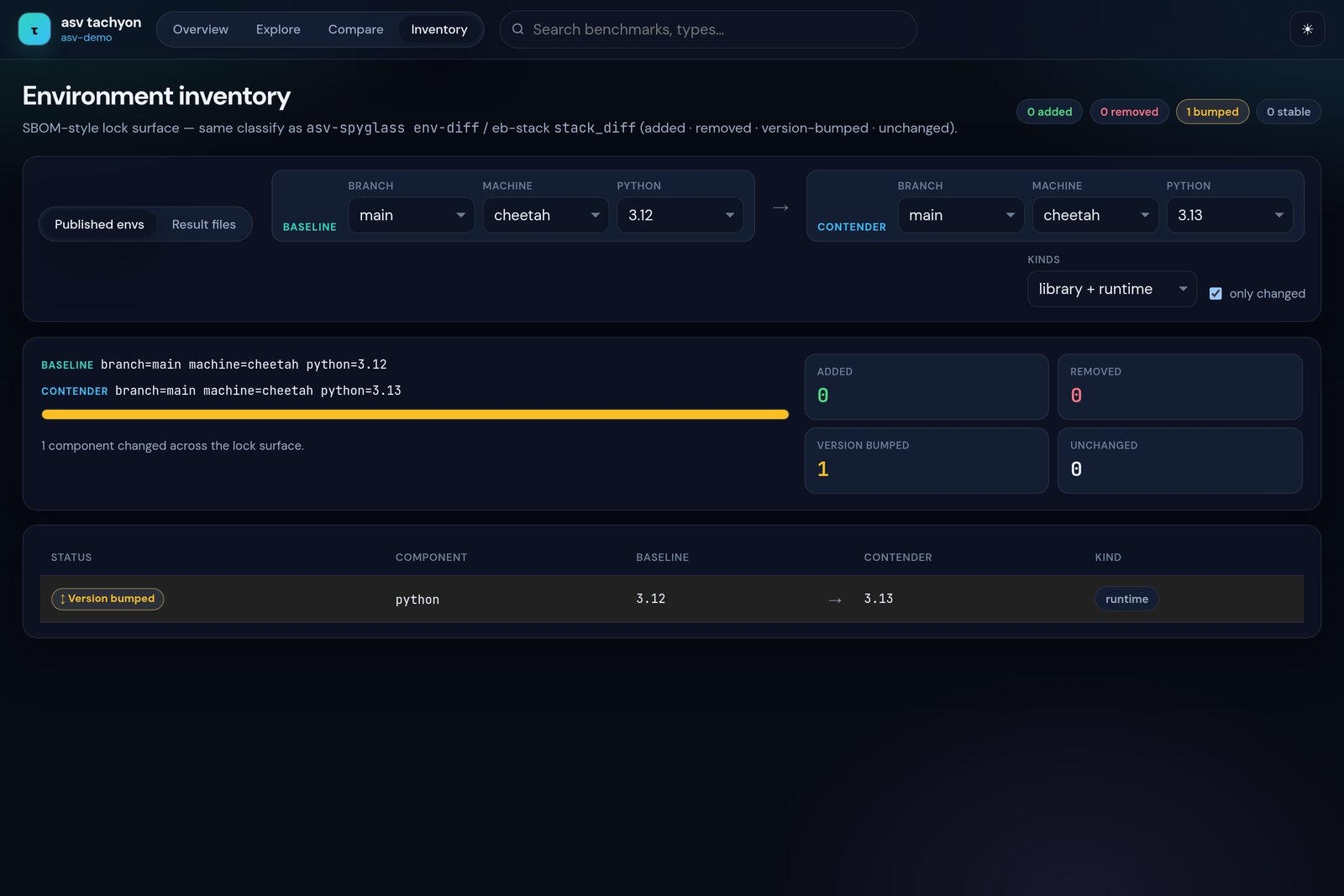

regressions.jsontable with factor threshold + mute list (localStoragekeyasv-tachyon-mute) - Inventory — SBOM-style env lock diffs (added / removed / version-bumped)
- Copy deep link — copies
location.hrefincluding hash filters - Print / PDF — print CSS for Compare / Inventory / Explore
- Throughput / higher-is-better when
typeistrack, unit containsops, orless_is_better: falsein benchmark meta - Self-hosted fonts (offline-safe; no Google Fonts CDN)
- Same data contract as the stock ASV site — see
docs/source/data-contract.rst for
index.json+graphs/**+regressions.jsonshapes
Optional sidecars (static)
| File | Role |
|---|---|
commits.json |
{ "<fullhash>": "subject" } or { "by_revision": { "12": "msg" } } for chart tooltips |
profiles.json |
{ "paths": { "<bench>@<rev>": "profiles/foo.html" } } — Explore "Open profile" |
| Extended graph points | [rev, { "v", "lo"?, "hi"?, "samples"? }] for CI bands + distribution |
samples/<same path as graph> |
sibling { "revision": [samples...] } if not inlined |
Adapters
Import foreign benchmark JSON into a minimal ASV html tree:
python adapters/criterion_to_asv.py path/to/target/criterion -o asv_html
python adapters/pytest_benchmark_to_asv.py bench.json -o asv_html
asv-tachyon serve asv_html --open
CI template
See docs/workflows/asv-studio.yml for a
commented GitHub Actions outline: asv publish → asv-tachyon install →
Pages; PR path with asv-perch / asv-spyglass; local spyglass recipe.
Development
# terminal 1: static data
asv-tachyon serve fixtures/sample_site -p 8765
# terminal 2: vite (optional hot reload)
cd web && npm install && npm run dev
Docs site (Sphinx + Shibuya):
pip install -e '.[docs]'
sphinx-build -b html docs/source docs/build/html
License
MIT.
