atspm-detector

Give it a signal controller's hi-res event log; for every vehicle detector it returns the phase, function, lanes, setback from the stop bar and health. No cabinet print needed: the answers come from how each detector behaves. Use it to build a signal's ATSPM detector configuration, or to check the one you have.

• Tested on 115 signals it never trained on: phase right for 98.0 % of detectors, function 91.7 % (30 minutes or more of log).
• More accurate than hand-labled configuration: phase wrong on 1.3 % of detectors, against 2.6 % by hand.
• Fast and light: one second per signal on CPU.

Contents: Detector functions · Install · Usage · Input · How much data · How it works · Accuracy · Detector health · License

Detector functions

Install

pip install atspm-detector   # Python 3.10 or newer

Usage

import pandas as pd
from atspm_detector import predict

events = pd.read_csv("events.csv")   # or pd.read_parquet (needs pyarrow)
events.head()

                               DeviceId                Timestamp  EventId  Parameter
0  d2d0de72-c8aa-45ca-ae1a-8fc626c5afc9  2024-12-03 12:00:00.000      150          7
1  d2d0de72-c8aa-45ca-ae1a-8fc626c5afc9  2024-12-03 12:00:00.000      320          0
2  d2d0de72-c8aa-45ca-ae1a-8fc626c5afc9  2024-12-03 12:00:00.000      318          3
3  d2d0de72-c8aa-45ca-ae1a-8fc626c5afc9  2024-12-03 12:00:00.000      316        120
4  d2d0de72-c8aa-45ca-ae1a-8fc626c5afc9  2024-12-03 12:00:00.600       13          6

results = predict(events)
results[["Detector", "phase_pred", "phase_prob", "function_pred", "function_prob",
         "lanes", "distance_ft", "health_status"]].round(2).head()

   Detector  phase_pred  phase_prob function_pred  function_prob lanes  distance_ft    health_status
0         2           2        0.99       Advance           0.90     2        164.0               ok
1         3           2        1.00       Advance           0.64   1,2        153.0               ok
2         4           2        1.00      Presence           0.40   1,2          0.0               ok
3         5           2        1.00       Advance           0.53     1        152.0               ok
4         6        <NA>         NaN           NaN            NaN   NaN          NaN  not_enough_data

From the bundled 30-minute sample; detector 6 had one actuation, too few to judge. One row per detector; main columns:

Under 5 actuations: no answer (guess in phase_guess, function_guess). return_phases=True also returns a phase table.

One signal or many. DeviceId separates signals. Each is processed on its own, so its answers are the same alone or in a batch. predict also takes a parquet or CSV path or glob, and start / end times. To build it into an application, see docs/embedding.md.

Input

One row per event, standard Indiana hi-res format: DeviceId (any signal id), Timestamp (controller local time), EventId, Parameter. Give it the whole log; unused event codes are dropped.

How much data

On the 115 test signals. Health runs on any length; time-of-day checks need a full day, night speed midnight to 5 am.

How it works

• In: detector on / off, signal colors and phase calls. The model never sees a phase or channel number; it scores each detector against every phase that turned green, from behavior alone.
• Models: gradient-boosted trees and a small neural network score each detector against each phase and function. A final step looks at the whole intersection to keep at most one detector of each ATSPM function per lane. Small models give lanes and setback. Health is checked last, by rules, and never changes an answer. All on the CPU with onnxruntime (8.5 MB of weights).

Accuracy

Measured once, on the final model, on 115 locked signals never used for training or tuning (30 minutes to 24 hours of log). Phase truth: controller timing (21,341 detector samples, 113 signals). Function truth: configuration export checked against cabinet prints (87 signals). Detectors with no actuations or no green on their phase are not scored. All labels come from one agency; other agencies' conventions may differ.

• Phase: 98.0 % (95 % interval 97.0-98.9 %). Most errors are between through phases nearly always green together (2 and 6, 4 and 8).
• Function: 91.7 % (88.7-94.0 %), ATSPM errors only, excluding detectors whose label the model picked (print vs hand label). By true class: Advance 93.9 %, Presence 95.2 %, Count 96.6 %, Yellow_Red 89.5 %, Other 81.8 %.
• Lanes: lane count per phase exact for 82.5 % of phases, within one for 97.5 % (298 phases).
• Setback: median error 36 ft (59.9 % within 50 ft; Advance, 25 signals); 23.9 ft in cross-validation.
• Night speed: an approach speed, not the posted speed; two nights agree to a median of 1.5 mph.
• Speed: 0.8 s per signal for 30 minutes of log, 1.7 s for 24 hours; 250-400 MB of memory.

Against hand labels (signals not trained on): phase wrong on 1.3 % of 4,636 detectors (hand labels 2.6 %); function off the cabinet print on about 6 % of 5,254 (hand labels 9.7 %). Where model and hand label differed, the timing backed the model 104 times to 24, the print 398 to 177. Prints can be out of date.

Health: flagged 19 of 20 detectors a traffic engineer judged faulty, and none of the 12 judged fine. Flagged (suspect or bad) per 100 detectors: 0.4 on 30 minutes, 1.2 on 3 hours, 3.9 on 24 hours. Not field-verified.

Detector health

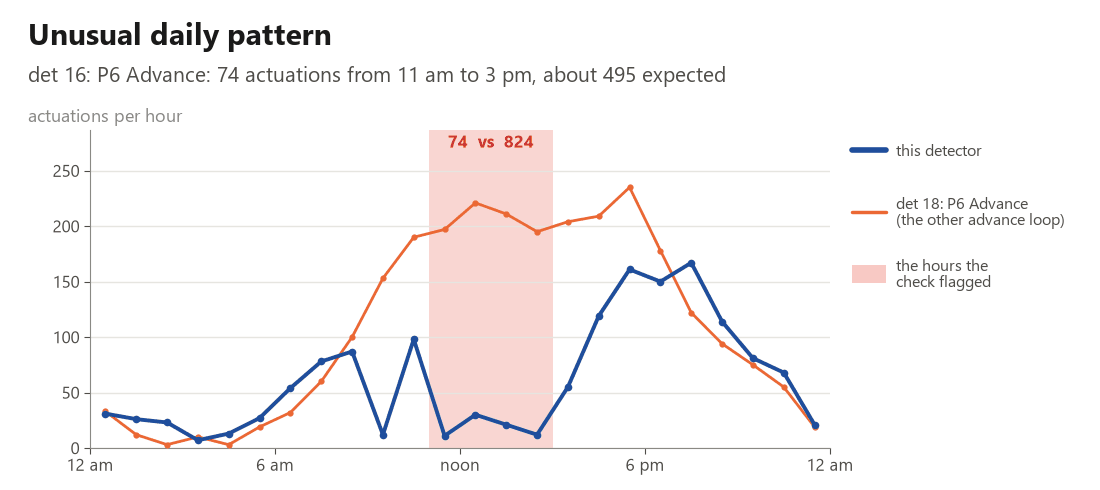

Each detector gets a status, a plain-words reason, the periods affected and the categories, judged against what is normal for its type (function x lanes x sample length). Checks: stuck on, goes silent, count drops, misses vehicles at night, erratic counts, too-fast actuations, chattering, too many for the traffic, erratic time ON, busy at night, unusual daily pattern, Count zone held ON. Bad = one strong finding, two checks agreeing, or 4+ hours of the day.

License

MIT
