Aye Arr: Infrared TX/RX library for RP2040/2350 MicroPython

Aye Arr

An infrared TX/RX MicroPython library for Raspberry Pi Pico/RP boards

• Introduction
• Hardware
• Installing
  • mip
• Examples
• Documentation

Introduction

Aye Arr is a MicroPython library for sending and receiving infrared remote signals on Raspberry Pi Pico/RP boards. It uses the RP's PIO to handle the timing of IR pulses.

The library consists of two layers:

• NEC - a protocol layer for acting as or listening for consumer remote controls.
• Pulse - the underlying creation and decoding of infrared pulses with a carrier frequency.

Hardware

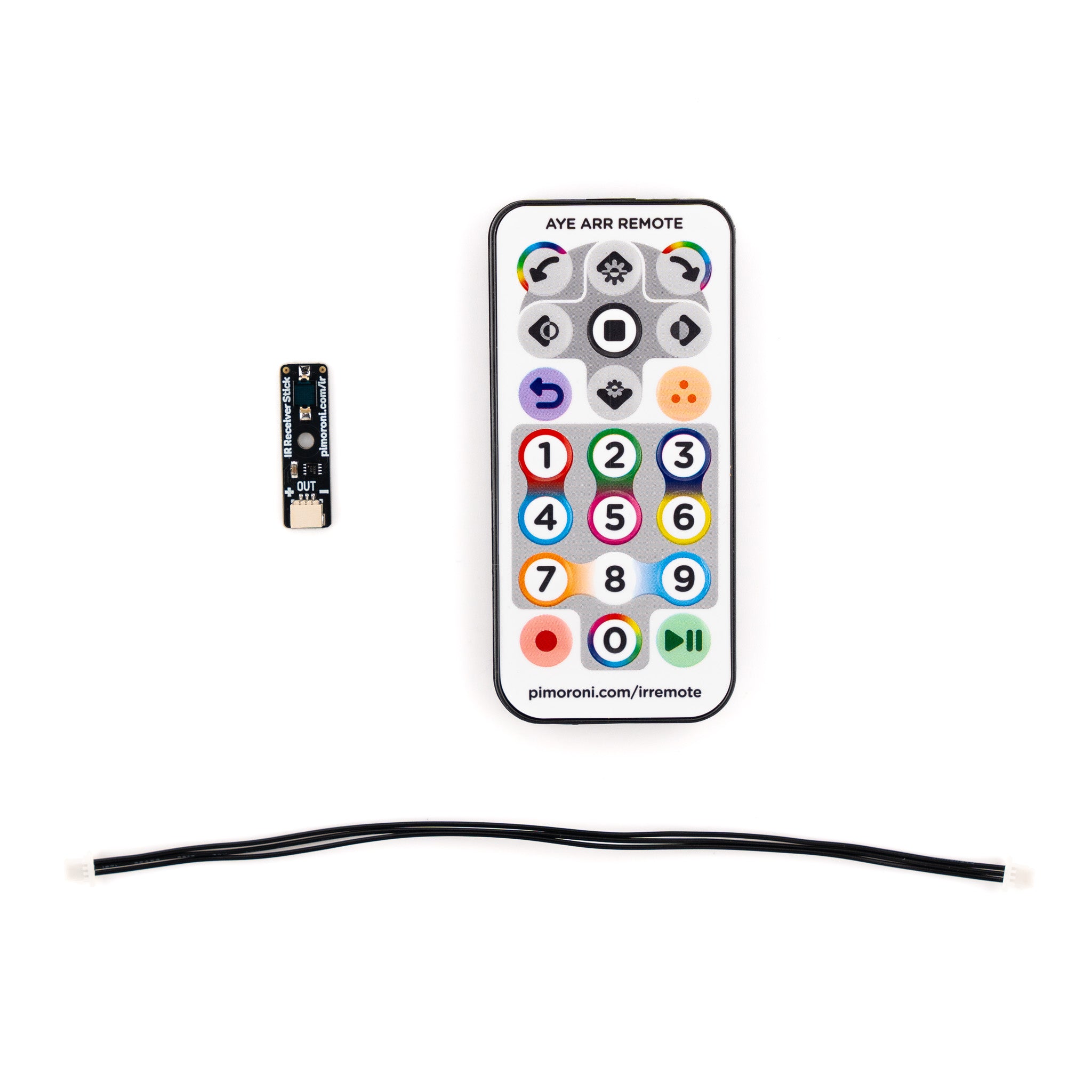

For transmission projects using Aye Arr you need an infrared LED (with suitable current limiting resistor) connected up to a GPIO pin of your RP board. For receiving projects using Aye Arr you need an infrared photodiode with a 38KHz receiver module, such as our IR Receiver Stick, connected to a GPIO pin of your RP board.

Installing

mip

If your board is online and has mip you should be able to run:

import mip
mip.install("github:org/pimoroni/aye_arr/package.json")

Otherwise, using Tools -> Manage Packages in Thonny, locate the aye_arr package and install it as normal.

You can also install this library manually by copying the aye_arr directory in this repo to your board. To do this, click on the down arrow next to <> Code, click on Download ZIP, then unzip the file and copy the aye_arr folder within it over to your RP board via Thonny.

Examples

There are a variety of examples to get you started with Aye Arr, located in the examples folder of this repository:

• Examples

Documentation

To take Aye Arr further, function references for the Aye Arr library can be found at:

• NEC Reference
• NEC Remote Reference
• Pulse Reference

Changelog

1.0.0

• Initial Release
