🇧🇩 bangla-render

Bengali Text Rendering for Matplotlib & Seaborn (with full OpenType shaping)

bangla-render is the first open-source Python library that enables fully correct Bengali text rendering inside Matplotlib and Seaborn.

Matplotlib cannot shape Bengali text — it does not use HarfBuzz and therefore fails with:

• Matra (ি, ী, ু, ূ, ৃ)
• Reph (র্)
• Juktakkhor (জ্ঞ, ক্ষ, ন্দ, ত্ম, ন্ত …)
• GSUB/GPOS OpenType shaping

So Bengali titles, axis labels, annotations, and heatmap text become broken, disjoint, or scrambled.

💡 bangla-render solves this completely. It uses Qt's HarfBuzz engine to shape Bengali correctly, renders it into an RGBA image, and overlays it into Matplotlib using OffsetImage, bypassing Matplotlib's broken text renderer entirely.

---

✨ What's New in v0.2

Area	Change
Architecture	Single file split into 5 dedicated modules
Font handling	Auto-discovery, validation & fallback chain
Performance	LRU render cache (256 entries, ~4× speedup on repeated labels)
Layout engine	Full BanglaLayoutManager — event-driven, multi-subplot aware
Tick labels	New set_bangla_xticks() / set_bangla_yticks()
Indic scripts	Hindi (Devanagari) and Tamil verified out-of-the-box
Environment	Headless / Colab / Kaggle detection in backend.py
Test suite	Benchmark, debug JSON reports, 4-subplot and multi-subplot tests

---

✨ Features

✔ Full Bengali OpenType shaping

• Correct matra placement
• Proper conjunct formation
• Reph, rafar, vowel signs
• Multi-line paragraph shaping
• True Unicode (no ANSI/Bijoy hacks)

✔ High-level Matplotlib API

br.set_bangla_title(ax, "বাংলা শিরোনাম")
br.set_bangla_xlabel(ax, "এক্স অক্ষ")
br.set_bangla_ylabel(ax, "ওয়াই অক্ষ")
br.set_bangla_xticks(ax, positions, ["একটি", "দুটি", "তিনটি"])
br.set_bangla_yticks(ax, positions, ["রাগ", "আনন্দ", "ভয়"])
br.text(ax, 0.5, 0.5, "মাঝখানে", coord="axes")

✔ Heatmap and confusion-matrix support

br.add_bangla_in_cell(ax, row, col, "খুশি", rows, cols)

✔ Automatic layout engine

apply_bangla_layout(fig, auto=True) measures every placed label using the Matplotlib renderer and adjusts margins so titles, tick labels, and axis labels never overlap — correctly for any number of subplots.

✔ Works everywhere

• Matplotlib and Seaborn
• Jupyter / JupyterLab / VS Code
• Windows 10/11, macOS, Linux
• Any Matplotlib backend (Agg, TkAgg, QtAgg, …)

---

🔍 Before & After Comparison

Line Plot

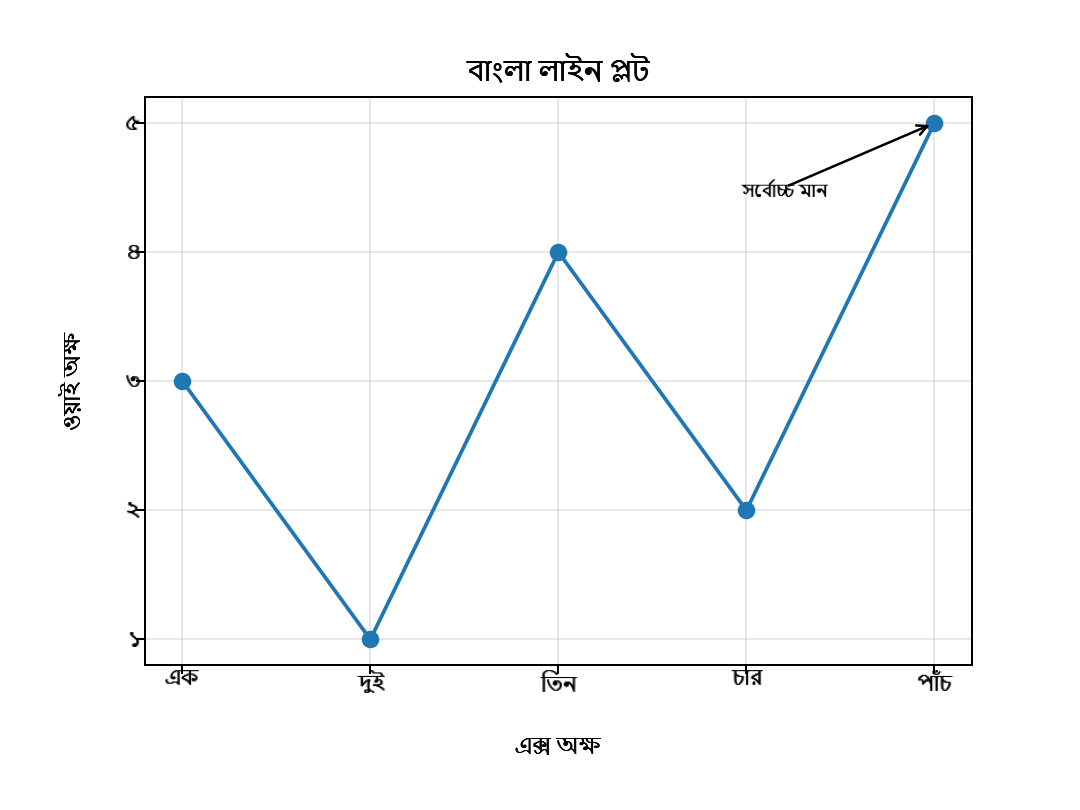

Default Matplotlib	With bangla-render

Heatmap

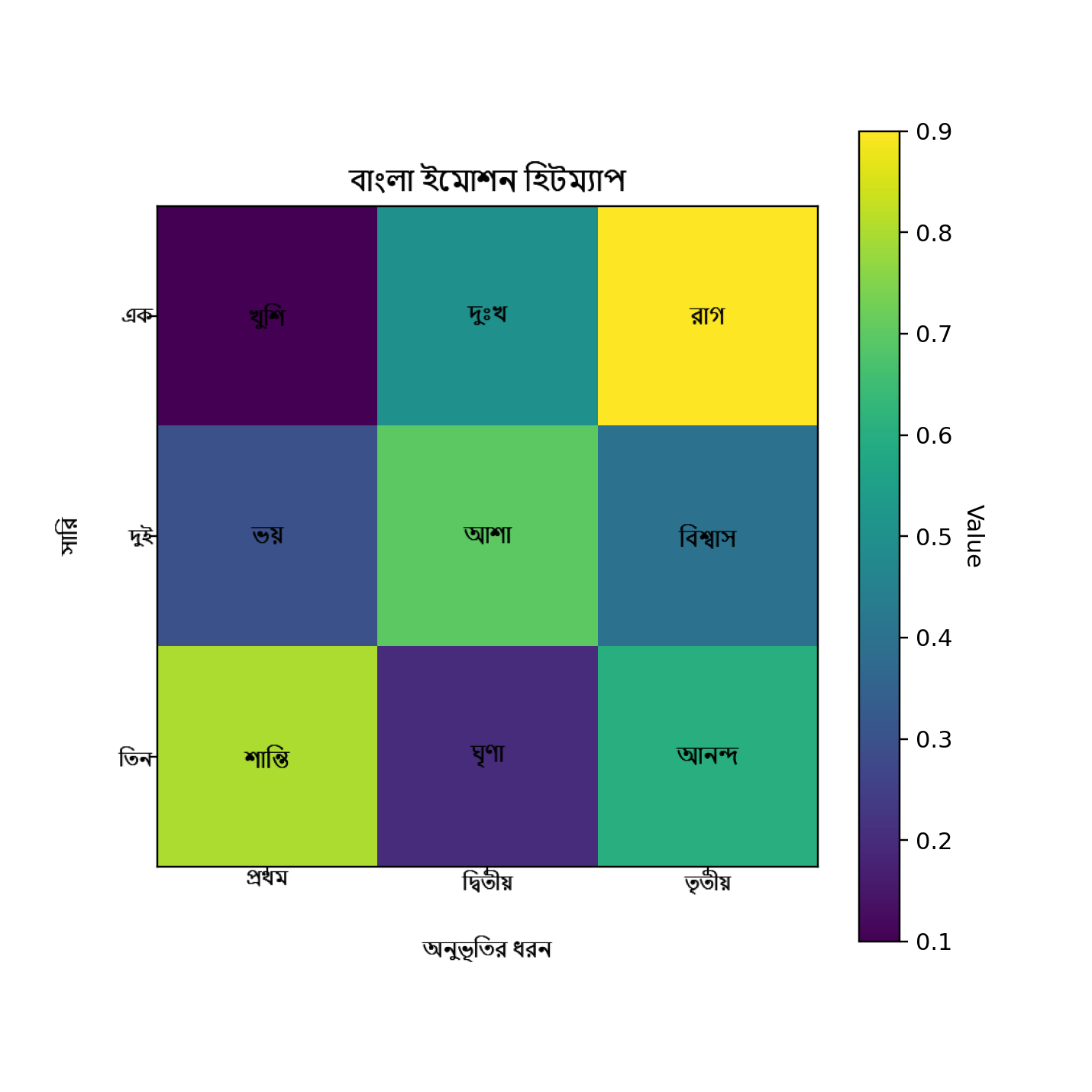

Before	After

Confusion Matrix

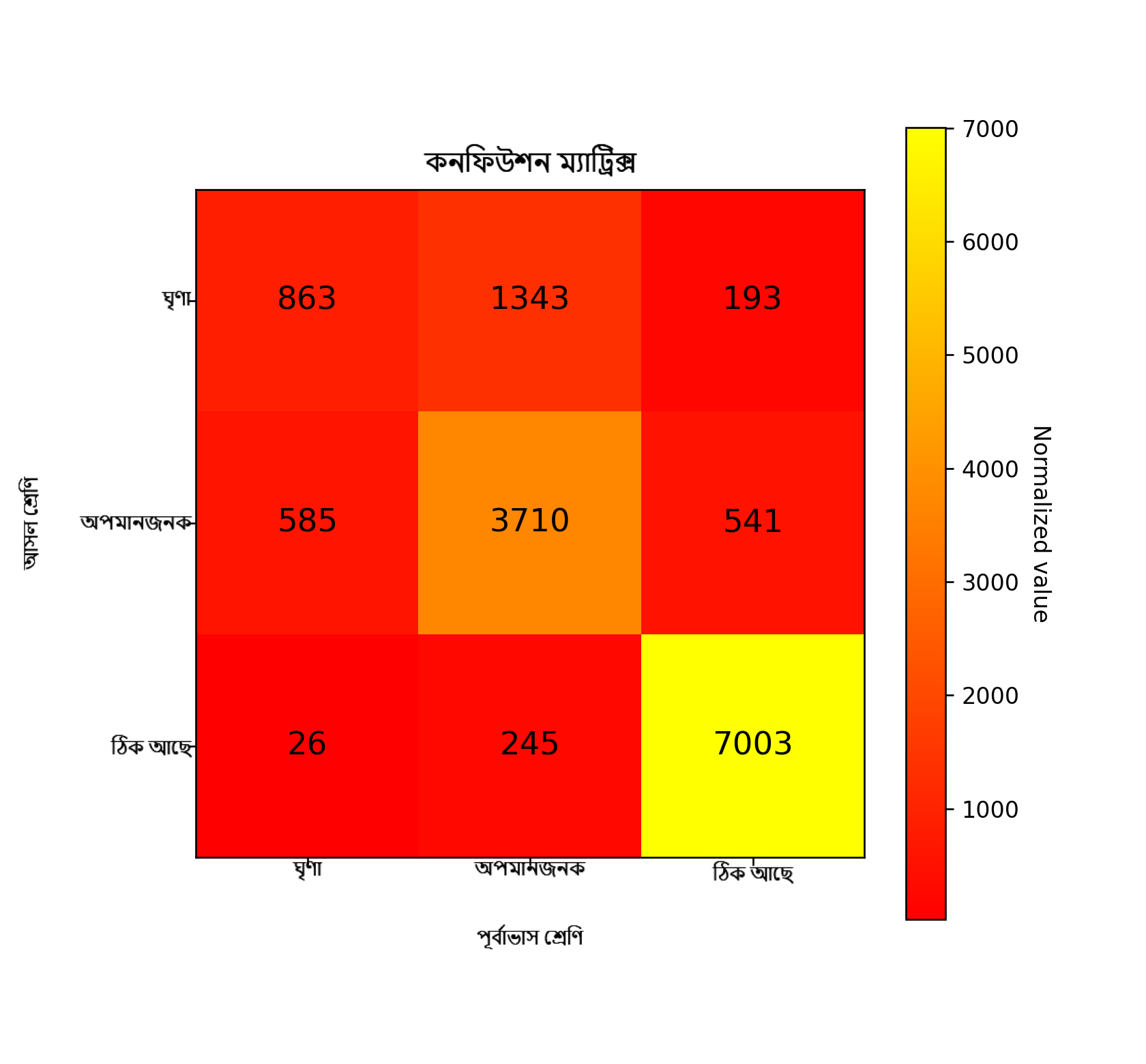

Before	After

---

🔥 Why This Library Exists

Matplotlib cannot shape Indic scripts. Even with Bangla fonts installed, it produces:

• Disjoint characters
• Wrong glyph order
• Broken juktakkhor
• Incorrect matra positioning

Existing "solutions" only work for very simple words like ভয়, রাগ — but fail completely for:

• খুশি
• দৃষ্টিভঙ্গি
• শ্রদ্ধা
• ব্যবস্থাপনা
• হাস্যোজ্জ্বল
• পর্যালোচনায়
• And any real paragraph

Before bangla-render, there was:

• No PyPI library
• No correct Bengali shaping
• No Seaborn heatmap support
• No way to set Bengali xlabel/ylabel/title
• No Unicode-safe method

bangla-render fills this gap for the first time.

---

📦 Installation

pip install bangla-render

Dependencies (installed automatically):

Package	Purpose
PySide6	Qt / HarfBuzz shaping engine
NumPy	RGBA array conversion
Matplotlib	Plot integration

Font note: On Windows, Nirmala UI (built-in) is used automatically.
On Linux / macOS, install Noto Sans Bengali:
sudo apt install fonts-noto or brew install font-noto-sans

---

🚀 Quick Start

Line plot

import matplotlib.pyplot as plt
import bangla_render as br

br.init_renderer()                          # initialise Qt once

fig, ax = plt.subplots(figsize=(6, 4))

ax.plot([1, 2, 3, 4, 5], [2, 4, 3, 5, 4])

br.set_bangla_title(ax,  "রেখাচিত্র")
br.set_bangla_xlabel(ax, "সময় (মাস)")
br.set_bangla_ylabel(ax, "মান")
br.set_bangla_xticks(ax, [1, 2, 3, 4, 5],
                    ["জানু", "ফেব্রু", "মার্চ", "এপ্রিল", "মে"])

br.apply_bangla_layout(fig, auto=True)
plt.savefig("line_plot.png", dpi=150)
plt.show()

Heatmap

import seaborn as sns
import numpy as np
import matplotlib.pyplot as plt
import bangla_render as br

br.init_renderer()

data  = np.random.rand(3, 3)
words = [["খুশি", "রাগ", "আশা"],
         ["ভয়",  "বিস্ময়", "শান্তি"],
         ["ঘৃণা", "আনন্দ", "সুখ"]]

fig, ax = plt.subplots(figsize=(6, 6))
sns.heatmap(data, ax=ax, cbar=True,
            xticklabels=False, yticklabels=False)

rows, cols = data.shape
for i in range(rows):
    for j in range(cols):
        br.add_bangla_in_cell(ax, i, j, words[i][j], rows, cols)

br.set_bangla_title(ax,  "বাংলা হিটম্যাপ")
br.set_bangla_xlabel(ax, "পূর্বাভাস শ্রেণি")
br.set_bangla_ylabel(ax, "আসল শ্রেণি")

br.apply_bangla_layout(fig, auto=True)
plt.savefig("heatmap.png", dpi=150)
plt.show()

Multi-subplot figure

import matplotlib.pyplot as plt
import bangla_render as br

br.init_renderer()

fig, axes = plt.subplots(1, 2, figsize=(12, 5))

# Left subplot
axes[0].plot([1, 2, 3], [3, 1, 4])
br.set_bangla_title(axes[0],  "বাম প্লট")
br.set_bangla_xlabel(axes[0], "সময়")
br.set_bangla_ylabel(axes[0], "মান")

# Right subplot — with colorbar (ylabel auto-skipped when blocked)
import numpy as np
im = axes[1].imshow(np.random.rand(3, 3), cmap="viridis")
fig.colorbar(im, ax=axes[1])
br.set_bangla_title(axes[1],  "ডান হিটম্যাপ")
br.set_bangla_xlabel(axes[1], "কলাম")

br.apply_bangla_layout(fig, auto=True)
plt.savefig("multisubplot.png", dpi=150)
plt.show()

---

🌐 Other Indic Scripts

The rendering pipeline is language-agnostic — pass any Brahmic script Unicode string and a matching OpenType font:

# Hindi (Devanagari) — uses Nirmala UI on Windows
br.set_bangla_ylabel(ax, "वास्तविक वर्ग",
                    font_family="Nirmala UI")

# Tamil — same font on Windows
br.set_bangla_ylabel(ax, "உண்மை வகை",
                    font_family="Nirmala UI")

Verified scripts: Bengali, Hindi (Devanagari), Tamil.
Expected to work (font availability required): Assamese, Odia, Gujarati, Gurmukhi, Sinhala.

---

🧩 API Reference

Initialisation

Function	Description
init_renderer()	Initialise Qt application (call once at startup)
check_environment()	Report Qt status, headless mode, Colab/Kaggle detection
get_renderer_status()	Detailed Qt initialisation info

Font utilities

Function	Description
find_best_bangla_font()	Return the best available Bengali font name
list_available_fonts()	List all system fonts
list_bangla_candidate_fonts()	List Bengali candidate fonts found on system

Plot labels

Function	Description
set_bangla_title(ax, text, **kw)	Set per-axes title
set_bangla_xlabel(ax, text, **kw)	Set x-axis label
set_bangla_ylabel(ax, text, **kw)	Set y-axis label
set_bangla_xticks(ax, positions, labels, **kw)	Set x-axis tick labels
set_bangla_yticks(ax, positions, labels, **kw)	Set y-axis tick labels

Annotations

Function	Description
bangla_text(ax, x, y, text, coord="axes", **kw)	Place text at arbitrary coordinates
add_bangla_in_cell(ax, row, col, text, rows, cols, **kw)	Annotate heatmap / matrix cell

Layout

Function	Description
apply_bangla_layout(fig, auto=False, **kw)	Adjust margins; auto=True measures placed artists

Cache

Function	Description
get_render_cache_info()	Return cache hit/miss counts and occupancy
clear_render_cache()	Clear the LRU cache (useful before benchmarking)

Low-level rendering

Function	Description
render_text(text, output_path, **kw)	Render text to a PNG file
render_text_qimage(text, **kw)	Render text to a QImage (internal use)
render_paragraph(text, output_path, **kw)	Render multi-line paragraph to PNG

---

🏗 Architecture

bangla-render v0.2 — five-module architecture
─────────────────────────────────────────────
backend.py      Qt application lifecycle, headless / Colab / Kaggle detection
fonts.py        Font discovery, validation (conjunct/matra test), fallback chain
renderer.py     HarfBuzz shaping via Qt, QImage rasterisation, LRU cache
layout.py       BanglaLayoutManager — event-driven, multi-subplot, colorbar-aware
mpl_support.py  Public Matplotlib API — all set_bangla_* functions

---

⚡ Performance

Measured on Windows 10, Python 3.11.9, font: Nirmala UI, N = 50 calls, cold cache.

Text category	Median (ms)	Cache hit (ms)
Simple word (3–4 chars)	0.27	0.06
Conjunct consonant	0.32	0.07
Complex multi-conjunct	0.40	0.08
Axis label (medium)	0.57	0.10
6×6 heatmap (36 cells, batch)	10.5 ms total	—

The LRU cache delivers roughly a 4× speedup for repeated labels.

---

🧪 Running the Test Suite

git clone https://github.com/mbs57/bangla-render.git
cd bangla-render
pip install -e .
python tests/test_suite.py

Outputs saved to test_outputs/. Debug JSON reports saved to test_outputs/debug/.
Benchmark results saved to test_outputs/benchmark_results.txt and .json.

---

🗺 Roadmap

• v0.1 — Bengali rendering for title, xlabel, ylabel, heatmap cells
• v0.2 — Five-module architecture, font validation, LRU cache, tick labels, Indic scripts, layout engine
• v0.3 — Mixed Bengali + MathText ($\alpha$) support
• v0.4 — Vector output via SVG path extraction
• v0.5 — Extend verified Indic support: Odia, Gujarati, Malayalam, Telugu
• v1.0 — Production-ready stable release and full documentation site

---

📄 License

MIT License — free for personal, academic, and commercial use.

---

📖 Citation

If you use bangla-render in research, please cite:

@article{shuvo2025banglarender,
  title   = {bangla-render: Correct Bengali Text Rendering for
             Matplotlib \& Seaborn Using Qt/HarfBuzz},
  author  = {Shuvo, Mrinal Basak},
  journal = {SoftwareX},
  year    = {2025},
  note    = {Under review, Manuscript SOFTX-D-25-00884}
}

---
