BatchLens Bio

English | 简体中文

Experimental-design and batch-confounding audits for single-cell and spatial metadata.

BatchLens checks declared experimental units, target-by-batch coverage and whether a specific contrast is estimable under an additive fixed-effects model. It produces an offline HTML report, JSON findings and auditable tables. It never fits or corrects expression data.

GitHub Releases · PyPI · Browser / desktop guide

Why another tool?

Keep using scIB/kBET/LISI for integration evaluation. Good embedding mixing cannot recover information absent from an experimental design. If D0 samples were processed only in run A and D7 only in run B, time + run cannot distinguish the time effect from run.

BatchQC and ExploreModelMatrix already provide valuable confounding/design diagnostics. BatchLens offers a narrowly scoped CLI, local browser UI and desktop app that connects experimental-unit checks, explicit contrasts, machine-readable findings and offline delivery. It is a workflow tool using established linear algebra, not a new statistical method. See competitor research.

Open the app or local browser

Desktop: download the Mac .dmg or Windows Setup.exe from GitHub Releases. Open BatchLens Bio, add your sample table and design file, then click Run Audit. Python, pip and a virtual environment are included in the app; users do not install them. See desktop installation and signing status. The 0.2.0 alpha installers are not Apple-notarized or Windows Authenticode signed.

Local browser: with Python 3.12 or 3.13, install version 0.2.0 or this checkout, then run:

python -m pip install batchlens-bio==0.2.0
batchlens serve

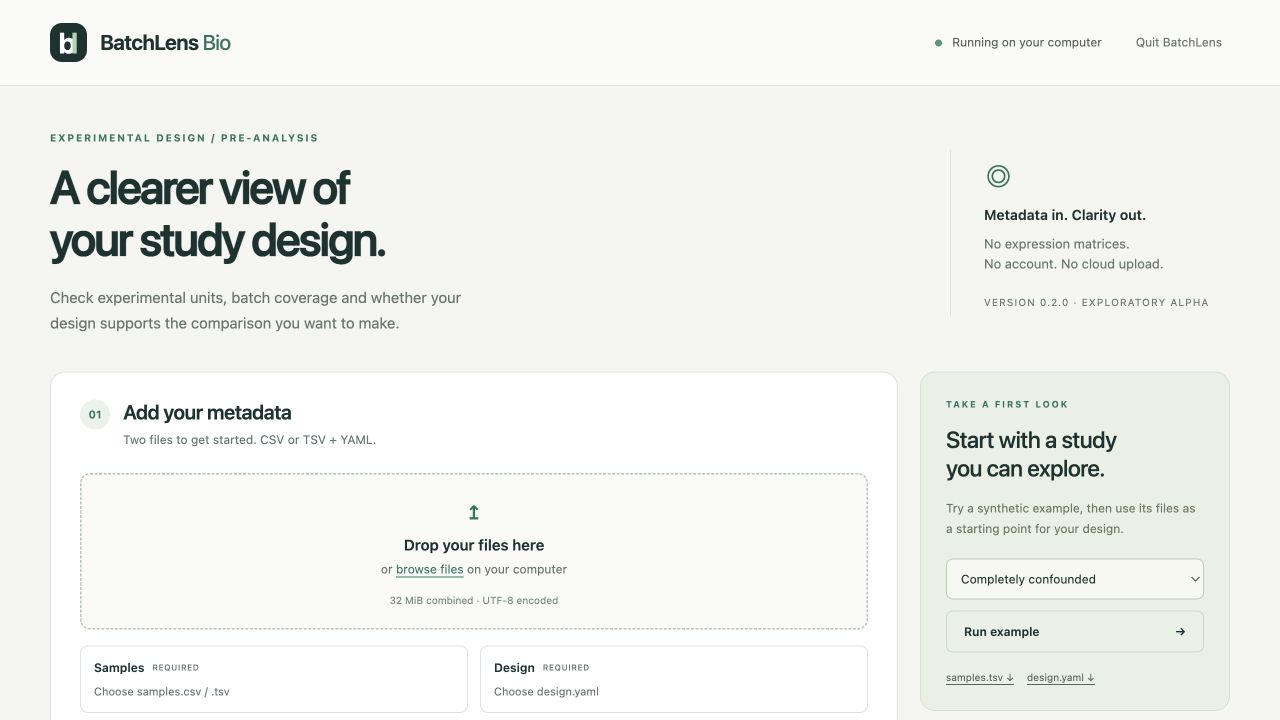

Your browser opens http://localhost:<free-port>/<session-key>/. Drag in samples.csv / samples.tsv and design.yaml, click Run Audit, and read the report directly in the page. Optional observations and assays are supported. Save HTML exports the offline report; Download report bundle includes JSON, tables and provenance. Completed bundles are also saved under ~/BatchLens Audits.

The UI runs on your computer with no cloud upload. Raw inputs are held in memory; reports remain on disk after closing. Files may total up to 32 MiB. --no-browser, --port and --out customize the local server. Full interface guide.

Try a synthetic study: click Run example in either interface, or use the original CLI:

batchlens demo --case balanced --out demo-balanced
batchlens demo --case confounded-time --out demo-confounded --fail-on none

Seven offline demos ship with every installation: balanced, confounded-time, partial-overlap, redundant-nuisance, paired, spatial-replicates, mixed-assays. The intentional confounding example shows NON_ESTIMABLE; --fail-on none changes the CLI exit policy without hiding findings. Each CLI output path must be new and have an existing parent.

For source installation, clone this repository and run python -m pip install ..

Offline report preview · Public spatial example

Your metadata

Prepare a CSV/TSV with one row per sample and a YAML design declaration. IDs are strings; declare the true experimental unit rather than assuming every cell or spot is independent.

batchlens validate --samples samples.tsv --design design.yaml
batchlens audit --samples samples.tsv --design design.yaml --out audit-001
batchlens audit --samples samples.tsv --design design.yaml \
  --observations cells.tsv --assays assays.tsv --out audit-002

The input guide specifies columns and includes a complete configuration. Export only metadata from your analysis environment; h5ad, expression matrices and spatial images are not required or read.

Understand the result

Rank deficiency does not necessarily invalidate every contrast. Partial target-by-batch overlap is not automatically complete confounding. More cells or technical sections do not create more experimental units. See methods and interpretation.

Output and automation

• report.html: self-contained, no network or JavaScript required.
• result.json: versioned design, findings, contrast results and numerical evidence.
• tables/*.tsv: sample/unit coverage and optional annotation summaries.
• manifest.json: input/output SHA256 hashes, environment and dependency versions.
• COMPLETE: written last; its absence indicates an incomplete bundle.

IDs are replaced with local aliases; labels/design values can still identify people. Review all outputs before sharing. No original ID map, absolute input paths or cell-level rows are exported. TSV formula-like labels are prefixed with an apostrophe for spreadsheet safety; JSON preserves original scientific labels.

Exit codes: 0 completed, 1 internal failure, 2 input/output error, 3 findings exceed policy. --fail-on critical is the default. Use --fail-on warning in strict CI so unsupported models do not pass silently; --fail-on none changes only exit behavior. A successful validate command does not test estimability.

Supported scope

Independent: one sample per declared experimental unit. Paired: one sample at each of two target levels per unit, with an explicit unit block. Categorical target; additive categorical/numeric adjustment. Multi-batch samples and more complex repeated sampling produce NOT_ASSESSED, never silent aggregation. No interaction terms, mixed-effects inference, power analysis, causal inference, spatial correlation test or batch correction.

Metadata-only audits cannot verify randomization, independence or unmeasured confounding. The study specification is supplied by the analyst. Near-singular designs require numerical review. Current resource guard: at most 100,000 samples and 256 encoded columns; this is a safety limit, not a performance guarantee.

Development and verification

uv sync --locked --no-editable
uv run --no-editable pytest
uv run --no-editable ruff check .
uv run --no-editable mypy
uv run --no-editable python -m build
uv run --no-editable twine check dist/*.whl dist/*.tar.gz

The validation record distinguishes executed tests from pending external evidence. R's model.matrix/QR supplies an independent oracle for selected scientific fixtures; see scripts/verify_r_oracle.R. The CI and release workflows validate tests, package installation outside the source directory, and demo output. Remote CI success is claimed only with a recorded run URL.

See CONTRIBUTING.md, CITATION.cff, release checklist and CHANGELOG.md. MIT-licensed code and synthetic examples; public datasets have their own provenance and terms.

Project status and feedback

BatchLens is an exploratory alpha project with completed automated tests and clean-install verification. It still needs evaluation in more real research settings; external user validation and independent scientific review are not yet completed. The validation record documents completed checks and outstanding evidence.

Maintainer: guatou904. Usage feedback, minimal reproducible examples and statistical-method suggestions are welcome via GitHub Issues. Use synthetic inputs and include the software version when reporting installation or scientific issues. The next iteration prioritizes fixes and actual user feedback.
