Show sparsity patterns of sparse matrices

Project description


PyPi Version PyPI pyversions GitHub stars PyPi downloads


gh-actions codecov LGTM Code style: black

Show sparsity patterns of sparse matrices or write them to image files.


import betterspy
from scipy import sparse

A = sparse.rand(20, 20, density=0.1)

# betterspy.plot()
# set attributes on gca()
# or directly

    # border_width=2,
    # border_color="red",
    # colormap="viridis"
no colormap viridis

There is a command-line tool that can be used to show matrix-market or Harwell-Boeing files:

betterspy msc00726.mtx [out.png]

See betterspy -h for all options.

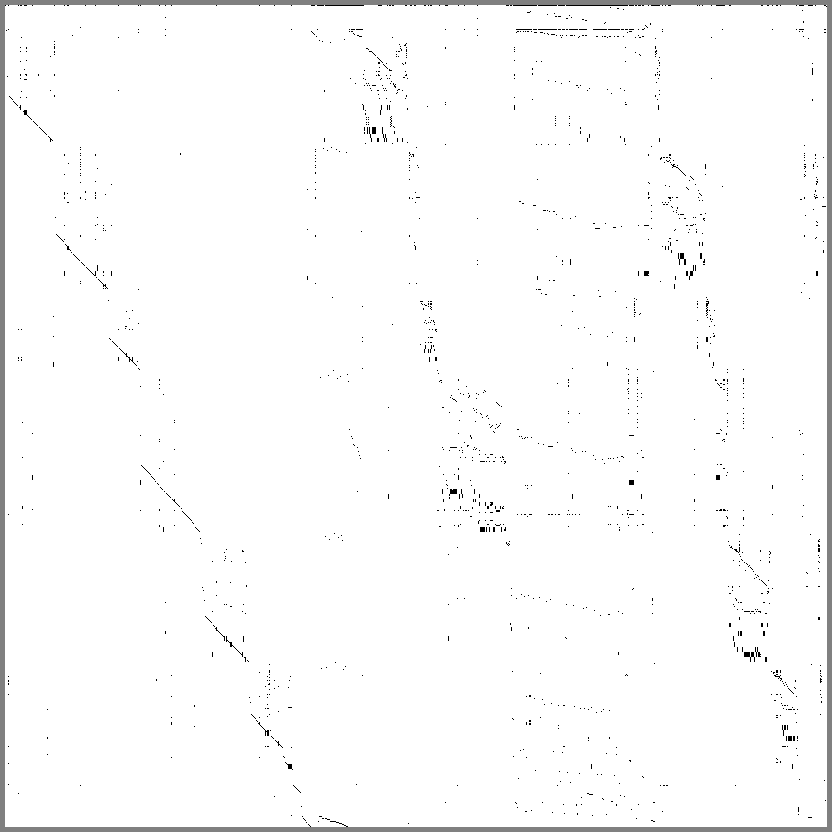

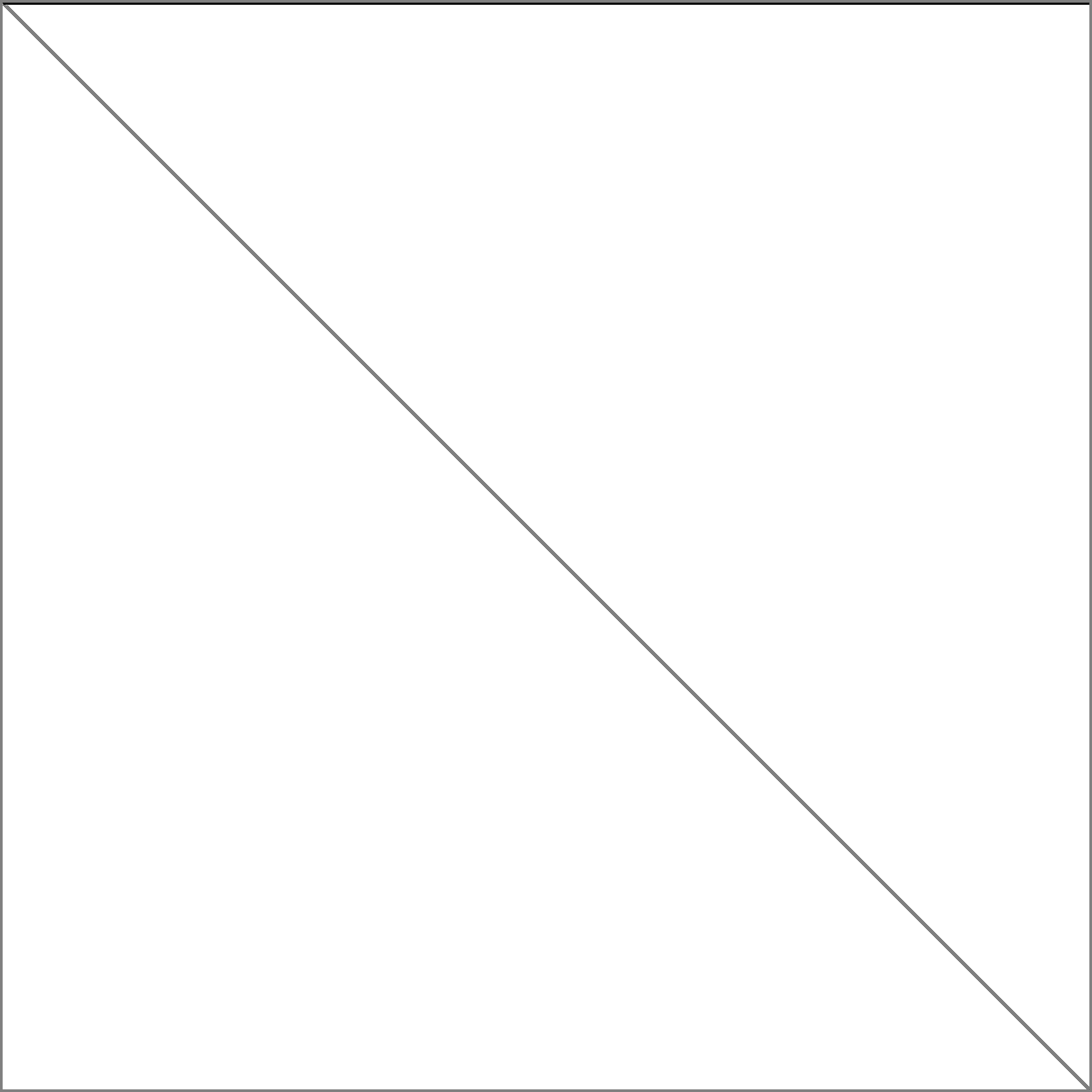

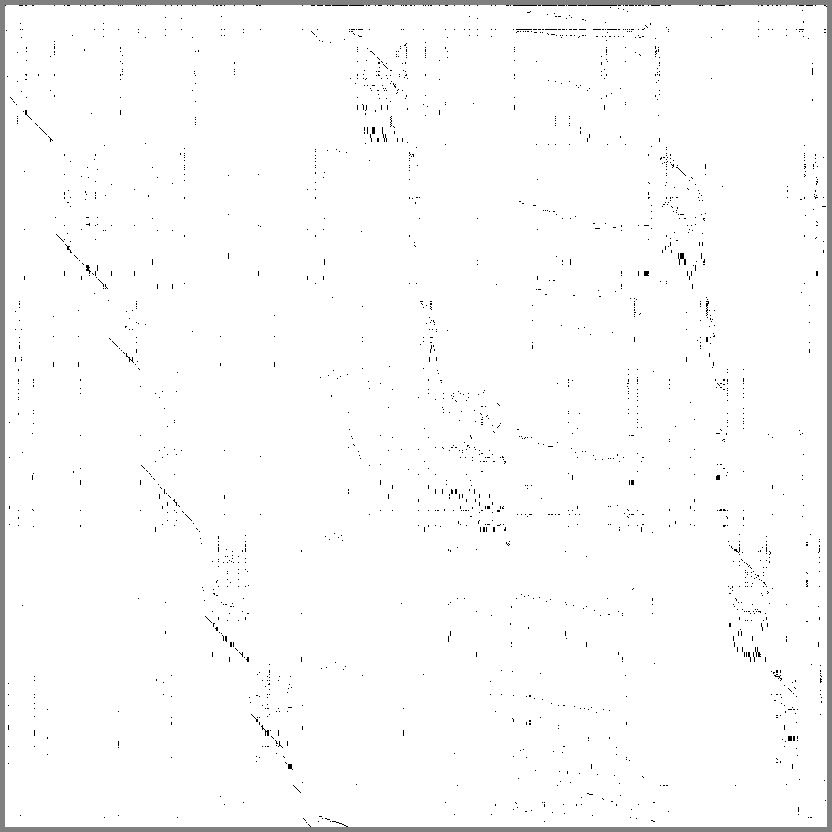

bp_200 bp_600 Chebyshev2

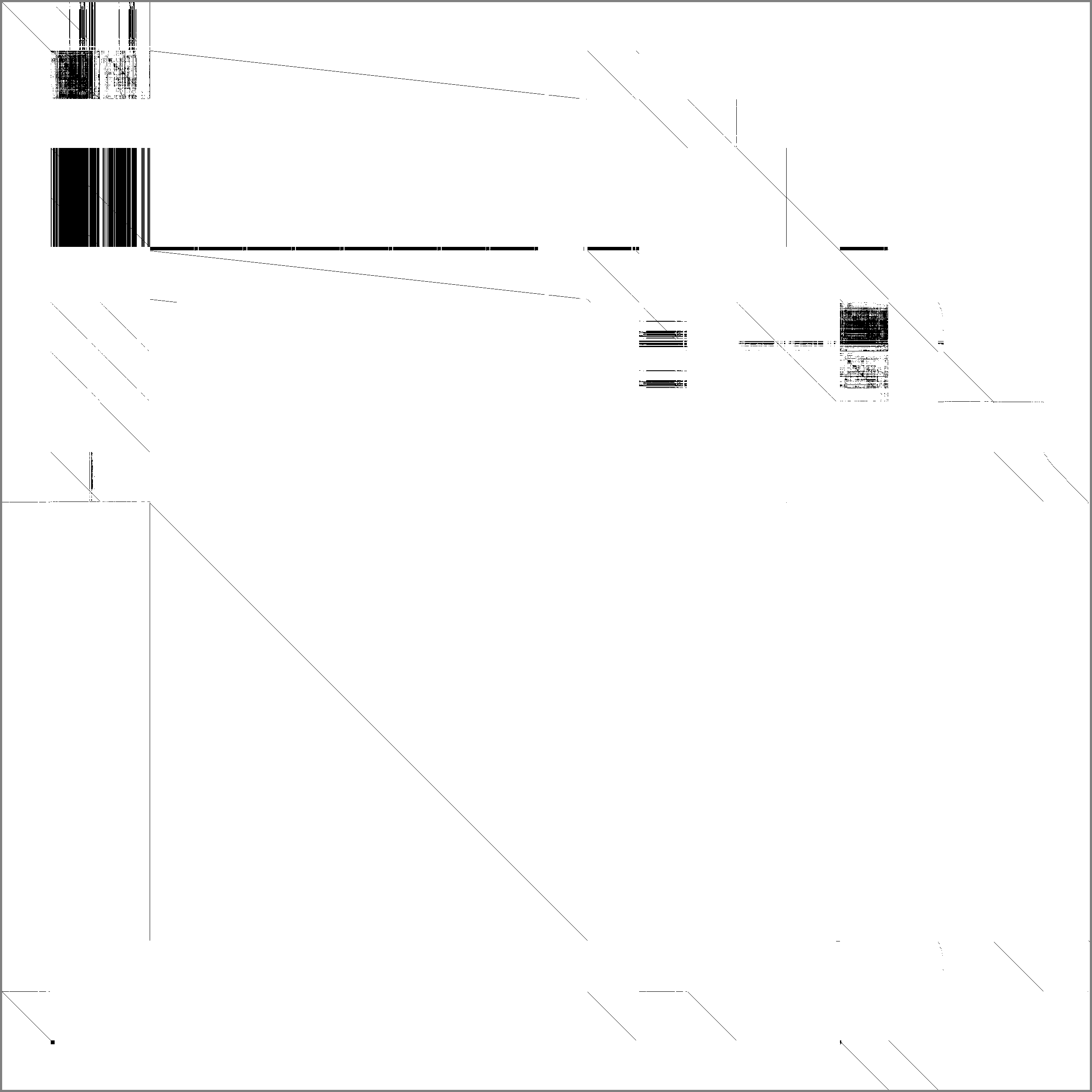

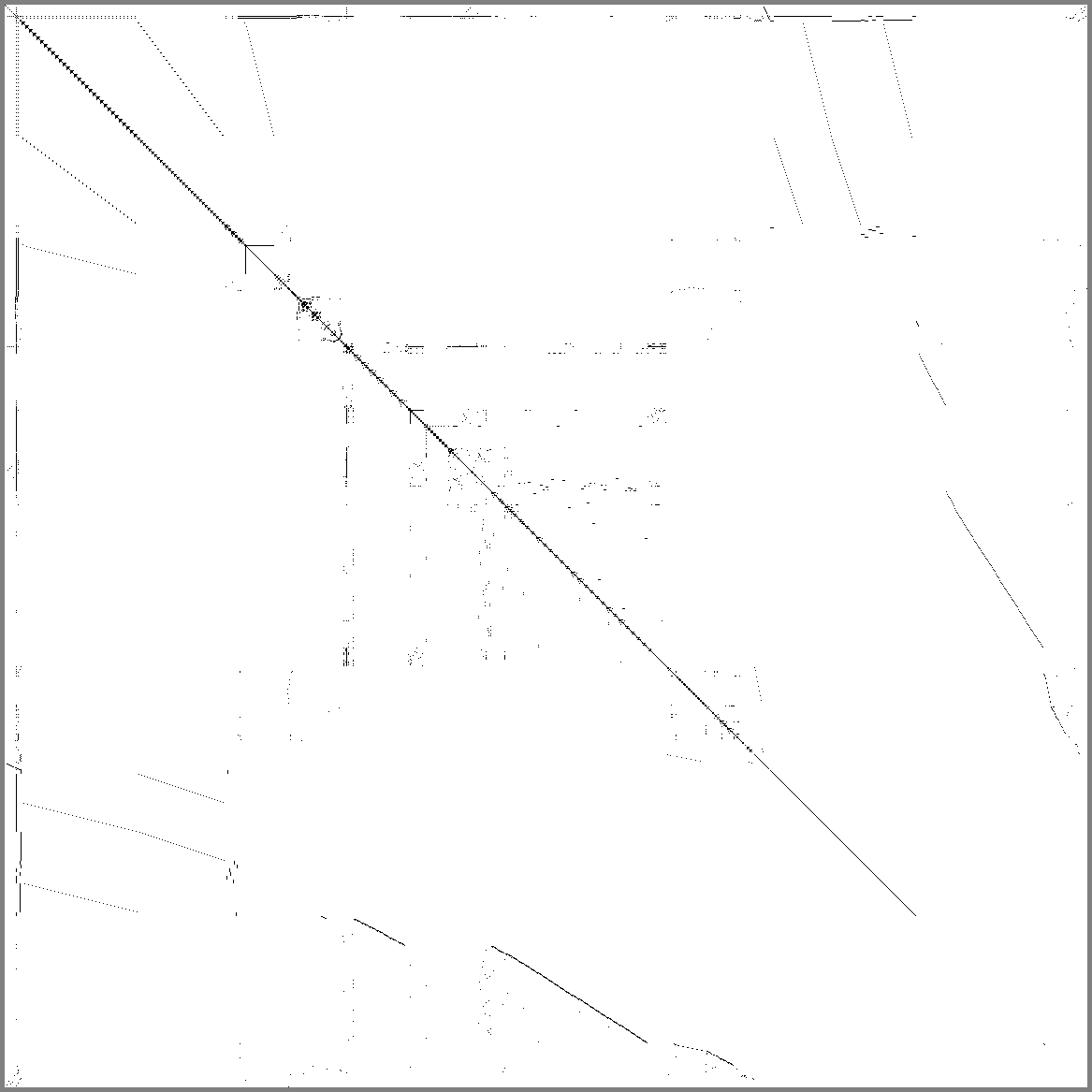

orani678 rajat19 rdb1250l

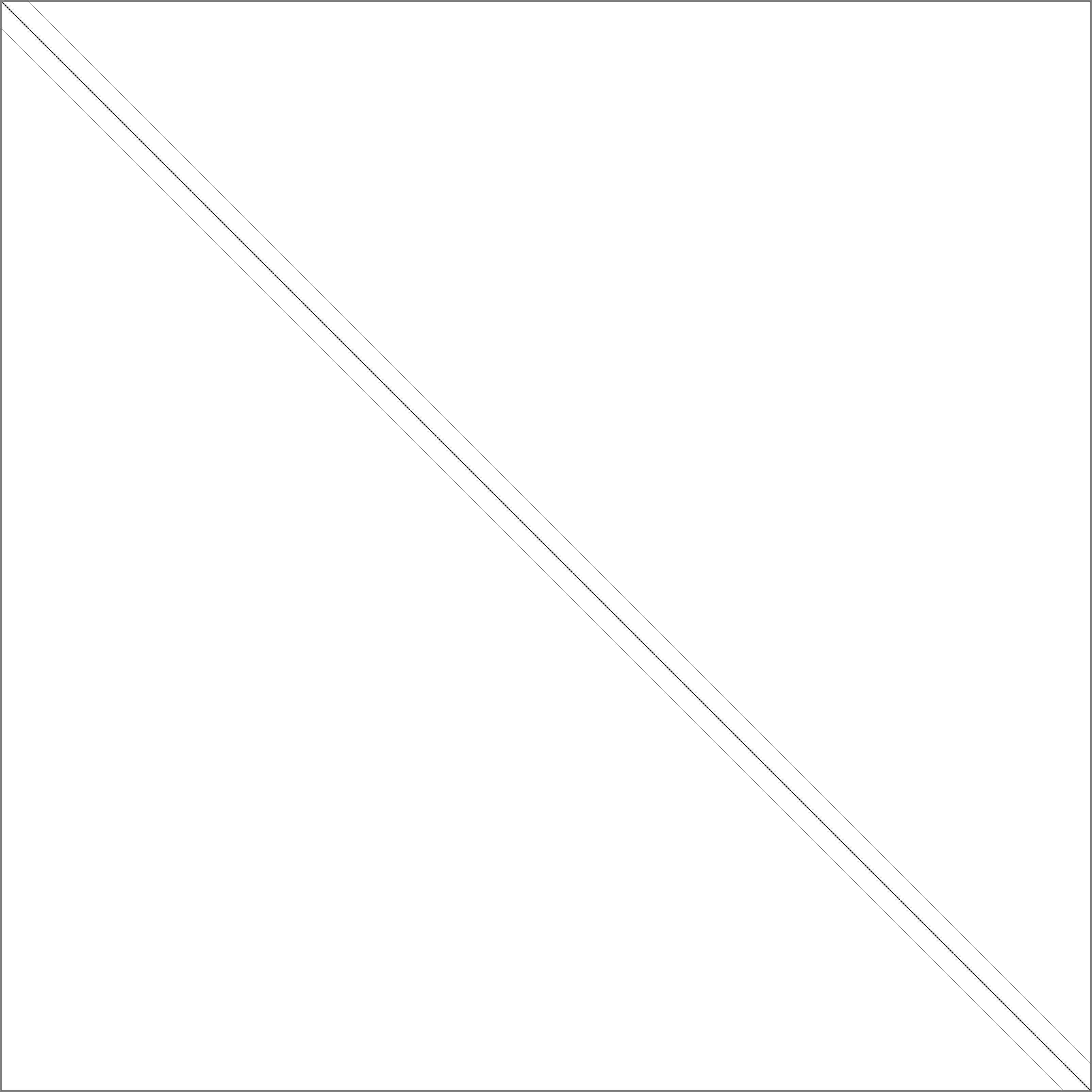

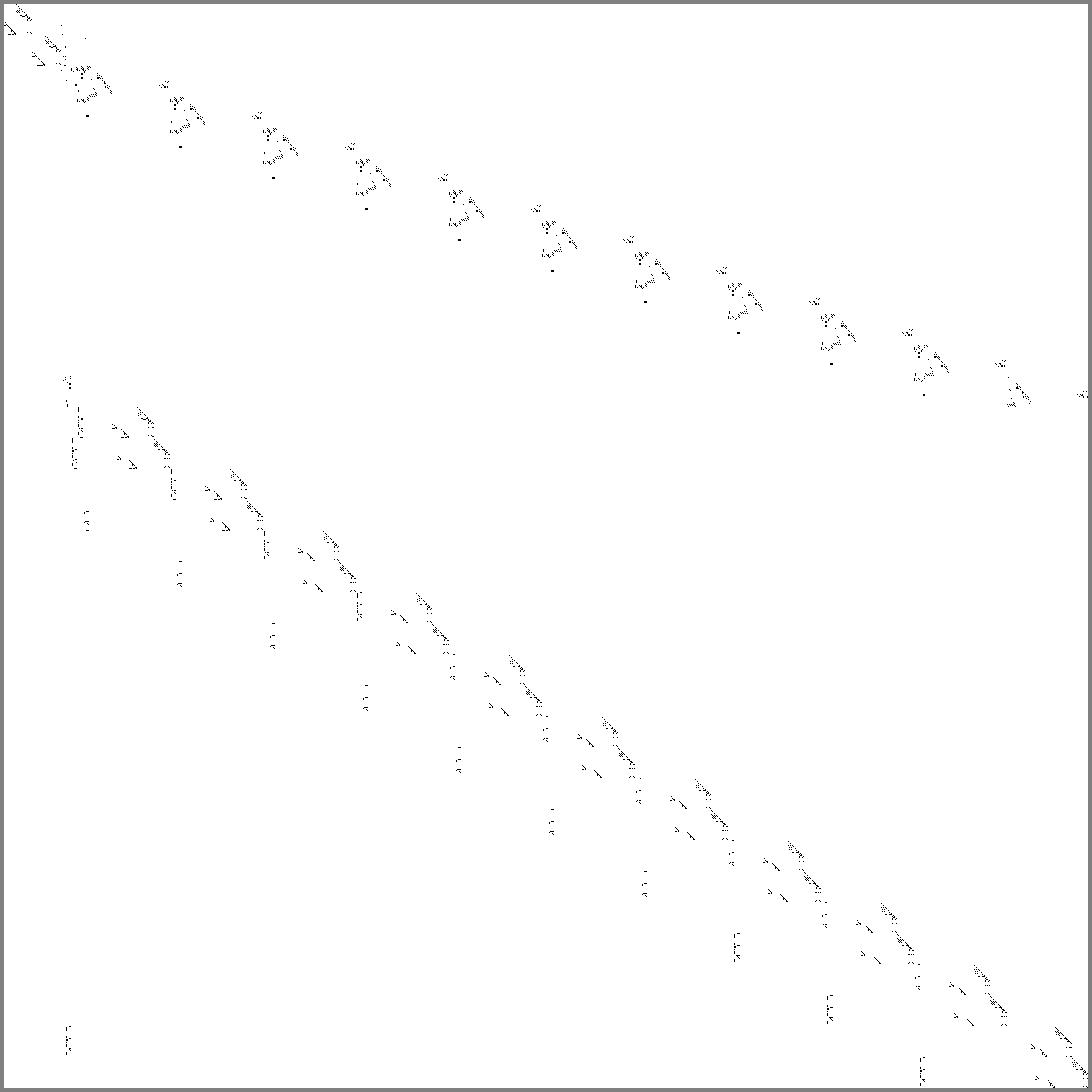

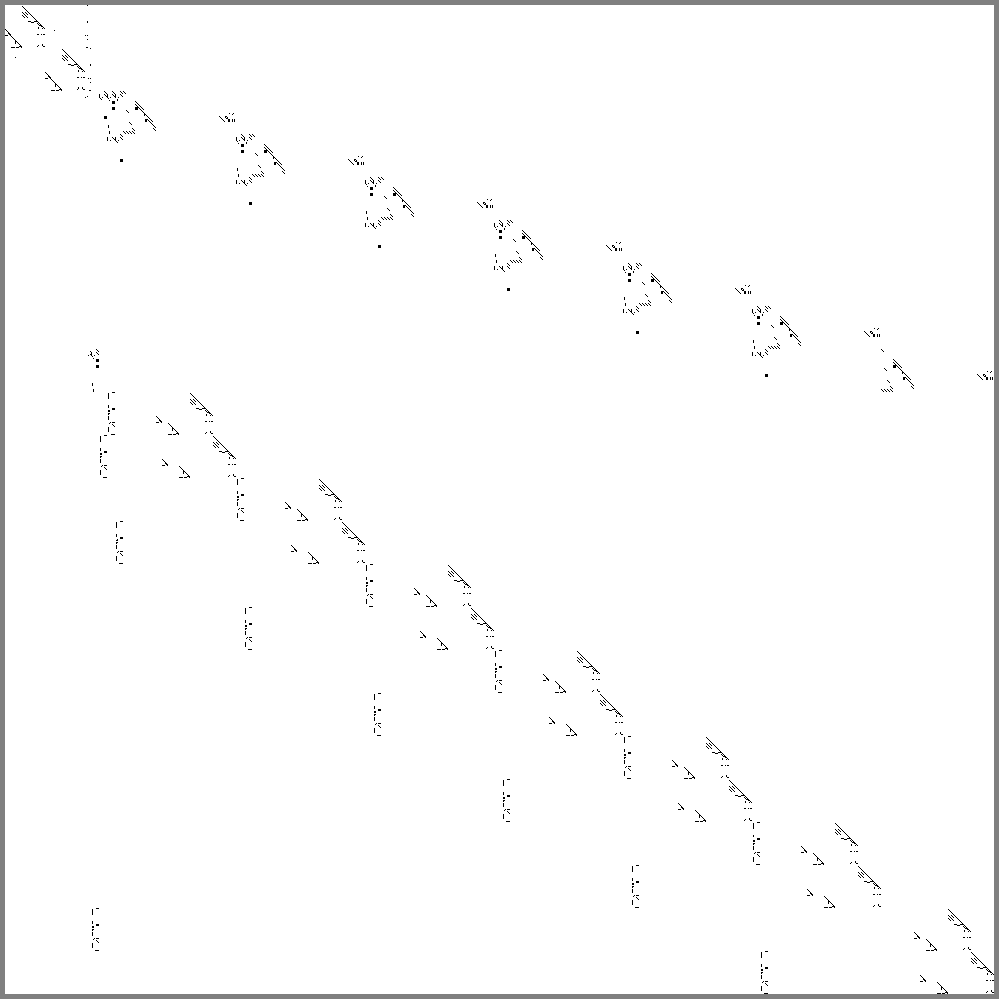

rdb3200l west0989 west1505


betterspy is available from the Python Package Index, so simply do

pip install betterspy

to install.


This software is published under the GPLv3 license.
