bibliodash 4.0.8

BiblioDash - An AI-powered Python package for bibliometric analysis, scientometrics, literature intelligence, and interactive research visualization.

Research Intelligence. Flowing Insights.

A local-first platform that transforms scientific literature collections into an
interactive bibliometric knowledge base powered by AI, citation analytics, and metadata enrichment.

---

What is BiblioDash?

BiblioDash is a local-first research intelligence platform that transforms collections of scientific literature into an interactive bibliometric knowledge base. It supports multiple data sources, runs entirely on your own hardware, and ships with 15+ analysis modules, AI-powered research intelligence via a local LLM, and multi-user support for team deployments.

The core workflow:

Import data  →  BiblioDash enriches metadata  →  Explore 15+ analysis modules

Supported import formats:

Format	Source
PDF folder	Any research PDFs DOI extracted, CrossRef verified, enriched via 6 open APIs
Scopus CSV	Direct export from Scopus all fields imported
BibTeX (.bib)	Mendeley, Zotero, CrossRef, any reference manager
RIS (.ris)	Web of Science, PubMed, Mendeley, EndNote
PubMed XML	Direct PubMed export

Everything runs locally no data is sent to any external service.

---

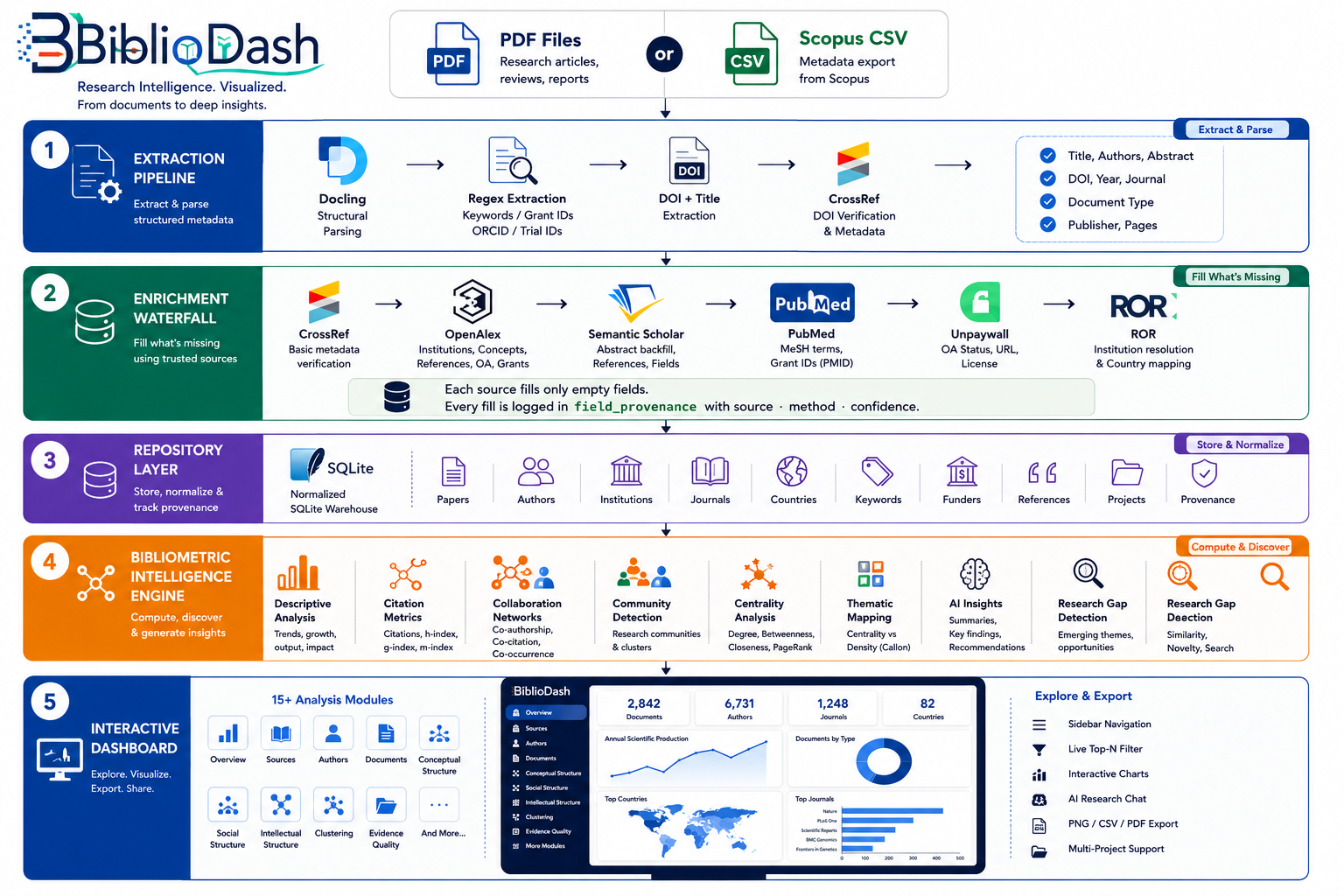

Architecture

---

Why BiblioDash?

• Local-first: no data leaves your machine; AI runs via Ollama
• Multi-user ready: authentication, per-user project isolation, WAL-mode SQLite
• One-command install: pip install bibliodash && bibliodash
• Multiple import formats: PDF, Scopus CSV, BibTeX, RIS, PubMed XML
• 15+ analysis modules: publication trends to co-citation networks
• AI research intelligence: corpus summary, RAG chat, claim extraction
• Semantic search: FAISS vector embeddings over all abstracts
• Research gap detection: KMeans clustering + TF-IDF gap scoring
• Production-ready: Gunicorn + Docker + docker-compose included

---

Installation

Option 1 - PyPI (recommended)

pip install bibliodash

# First launch:
bibliodash

The wizard detects your hardware, creates a workspace at ~/BiblioDash/, and optionally installs an AI model via Ollama.

Option 2 With optional features

# Semantic search, novelty scores, gap detection
pip install "bibliodash[semantic]"

# Local AI features (also install Ollama: https://ollama.com)
pip install "bibliodash[ai]"

# PDF extraction
pip install "bibliodash[pdf]"

# Everything
pip install "bibliodash[all]"

Usage

Launch

bibliodash                              # Launch dashboard (setup wizard on first run)
bibliodash --port 9000                  # Custom port
bibliodash --no-browser                 # Skip auto-open
bibliodash --workspace ~/MyResearch     # Custom workspace directory

Import data

bibliodash import-pdf ~/Papers/         # Import all PDFs from a folder
bibliodash import-scopus export.csv     # Import a Scopus CSV export

Or use the Import Data page in the dashboard drag in any path for PDF folder, or upload Scopus CSV, BibTeX, RIS, or PubMed XML files directly.

Manage projects

bibliodash new-project "Hypospadias Review 2026"

AI model setup

bibliodash setup                        # Re-run the setup wizard
bibliodash install-ai                   # Install or change AI model

Analysis Modules

Overview

Annual, monthly, quarterly, and decade-level publication production. Growth rates (CAGR), cumulative output, moving averages, publication heatmaps, and forecasting broken down by document type, country, institution, and journal.

Sources

Identifies the most productive journals and publishers. Applies Bradford's Law to reveal the core zone of journals. Shows journal H-index, citation impact, open-access distribution, and publication timelines.

Authors

Ranks authors by productivity and citation impact. Computes H-index, G-index, M-index, i10-index, citation velocity, and career trajectory. Maps co-author collaboration networks with Louvain community detection.

Documents

Lists the most-cited papers in your corpus. Analyses reference lists to find the most frequently co-cited works. Full funding intelligence: funder lollipop chart, category breakdown (Government / Industry / Other), funding trends, and multi-funded paper table.

Conceptual Structure

Identifies the most frequent keywords and concepts. Builds a Thematic Map plotting keyword clusters by Callon centrality vs. density to reveal motor, niche, emerging, and declining themes.

Social Structure

Maps collaboration at three levels (Author, Institution, and Country) as interactive network graphs with community detection. Renders a choropleth world map of collaboration arcs. Shows a collaboration timeline across years.

Intellectual Structure

Uncovers the citation backbone of your field. Identifies the most co-cited reference pairs. Builds a citation historiography showing how foundational works influenced one another over time.

Clustering

Detects research communities using four network types co-authorship, keyword co-occurrence, bibliographic coupling, and citation networks each analysed for degree, betweenness, closeness, eigenvector, and PageRank centrality.

Evidence Quality

Per-paper Evidence Score (0-100) and Reproducibility Score (0-100) computed from nine quality signals: trial registration, ethics approval, informed consent, funding declaration, PubMed indexing, open access, figures, tables, and data availability.

Duplicate Detection

Detects duplicate papers by exact DOI match and fuzzy title similarity (>=90% token-sort ratio via rapidfuzz). Reports cluster count, duplicate rate, and a full table of suspect pairs.

Provenance Explorer

Field-level data provenance heatmap showing which enrichment source filled each metadata field. Average confidence score per source and per field.

Research Timeline

Interactive bubble scatter plot of publications over time bubble size proportional to citation count, colour-coded by document type. Complementary year x document-type heatmap.

Semantic Search

Meaning-based search over all paper titles and abstracts using sentence-transformers (all-MiniLM-L6-v2) and a FAISS cosine-similarity index. Also provides Paper Novelty Scores and Paper Similarity detection.

Research Gap Detection

Clusters all paper abstracts with KMeans + FAISS embeddings, names each cluster with TF-IDF keywords, and scores it for research gap potential. Renders an interactive bubble chart and ranked gap card list.

AI Features

Three AI-powered views running via local Ollama zero data leaves your machine:

View	What it does
AI Summary:	Corpus-level synthesis from your 50 most-cited abstracts: overall summary, main themes, emerging trends, research gaps, common methods, future directions, clinical implications. Cached per project.
Research Chat:	Multi-turn RAG chat retrieves 8 semantically relevant papers per question, injects them as grounded context, returns cited answers with paper title references.
Claim Extraction:	Per-paper structured extraction for top-50 cited papers: main finding, study design, sample size, key limitation, future work, evidence level.

---

How Metadata Enrichment Works

Each imported paper passes through an enrichment waterfall a chain of open academic APIs where each source fills fields the previous one left empty:

CrossRef  →  OpenAlex  →  Semantic Scholar  →  PubMed  →  Unpaywall  →  ROR

• CrossRef: verifies DOI, fills publisher, document type, journal, page range
• OpenAlex: adds institutions with ROR IDs, country affiliations, full reference list, open-access status, grants
• Semantic Scholar: adds abstract backfill, references, fields of study
• PubMed: adds MeSH terms and grant IDs
• Unpaywall: adds open-access URL and licence
• ROR: resolves institution names to countries

Every field fill is recorded with its source, method, and confidence score in a field_provenance table.

---

Multi-User and Production

BiblioDash ships with full multi-user support:

• Authentication: registration and login with PBKDF2-SHA256 password hashing; 30-day persistent sessions
• First user = admin: the first account registered is automatically promoted to admin
• Per-user project isolation: users see their own projects plus shared (public) projects
• SQLite WAL mode: Write-Ahead Logging enables concurrent reads during imports; busy_timeout = 15 s prevents lock contention
• Gunicorn: gthread workers (2xCPU+1 x 2 threads), 120 s timeout, automatic worker recycling

# Scale configuration via environment variables
WEB_CONCURRENCY=8       # number of Gunicorn workers
THREADS_PER_WORKER=4    # threads per worker
WORKER_TIMEOUT=120      # seconds before worker is killed
SECRET_KEY=<hex-string> # required for session signing

---

Tech Stack

Component	Technology
Dashboard:	Dash 4.x + Plotly 5.x
PDF extraction:	Docling, PyMuPDF, pdfplumber
Metadata enrichment:	CrossRef, OpenAlex, Semantic Scholar, PubMed, Unpaywall, ROR
Network analysis:	NetworkX 3.x Louvain, centrality, spring layout
Semantic search:	sentence-transformers (all-MiniLM-L6-v2) + FAISS (IndexFlatIP)
Gap detection:	scikit-learn KMeans + TF-IDF + PCA
Duplicate detection:	rapidfuzz token_sort_ratio
AI features:	Ollama local LLM qwen3 / llama3.1 (hardware-selected)
Storage:	SQLite WAL mode normalised warehouse + checksum cache
Auth:	Flask sessions + werkzeug PBKDF2-SHA256
Production server:	Gunicorn (gthread workers)
Containers:	Docker + docker-compose
Data tables:	dash-ag-grid, dash-table
Geocoding:	geonamescache, pycountry
Language:	Python 3.11+

---

Current Limitations

Area	Status
Author-institution attribution	Paper-level only cannot isolate a specific co-author's affiliation
Citation Half-Life	Not computable APIs return cumulative counts, not per-year breakdowns
Author/Journal co-citation	Not implemented requires resolving reference metadata per paper
Bibliographic coupling	Accuracy bounded by DOI resolution in reference lists
Entity deduplication	Institution and country name variants across providers not yet merged
Evidence signals from PDF	Trial IDs, ethics statements, figure counts require PDF extraction; Scopus CSV imports show 0 for these fields
AI chat streaming	Responses appear after full generation streaming not yet implemented
Report export (PDF/Word/PPT)	Planned
PostgreSQL backend	SQLite WAL handles ~100 concurrent users; PostgreSQL migration planned for larger deployments

---

Documentation

For a full walkthrough of every page and feature, see the User Guide. Release history is tracked in the Changelog.

---

Author

Robin Tomar ([e-mail])
Dr Prabudh Goel's Lab, AIIMS New Delhi

---
