bpytop 1.0.68

Resource monitor that shows usage and stats for processor, memory, disks, network and processes.

Index

• News
• Documents
• Description
• Features
• Themes
• Support and funding
• Prerequisites (Read this if you are having issues!)
• Dependencies
• Screenshots
• Installation
• Configurability
• License

News

C++ Version

18 September 2021

The Linux version of btop++ is complete. Released as version 1.0.0

Get it at https://github.com/aristocratos/btop

The development plan right now:

• 1.1.0 Mac OsX support
• 1.2.0 FreeBSD support
• 1.3.0 Support for GPU monitoring
• 1.X.0 Other platforms and features...

2 May 2021

I've started work on the third iteration of bashtop->bpytop. It's being written in C++ and will simply be called btop.

I'm aiming at releasing a beta version around August this year and will publish the repo when I've got the core functionality and structure ready for anybody that wanna help out.

This project is gonna take some time until it has complete feature parity with bpytop, since all system information gathering will likely have to be written from scratch without any external libraries. And will need some help in the form of code contributions to get complete support for BSD and OSX.

If you got suggestions of C++ libraries that are multi-platform and are as extensive as psutil are for python, feel free to open up a new thread in Discussions, it could help speed up the development a lot.

Will post any updates about this project here until the repo is made available.

Documents

CHANGELOG.md

CONTRIBUTING.md

CODE_OF_CONDUCT.md

Description

Resource monitor that shows usage and stats for processor, memory, disks, network and processes.

Python port and continuation of bashtop.

Features

• Easy to use, with a game inspired menu system.
• Full mouse support, all buttons with a highlighted key is clickable and mouse scroll works in process list and menu boxes.
• Fast and responsive UI with UP, DOWN keys process selection.
• Function for showing detailed stats for selected process.
• Ability to filter processes, multiple filters can be entered.
• Easy switching between sorting options.
• Send SIGTERM, SIGKILL, SIGINT to selected process.
• UI menu for changing all config file options.
• Auto scaling graph for network usage.
• Shows message in menu if new version is available
• Shows current read and write speeds for disks

Themes

Bpytop uses the same theme files as bashtop so any theme made for bashtop will work.

See themes folder for available themes.

The make install command places the default themes in /usr/local/share/bpytop/themes. If installed with pip3 the themes will be located in a folder called bpytop-themes in the python3 site-packages folder. User created themes should be placed in $HOME/.config/bpytop/themes.

Let me know if you want to contribute with new themes.

Support and funding

You can sponsor this project through github, see my sponsors page for options.

Or donate through paypal or ko-fi.

Any support is greatly appreciated!

Prerequisites

Mac Os X

Will not display correctly in the standard terminal (unless truecolor is set to False)! Recommended alternative iTerm2

Will also need to be run as superuser to display stats for processes not owned by user.

OsX on Apple Silicon (arm) requires psutil version 5.8.0 to work and currently has no temperature monitoring. Upgrade psutil with sudo pip3 install psutil --upgrade

Linux, Mac Os X and FreeBSD

For correct display, a terminal with support for:

• 24-bit truecolor (See list of terminals with truecolor support)
• 256-color terminals are supported through 24-bit to 256-color conversion when setting "truecolor" to False in the options or with "-lc/--low-color" argument.
• Wide characters (Are sometimes problematic in web-based terminals)

Also needs a UTF8 locale and a font that covers:

• Unicode Block “Braille Patterns” U+2800 - U+28FF
• Unicode Block “Geometric Shapes” U+25A0 - U+25FF
• Unicode Block "Box Drawing" and "Block Elements" U+2500 - U+259F

Notice (Text rendering issues)

If you are having problems with the characters in the graphs not looking like they do in the screenshots, it's likely a problem with your systems configured fallback font not having support for braille characters.

See Terminess Powerline for an example of a font that includes the braille symbols.

See comments by @sgleizes link and @XenHat link in issue #100 for possible solutions.

If text are misaligned and you are using Konsole or Yakuake, turning off "Bi-Directional text rendering" is a possible fix.

Characters clipping in to each other or text/border misalignments is not bugs caused by bpytop, but most likely a fontconfig or terminal problem where the braille characters making up the graphs aren't rendered correctly. Look to the creators of the terminal emulator you use to fix these issues if the previous mentioned fixes don't work for you.

Notice (SSH)

Dropbear seems to not be able to set correct locale. So if accessing bpytop over ssh, OpenSSH is recommended.

Dependencies

Python3 (v3.7 or later)

psutil module (v5.7.0 or later)

Optionals for additional stats

(Optional OSX) coretemp (recommended), or osx-cpu-temp (less accurate) needed to show CPU temperatures.

Screenshots

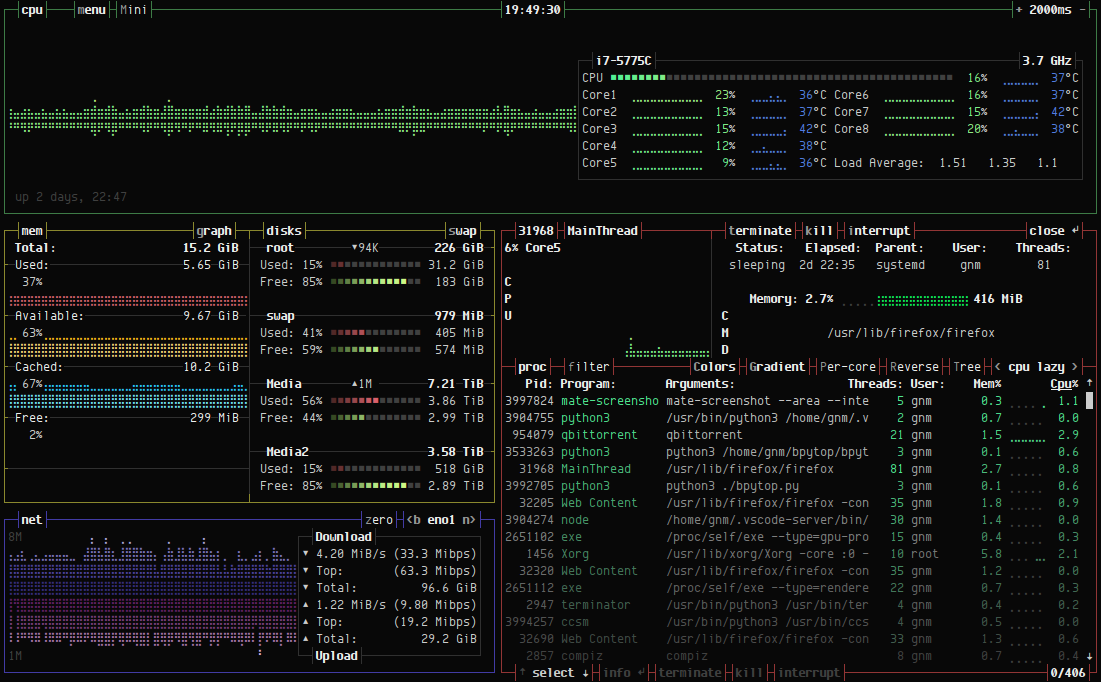

Main UI showing details for a selected process.

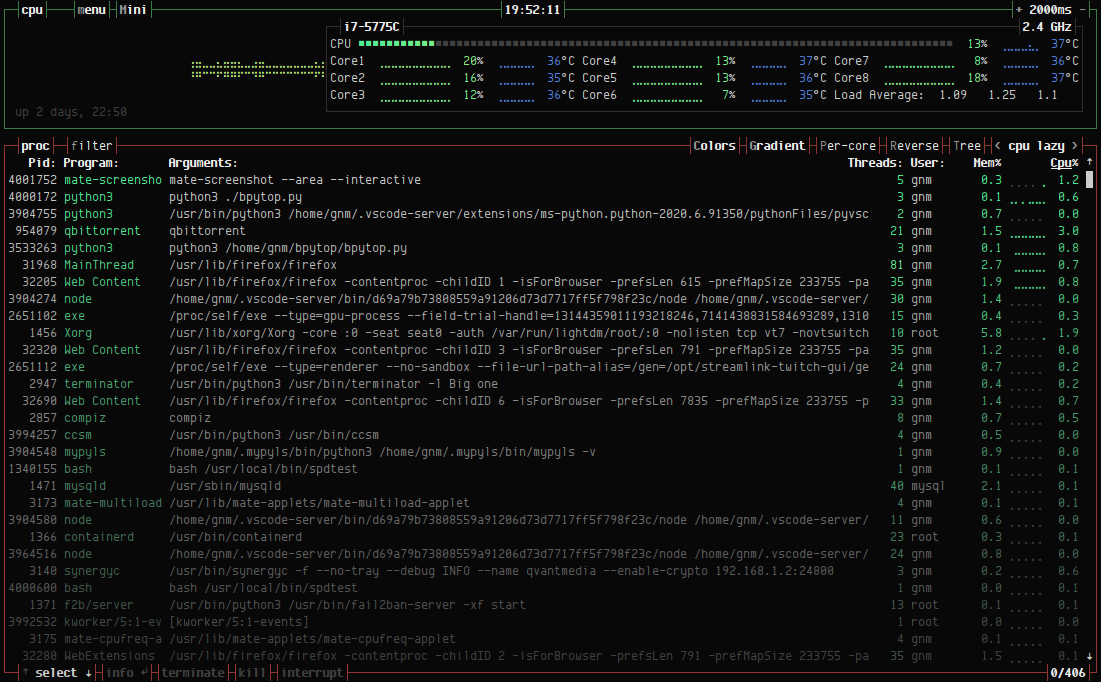

Main UI in mini mode.

Main menu.

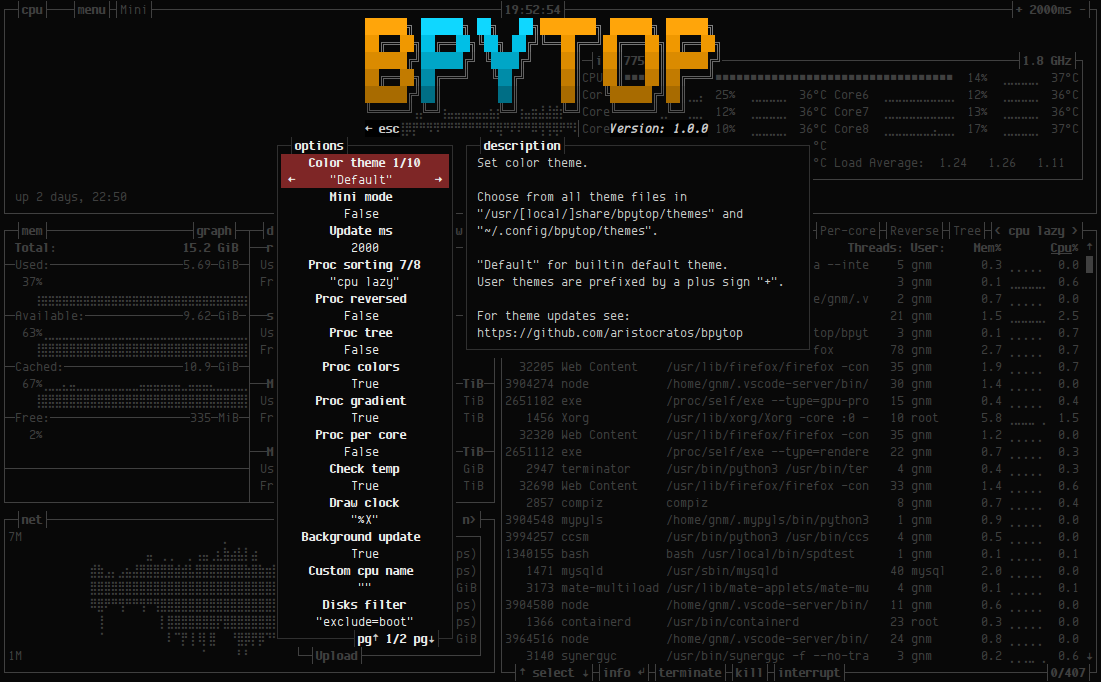

Options menu.

Installation

I only maintain the PyPi package, so will not take responsibility for issues caused by any other install method!

PyPi (will always have latest version)

Install or update to latest version

pip3 install bpytop --upgrade

Mac OsX

Install with Homebrew

brew install bpytop

Optional coretemp (Shows temperatures for cpu cores)

brew install hacker1024/hacker1024/coretemp

Alternatively install with MacPorts

port install bpytop

OsX on Apple Silicon (arm) requires psutil version 5.8.0 to work and currently has no temperature monitoring. Upgrade psutil with sudo pip3 install psutil --upgrade

Arch Linux

Available in the Arch Linux [community] repository as bpytop

Installation

sudo pacman -S bpytop

Debian based

Available in official Debian repository since Debian 11

Installation

sudo apt install bpytop

Available for debian/ubuntu from Azlux's repository

FreeBSD package

Available in FreeBSD ports

Install pre-built package

sudo pkg install bpytop

Fedora/CentOS 8 package

Available in the Fedora and EPEL-8 repository.

Installation

sudo dnf install bpytop

Gentoo / Calculate Linux

Available from adrien-overlay

Installation

sudo emerge -av sys-process/bpytop

Mageia Cauldron (Mageia 8)

Available in Mageia Cauldron and then Mageia 8 when it is released.

Installation

sudo urpmi bpytop
sudo dnf install bpytop

MX Linux

Available in the MX Test Repo as bpytop Please use MX Package Installer MX Test Repo tab to install.

http://mxrepo.com/mx/testrepo/pool/test/b/bpytop/

Void Linux

Available in void repo and void-packages ports tree

Installation

sudo xbps-install bpytop

Snap package

(Note! There is some issues caused by the snap sandboxing)

by @kz6fittycent

https://github.com/kz6fittycent/bpytop-snap

Install the package

sudo snap install bpytop

The config folder will be located in ~/snap/bpytop/current/.config/bpytop

Manual installation

Dependencies installation Linux

Install python3 and git with a package manager of you choice

Install psutil python module (sudo might be required)

python3 -m pip install psutil

Dependencies installation OSX

Install homebrew if not already installed

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/master/install.sh)"

Install python3 if not already installed

brew install python3 git

Install psutil python module

python3 -m pip install psutil

Install optional dependency coretemp (recommended), or osx-cpu-temp (less accurate)

brew install hacker1024/hacker1024/coretemp

brew install osx-cpu-temp

Dependencies installation FreeBSD

Install with pkg and pip

sudo pkg install git python3 py37-psutil

Manual installation Linux, OSX and FreeBSD

Clone and install

git clone https://github.com/aristocratos/bpytop.git
cd bpytop
sudo make install

to uninstall it

sudo make uninstall

Configurability

All options changeable from within UI. Config files stored in "$HOME/.config/bpytop" folder

bpytop.cfg: (auto generated if not found)

"/etc/bpytop.conf" will be used as default seed for config file creation if it exists. ("/usr/local/etc/bpytop.conf" on BSD)

#? Config file for bpytop v. 1.0.64

#* Color theme, looks for a .theme file in "/usr/[local/]share/bpytop/themes" and "~/.config/bpytop/themes", "Default" for builtin default theme.
#* Prefix name by a plus sign (+) for a theme located in user themes folder, i.e. color_theme="+monokai"
color_theme="monokai"

#* If the theme set background should be shown, set to False if you want terminal background transparency
theme_background=False

#* Sets if 24-bit truecolor should be used, will convert 24-bit colors to 256 color (6x6x6 color cube) if false.
truecolor=True

#* Manually set which boxes to show. Available values are "cpu mem net proc", separate values with whitespace.
shown_boxes="cpu mem net proc"

#* Update time in milliseconds, increases automatically if set below internal loops processing time, recommended 2000 ms or above for better sample times for graphs.
update_ms=2000

#* Processes update multiplier, sets how often the process list is updated as a multiplier of "update_ms".
#* Set to 2 or higher to greatly decrease bpytop cpu usage. (Only integers)
proc_update_mult=2

#* Processes sorting, "pid" "program" "arguments" "threads" "user" "memory" "cpu lazy" "cpu responsive",
#* "cpu lazy" updates top process over time, "cpu responsive" updates top process directly.
proc_sorting="cpu lazy"

#* Reverse sorting order, True or False.
proc_reversed=False

#* Show processes as a tree
proc_tree=False

#* Which depth the tree view should auto collapse processes at
tree_depth=3

#* Use the cpu graph colors in the process list.
proc_colors=True

#* Use a darkening gradient in the process list.
proc_gradient=True

#* If process cpu usage should be of the core it's running on or usage of the total available cpu power.
proc_per_core=False

#* Show process memory as bytes instead of percent
proc_mem_bytes=True

#* Sets the CPU stat shown in upper half of the CPU graph, "total" is always available, see:
#* https://psutil.readthedocs.io/en/latest/#psutil.cpu_times for attributes available on specific platforms.
#* Select from a list of detected attributes from the options menu
cpu_graph_upper="total"

#* Sets the CPU stat shown in lower half of the CPU graph, "total" is always available, see:
#* https://psutil.readthedocs.io/en/latest/#psutil.cpu_times for attributes available on specific platforms.
#* Select from a list of detected attributes from the options menu
cpu_graph_lower="total"

#* Toggles if the lower CPU graph should be inverted.
cpu_invert_lower=True

#* Set to True to completely disable the lower CPU graph.
cpu_single_graph=False

#* Shows the system uptime in the CPU box.
show_uptime=True

#* Check cpu temperature, needs "osx-cpu-temp" on MacOS X.
check_temp=True

#* Which sensor to use for cpu temperature, use options menu to select from list of available sensors.
cpu_sensor=Auto

#* Show temperatures for cpu cores also if check_temp is True and sensors has been found
show_coretemp=True

#* Which temperature scale to use, available values: "celsius", "fahrenheit", "kelvin" and "rankine"
temp_scale="celsius"

#* Show CPU frequency, can cause slowdowns on certain systems with some versions of psutil
show_cpu_freq=True

#* Draw a clock at top of screen, formatting according to strftime, empty string to disable.
draw_clock="%H:%M"

#* Update main ui in background when menus are showing, set this to false if the menus is flickering too much for comfort.
background_update=True

#* Custom cpu model name, empty string to disable.
custom_cpu_name=""

#* Optional filter for shown disks, should be full path of a mountpoint, separate multiple values with a comma ",".
#* Begin line with "exclude=" to change to exclude filter, otherwise defaults to "most include" filter. Example: disks_filter="exclude=/boot, /home/user"
disks_filter="exclude=/boot"

#* Show graphs instead of meters for memory values.
mem_graphs=True

#* If swap memory should be shown in memory box.
show_swap=True

#* Show swap as a disk, ignores show_swap value above, inserts itself after first disk.
swap_disk=True

#* If mem box should be split to also show disks info.
show_disks=True

#* Filter out non physical disks. Set this to False to include network disks, RAM disks and similar.
only_physical=True

#* Read disks list from /etc/fstab. This also disables only_physical.
use_fstab=True

#* Toggles if io stats should be shown in regular disk usage view
show_io_stat=True

#* Toggles io mode for disks, showing only big graphs for disk read/write speeds.
io_mode=False

#* Set to True to show combined read/write io graphs in io mode.
io_graph_combined=False

#* Set the top speed for the io graphs in MiB/s (10 by default), use format "device:speed" separate disks with a comma ",".
#* Example: "/dev/sda:100, /dev/sdb:20"
io_graph_speeds=""

#* Set fixed values for network graphs, default "10M" = 10 Mibibytes, possible units "K", "M", "G", append with "bit" for bits instead of bytes, i.e "100mbit"
net_download="100Mbit"
net_upload="100Mbit"

#* Start in network graphs auto rescaling mode, ignores any values set above and rescales down to 10 Kibibytes at the lowest.
net_auto=True

#* Sync the scaling for download and upload to whichever currently has the highest scale
net_sync=False

#* If the network graphs color gradient should scale to bandwidth usage or auto scale, bandwidth usage is based on "net_download" and "net_upload" values
net_color_fixed=False

#* Starts with the Network Interface specified here.
net_iface="br0"

#* Show battery stats in top right if battery is present
show_battery=True

#* Show init screen at startup, the init screen is purely cosmetical
show_init=False

#* Enable check for new version from github.com/aristocratos/bpytop at start.
update_check=True

#* Set loglevel for "~/.config/bpytop/error.log" levels are: "ERROR" "WARNING" "INFO" "DEBUG".
#* The level set includes all lower levels, i.e. "DEBUG" will show all logging info.
log_level=DEBUG

Command line options:

usage: bpytop.py [-h] [-b BOXES] [-lc] [-v] [--debug]

optional arguments:
  -h, --help            show this help message and exit
  -b BOXES, --boxes BOXES
                        which boxes to show at start, example: -b "cpu mem net proc"
  -lc, --low-color      disable truecolor, converts 24-bit colors to 256-color
  -v, --version         show version info and exit
  --debug               start with loglevel set to DEBUG overriding value set in config

LICENSE

Apache License 2.0
