bpytop-nv

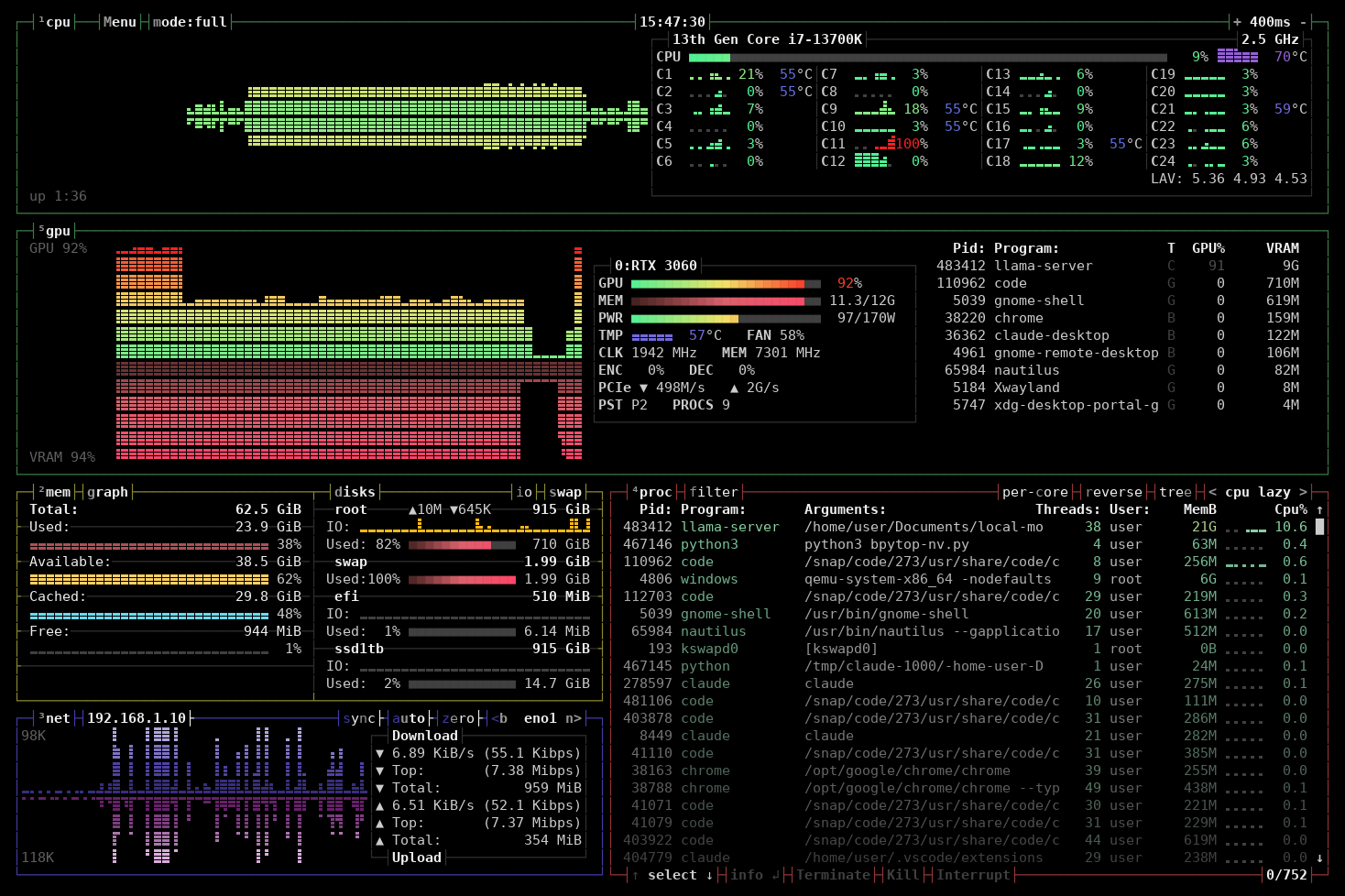

bpytop with an nvtop-style GPU box for NVIDIA cards. You get CPU, GPU, memory, disks, network and processes in one terminal view.

Install

pip install bpytop-nv
bpytop-nv

On distributions that block system-wide pip (Ubuntu 23.04+, Debian 12+, Fedora 38+), use pipx instead:

pipx install bpytop-nv

To install the latest code from GitHub:

pip install git+https://github.com/amukherjee1991/bpytop-nv.git

To run from a clone without installing:

git clone https://github.com/amukherjee1991/bpytop-nv.git
cd bpytop-nv
python3 -m bpytop_nv

Requirements

• Linux
• Python 3.7+
• psutil, installed automatically by pip
• The NVIDIA proprietary driver for the GPU box. It ships libnvidia-ml.so.1. You don't need pynvml or nvidia-smi.

If no NVIDIA GPU or driver is found, the GPU box stays hidden and everything else works like stock bpytop.

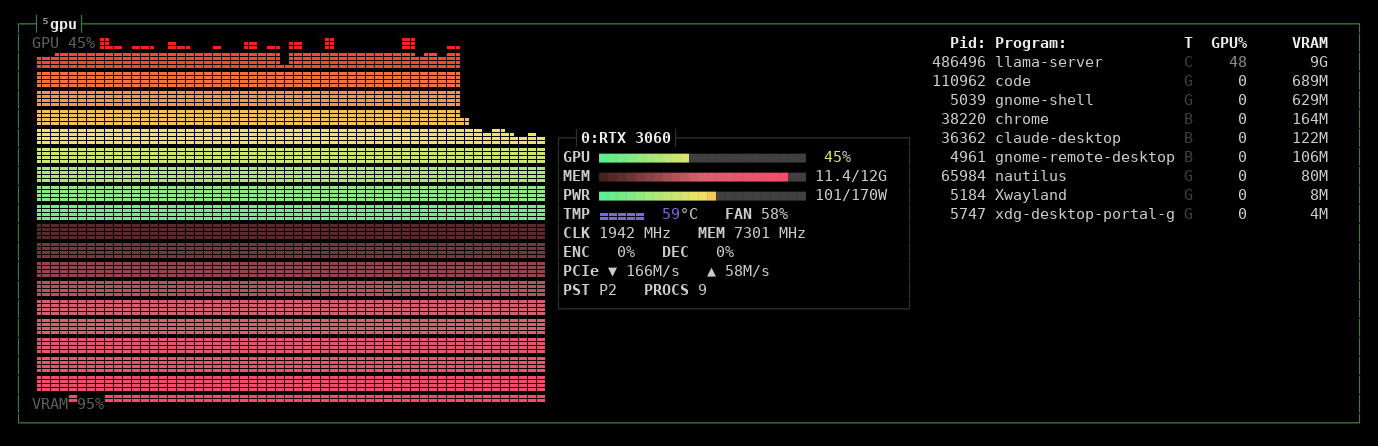

The GPU box

Each NVIDIA GPU gets its own section with:

• Graphs: GPU utilization on top and VRAM usage below, mirrored like the CPU graph.
• Stats:
  • GPU and VRAM meters
  • power draw against the power limit
  • temperature with a mini graph, and fan speed
  • graphics and memory clocks
  • video encoder (ENC) and decoder (DEC) load
  • PCIe receive (▼) and transmit (▲) throughput
  • performance state (PST, P0 is the highest)
• GPU processes (on terminals at least 110 columns wide): PID, name, type, per-process GPU (SM) utilization and VRAM, sorted by VRAM. In the type column, C is compute, G is graphics and B is both.

Systems with several GPUs get one section per GPU. Data comes straight from NVML, the NVIDIA Management Library, through ctypes.

Views

Press m to cycle presets, or toggle single boxes with 1 to 5.

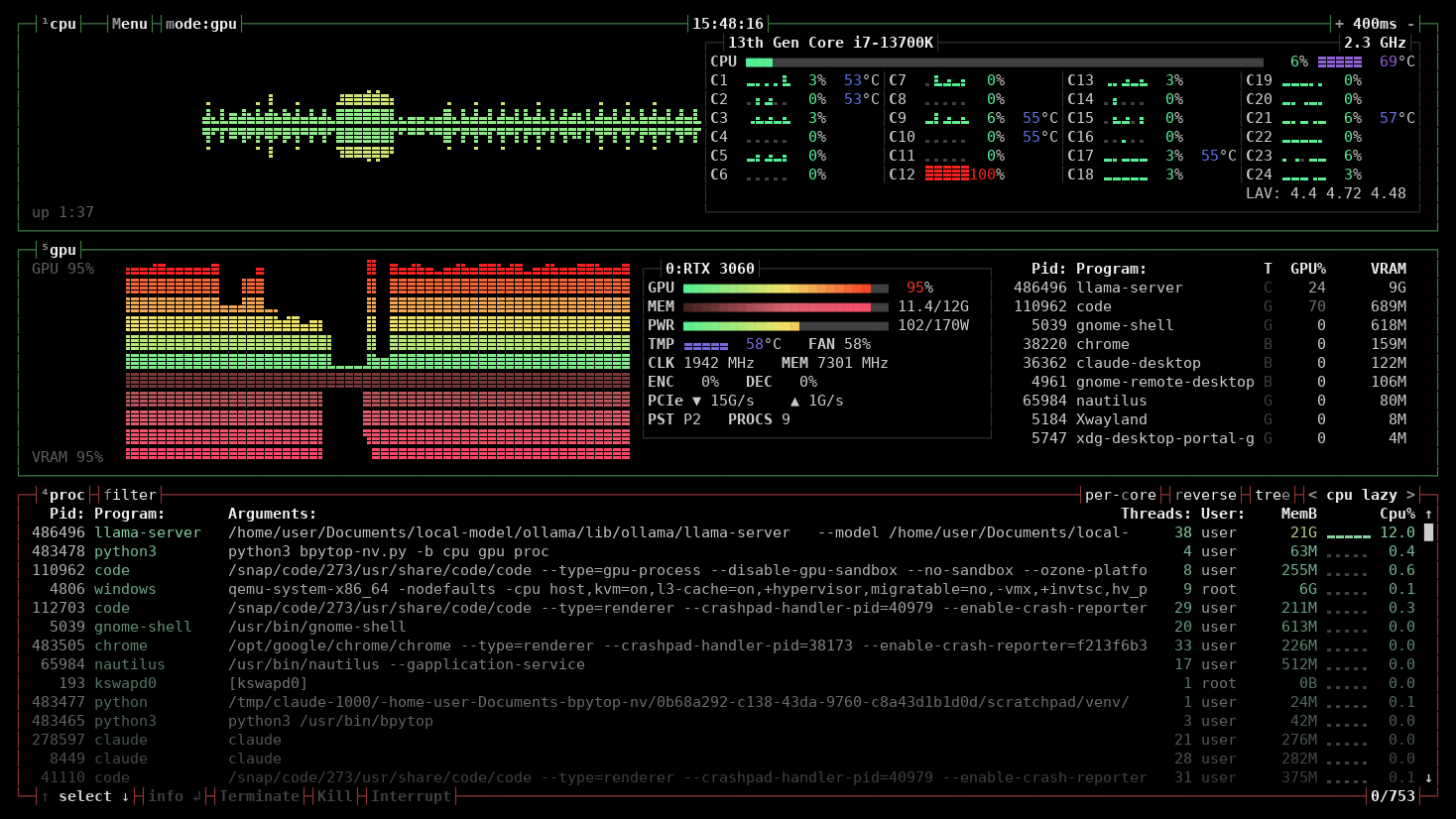

gpu preset (cpu, gpu, proc), for watching training or inference jobs:

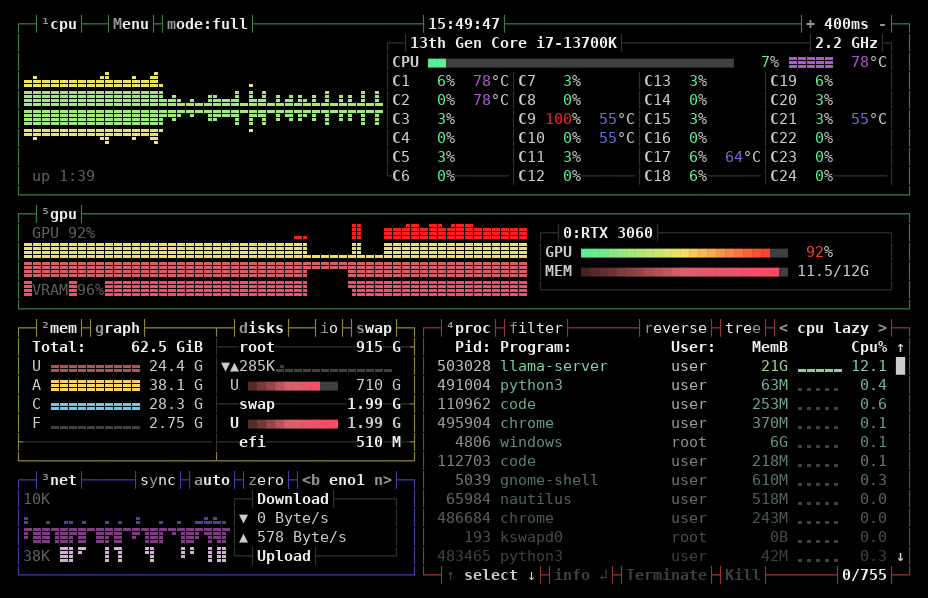

Smaller terminals. On short terminals the GPU box drops to a compact mode, so the boxes below keep their minimum size (100×30 shown):

Keys

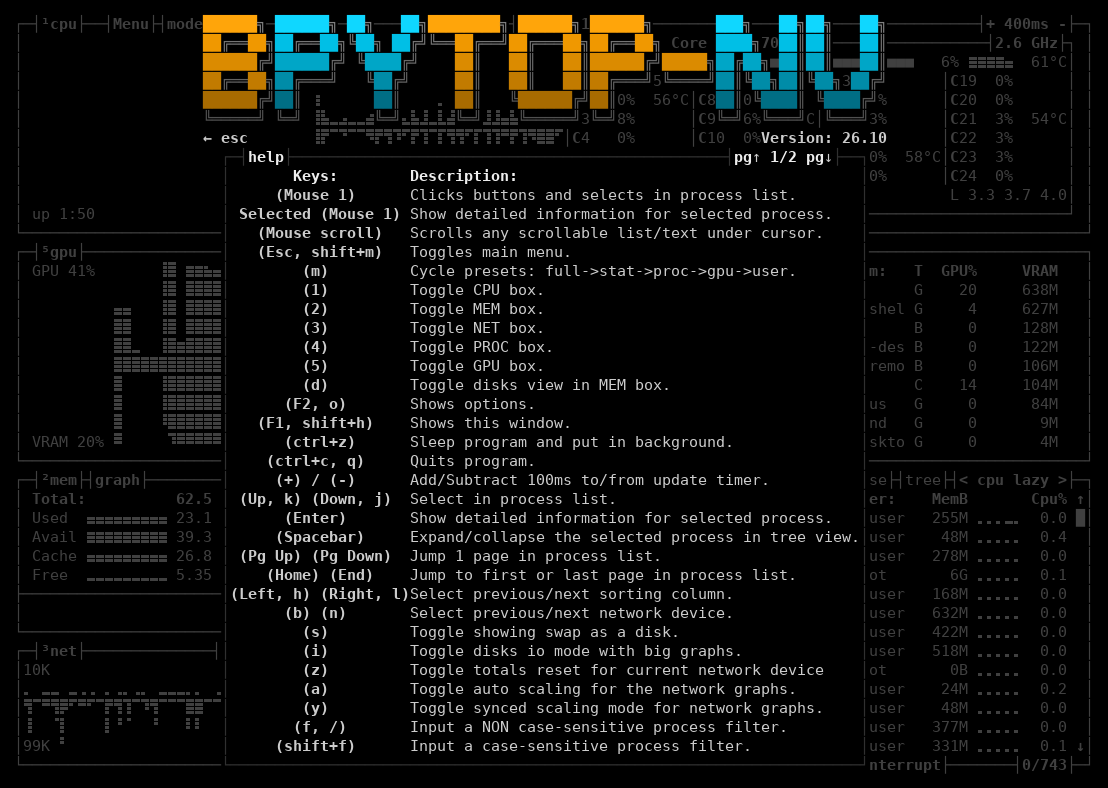

Every bpytop key still works. Press H or F1 for the full list:

These keys are new or changed:

Use -b to pick boxes at startup:

bpytop-nv -b "cpu gpu proc"

The choice is saved to the config file when you quit, the same way bpytop does it.

Configuration

Config, logs and user themes live in ~/.config/bpytop-nv/, separate from bpytop's ~/.config/bpytop/. Stock bpytop rejects a config that contains the gpu box, so the two can't share one. To choose the default boxes, edit shown_boxes in bpytop-nv.conf:

shown_boxes="cpu gpu mem net proc"

bpytop's themes are bundled. Pick one with o (options) → color_theme.

Screenshots

The images in docs/screenshots/ are captures of the running app on an RTX 3060 and an i7-13700K. The username and LAN address have been replaced.

Credits and license

• bpytop by Aristocratos, Apache License 2.0. bpytop-nv is a modified version of it, and its themes are bundled.
• The GPU view takes its ideas from nvtop by Maxime Schmitt. This project contains no nvtop code.

bpytop-nv is licensed under the Apache License 2.0. See NOTICE for attribution and a list of changes.
