BrickAgent: Programmatic LEGO Design

Peter Kulits    Yiqing Xu    R. Kenny Jones    Cordelia Schmid    Jiajun Wu

[Project Page] | [Gallery]

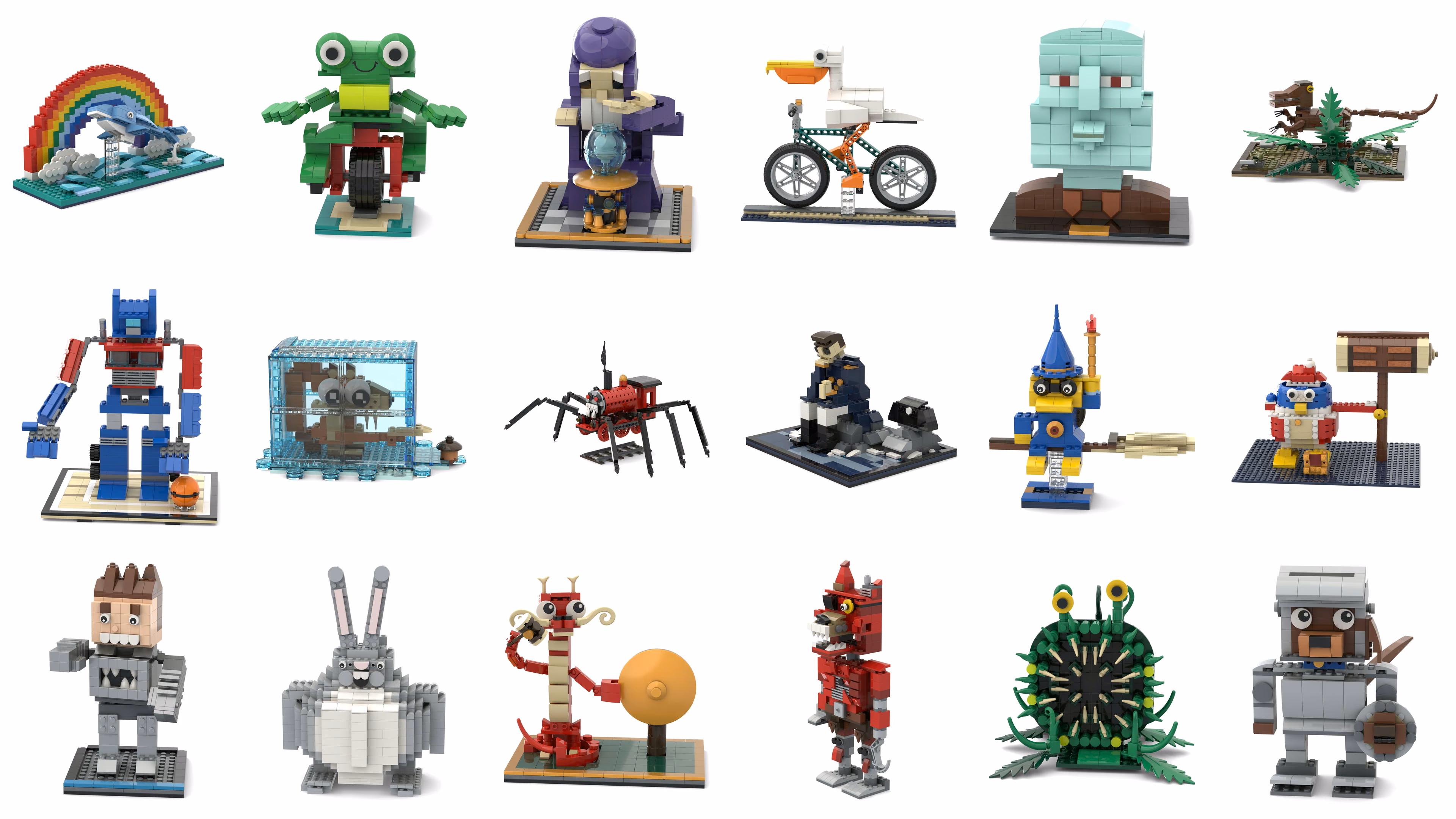

BrickAgent is the environment of BrickBench, a benchmark for agentic text-conditioned LEGO-set design. Coding agents use it to programmatically construct, inspect, and validate LEGO assemblies, placing parts through the connector system of BrickNet.

This repository contains:

• brickagent (src/brickagent/), the environment, on PyPI.
• BrickBench: 300 task prompts (benchmark/), the agent prompt, validator, and evaluation (scripts/), and the agent container (Dockerfile).

Install

pip install brickagent
python -m bricknet fetch-meshes

fetch-meshes downloads BrickNet's convex colliders (1 GB), which collision and stability checks need, into the platform user-data directory; to use another location, export BRICKNET_DATA before fetching and keep it set.

Usage

from brickagent import Assembly

wall = Assembly("wall")
base = wall.add("plate 2x8", color="dark gray")
top = base.stud
for course in range(4):
    next_top, column = [], 0
    for width in (4, 4) if course % 2 == 0 else (2, 4, 2):
        brick = wall.attach(f"brick 2x{width}", to=top[2 * column], by=("hole", 0), color="tan")
        next_top.extend(brick.stud)
        column += width
    top = next_top
wall.write("wall.mpd", check=True)

add places a part or subassembly at a pose; attach places it by an exact connector fit. Connectors are indexed in BrickNet order (part.stud[i], part.hole[i], ...).

# continues the example above
from brickagent import find, describe, name, connectors, check, view

beams = [stem for stem in find("technic beam") if len(connectors(stem, "socket")) == 5]
print(beams[0], name(beams[0]))
print(describe("6629"))
check(wall)
view(wall, "wall.png")  # needs the Rendering setup below

check raises ValueError on collisions, inexact connections, exceeded inventory, or instability, naming the parts involved. Each connected component is simulated as a rigid body under gravity in PyBullet. Only parts that BrickNet supports can be used; find lists them. The full API guide, with examples, is the agent prompt, scripts/prompt.md.

Building from a Restricted Part Set

BRICKAGENT_SET limits building to an inventory that maps LDraw part numbers to color names and maximum quantities (null for any); check enforces the colors and counts:

{"3001": {"red": 8, "blue": 6}, "3020": {"tan": 2}, "3062b": {"white": null}}

Rendering

view needs Node 22.14+ or 23.6+, Mesa (libegl1, libgles2, libegl-mesa0, libgl1-mesa-dri), a C++ runtime from GCC 11 or newer (Ubuntu 22.04+), the viewer's npm packages, and the LDraw snapshot used in the experiments:

npm ci --prefix "$(python -c 'from importlib.resources import files; print(files("brickagent") / "viewer")')"
curl -L https://codeload.github.com/kulits/ldraw-parts/tar.gz/b61b905f1173f120f528be9521bb870619c36785 | tar -xz
export BRICKAGENT_LDRAW="$PWD/ldraw-parts-b61b905f1173f120f528be9521bb870619c36785/ldraw"
# Render with Mesa, as in the experiments; NVIDIA's EGL driver currently renders washed-out colors.
export EGL_PLATFORM=surfaceless LIBGL_ALWAYS_SOFTWARE=1
export __EGL_VENDOR_LIBRARY_FILENAMES=/usr/share/glvnd/egl_vendor.d/50_mesa.json

To explore a model in a browser instead, see the viewer README.

BrickBench

Settings

Each setting's benchmark/<setting>/tasks.json lists its prompts, each decomposed into a question graph in the style of DSG: every question has a key, its text, a kind and subtype, and the keys it depends on.

Running an Agent

The agent needs the setup above, either installed directly or through the container used in the experiments. Render the prompt for a task:

pip install jinja2
python scripts/prompt.py "$(jq -r '.[0].prompt' benchmark/model/tasks.json)" --split model > prompt.txt

Give it to a coding agent in an empty workspace outside this repository, without web search, in a shell where the variables above are exported. The experiments ran Codex in the container:

docker build -t brickagent .
docker build -t brickagent-codex - <<< $'FROM brickagent\nRUN npm install --global @openai/codex'
mkdir -p work
docker run --rm -v "$PWD/work:/work" -e OPENAI_API_KEY brickagent-codex \
    codex exec --skip-git-repo-check --dangerously-bypass-approvals-and-sandbox -c web_search=disabled \
    "$(cat prompt.txt)"

For Alt-Build, export BRICKAGENT_SET=$PWD/benchmark/alt-build/inventory.json (in Docker, also pass -v "$BRICKAGENT_SET:$BRICKAGENT_SET:ro" -e BRICKAGENT_SET). The agent delivers build.py, whose build() returns the assembly, and model.mpd.

Evaluation

Valid. verify.py rebuilds the assembly from build.py and checks the setting's part requirements, collisions, and stability (for Alt-Build, with the same BRICKAGENT_SET):

python scripts/verify.py work --split model  # or set, alt-build; writes work/verification.json, exits 1 if invalid

Assemblies are rendered from eight views with BrickNet-Render and judged by Gemma 4 31B (google/gemma-4-31B-it, revision 842da37), loaded with Transformers (about 62 GB of GPU memory). The scripts read RENDERS/<system>/<task id>/, e.g. RENDERS/my-agent/alt-001/. BrickNet-Render needs Python 3.13:

pip install bricknet-render "bpy>=5.1" transformers torch torchvision accelerate pillow
python -m bricknet_render fetch-glbs
python scripts/flatten.py work/model.mpd work/model.ldr
bricknet-render work/model.ldr RENDERS/my-agent/model-001 --views 8 --resolution 1024x1024 --samples 64

VQA. The judge answers each assembly's question graph from its eight views; a question counts only if the questions it depends on also hold.

python scripts/vqa.py RENDERS --out vqa.jsonl

ELO. For each prompt, every pair of assemblies from different systems is judged from four views each, in both orders, on alignment with the prompt and on design by the standard of an official set. A Bradley--Terry fit gives Align ELO and Design ELO; ELO is their average after rescaling to a common spread over the --core systems.

python scripts/judge.py RENDERS --question align --out align.jsonl
python scripts/judge.py RENDERS --question design --out design.jsonl
python scripts/elo.py align.jsonl design.jsonl

Submitting Results

Submit through the form. Upload one zip of at most 10 MB with a folder per task, named by task id (model-001/, set-001/, alt-001/, ...), holding build.py, model.mpd, or both; build.py is preferred. Missing tasks count as invalid. Check the zip first:

python scripts/check_submission.py submission.zip
