A Python DSL for C4 model diagrams.

c4-diagrams

c4-diagrams is a Python DSL for defining C4 model architecture diagrams as code.

The package provides first-class abstractions for C4 entities — people, systems, containers, components, boundaries, and relationships — allowing you to describe software architecture in Python and render it into multiple diagram formats.

Features

Declarative Python DSL for C4 modeling
First-class C4 entities and relationships
Multiple rendering backends
Suitable for documentation, ADRs, and architecture reviews
Portable core DSL for the common C4 subset, with backend-specific features available through contrib extensions

Rendering backends

Currently supported backends:

PlantUML
- local rendering via plantuml CLI or plantuml.jar
- remote rendering via PlantUML server
Mermaid
- local rendering via Mermaid CLI
- Mermaid’s C4 diagram support is currently experimental
D2
- local rendering via D2 CLI
Structurizr - WIP

Getting started

c4-diagrams requires Python 3.10 or higher.

pip install c4-diagrams

Example

Here’s an example of a system context diagram defined in Python:

# diagram.py
from c4 import (
    EnterpriseBoundary,
    Person,
    System,
    SystemContextDiagram,
    SystemExt,
)
from c4.contrib.plantuml import RelDown, RelRight


with SystemContextDiagram("Acme Shop Platform") as diagram:
    user = Person(
        "Customer",
        "A registered customer who browses products and places orders.",
    )

    with EnterpriseBoundary("Acme Corp"):
        web_app = System(
            "Web Application",
            "Customer-facing website for browsing products and placing orders.",
        )

        api_backend = System(
            "Backend API",
            "Handles authentication, order processing, and business logic.",
        )

    email_provider = SystemExt(
        "Email Provider",
        "Delivers transactional emails.",
    )

    user >> RelRight("Uses") >> web_app
    web_app >> RelRight("Calls API") >> api_backend
    api_backend >> RelDown("Sends emails via") >> email_provider

To export the diagram to a rendered artifact, run:

c4 export diagram.py > diagram.png

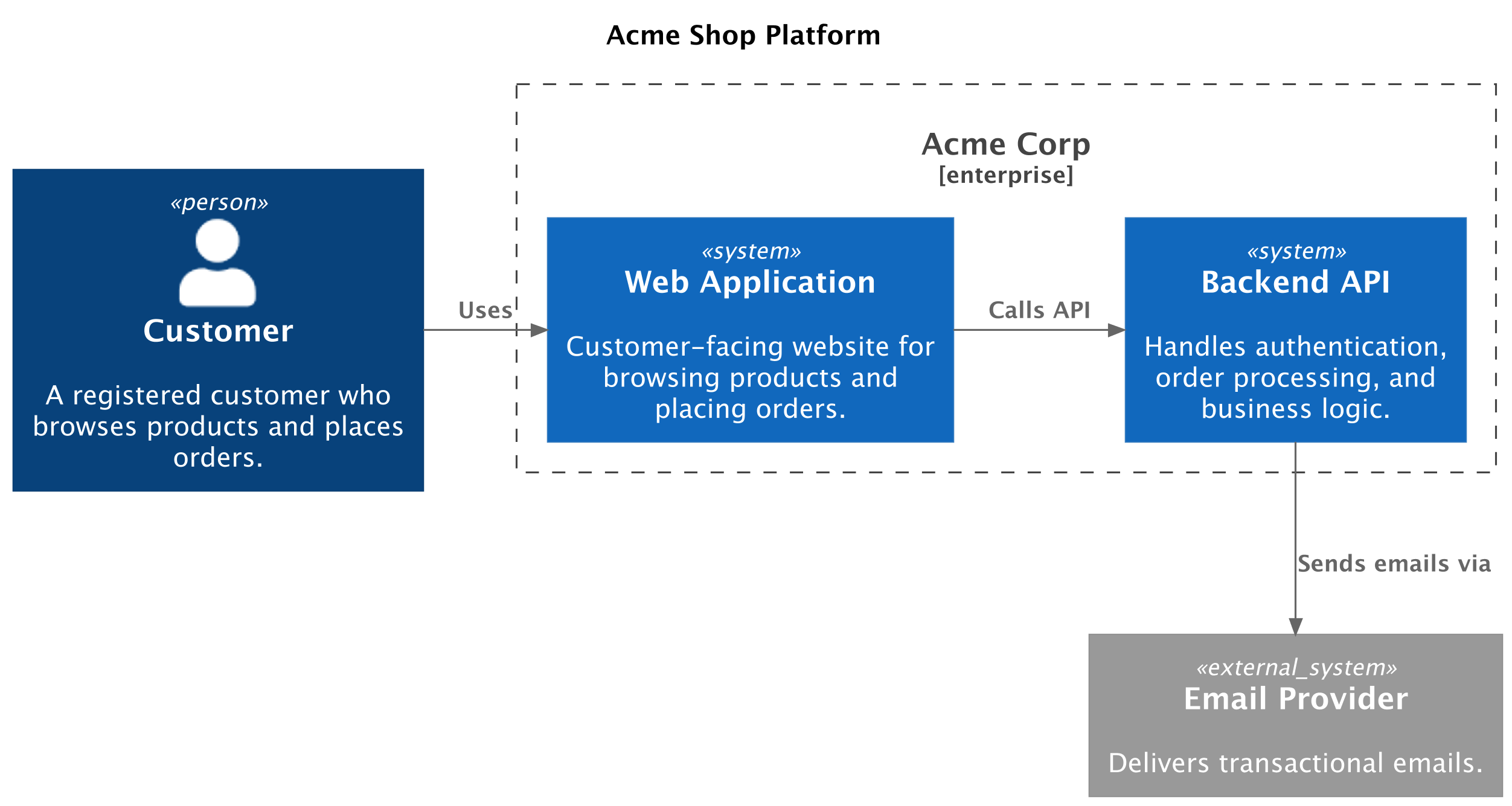

This generates the diagram below:

readme-diagram


For details (renderers, diagram types, API), see the documentation.
