Clustering 4 Fairness

Discover where a model's errors fall unevenly. c4fairness clusters the rows of a model's test set and reports how prediction-error disparities and sensitive-attribute composition vary across the discovered clusters — surfacing under-served subgroups without pre-specifying the protected group. Works for binary, multi-class, and regression tasks.

Made at Vrije Universiteit Amsterdam (VU), in collaboration with the University of Twente (UT).

Install

pip install c4fairness              # from PyPI
pip install "c4fairness[web]"       # + the Gradio web UI
pip install "c4fairness[r]"         # + rpy2

Or from a local checkout (editable, for development):

pip install -e .

The import name is c4fairness; the CLI command is c4fairness (equivalently python -m c4fairness.main).

Quick start

c4fairness --data_path docs/datasets/compas_audit.csv \
    --regular_cols age,priors_count \
    --sensitive_cols sex,race,age --continuous_sensitive_cols age \
    --error_col errors --error_type binary \
    --algorithm kmeans --n_clusters 4 --seed 42

This clusters the test set on age/priors_count (+ the sensitive columns), then writes a per-cluster recap and heatmap showing each cluster's error rate and its sex/race/age make-up. String sensitive columns (sex, race) are one-hot encoded automatically.

What the output looks like

Both heatmaps below come from a single experiment-mode run on the bundled COMPAS extract, auditing a recidivism classifier's false-positive rate:

c4fairness --data_path docs/datasets/compas_audit.csv --experiment \
  --regular_cols age,priors_count \
  --sensitive_cols sex,race,age --continuous_sensitive_cols age \
  --y_true_col true_class --y_pred_col predicted_class --binary_error_metric fpr \
  --error_label "FP Rate" --multicat_table_option salient --sensitive_labels "race:Ethnicity" \
  --algorithm kmeans --n_clusters 4 --seed 42

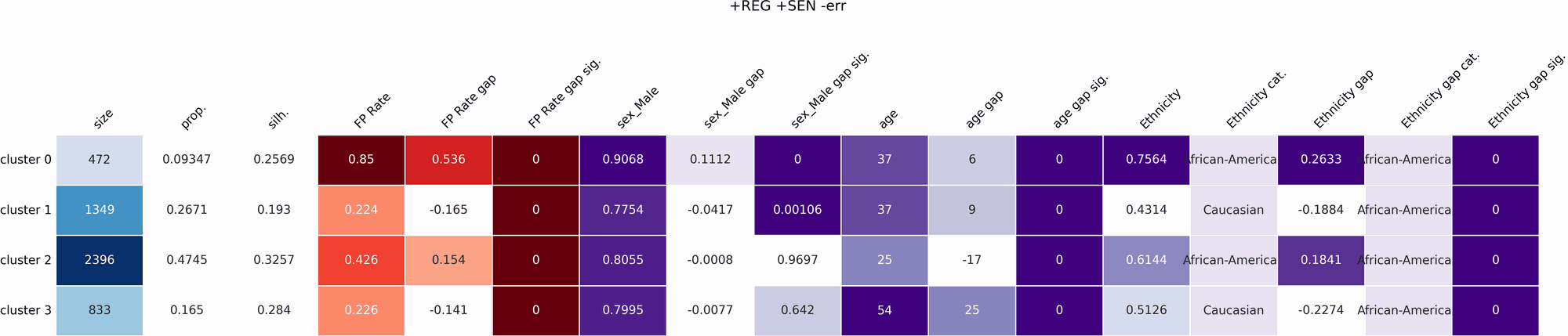

Detailed heatmap — one row per cluster

Condition +REG +SEN -err: clustered on the features and the sensitive attributes, not on the error itself.

Cluster 0 holds 9.3% of the test set and carries an FP Rate of 0.85 against 0.34 overall — a gap of +0.54 at p ≈ 0. Its sensitive columns say who is in it: 76% African-American, 91% male, median age 37. The other three clusters sit between 0.22 and 0.43. That is a disparity localised to a pocket of the feature space, which a single per-race average would flatten.

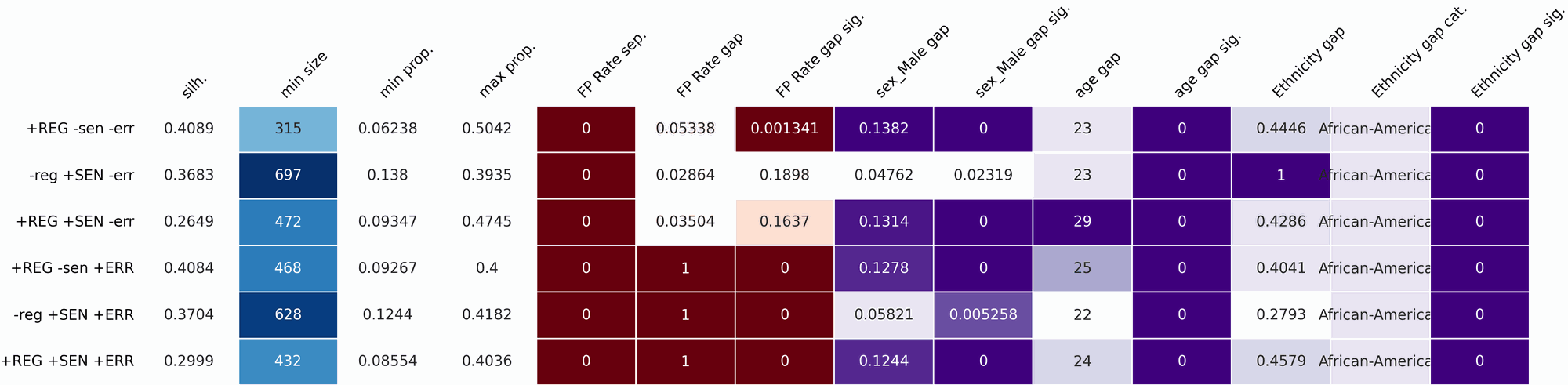

Overview heatmap — one row per condition

Experiment mode reruns the audit for every combination of feature groups (REG = regular features, SEN = sensitive, ERR = the error column), so you can check whether a finding survives the choice of what to cluster on.

Blue = cluster size, red = error, violet = sensitive composition; p-value columns render darker the more significant they are. Conditions that include ERR cluster on the error, so their FP Rate gap of 1.0 is expected, not a finding.

Web UI

A Gradio web app wraps the CLI: upload a CSV, assign column roles, and run from the browser. Results (heatmaps, an overview table, downloadable CSVs) render in tabs, with Home, Documentation, and About pages.

pip install "c4fairness[web]"
c4fairness-web

Then open the printed local URL (default http://localhost:7860). Load example dataset fills the form with the bundled COMPAS extract if you just want to see it work.

Two run modes: Single run (the default) audits the one configuration on the form, while Full sweep repeats it for every feature-group combination. The sweep is several times slower. The form exposes every CLI option; algorithm-specific fields (eps, min_samples, max_iter) appear only for the relevant algorithm, and the run log streams while the job is running.

Requirements

Python 3.10+. A virtual environment is recommended.

python -m venv venv
source venv/bin/activate        # Windows: venv\Scripts\activate
pip install -e .                # or: pip install c4fairness

R (optional) — exact multi-categorical Fisher

The omnibus significance test for multi-class errors and multi-categorical sensitive features can use R's fisher.test (exact r×c Fisher–Freeman–Halton) via rpy2. This is optional: without R, c4fairness falls back to scipy automatically (chi-square with 0-cell handling, or one-vs-all 2×2 Fisher). Install the extra + a system R ≥ 4.5 only if you need the exact test on sparse tables (--multicat_sig auto/fisher_rxc):

pip install "c4fairness[r]"

On macOS the bundled R framework is often too old and rpy2 picks it up, failing with symbol 'R_getVar' not found. Install a modern R (brew install r) and point rpy2 at it:

export R_HOME="$(/opt/homebrew/opt/r/bin/R RHOME)"   # Intel: /usr/local/opt/r/bin/R
export RPY2_CFFI_MODE=ABI

Parameters

Run c4fairness --help for the full list. Key options:

Data & feature columns

Error definition

Sensitive-feature reporting

Significance

Algorithm

Analysis & output

What the result tables contain

Each run writes a Detailed recap (one row per cluster) and, in experiment mode, an Overview (one row per condition). Columns are coloured by family in the heatmaps — blue = size, red = error, violet = sensitive; p-value columns render darker when more significant.

Multi-class errors and multi-categorical sensitive features can be shown either one-hot (one column set per class/category) or salient (a single winning-category column) — see --error_multiclass_option, --multicat_table_option. In experiment mode, per-condition omnibus *_sep p-values are collected in chi_res.csv and Benjamini-Hochberg corrected across sensitive features.

Input data notes — one-hot encoding & StandardScaler

The pipeline auto-detects string/object/category columns and one-hot encodes them, keeping the 0/1 dummies out of StandardScaler. Applying StandardScaler to binary OHE columns distorts Euclidean distances — rarer categories get scaled to larger values and contribute more to distances regardless of importance. Skipping it for OHE columns avoids this. See Cross Validated — bias when one-hot encoding and standardizing.

If your CSV already has externally one-hot-encoded 0/1 columns (integers, so not detected by dtype), pass them via --categorical_cols so they are excluded from scaling — or use --no_standardize if all features are already on comparable scales.

kprototypes silhouette

Standard silhouette can't be computed directly for kprototypes (mixed numeric + categorical distance). The pipeline precomputes the full pairwise distance matrix with the same distance the algorithm uses (squared Euclidean + Hamming, weighted by the fitted gamma) and passes it to silhouette_score(metric='precomputed').

Output structure

Single run

clustering_results/<date>/<timestamp>_<dataset>_<algorithm>_<distance>_s<seed>[_w_<weights>]/
  recap/<run_name>.csv          # per-cluster: error_value/gap/gap_sig, <F>_value/gap/gap_sig, silh
  separability/<run_name>.csv   # per-feature separability tests across clusters
  <run_name>.png                # recap heatmap
  clusters_<method>.png         # one scatter per --projection method
  composition_<attr>.png        # cluster composition per sensitive attribute
  metadata.csv

Experiment mode

clustering_results/<date>/<timestamp>_experiment_<dataset>_<algorithm>_<distance>_s<seed>[_w_<weights>]/
  results_summary.csv           # Overview: one row per condition
  <condition>.csv               # per-cluster detailed recap + OVERALL / SEP rows
  <condition>.png               # detailed heatmap
  all_quali_heatmap.png         # Overview heatmap across conditions
  chi_res.csv / chi_res_heatmap.png   # omnibus separability p-values per condition
  exp_condition.csv             # feature set per condition

The _w_<weights> suffix records --feature_weights (feature + weight, e.g. _w_age2.0_priors_count0.5).

Examples

All four run against the datasets in docs/datasets/.

Binary classification (COMPAS), auditing the false-positive rate:

c4fairness --data_path docs/datasets/compas_audit.csv \
  --regular_cols age,priors_count --sensitive_cols sex,race,age --continuous_sensitive_cols age \
  --y_true_col true_class --y_pred_col predicted_class --binary_error_metric fpr \
  --multicat_table_option salient --algorithm kmeans --n_clusters 4 --seed 42

Experiment mode with automatic k selection:

c4fairness --data_path docs/datasets/compas_audit.csv \
  --regular_cols age,priors_count --sensitive_cols sex,race \
  --error_col errors --error_type binary \
  --algorithm kmeans --n_min 2 --n_max 6 --scoring chi2_error --experiment

Regression (student grades):

c4fairness --data_path docs/datasets/student_grades.csv \
  --regular_cols G1,G2,studytime,absences --sensitive_cols sex_F,Medu,age \
  --continuous_sensitive_cols age --categorical_cols Medu \
  --y_true_col y_true --y_pred_col y_pred --error_type regression \
  --algorithm kmeans --n_clusters 3 --seed 42

Mixed numeric/categorical types with Gower distance:

c4fairness --data_path docs/datasets/student_grades.csv \
  --regular_cols G1,G2,studytime,absences --sensitive_cols sex_F,Medu,age \
  --continuous_sensitive_cols age --categorical_cols Medu,sex_F \
  --y_true_col y_true --y_pred_col y_pred --error_type regression \
  --algorithm hdbscan --distance gower --min_samples 15 --min_datapoints 25 \
  --no_standardize --projection pca --experiment

Worked, narrated notebooks: docs/example_binary.ipynb and docs/example_regression.ipynb.

Datasets

Bundled

Two extracts ship with the repository, in docs/datasets/. Each row is one test-set example carrying the features, the ground truth, and a model's prediction, so they can be audited as-is.

Also evaluated

Not redistributed here — fetch them from the source and add your model's predictions as a column.

The bundled extracts are derived from their sources: columns are subset, and y_pred / predicted_class come from a model trained for these examples. Both originals carry their own licence and citation requirements — check the source before redistributing either.

Project structure

Clustering_4_Fairness/
├── c4fairness/               # the package
│   ├── main.py               # CLI entry point (`c4fairness` / python -m c4fairness.main)
│   ├── cli.py                # argument parsing + column-role helpers
│   ├── clustering.py         # cluster(), gower_distance(), ClusteringResult
│   ├── scoring.py            # silhouette / chi2 / kruskal / composite scorers
│   ├── preprocessing.py      # encode_categoricals()
│   ├── fairness_metrics.py   # per-cluster error/sensitive metrics + significance tests
│   ├── experiments.py        # make_recap(), make_chi_tests(), recap_quali_metrics()
│   ├── experiment.py         # run_batch_experiment() (experiment mode)
│   ├── result_viz.py         # result-table heatmaps
│   ├── visualization.py      # scatter/projection + composition plots
│   └── webapp.py             # Gradio web UI (`c4fairness-web`)
├── docs/                     # example notebooks
│   ├── datasets/             # the COMPAS + student extracts the notebooks read
│   └── images/               # heatmaps used in this README
├── tests/
└── pyproject.toml
