canary-sefi 2.1.2

Canary SEFI is a framework for evaluating the adversarial robustness of deep learning-based image recognition models.

Canary SEFI

中文版

Document

Please refer to our 📖document 👉👉Canary Document👈👈 for using Canary.

The document you are currently reading is an early version, which is incomplete and is being edited by the author and will be updated continuously. We will provide the complete document as soon as possible, as well as the English version of the document. If you have questions, please contact [e-mail] for more information.

Introduction

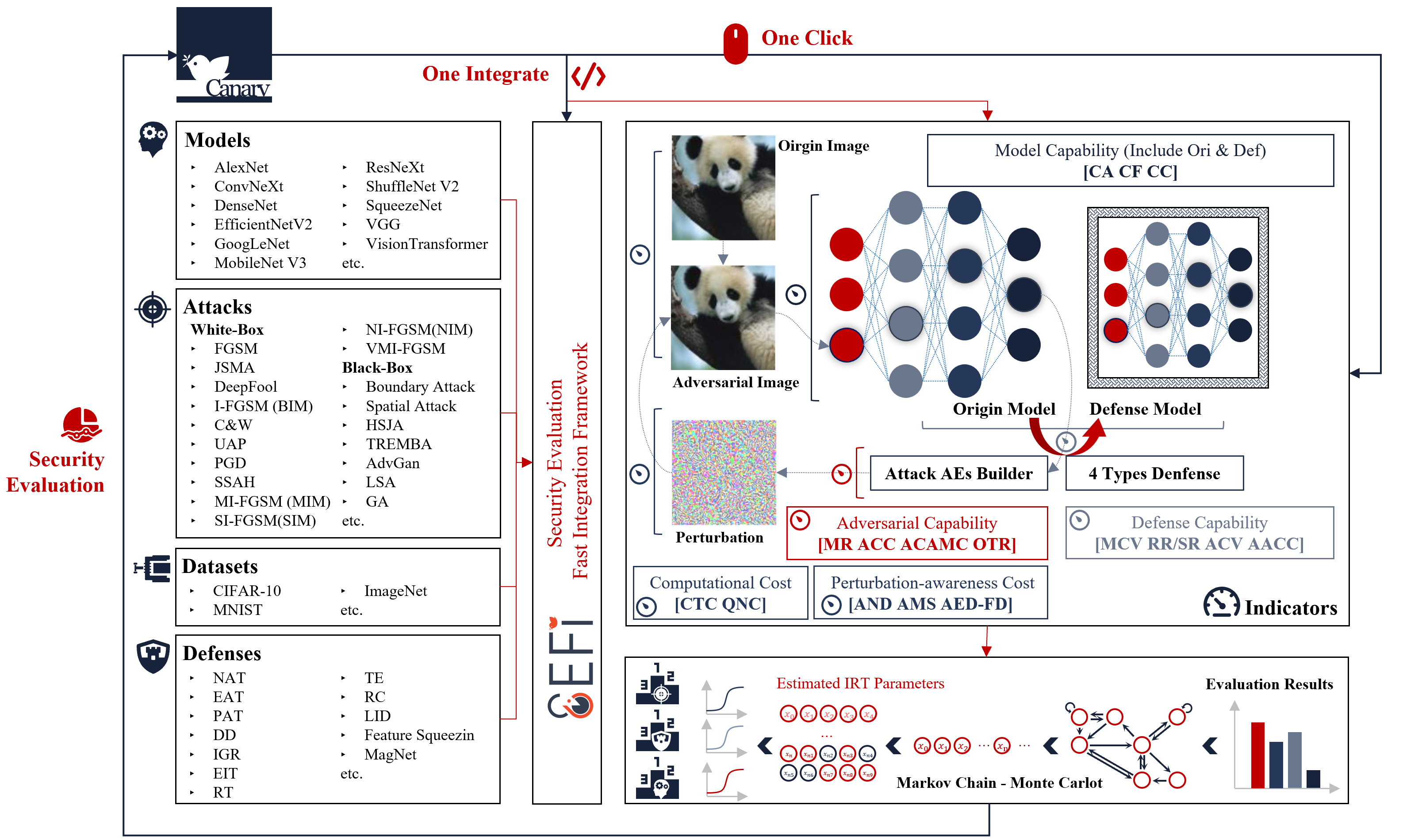

SEFI is a framework for evaluating the robustness of deep learning-based image recognition models.

It uses selected attack methods to generate adversarial samples based on selected models and uses these adversarial examples to attack any model you want. In the process, it collects data including multiple evaluation metrics to assess AI model robustness and attack method effectiveness while trying to find the best defense solution.

It also provides a toolkit containing multiple models, SOTA attack methods and defense methods, and allows users to make additional integrations themselves.

SEFI was created and is maintained by researchers at BIT.

Functions

What models do we support？

We have supported 15 models on 4 datasets, of which all 15 models for the ImageNet dataset are available. We hope that you will participate in improving our model library and share your own model structure and weighting information to help more people.

We have built a public repository of model weights(SEFI-LW) located: https://github.com/NeoSunJZ/Canary_SEFI_Lib_Weight

Models	Substructure	Dataset	Fully Available	Source	Support GCAM?	Weights Available	Top-1 Acc
LeNetV5	N/A	Fashion-MNIST	Come Soon	CNN-for-Fashion-MNIST	Planned	✔SEFI-LW
AlexNet	N/A	Fashion-MNIST	Come Soon	CNN-for-Fashion-MNIST	Planned	✔SEFI-LW	92.19%
AlexNet	N/A	ImageNet	✔	Torchvision	✔	✔Official
VGG	vgg16_bn	ImageNet	✔	Torchvision	✔	✔Official
VGG	vgg16_bn	CIFAR-10	✔	PyTorch CIFAR10	✔	✔SEFI-LW
VGG	vgg16_bn	CIFAR-100	✔	PyTorch CIFAR Models	Planned	✔SEFI-LW
GoogLeNet	N/A	ImageNet	✔	Torchvision	✔	✔Official
GoogLeNet	N/A	CIFAR-10	✔	PyTorch CIFAR10	✔	✔SEFI-LW
InceptionV3	N/A	ImageNet	✔	Torchvision	✔	✔Official
InceptionV3	N/A	CIFAR-10	✔	PyTorch CIFAR10	✔	✔SEFI-LW
ResNet	resnet50	ImageNet	✔	Torchvision	✔	✔Official
ResNet	resnet50	CIFAR-10	✔	PyTorch CIFAR10	✔	✔SEFI-LW
ResNet	resnet56	CIFAR-100	Come Soon	PyTorch CIFAR Models	Planned	✔SEFI-LW	72.63%
ResNet	resnet19light	Fashion-MNIST	Come Soon	CNN-for-Fashion-MNIST	Planned	✔SEFI-LW
DenseNet	densenet161*	ImageNet	✔	Torchvision	✔	✔Official
DenseNet	densenet161	CIFAR-10	✔	PyTorch CIFAR10	✔	✔SEFI-LW
SqueezeNet	squeezenet1_1	ImageNet	✔	Torchvision	✔	✔Official
MobileNetV3	v3_large	ImageNet	✔	Torchvision	✔	✔Official
MobileNetV2	N/A	ImageNet	✔	Torchvision	✔	✔Official
MobileNetV2	N/A	CIFAR-10	✔	PyTorch CIFAR10	Planned	✔SEFI-LW
MobileNetV2	v2_x1_0	CIFAR-100	✔	PyTorch CIFAR Models	Planned	✔SEFI-LW	73.61%
ShuffleNetV2	v2_x2_0	ImageNet	✔	Torchvision	✔	✔Official
ShuffleNetV2	v2_x2_0	CIFAR-10	Come Soon	PyTorch CIFAR Models	N/A	Waiting Upload
ShuffleNetV2	v2_x2_0	CIFAR-100	✔	PyTorch CIFAR Models	Planned	✔SEFI-LW
MNASNet	mnasnet1_3	ImageNet	✔	Torchvision	✔	✔Official
EfficientNetV2	v2_s	ImageNet	✔	Torchvision	✔	✔Official
VisionTransformer	vit_b_32	ImageNet	✔	Torchvision	✔	✔Official
RegNet	y_8gf	ImageNet	✔	Torchvision	✔	✔Official
SwinTransformer	swin_s	ImageNet	✔	Torchvision	✔	✔Official
ConvNext	convnext_base	ImageNet	✔	Torchvision	✔	✔Official
WideResNet	wideresnet34_10	CIFAR-10	Come Soon	PyTorch CIFAR10	✔	Waiting Upload

What attack methods do we support？

We support 22 common attack methods, including:

Attack Methods	Method Type	Attack Approach	Not Support Models	Provide default parameters?
FGSM	White-Box	Gradient	None	Yes, applicable to ImageNet
JSMA	White-Box	Gradient	None	Yes, applicable to ImageNet
DeepFool	White-Box	Gradient	None	Yes, applicable to ImageNet
I-FGSM (BIM)	White-Box	Gradient	None	Yes, applicable to ImageNet
C&W Attack	White-Box	Gradient	None	Yes, applicable to ImageNet
Projected Gradient Descent (PGD)	White-Box	Gradient	None	Yes, applicable to ImageNet
MI-FGSM (MIM)	Transferable Black-box	Transfer, Gradient	None	Yes, applicable to ImageNet
SI-FGSM (SIM)	Transferable Black-box	Transfer, Gradient	None	Yes, applicable to ImageNet
NI-FGSM (NIM)	Transferable Black-box	Transfer, Gradient	None	Yes, applicable to ImageNet
VMI-FGSM (VMIM)	Transferable Black-box	Transfer, Gradient	None	Yes, applicable to ImageNet
Elastic-Net Attack (EAD)	White-Box	Gradient	None	Yes, applicable to ImageNet
SSAH	White-Box	Gradient	InceptionV3、SwinT、ViT	Yes, applicable to ImageNet
One-pixel Attack (OPA)	Black-Box	Query, Score	Not tested	No
Local Search Attack (LSA)	Black-Box	Query, Score	None	Yes, applicable to ImageNet
Boundary Attack (BA)	Black-Box	Query, Decision	None	Yes, applicable to ImageNet
Spatial Attack (SA)	Black-Box	Query	None	Yes, applicable to ImageNet
Hop Skip Jump Attack (HSJA)	Black-Box	Query, Decision	None	Yes, applicable to ImageNet
Gen Attack (GA)	Black-Box	Query, Score	None	Yes, applicable to ImageNet
SPSA	Black-Box	Query, Score	None	Yes, applicable to ImageNet
Zeroth-Order Optimization (ZOO)	Black-Box	Query, Score	Not tested	No
AdvGan	Black-Box	Query, Score	None	Yes, applicable to ImageNet
TREMBA	Black-Box	Query, Score	GoogLeNet、EfficientNetV2	Yes, applicable to ImageNet

We are looking for more good and classic attack methods to add to our library, if you are the author of a method, feel free to contribute your method. Some of the methods that are not fully tested may not be shown in the above table, but it may appear in the code earlier, if it fails to appear in the above list it means it may not be stable or have stable support for the time being.

What defense methods do we support? (Experimental)

The entire defense module is currently experimental, which means they may not be stable.

We support 8 common defense methods, including:

Defense Methods	Method Type	Not Support Models	Provide default parameters?
NAT	Adversarial Training
Mart	Adversarial Training
Natural	Adversarial Training
Trades	Adversarial Training
Jpeg	Image Processing
Quantize	Image Processing
TVM	Image Processing
Quilting	Image Processing

We are looking for more good and classic defense methods to add to our library, if you are the author of a method, feel free to contribute your method. Some of the methods that are not fully tested may not be shown in the above table, but it may appear in the code earlier, if it fails to appear in the above list it means it may not be stable or have stable support for the time being.

What data do we support collecting？

We support the full collection of the following four types of metrics. Please refer to our Paper section 3.1 or the user manual for the specific meaning of the metrics.

Model capability measurement metrics

• Clean Example Accuracy (Clear Accuracy, CA)
• Clean example F1 score (Clear F1, CF)
• Clear Confidence (CC)

Attack effectiveness measurement metrics

• Misclassification Ratio (MR) / Targeted Attack Success (TAS)
• Adversarial Example Confidence Change (ACC): Average Increase in Adversarial-class Confidence (AIAC) / Average Reduction in True-class Confidence (ARTC)
• Average Class Activation Mapping Change (ACAMC)
• Observable Transfer Rate (OTR)

Cost of attack measurement metrics

• Calculation Time Cost (CTC)
• Query Number Cost (QNC)
• Average Norm Distortion(AND): Average Maximum Distortion (AMD) / Average Euclidean Distortion (AED) / Average Pixel Change Ratio (APCR)
• Average Euclidean Distortion in Frequency Domain (AED-FD)
• Average Metrics Similarity (AMS): Average Deep Metrics Similarity (ADMS) / Average Low-level Metrics Similarity (ALMS)

Effectiveness of defense measurement metrics

• Model Capability Variance (MCV): Accuracy Variance (AV) / F1-Score Variance (FV) / Mean Confidence Variance (CV)
• Rectify/Sacrifice Ratio (RR/SR)
• Attack Capability Variance (ACV): MR Variance (MRV) / AND Variance (ANDV) / AMS Variance (AMSV)
• Average Adversarial Confidence Change (AACC):Average Reduction in Adversarial-class Confidence (ARAC) / Average Increase in True-class Confidence (AITC)

Maintainers

@NeoSunJz.

Contributors

Our main contributors are：孙家正（Jiazheng Sun）、Li Chen、Chenxiao Xia、Da Zhang、 Rong Huang、Zhi Qu、Wenqi Xiong

We are particularly grateful for：Jun Zheng 、Yu’an Tan

Cite

We sincerely hope that Canary can be helpful to you, and we also welcome you to cite our articles when using Canary to complete your research work:

@Article{electronics12173665,
  AUTHOR = {Sun, Jiazheng and Chen, Li and Xia, Chenxiao and Zhang, Da and Huang, Rong and Qiu, Zhi and Xiong, Wenqi and Zheng, Jun and Tan, Yu-An},
  TITLE = {CANARY: An Adversarial Robustness Evaluation Platform for Deep Learning Models on Image Classification},
  JOURNAL = {Electronics},
  VOLUME = {12},
  YEAR = {2023},
  NUMBER = {17},
  ARTICLE-NUMBER = {3665},
  URL = {https://www.mdpi.com/2079-9292/12/17/3665},
  ISSN = {2079-9292},
  DOI = {10.3390/electronics12173665}
}

License

Apache 2.0 © Beijing Institute of Technology (BIT)
