cansyd 1.0.0

Causal Neuro-Symbolic Diagnosis - a five-layer fault-diagnosis framework

A five-layer framework that verifies bearing-fault diagnoses against physics and causal structure — instead of trusting a neural network's confidence alone.

Quickstart · How it works · Results · API · Reproduce · Citation

---

What is CANSYD?

CANSYD (Causal Neuro-Symbolic Diagnosis) is a Python framework for diagnosing rolling-element bearing faults from vibration signals. A neural network proposes a diagnosis; then three independent layers check that proposal against the physics of the signal and the causal structure of the machine, and a consensus layer turns the result into an actionable maintenance decision.

The problem it solves is operating-condition shift: a model trained at one load or speed silently loses accuracy at another, and its confidence (the usual signal for "can I trust this prediction?") is the first thing to break. CANSYD answers a question a plain classifier cannot: is this predicted fault physically present in the signal, and would it survive a change of operating condition?

from cansyd import CANSYD, Dataset

data   = Dataset.from_arrays(signals, labels, condition, fs=12000)
report = CANSYD().fit(data).diagnose(data)

print(report.summary())
#  HIGH_CONFIDENCE: 61%   RELIABLE: 22%   UNCERTAIN: 9%   MANUAL_REVIEW: 8%
#  physics verification rate: CONFIRMED 71% · CONFLICT 18% · INCONCLUSIVE 11%

Why it matters. On two cross-domain benchmarks the physics layer is a significantly better reliability signal than deep ensembles (p < 0.005), and under heavy noise it catches up to 100% of the ensemble's confident mistakes. Where the task is easy, it honestly reports no advantage — see Results.

---

Background & provenance

CANSYD is the consolidated, tested implementation of a line of prior work by the authors: an earlier CNSD research prototype and a set of exploratory notebooks developing the physics-verification and causal layers. Those materials are being prepared for public release and will be linked here. This repository is the release-grade framework built from that research.

Table of Contents

• Quickstart
• How it works
• Results
• Features
• Installation
• Usage
• Configuration
• Repository structure
• Reproducing the experiments
• Extending CANSYD
• Project status & roadmap
• Contributing
• Citation
• License

---

🚀 Quickstart

Install (core is dependency-light — no TensorFlow required to use the physics and causal tools):

pip install cansyd            # core
pip install "cansyd[all]"     # + perception (TensorFlow) and counterfactual (DoWhy)

Diagnose a dataset in five lines. Bring your own arrays — signals, labels, the operating condition per window, and the sampling rate:

import numpy as np
from cansyd import CANSYD, Dataset

X    = np.random.randn(200, 1024)          # 200 windows of 1024 samples
y    = np.random.randint(0, 10, 200)       # fault labels
cond = np.random.choice([0, 1, 2, 3], 200) # operating condition per window
data = Dataset.from_arrays(X, y, cond, fs=12000)

report = CANSYD().fit(data).diagnose(data)

print(report.summary())
for statement in report.root_causes()[:5]:
    print(statement)   # e.g. "outer-race comb at 107 Hz (2 harmonics) supports predicted Outer fault"

print(f"{len(report.conflicts())} units flagged for review (physics disagrees with the network).")

Runnable versions live in examples/: quickstart.py, public_api_demo.py, and unseen_data.py.

---

🧠 How it works

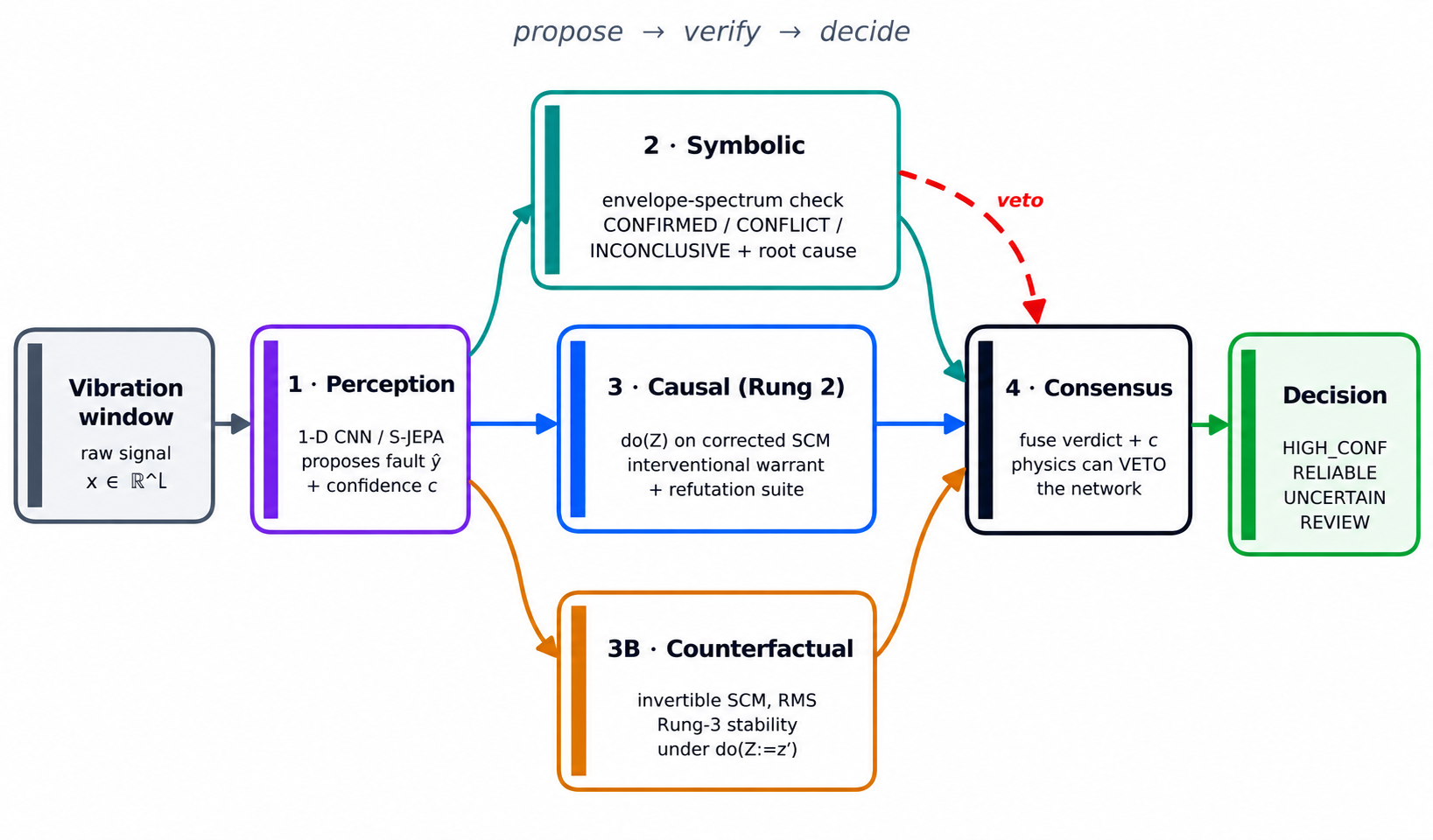

CANSYD is a propose → verify → decide pipeline. The network only proposes; the diagnosis is not trusted until physics and causal reasoning have checked it.

Layer	Role	What it produces
1 · Perception	A 1-D CNN (or self-supervised S-JEPA backbone) classifies the vibration window.	predicted fault ŷ, confidence c
2 · Symbolic	Checks the prediction against the bearing's characteristic frequencies in the envelope spectrum. Independently names the fault family the signal supports.	verdict CONFIRMED / CONFLICT / INCONCLUSIVE, root cause, maintenance action
3 · Causal (Rung 2)	Estimates the interventional effect of the operating condition do(Z) on a corrected structural causal model (vibration does not cause the fault), with a refutation suite.	interventional warrant, CATE, invariance test
3B · Counterfactual (Rung 3)	On an invertible SCM, asks how the diagnosis would move under a different condition, using a continuous, model-independent severity outcome (RMS).	per-unit counterfactual stability
4 · Consensus	Fuses the network confidence with the physics verdict. A physical conflict can veto a confident network.	HIGH_CONFIDENCE / RELIABLE / UNCERTAIN / MANUAL_REVIEW

The core idea in one sentence: a bearing defect strikes at a characteristic frequency fixed by geometry and shaft speed — a signature that is invariant to load by mechanical law, computable at any operating condition, and never consulted by a plain classifier. CANSYD reads it directly and uses it to verify, and if necessary overrule, the network. See docs/architecture.md for the full design.

---

📊 Results

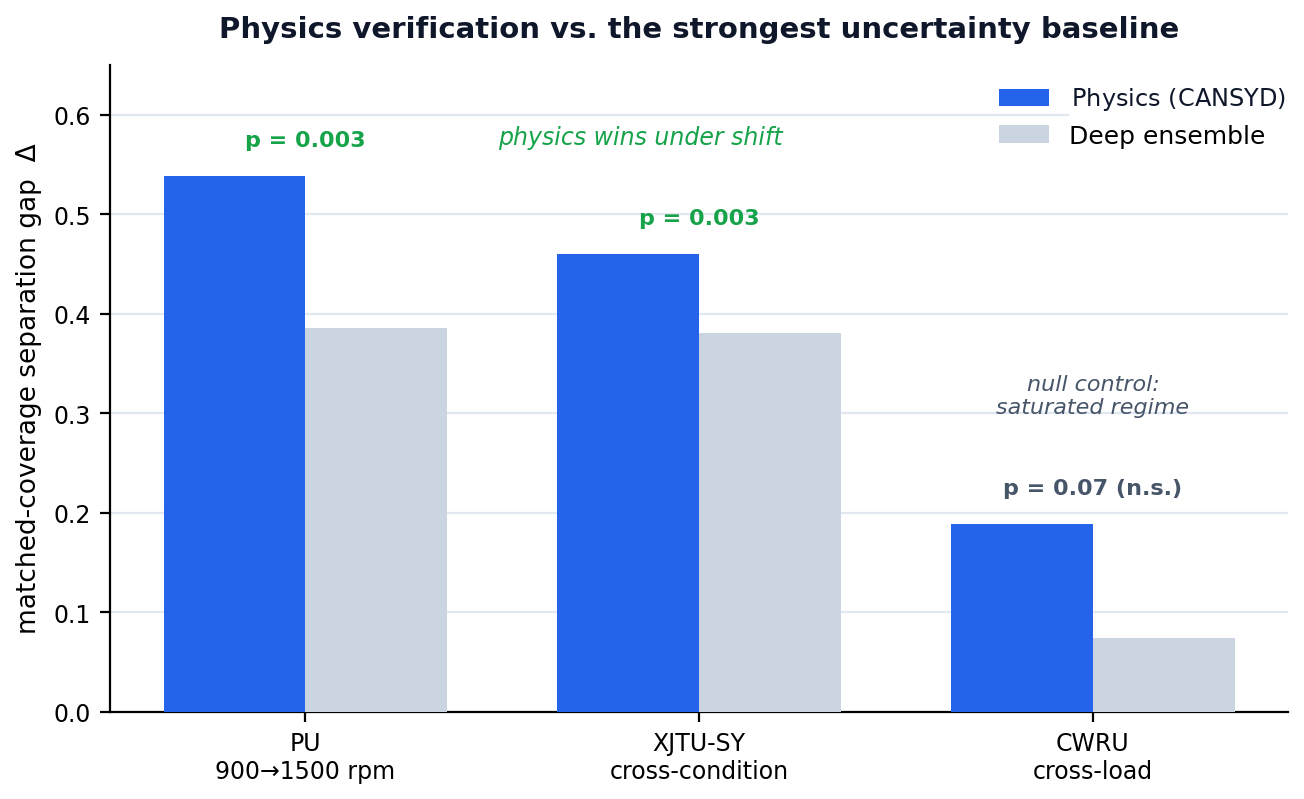

Across three public bearing datasets, we compare reliability estimators at matched coverage (every estimator is allowed to trust the same number of predictions; the reported gap Δ is accuracy(trusted) − accuracy(rest)). Full log: EXPERIMENTS.md.

Dataset	Regime	Physics Δ	Ensemble Δ	Physics vs. Ensemble	Verdict
PU (900→1500 rpm)	shifted	+0.538	+0.386	p = 0.0032	✅ significant win
XJTU-SY (cross-condition)	shifted	+0.460	+0.381	p = 0.0028	✅ significant win
CWRU (cross-load)	saturated	+0.189	+0.074	p = 0.072	⚪ null (reported as control)

Noise robustness. As additive noise increases, the physics layer catches the ensemble's confident errors: 100% at 0 dB on XJTU-SY, ~40% on the saturated CWRU regime.

On the CWRU null. We report it at equal prominence because it is evidence, not a weakness. CANSYD's thesis is that mechanistic verification helps where the signal is degraded and the network is unsure and adds nothing where predictions are already reliable. CWRU's cross-load task is comparatively saturated, so the absence of an advantage there is exactly what the mechanism predicts.

---

✨ Features

	Feature	Detail
🔬	Physics verification	Envelope-spectrum check against BPFO/BPFI/BSF/FTF with harmonic aggregation and FFT-resolution-adaptive tolerance.
⚖️	Three-valued verdict	CONFIRMED / CONFLICT / INCONCLUSIVE — the engine abstains when the physics can't adjudicate, instead of guessing.
🧾	Explainable output	Every diagnosis carries a named component, characteristic frequencies, a root-cause statement, and a maintenance action.
🎯	Runtime causal reasoning	Pearl Rung-2 do(Z) intervention on a corrected SCM, with CATE, cross-load invariance, and a DoWhy refutation suite.
🔮	Counterfactuals	Pearl Rung-3 on an invertible SCM with a model-independent severity outcome; graceful sensitivity-analysis fallback.
🛡️	Physics veto	A confident-but-unsupported prediction is escalated to human review — the failure a confidence-only pipeline can't catch.
🔌	Pluggable physics	bearing, gear, and a zero-knowledge spectral provider behind one registry; add a mechanism with a single class.
📦	Deployable	Dependency-light core (no TensorFlow needed), one-call API, universal dataset contract, tested and packaged.

---

📥 Installation

Requirements: Python ≥ 3.11.

# from PyPI (core only — numpy / scipy / scikit-learn / pyyaml)
pip install cansyd

# with optional extras
pip install "cansyd[perception]"      # 1-D CNN / S-JEPA backbone (TensorFlow, Keras)
pip install "cansyd[counterfactual]"  # Rung-3 counterfactuals (DoWhy, pandas, networkx)
pip install "cansyd[all]"             # everything

From source (for development or exact reproduction):

git clone https://github.com/shodhx/cansyd.git
cd CANSYD
pip install -e ".[all]"
# or pin the exact validated environment:
pip install -r requirements.txt

The core install deliberately avoids heavy dependencies: from cansyd.causal import intervention_effect_of_condition and the physics engine work without TensorFlow. Only training the CNN perception layer needs the perception extra.

---

🛠️ Usage

CANSYD exposes one clean object with four verbs.

Diagnose

from cansyd import CANSYD, Dataset

model  = CANSYD(config="cansyd_config.yaml")   # or CANSYD() for defaults
report = model.fit(data).diagnose(data)

report.summary()             # decision + verification-rate breakdown
report.root_causes()         # human-readable root-cause statements
report.conflicts()           # units where physics disagrees with the network
report.verification_rate()   # CONFIRMED / CONFLICT / INCONCLUSIVE fractions
report.accuracy_by_verdict() # accuracy within each verdict bucket

Explain — the causal warrant (Rung 2)

effect = model.explain(data)   # interventional effect of the operating condition do(Z)

What-if — a counterfactual (Rung 3)

cf = model.what_if(data, intervention={"load": 0.8}, unit_index=0)
# "what severity would this unit have shown at load 0.8?"

Inspect the structural causal model

scm = model.scm_analysis(data)   # the fitted SCM behind the causal layers

---

⚙️ Configuration

CANSYD is driven by a single YAML file. The taxonomy, sampling rate, and bearing geometry live in one place, so a new machine is onboarded by editing config — not code.

# cansyd_config.yaml
dataset:
  name: "cwru"
  sampling_rate_hz: 12000
domain:
  type: "bearing"            # -> selects the bearing physics provider
physics:
  parameters:
    bearing_type: "6205-2RS"
    motor_load_rpm: { 0: 1797, 1: 1772, 2: 1750, 3: 1730 }
taxonomy:
  classes:
    0: ["Normal", null]
    7: ["Outer", 0.007]
    # ... (fault family, defect size in inches)

---

🗂️ Repository structure

CANSYD/
├── README.md                   # you are here
├── LICENSE                     # MIT
├── cansyd_config.yaml            # example configuration
├── requirements.txt            # exact validated environment
├── setup.py / pyproject.toml   # packaging
├── cansyd/                       # the framework (installable package)
│   ├── api.py                  #   public CANSYD class: diagnose / explain / what_if / scm_analysis
│   ├── builder.py              #   assembles the five-layer pipeline from config
│   ├── config.py               #   YAML config loader
│   ├── perception/             #   Layer 1 — 1-D CNN + S-JEPA backbone
│   │   └── cnn.py
│   ├── symbolic/               #   Layer 2 — physics verification engine
│   │   └── engine.py
│   ├── physics/                #   characteristic-frequency kinematics
│   │   ├── bearing.py          #     envelope analysis, harmonic prominence, adaptive tolerance
│   │   ├── gear.py
│   │   └── providers/          #     pluggable domain registry: bearing / gear / spectral
│   ├── scm/                    #   the corrected structural causal model
│   │   └── graph.py
│   ├── causal/                 #   Layer 3 — Rung-2 intervention, CATE, invariance
│   │   ├── estimators.py
│   │   └── refutation.py       #     DoWhy refutation suite (+ permutation fallback)
│   ├── counterfactual/         #   Layer 3B — Rung-3 counterfactual
│   │   ├── rung3.py
│   │   └── sensitivity.py      #     sensitivity-analysis fallback
│   ├── consensus/              #   Layer 4 — verdict + confidence -> decision
│   │   └── fusion.py
│   ├── datasets/               #   universal dataset contract + loaders
│   │   └── contract.py
│   └── diagnosis/              #   orchestration + the DiagnosisReport object
│       ├── system.py
│       └── report.py
├── validation/                 # reproducible cross-domain benchmarks
│   ├── multi_seed_benchmark.py #   20-seed physics-vs-ensemble benchmark
│   ├── validate_cwru.py
│   ├── validate_pu.py
│   └── validate_xjtusy.py
├── examples/                   # runnable usage demos
├── test/                       # test suite (runs without heavy deps)
├── docs/                       # documentation + README assets
│   ├── architecture.md         #   full design document
│   └── assets/                 #   README images (hero, architecture, results)
├── EXPERIMENTS.md              # the validation log (every run, incl. nulls)
├── CONTRIBUTING.md · CODE_OF_CONDUCT.md · SECURITY.md · MAINTAINERS.md
└── CHANGELOG.md

---

🔁 Reproducing the experiments

Every headline number in EXPERIMENTS.md comes from the validation/ scripts. With a dataset prepared under data/ (see per-script docstrings) and the pinned environment installed:

# 20-seed, matched-coverage physics-vs-ensemble benchmark
python -m validation.multi_seed_benchmark --dataset pu
python -m validation.multi_seed_benchmark --dataset xjtusy
python -m validation.multi_seed_benchmark --dataset cwru

Seeds are fixed (42–61); numbers should match within run-to-run noise. Data paths are overridable via the CANSYD_DATA_CWRU, CANSYD_DATA_PU, and CANSYD_DATA_XJTU-SY environment variables.

---

🔧 Extending CANSYD to new machinery

The physics layer is a registry of providers. bearing is validated here; gear and a zero-knowledge spectral fallback ship alongside it. A new mechanism is one class:

from cansyd.physics.providers import register_provider, BaseProvider

class MyProvider(BaseProvider):
    def characteristic_frequencies(self, rpm, geometry): ...
    def dominant_family(self, envelope_spectrum): ...

register_provider("my_machine", MyProvider)
# now: domain.type = "my_machine" in cansyd_config.yaml

Scope note. CANSYD is validated on bearings, where the characteristic-frequency physics is exact. See EXPERIMENTS.md for all logs.

---

📌 Project status & roadmap

CANSYD is v1.0.0 and one step from public release. The framework, physics/causal/counterfactual layers, and cross-domain benchmarks are complete and tested.

• Five-layer pipeline with physics veto
• Rung-2 intervention + refutation suite; Rung-3 counterfactual
• Three-dataset cross-domain validation (PU, XJTU-SY, CWRU)
• Pluggable provider registry; dependency-light core
• Gear-mesh provider (mechanism-agnostic verification)

See ROADMAP.md for where CANSYD is headed and how to help, and CHANGELOG.md for version history.

---

🤝 Contributing

Contributions are welcome. The workflow, integrity norms (honest nulls, no fabricated results, auto-generated artifacts), and review process are in CONTRIBUTING.md. In short:

1. Fork → branch → make your change.
2. Run ruff check . && ruff format . and pytest test/ before submitting.
3. Open a PR describing the change; CI must be green.

Please also read the Code of Conduct and, for vulnerabilities, the Security Policy.

---

📝 Citation

If you use CANSYD, please cite:

@software{cansyd2026,
  title   = {CANSYD: Causal Neuro-Symbolic Diagnosis},
  author  = {Prasad, Abhimanyu and Mahmud, Kazi Tasfin},
  year    = {2026},
  url     = {https://github.com/shodhx/cansyd},
  version = {1.0.0},
}

---

📄 License

Released under the MIT License. © 2026 the CANSYD authors.

---
