Anonymous Multi-Agent Path Finding with Conflict-Based Search and Space-Time A*
Project description
Multi-Agent Path Finding
Anonymous Multi-Agent Path Finding (MAPF) with Conflict-Based Search (CBS) and Space-Time A* (STA*). I strongly recommend you to also check out my Space-Time A* repository for a complete picture of how this package works.
Visualization

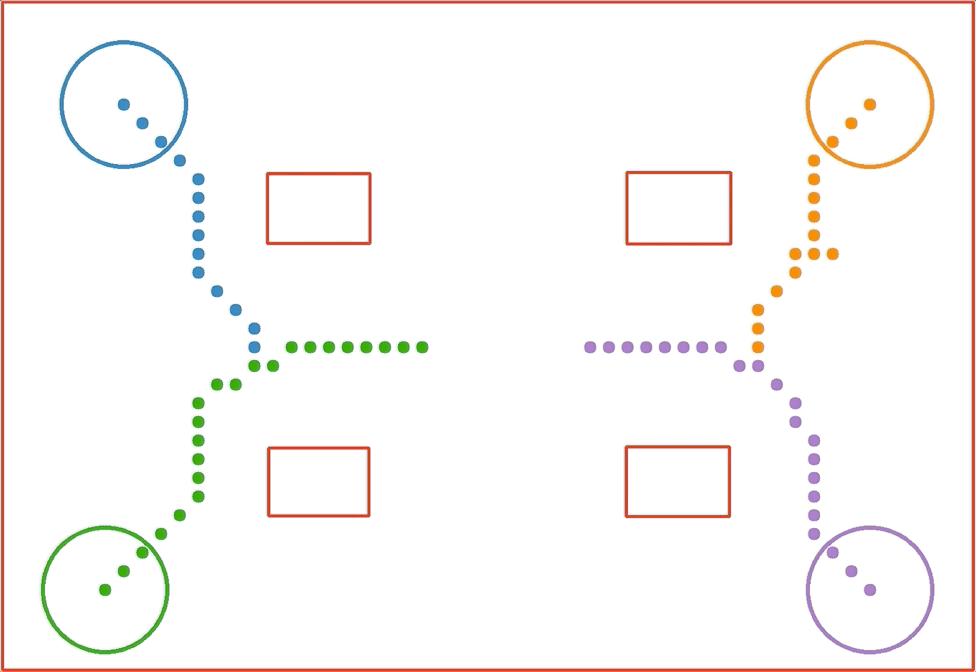

4 agents at the 4 corners of the map trying to align themselves in the middle:

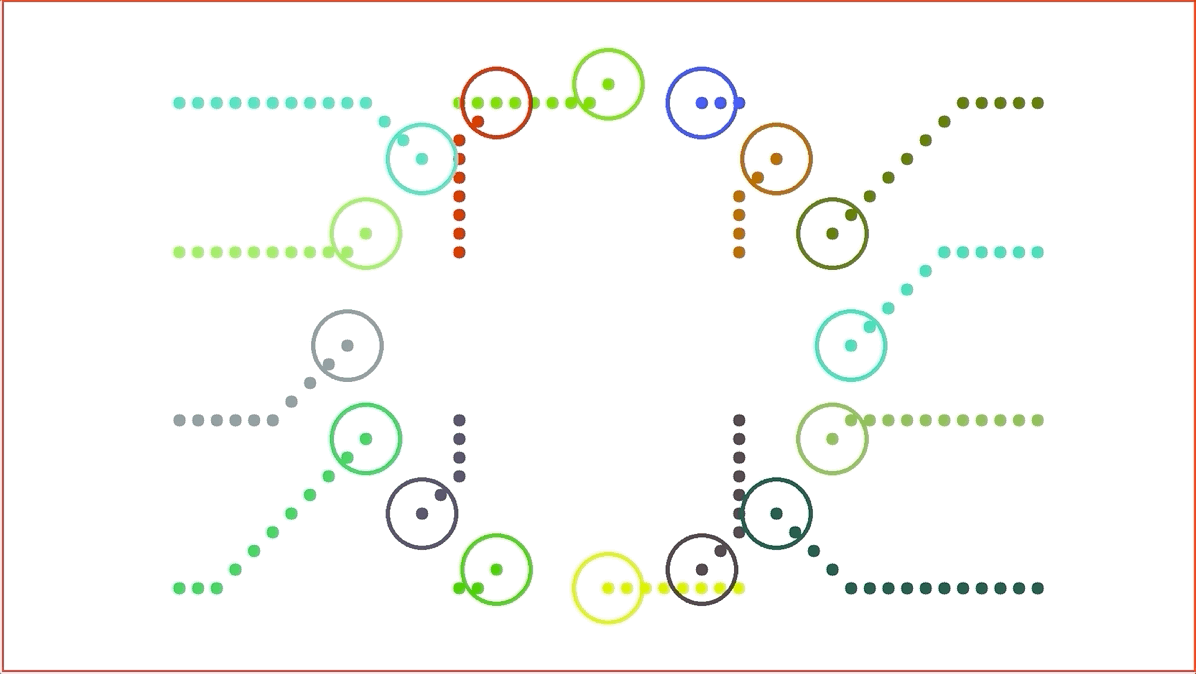

16 agents in a circlular layout trying to form a grid layout:
The above visualizations are generated using visualizer.py
and scenario yaml files in the visualization folder. Once the package (and other requirements) is installed, you can generate them like so:
python3 visualizer.py scenario1.yaml
python3 visualizer.py scenario2.yaml
Installation
The package is named cbs-mapf
and listed on PyPI. You can use the pip to install:
pip3 install cbs-mapf
This will also install its sister package space-time-astar
, also on GitHub and PyPI.
Usage
Import Planner
from cbs_mapf.planner import Planner
Constructor Parameters
Planner(grid_size: int, robot_radius: int, static_obstacles: List[Tuple[int, int]])
- grid_size: int - each grid will be square with side length grid_size.
- robot_radius: int - agents are assumed to be circles with radius being robot_radius.
- static_obstacles: List[Tuple[int, int]] - A list of coordinates specifying the static obstacles in the map.
It is important that grid_size is not too small and static_obstacles does not contain too many coordinates, otherwise the performance will severely deteriorate. What is 'too many' you might ask? It depends on your requirements.
Find Path
Use Planner
's plan()
method:
plan(starts: List[Tuple[int, int]],
goals: List[Tuple[int, int]],
assign:Callable = greedy_assign,
max_iter:int = 200,
low_level_max_iter:int = 100,
max_process:int = 10,
debug:bool = False) -> np.ndarray
Parameters:
- starts: List[Tuple[int, int]] - A list of start coordinates.
- goals: List[Tuple[int, int]] - A list of goal coordinates.
- assign: Callable, optional - A function that assign each start coordinate to a goal coordinate. The default assignment yields a minimum cost with repesct to straight line euclidean distances, see Hungarian Algorithm.
- max_iter: int, optional - Max iterations of the high-level CBS algorithm. Default to
200
. - low_level_max_iter: int, optional - Max iterations of the low-level STA* algorithm. Default to
100
. - max_process: int, optional - Maximum number of processes to spawn. Default to
10
. - debug: bool, optional - Prints some debug message. Default to
False
.
The size of starts and goals must be equal.
The assign function returns a list of Agent
, see agent.py
for more details.
Return:
A numpy.ndaarray
with shape (N, L, 2)
with N
being the number of agents (i.e. # of start coordinates) and L
being the length of the path.
To get the path of the first agent (i.e. the agent with the first start coordinates in starts
), simply take the 0th-indexed element.
The individual path for each agent is padded to the same length L
.
Theoretical Background
The high-level conflict-based search (CBS) is based on the paper [Sharon et al. 2012]. The low-level space-time A* (STA*) is like normal A* with an additional time dimension, see the GitHub page for more information.
Constraint Tree
The core of the algorithm is the maintenance of a constraint tree (a binary min-heap in my implementation). The nodes in the constraint tree have 3 component:
- constraints - detailing what each agent should avoid in space-time
- solution - path for each agent
- cost - the sum of the cost of individual paths
The low-level STA* planner can take the constraints for an agent and calculate a collison-free path for that agent.
Pseudocode
Taken from [Sharon et al. 2012] with minor modification.
node = Find paths for individual agents with no constraints.
Add node to the constraint tree.
while constraint tree is not empty:
best = node with the lowest cost in the constraint tree
Validate the solution in best until a conflict occurs.
if there is no conflict:
return best
conflict = Find the first 2 agents with conflicting paths.
new_node1 = node where the 1st agent avoid the 2nd agent
Add new_node1 to the constraint tree.
new_node2 = node where the 2nd agent avoid the 1st agent
Add new_node2 to the constraint tree.
Contributing
Suggestions and pull requests are welcome. For major changes, please open an issue first to discuss what you would like to change.
