CHB — Clustering Hardness Benchmark

Official implementation of the ICML 2026 paper "CHB: A Diagnostic Toolkit for Hardness-Aware Clustering Evaluation" (Walid Durani, Philipp Jahn, Collin Leiber, David B. Hoffmann, Thomas Seidl, Claudia Plant, Christian Böhm).

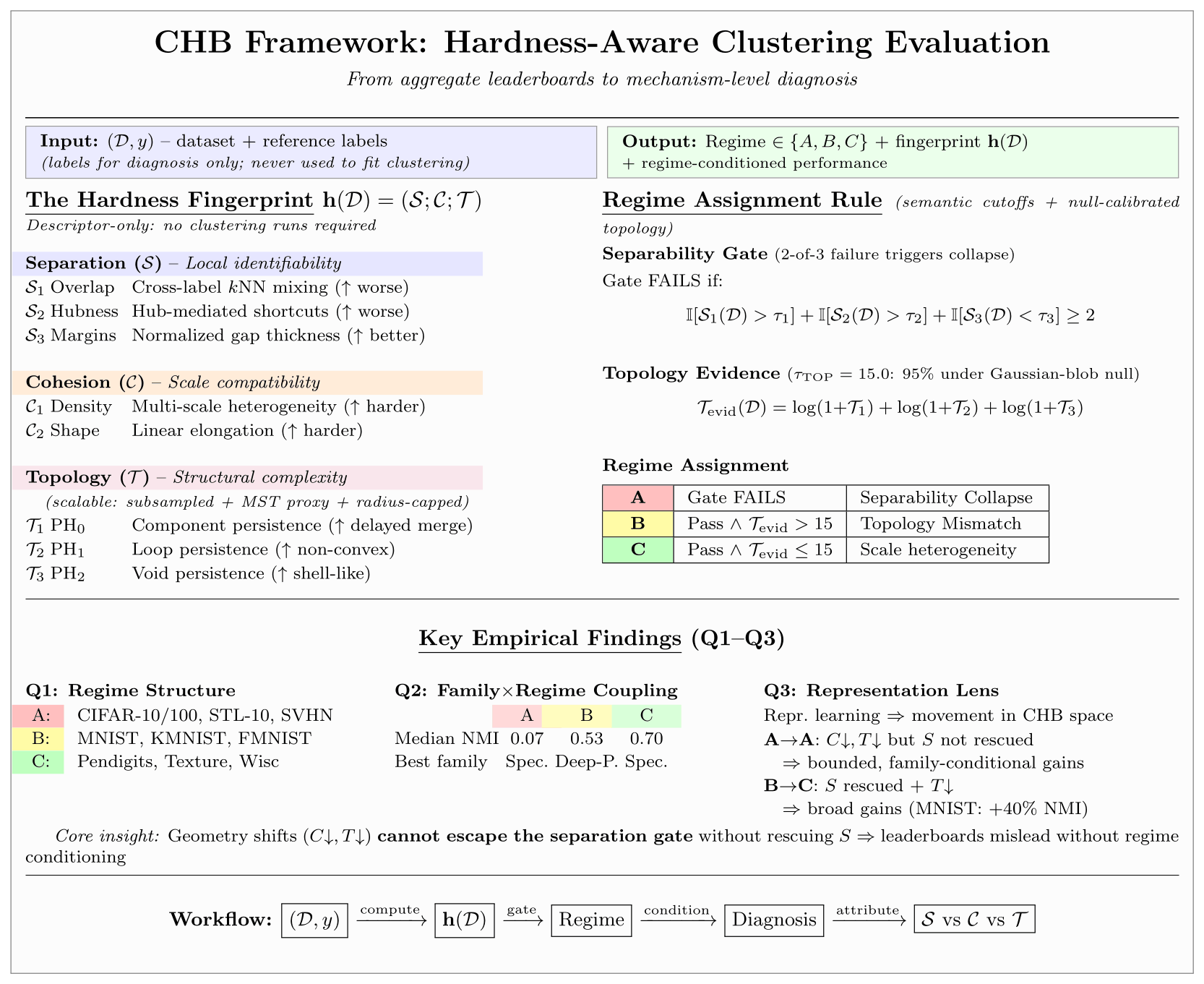

Computes the CHB hardness fingerprint h(D) = (S; C; T) for a labeled dataset, plus the separability gate, the blob-calibrated topology evidence T_evid, and the deterministic regime assignment (A / B / C).

Citation

If you use CHB, please cite:

@inproceedings{durani2026chb,
  title     = {{CHB}: A Diagnostic Toolkit for Hardness-Aware Clustering Evaluation},
  author    = {Durani, Walid and Jahn, Philipp and Leiber, Collin and
               Hoffmann, David B. and Seidl, Thomas and Plant, Claudia and
               B{\"o}hm, Christian},
  booktitle = {Proceedings of the 43rd International Conference on Machine Learning (ICML)},
  series    = {Proceedings of Machine Learning Research},
  volume    = {306},
  publisher = {PMLR},
  year      = {2026}
}

Install

pip install chb-clustering

or from source:

git clone https://github.com/Walid10010/CHB.git && cd CHB
pip install -e .

All dependencies (including ripser, which powers the topology descriptors T2/T3) are installed automatically. The distribution is named chb-clustering, the import name is chb — if you happen to have the unrelated PyPI package chb installed, uninstall it first to avoid a file collision.

Usage

Python API

from chb import compute_fingerprint

fingerprint, regime = compute_fingerprint(X, y)
# fingerprint: {"S1": ..., "S2": ..., "S3": ..., "C1": ..., "C2": ..., "T1": ..., "T2": ..., "T3": ...}
# regime:      "A" (separability collapse) | "B" (topology mismatch) | "C" (scale heterogeneity)

res = compute_fingerprint(X, y)     # rich result object
res.gate, res.t_evid, res.report    # gate details, topology evidence, full combined report

Labels are used for diagnosis only — never to fit clustering.

Command line

# Full CHB run on a single dataset (writes one combined JSON incl. regime)
chb both --input your.csv --label-col target
chb both --input your.npz            # expects arrays X and y/labels

# Batch over kdd_data/ (*.npz) and kdd_data_org/ (data_*/label_* pairs)
# Base dir via env var CLUSTERING_BASE_DIR (default: cwd); output: combined_results/
chb batch

# Add/refresh the CHB block (fingerprint, gate, T_evid, regime) on existing
# combined reports — understands legacy key names from earlier code versions
chb chb --report combined_results/

# Individual blocks
chb cohesion   --input your.csv
chb separation --input your.csv

Also available as python -m chb ...; the old python chb_metrics.py ... entry point keeps working via a deprecation shim.

Every combined report contains a top-level "chb" block:

"chb": {
  "fingerprint": {"S1": ..., "S2": ..., "S3": ..., "C1": ..., "C2": ...,
                   "T1": ..., "T2": ..., "T3": ...},
  "separability_gate": {"SEPF": ..., "gate_fails": ...},
  "topology_evidence": {"T_evid": ..., "tau_top": 15.0},
  "regime": "A" | "B" | "C"
}

Primary (CHB) descriptors

Regime rule: A if the separability gate fails (2-of-3 strict failures, equivalently SEPF = median(S1−0.5, S2−0.33, 1.0−S3) > 0); B if the gate passes and T_evid = Σ log(1+Tᵢ) > 15.0; C otherwise.

Secondary diagnostics

All non-CHB metrics are kept for exploration and are clearly marked with a sec_ prefix (e.g. sec_margin_svm, sec_geodesic_tightness, sec_density_composite_badness) or live in their own blocks (directional A1–A5, baseline meta-features, hyperparameter stability). They are not part of the CHB fingerprint or the regime rule.

Validation

smoke_test.py reproduces the paper's Appendix E.1 synthetic sanity checks (separated blobs → C, overlapping blobs → A, elongated clusters → C with high C2). On MNIST (n=50000, seed 42) the pipeline reproduces the paper's Table 15 fingerprint to table precision and assigns Regime B.

python tests/smoke_test.py            # all cases
python tests/smoke_test.py legacy     # fast case only

Note on legacy reports

Reports produced by earlier code versions use old key names; the chb annotate mode maps them automatically. Their density block (DensityComplexity) is treated as outdated and is recomputed on the next both/batch run.

License

Released under the MIT License.
