cider-cli 0.1.2

IP address space visualization (pcap, geofeed, MaxMind)

cider-cli

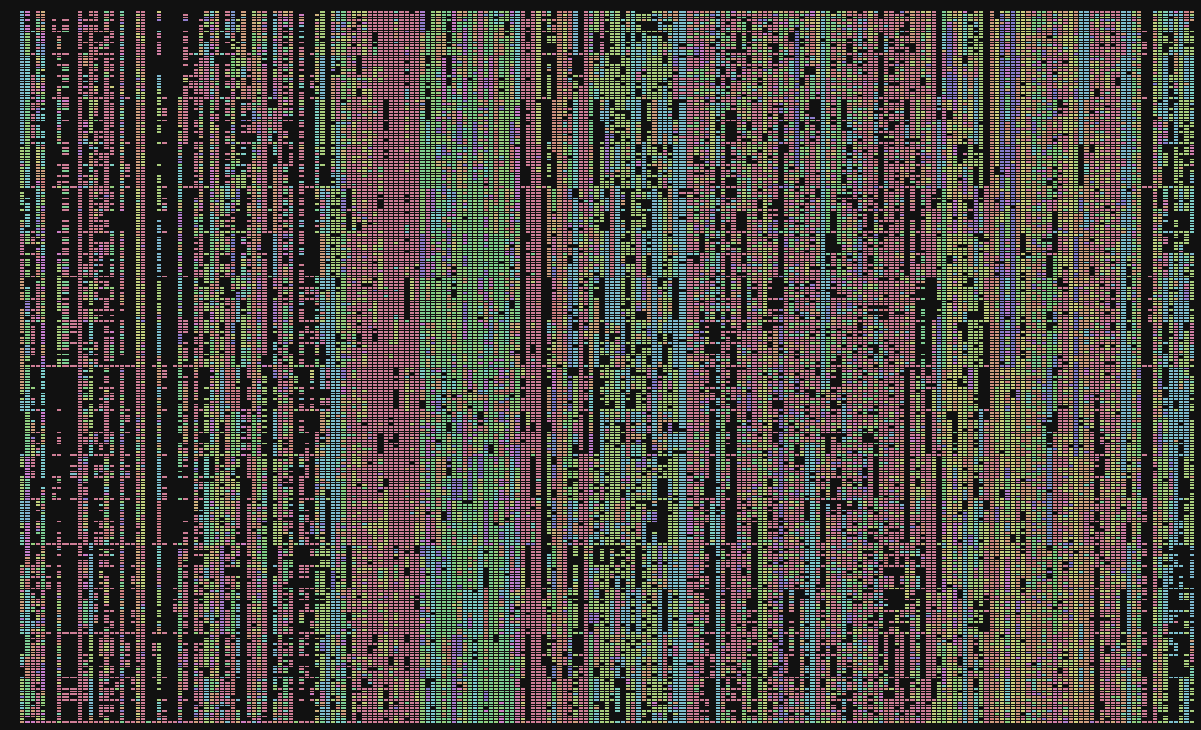

Cider-cli is a cli tool for producing CIDR maps, also known as "ip census maps", "ip maps", or "address space maps". These are very powerful graphs in your developer tool kit for understanding network traffic and visualizing address space in an organized fashion: The goal is to solve and visualize complexities in address spaces, trends which may be clearer simply with a little color:

Installation

Cider-cli is currently an unpublished tool, but for beta testing purposes you can install via:

Install latest:

pip install git+https://github.com/lramos0/cider-cli.git

Development Installation

git clone https://github.com/lramos0/cider-cli
cd cider-cli
pip install -e .

🧭 How to Use?

You can produce CIDR maps on an input, see supported data sources, using:

ipmap {input} --kind {geofeed|maxmind|pcap} [options]

📁 Supported Data Sources

1. Formatted CSV (geofeeds, script outputs, etc)

CSV files with lines of the form:

ip_prefix,cc,region,city,...

Run:

ipmap ripe.csv --kind geofeed -o ripe_map.html

2. MaxMind CSV Snapshot Folder

The input must be the directory containing:

GeoLite2-City-Blocks-IPv4.csv GeoLite2-City-Locations-en.csv

Run:

ipmap GeoLite2-City-CSV_20250902 --kind maxmind -o maxmind_map.html

3. Packet Capture (.pcap)

You can generate a quick pcap of outbound traffic:

sudo tcpdump -i en0 -w capture.pcap 'tcp[tcpflags] & tcp-syn != 0'

Visualize it:

ipmap map capture.pcap --kind pcap -o pcap_map.html

🎨 Visualization Options

Currently, the formats allow for the following options (default is html output). This can be set with the output tag:

--output result.html
--output result.png --output-format png

📊 Example: Full Command

ipmap ripe.20250903.geo.csv \
--kind geofeed \
--view /16 \
--mode primary \
--colorscale default \
--output ripe_map.html

🏁 Output

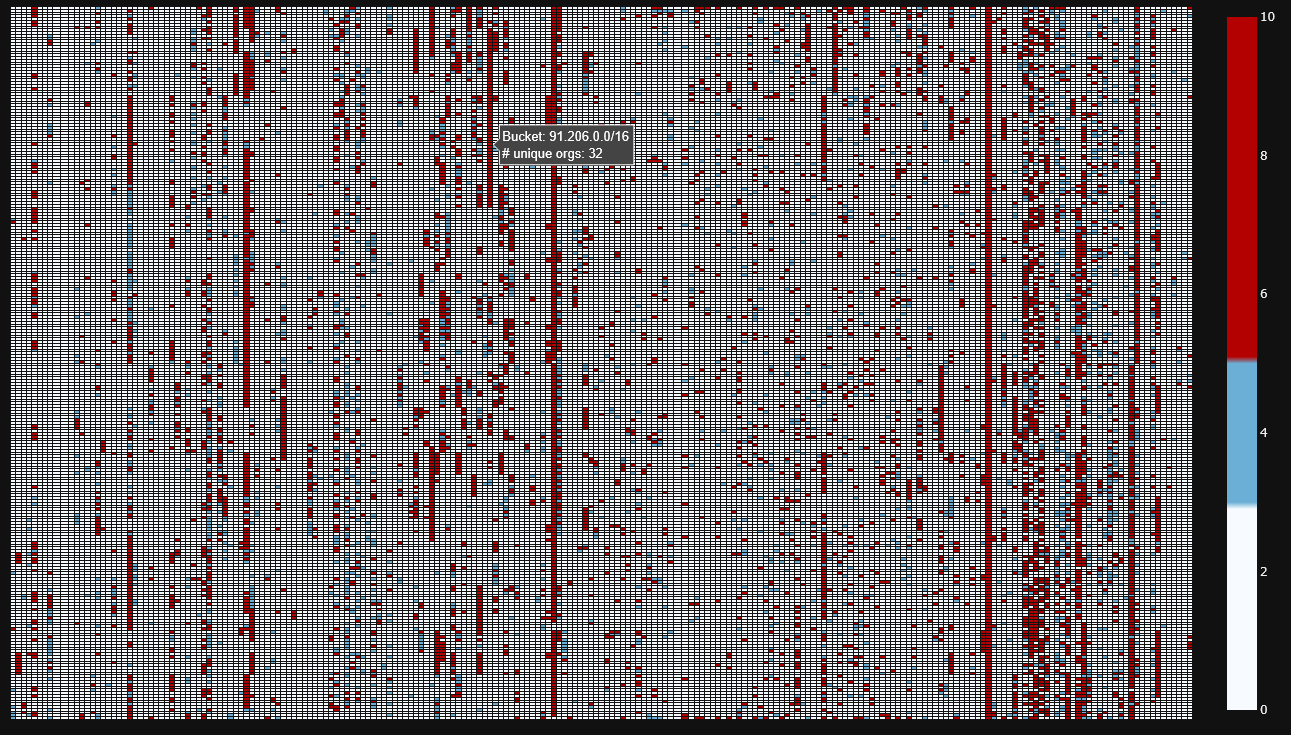

Every visualization is an interactive Plotly map with:

1. Clickable mode toggles

2. Primary org / country count / prefix count views

3. Responsive scaling

4. Exportable HTML or PNG
