circleclust 0.0.2

Clustering on periodic circular coordinates.

CircleClust

Clustering on periodic circular coordinates with automatic detection of centroids and boundary handling.

Installation

pip install circleclust

Why CircleClust?

Standard clustering algorithms don't account for periodicity. Values like color hues on a color wheel or bedtimes may wrap around boundaries. CircleClust handles this by correctly detecting clusters that cross periodic boundaries.

Features

• Automatic size parameter detection using train/test RMSD minimization
• Circular boundary handling - clusters crossing 0/period are correctly identified
• Period-aware clustering - works with any period (radians, degrees, hours, minutes)
• Visualization tools - plot centroids means and stds
• Robust peak detection - identifies distribution peaks on periodic axes

Quick Start

import numpy as np
import pandas as pd
from circleclust import CircleClust

url = "https://raw.githubusercontent.com/timpyrkov/circleclust/refs/heads/master/tests/sample.csv"

# Read sample data csv: 500 data points in range [0, 2π)
df = pd.read_csv(url)
data = df['x'].values

# Create and fit model
clust = CircleClust(verbose=True)
clust.fit(data, period=2*np.pi)

# Get detected centroids
clust.get_centroids()
# Output: {'centroid': array([0.46530696, 3.1074802 , 4.34047566]),
#          'std': array([0.66322512, 0.2304881 , 0.29800344])}

# Predict cluster labels
labels = clust.predict(data)
np.unique(labels, return_counts=True)
# Output: (array([-1,  0,  1,  2]), array([179, 150,  81,  90]))

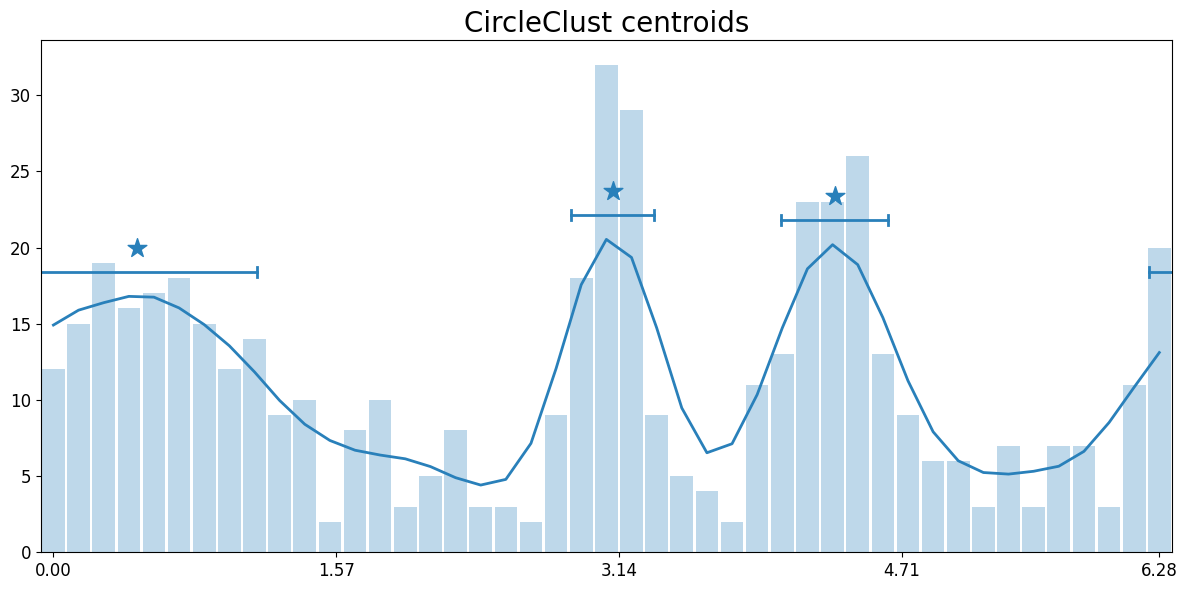

# Visualize results
clust.show_peaks(output="clusters.png")

Examples

Color Hue Clustering

Cluster pixel hues from an image, correctly handling the red color boundary:

Notebook: Color Wheel Example

This example demonstrates how CircleClust correctly identifies red clusters that span the 0°/360° boundary, treating pixels near both boundaries as a single cluster.

Sleep Pattern Analysis

Analyze go-to-sleep and wake-up times near midnight:

Notebook: Sleep-Wake Pattern Example

This example shows how to detect sleep patterns that cross the day boundary at midnight, properly clustering late-night and early-morning bedtimes.

API Reference

CircleClust Class

Main class for circular clustering with automatic peak detection.

Constructor Parameters

• data (Iterable[float], optional): Data to fit immediately upon construction
• period (float, default 2π): Period of input values; data is wrapped into [0, period)
• window (float, optional): Manual override for smoothing window width
• max_screen_divisor (int, default 32): Maximum divisor k in window screening
• max_screen_iter (int, default 2): Number of screening repetitions
• train_frac (float, default 0.7): Training fraction during screening
• random_seed (int, default 0): Random seed for reproducibility
• verbose (bool, default False): Enable informational prints

Main Methods

• fit(data, period=None): Fit the model to data. Important: provide correct period range for data values!
• predict(data): Predict cluster labels for input data points (returns array of integers, -1 for outliers)
• get_centroids(): Get detected centroids as a dict with 'centroid' (means) and 'std' (standard deviations) arrays
• show_peaks(output=None): Visualize detected peaks on a histogram plot
• show_centroids(output=None): Alias for show_peaks()

Usage Tips

1. Provide the correct period: Your data must be within [0, period). Make sure your period matches your data domain (e.g., 2*np.pi for radians, 360 for degrees, 24*60 for minutes in a day)

2. Let the algorithm find the optimal window: Unless you have domain knowledge, let CircleClust automatically detect the optimal smoothing window

3. Check for outliers: Points labeled -1 in the predict output are outliers not assigned to any cluster

Documentation

Comprehensive documentation with interactive examples: https://circleclust.readthedocs.io
