Cardiac circulation models
This package provides a set of models for the circulation of blood in the heart and the rest of the body.
Install
python -m pip install circulation
Documentation
See https://computationalphysiology.github.io/circulation
Usage
import matplotlib.pyplot as plt
import circulation
# Create a model
model = circulation.regazzoni2020.Regazzoni2020()
# Solve the model for 5 seconds with a time step of 1 ms and an evaluation time step of 10 ms
results = model.solve(T=5.0, dt=1e-3, dt_eval=0.01)
# Print some information about the pressure, flows and volumes inside the model
model.print_info()

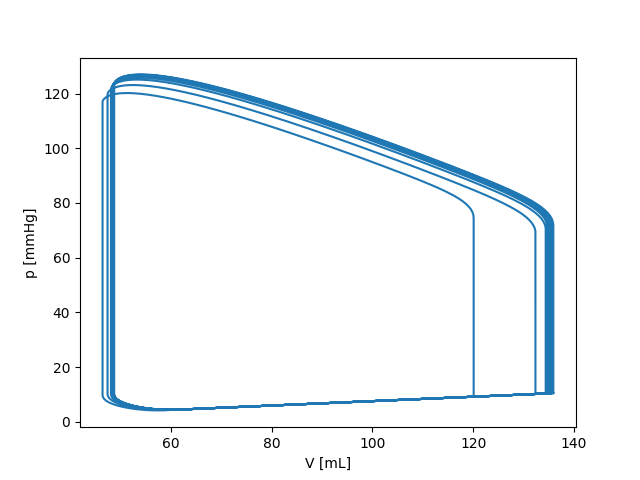

# Plot the pressure-volume loop
fig, ax = plt.subplots()
ax.plot(results["V_LV"], results["p_LV"])
ax.set_xlabel("V [mL]")
ax.set_ylabel("p [mmHg]")
plt.show()
See more examples in the documentation.
License
MIT
