✒️ About

Given two matrices $X \in \mathbb{R}^{n\times s_1}$ and $Y \in \mathbb{R}^{n\times s_2}$ representing the output of two layers, we can define two auxiliary $n \times n$ Gram matrices $K=XX^T$ and $L=YY^T$ and compute the dot-product similarity between them

$$\langle vec(XX^T), vec(YY^T)\rangle = tr(XX^T YY^T) = \lVert Y^T X \rVert_F^2.$$

Then, the $HSIC$ on $K$ and $L$ is defined as

$$HSIC_0(K, L) = \frac{tr(KHLH)}{(n - 1)^2},$$

where $H = I_n - \frac{1}{n}J_n$ is the centering matrix and $J_n$ is an $n \times n$ matrix filled with ones. Finally, to obtain the CKA value we only need to normalize $HSIC_0$

$$CKA(K, L) = \frac{HSIC(K, L)}{\sqrt{HSIC(K, K) HSIC(L, L)}}.$$

Therefore, we need to define the unbiased estimator of HSIC so that the value of CKA is independent of the batch size

$$HSIC_1(K, L)=\frac{1}{n(n-3)}\left( tr(\tilde{K}, \tilde{L}) + \frac{1^T\tilde{K}11^T\tilde{L}1}{(n-1)(n-2)} - \frac{2}{n-2}1^T\tilde{K}\tilde{L}1\right),$$

where $\tilde{K}$ and $\tilde{L}$ are obtained by setting the diagonal entries of $K$ and $L$ to zero. Finally, we can compute the minibatch version of CKA by averaging $HSIC_1$ scores over $k$ minibatches

$$CKA_{minibatch}=\frac{\frac{1}{k} \displaystyle\sum_{i=1}^{k} HSIC_1(K_i, L_i)}{\sqrt{\frac{1}{k} \displaystyle\sum_{i=1}^{k} HSIC_1(K_i, K_i)}\sqrt{\frac{1}{k} \displaystyle\sum_{i=1}^{k} HSIC_1(L_i, L_i)}},$$

with $K_i=X_iX_i^T$ and $L_i=Y_iY_i^T$, where $X_i \in \mathbb{R}^{m \times p_1}$ and $Y_i \in \mathbb{R}^{m \times p_2}$ are now matrices containing activations of the $i^{th}$ minibatch of $m$ examples sampled without replacement [3].

📦 Installation

This project requires python >= 3.10.

Create a new venv

# If you have uv installed
uv venv

# Otherwise
python -m venv .venv

# Activate the virtual environment
source .venv/bin/activate  # if you are on Linux
.\.venv\Scripts\activate.bat  # if you are using the cmd on Windows
.\.venv\Scripts\Activate.ps1  # if you are using the PowerShell on Windows

Install the package

You can install the package:

• from PyPI

  uv pip install ckatorch --torch-backend=auto


• from this repo

  uv pip install git+https://github.com/RistoAle97/centered-kernel-alignment --torch-backend=auto


• by cloning the repository and installing the dependencies

  git clone https://github.com/RistoAle97/centered-kernel-alignment
  cd centered-kernel-alignment
  uv pip install -e . --torch-backend=auto
  uv pip install ckatorch --group dev  # if you want to also install the dev dependencies


Take a look at the examples directory to understand how to compute CKA in two basic scenarios.

🖼️ Plots

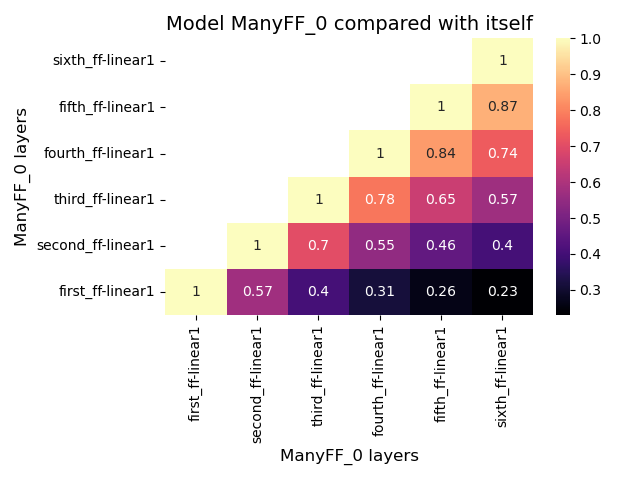

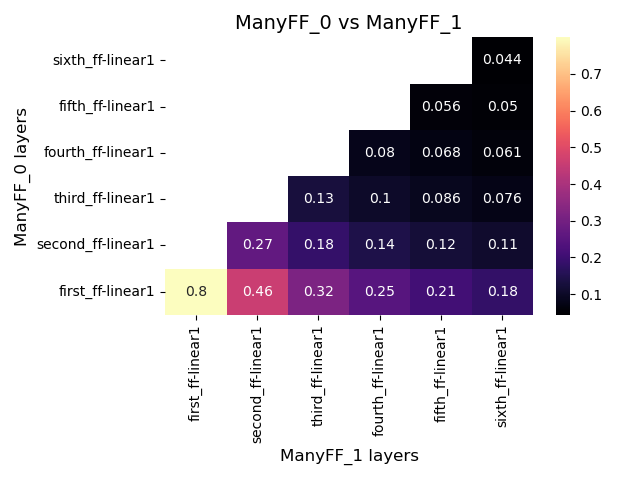

Model compared with itself	Different models compared

📚 Bibliography

[1] Kornblith, Simon, et al. "Similarity of neural network representations revisited." International Conference on Machine Learning. PMLR, 2019.

[2] Wang, Tinghua, Xiaolu Dai, and Yuze Liu. "Learning with Hilbert–Schmidt independence criterion: A review and new perspectives." Knowledge-based systems 234 (2021): 107567.

[3] Nguyen, Thao, Maithra Raghu, and Simon Kornblith. "Do wide and deep networks learn the same things? uncovering how neural network representations vary with width and depth." arXiv preprint arXiv:2010.15327 (2020).

This project is also based on the following repositories:

• representation_similarity (original implementation).
• PyTorch-Model-Compare (nice PyTorch implementation that employs hooks).
• CKA.pytorch (minibatch version of CKA and useful batched implementation of $HSIC_1$).

📝 License

This project is MIT licensed.
