claritree 0.1.1

CLARITree: optimal regression trees with C++ backend

CLARITree: Cholesky and Lookahead Accelerations for Regression with Interpretable Piecewise Linear Trees

This repository contains the code and experiment artifacts for the ICML 2026 paper "CLARITree: Cholesky and Lookahead Accelerations for Regression with Interpretable Piecewise Linear Trees."

Installation

Install the released Python package with:

pip install claritree

The PyPI distribution is named claritree; the Python import package remains clari_tree:

from clari_tree import CLARITree

To use the dataframe-based example, install the optional example dependencies:

pip install "claritree[examples]"

Source Requirements

CLARITree requires Python 3.9+, CMake, a C++17 compiler, and Eigen 3.

Clone the repository:

git clone https://github.com/Yixiao-Wang-Stats/CLARITree.git
cd CLARITree

C++ Demo

Build the C++ executable:

make

Run the built-in demo:

make test

This compiles run_tree and runs it on one of the included datasets. You can also call it directly:

./run_tree data/airfoil/splits/outer_0/train.csv 4.0 0.001 0.001 20 quantile

The command-line interface is:

./run_tree <csv_file> <depth> <lambda> <kappa> [n_thresholds] [thresholds_strategy]

• depth: maximum tree depth.
• lambda: tree-complexity penalty.
• kappa: ridge penalty for the linear models in the leaves.
• n_thresholds: candidate split thresholds per feature.
• thresholds_strategy: quantile or uniform; defaults to quantile.

The executable creates a reproducible 80/20 train/test split and reports MSE, R2, and runtime for both Greedy and CLARITree. CSV files may have a header and must otherwise be numeric. The target is read from the final column, except for filenames containing targetfirst, where it is read from the first column.

Clean the C++ build output with:

make clean

Python Build

For local Python development, use the rebuild helper:

./rebuild_clari_tree.sh

The script creates .venv if needed, builds the pybind11 extension, installs the package in editable mode, and verifies that the Python module imports correctly. To use a different virtual environment path:

CLARITREE_VENV=claritree-env ./rebuild_clari_tree.sh

After the build, activate the environment before running Python scripts:

source .venv/bin/activate

Python Quick Start

Run the included Airfoil example from the repository root:

python scripts/example.py

The minimal API is:

import pandas as pd
from clari_tree import CLARITree

data = pd.read_csv("data/airfoil/splits/outer_0/train.csv").to_numpy(float)
X, y = data[:, :-1], data[:, -1]

model = CLARITree(
    depth=4,
    lambda_=0.001,
    kappa=0.001,
    n_thresholds=20,
    thresholds_strategy="quantile",
    min_leaf_node_size=0,
)
model.fit(X, y)
predictions = model.predict(X)
model.print_tree()

Input CSV files should contain features followed by the target in the final column. Binary split features should be encoded as 0/1; categorical features should be one-hot encoded before fitting.

Repository Layout

• clari_tree/: Python package.
• src/ and include/: C++ implementation and Python bindings.
• scripts/: experiment, table, and plotting scripts.
• data/: datasets and pre-generated train/test splits.
• results/: selected result tables and paper figures.

The public plotting entry points are:

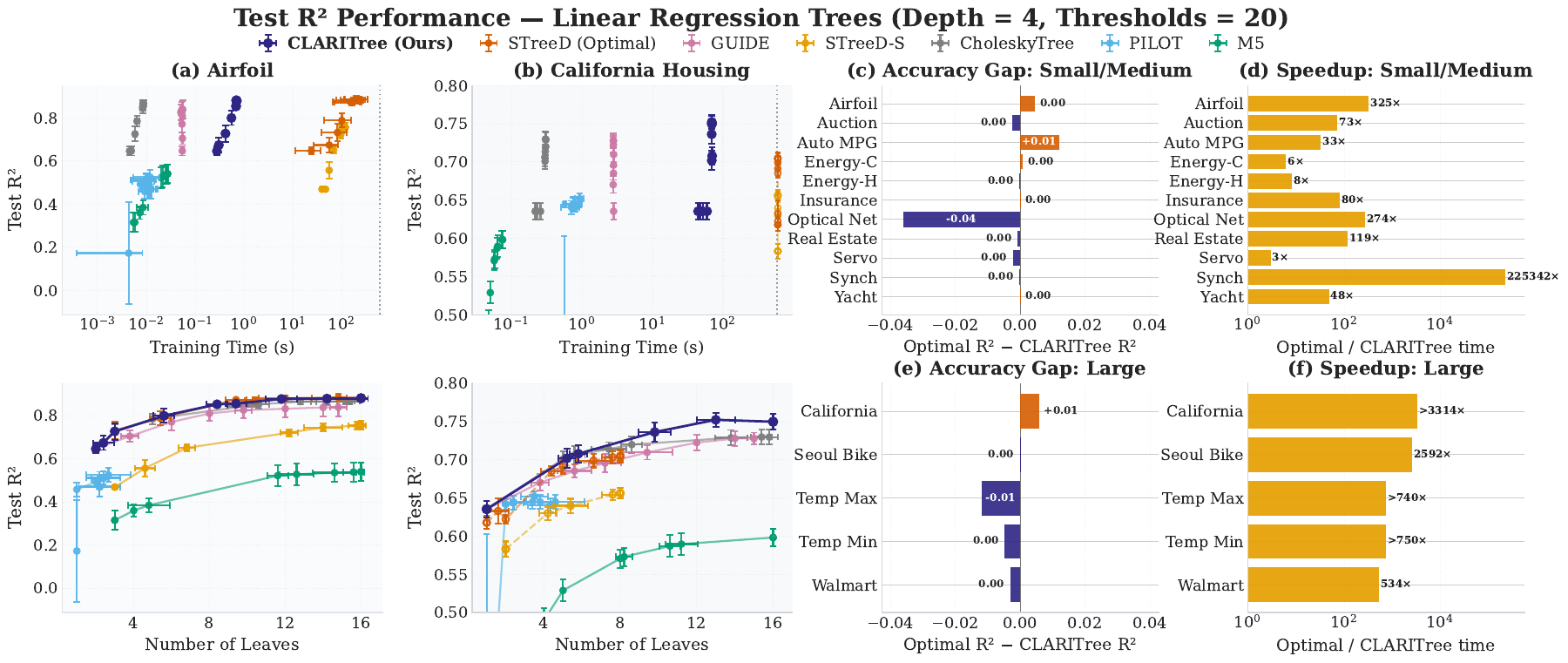

python scripts/images/main_teaser.py
python scripts/images/plot_completion_rate.py
python scripts/images/plot_linear.py

License

CLARITree is released under the MIT License.
