Revealing pan-cancer clonal niches of T cells from single-cell RNA sequencing using contrastive learning

CloneTrast maps gene expression alone to a latent space where cells from the same T-cell clone cluster together. At inference you only need scRNA-seq UMI counts, without paired scTCR-seq. Public pre-trained model (hosted on Figshare) is downloaded automatically on first use, with an additional complementary model used to predict clone size from gene expression alone. Following, you can visualize your data and further explore the clonal functional structure for downstream analysis.

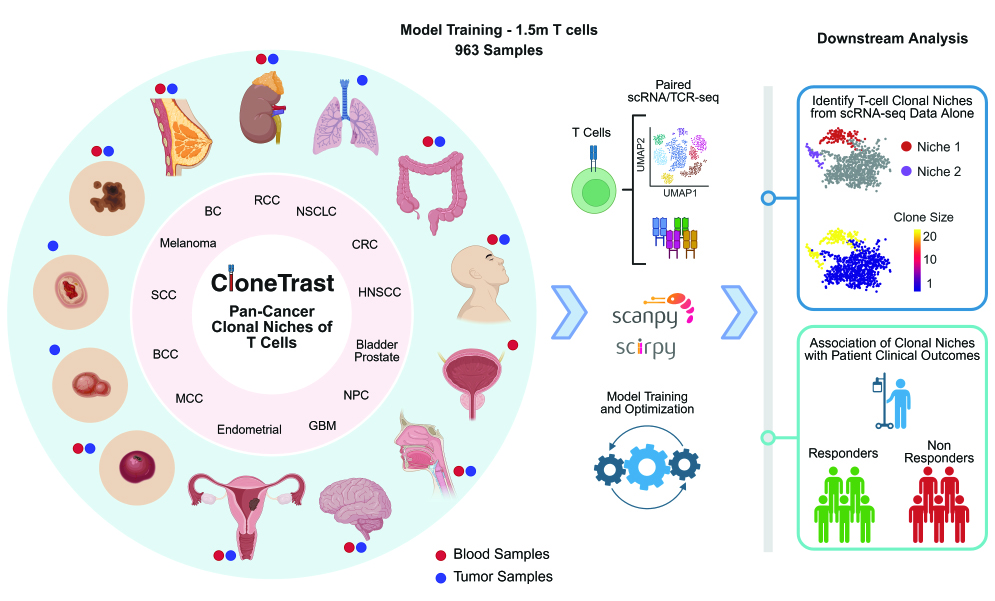

Graphical description

Clone labels vs. TCR sequences

CloneTrast separates how models are trained from how they are applied. This distinction is central to what the embedding represents.

During training: categorical clone labels - not TCR sequence identity

Training requires a per-cell clone_id column: a categorical label that groups cells from the same T-cell clone. Those labels are inferred from scTCR-seq (please refer to our manuscript for more details). Importantly, CloneTrast is not trained on TCR sequences. Supervision comes only from the clone_id category.

At inference: scRNA-seq only - no scTCR-seq

When you embed new cells (with the public pre-trained model), CloneTrast reads gene expression only. You do not need scTCR-seq, CDR3 sequences, or clone_id labels. The model maps each cell’s transcriptome to a fixed-dimensional embedding (X_clonetrast).

What this means for the embedding space

During training, every cell with the same clone_id is a positive pair: the contrastive loss rewards them for being located next to each other. At inference, the encoder applies that learned mapping - cells from the same clone are expected to cluster in X_clonetrast when their expression reflects shared clonal identity.

This specific modeling approach results in a distinct embedding space capturing multiple components of clonal organization:

(1) Different clones, similar functional states: Two clones defined by different TCR sequences can be positioned near one another if they share similar functional status.

(2) Same clone, divergent states: T cells belonging to the same clone are pulled toward one another despite having diverse differentiation states due to intra-clonal transcriptional heterogeneity.

(3) Same TCR sequence, different functional states: Two clones with identical TCR sequences but distinct clonal identities, because they originate from different patients, can be positioned far apart if they exhibit different functional states.

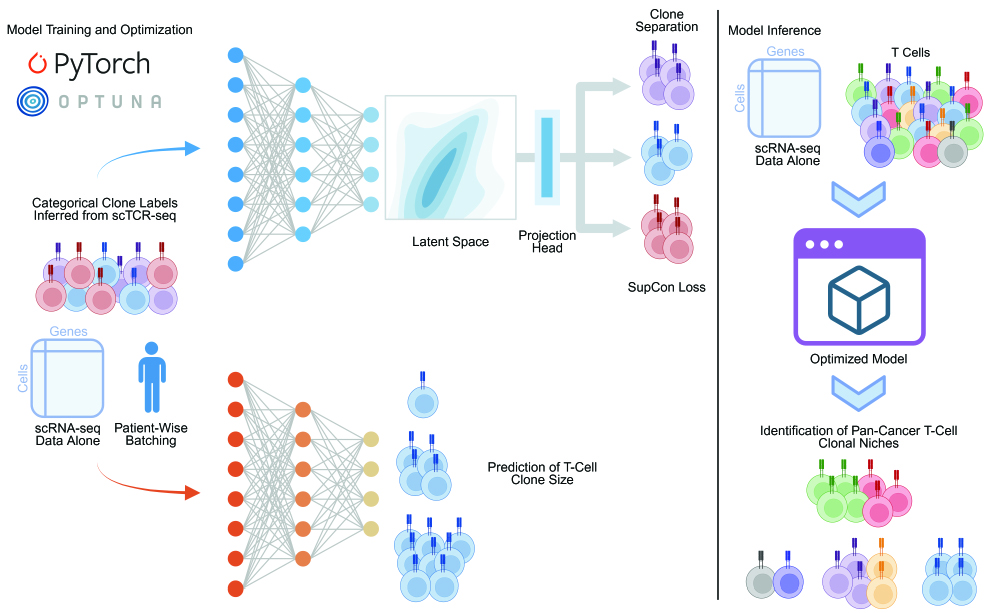

Training and inference description

Installation

For complete installation instructions including prerequisites, package installation, and development setup, please see the Installation Guide.

Quick start - inference with pre-trained models

You only need gene expression (scRNA-seq). CloneTrast does not use scTCR-seq or TCR sequences at inference - see Clone labels vs. TCR sequences above. Optional clone_id labels are for coloring plots or computing metrics only.

Pre-trained models

The pre-trained models expect Ensembl gene IDs in adata.var_names (e.g. ENSG00000156234). Input genes are automatically aligned to the training gene list (11,950 genes): missing genes are set to zero (thus mimicking sequencing drop-outs), extra genes are dropped.

Data format (inference)

• AnnData with gene expression (cells × genes), e.g. raw UMI counts in adata.X. Raw counts require subsequent row-normalization and log-transformation, as described below.
• adata.var_names: Ensembl IDs for compatibility with the public checkpoints.
• Optional: adata.obs['clone_id'] for visualization or evaluation (not required to run the model).
• Importantly: the model was trained using T cells alone. It is therefore required to ensure your data includes only T cells as input.

Python API

import scanpy as sc
import clonetrast as ct

# These are raw UMI counts
adata = sc.read_h5ad("your_data.h5ad")

# Raw counts should be subsequently normalized
sc.pp.normalize_total(adata, target_sum = 1e4)
sc.pp.log1p(adata)

# Applying the contrastive model and creating a two-dimensional representation with UMAP
ct.tl.embed(
    adata,
    use_pretrained=True,          # default; downloads contrastive model on first run
    device="cuda",                # or "cpu"
)
ct.tl.compute_umap(adata, obsm_key="X_clonetrast", umap_key="X_umap_clonetrast")

# Optional complementary model to predict log clone size per cell
ct.tl.predict_clone_size(adata, use_pretrained=True, device="cuda")

# Visualize
sc.pl.embedding(adata, basis="umap_clonetrast", color=["predicted_clone_size"])

Embeddings are stored in adata.obsm['X_clonetrast']; UMAP coordinates in adata.obsm['X_umap_clonetrast'].

Tutorial notebooks

Two step-by-step tutorials:

1. Data preparation - prepare paired scRNA/TCR-seq data for training (QC, T-cell subtyping, clone labeling, export)
2. Applying CloneTrast - apply CloneTrast to gene expression alone (embed, predict clone size, visualize and compare to a standard UMAP)

Documentation

Full documentation (includes the contrastive loss reference and tutorials).

License

This project is licensed under the MIT License - see the LICENSE file for more details.

Citation

Reference will be added here when available.

Acknowledgements

CloneTrast's logo, the project's graphical description, and the graphical description of the training and inference, were created with BioRender.com using a paid license.

This project was created in favor of the scientific community worldwide, with a special dedication to the cancer research community.

We hope you'll find this repository helpful, and we warmly welcome any requests or suggestions - please don't hesitate to reach out!
