Clustering of Kinematic Graphs

CI Coveralls Documentation Pypi Binder Gitter License Black

Description

This package provides a flexible yet easy to use framework to cluster sets of histograms (or other higher dimensional data) and to select benchmark points representing each cluster. The package particularly focuses on use cases in high energy physics.

Physics Case

While most of this package is very general and can be applied to a broad variety of use cases, we have been focusing on applications in high energy physics (particle physics) so far and provide additional convenience methods for this use case. In particular, most of the current tutorials are in this context.

Though very successful, the Standard Model of Particle Physics is believed to be uncomplete, prompting the search for New Physics (NP). The phenomenology of NP models typically depends on a number of free parameters, sometimes strongly influencing the shape of distributions of kinematic variables. Besides being an obvious challenge when presenting exclusion limits on such models, this also is an issue for experimental analyses that need to make assumptions on kinematic distributions in order to extract features of interest, but still want to publish their results in a very general way.

By clustering the NP parameter space based on a metric that quantifies the similarity of the resulting kinematic distributions, a small number of NP benchmark points can be chosen in such a way that they can together represent the whole parameter space. Experiments (and theorists) can then report exclusion limits and measurements for these benchmark points without sacrificing generality.

Installation

clusterking can be installed/upgraded with the python package installer:

pip3 install --user --upgrade "clusterking[plotting]"

If you do not require plotting, you can remove [plotting].

More options and troubleshooting advice is given in the documentation.

Usage and Documentation

Good starting point: Jupyter notebooks in the examples/jupyter_notebook directory. You can also try running them online right now (without any installation required) using binder (just note that this is somewhat unstable, slow and takes some time to start up).

For a documentation of the classes and functions in this package, read the docs on readthedocs.io.

For additional examples, presentations and more, you can also head to our other repositories.

Example

Sample

The following code (taken from examples/jupyter_notebook/010_basic_tutorial.ipynb) is all that is needed to cluster the shape of the q^2 distribution of B -> D tau nu in the space of Wilson coefficients:

import flavio
import numpy as np
import clusterking as ck

s = ck.scan.WilsonScanner(scale=5, eft='WET', basis='flavio')

# Set up kinematic function

def dBrdq2(w, q):
    return flavio.np_prediction("dBR/dq2(B+->Dtaunu)", w, q)

s.set_dfunction(
    dBrdq2,
    binning=np.linspace(3.2, 11.6, 10),
    normalize=True
)

# Set sampling points in Wilson space

s.set_spoints_equidist({
    "CVL_bctaunutau": (-1, 1, 10),
    "CSL_bctaunutau": (-1, 1, 10),
    "CT_bctaunutau": (-1, 1, 10)
})

# Create data object to write to and run

d = ck.DataWithErrors()
r = s.run(d)
r.write()  # Write results back to data object

Cluster

Using hierarchical clustering:

c = ck.cluster.HierarchyCluster()  # Initialize worker class
c.set_metric("euclidean")
c.set_max_d(0.15)      # "Cut off" value for hierarchy
r = c.run(d)           # Run clustering on d
r.write()              # Write results to d

Benchmark points

b = ck.Benchmark() # Initialize worker class
b.set_metric("euclidean")
r = b.run(d)        # Select benchmark points based on metric
r.write()           # Write results back to d

Plotting

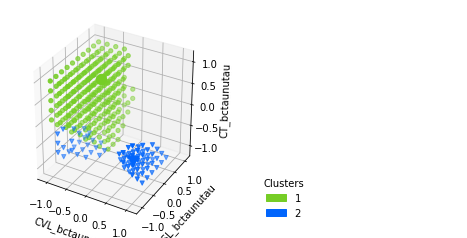

d.plot_clusters_scatter(
    ['CVL_bctaunutau', 'CSL_bctaunutau', 'CT_bctaunutau'],
    clusters=[1,2]  # Only plot 2 clusters for better visibility
)
https://raw.githubusercontent.com/clusterking/clusterking/master/readme_assets/plots/scatter_3d_02.png

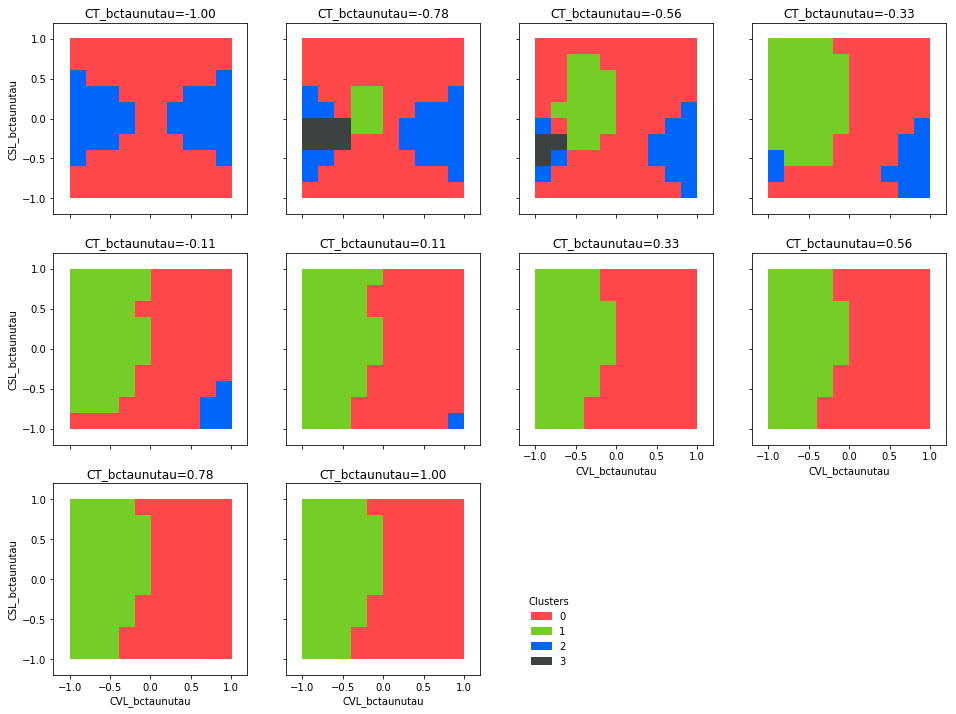

d.plot_clusters_fill(['CVL_bctaunutau', 'CSL_bctaunutau'])
https://raw.githubusercontent.com/clusterking/clusterking/master/readme_assets/plots/fill_2d.png

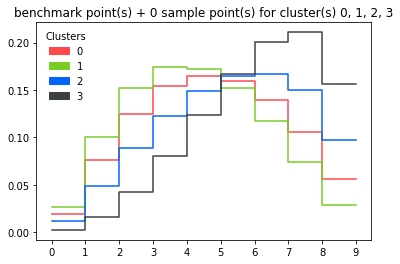

Plotting all benchmark points:

d.plot_dist()
https://raw.githubusercontent.com/clusterking/clusterking/master/readme_assets/plots/all_bcurves.png

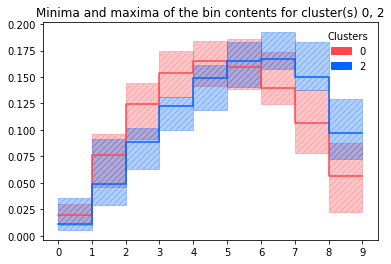

Plotting minima and maxima of bin contents for all histograms in a cluster (+benchmark histogram):

d.plot_dist_minmax(clusters=[0, 2])
https://raw.githubusercontent.com/clusterking/clusterking/master/readme_assets/plots/minmax_02.png

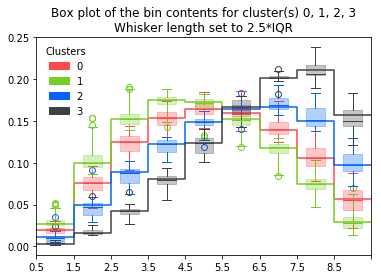

Similarly with box plots:

d.plot_dist_box()
https://raw.githubusercontent.com/clusterking/clusterking/master/readme_assets/plots/box_plot.png

License & Contributing

This project is ongoing work and questions, comments, bug reports or pull requests are most welcome. You can also use the chat room on gitter or contact us via email. We are also working on a paper, so please make sure to cite us once we publish.
