cocos 0.2.2

Core Computational System

Cocos (Core Computational System) - Scientific GPU Computing in Python

Overview

Cocos is a package for numeric and scientific computing on GPUs for Python with a NumPy-like API. It supports both CUDA and OpenCL on Windows, Mac OS, and Linux. Internally, it relies on the ArrayFire C/C++ library. Cocos offers a multi-GPU map-reduce framework. In addition to its numeric functionality, it allows parallel computation of SymPy expressions on the GPU.

Highlights

• Fast vectorized computation on GPUs with a NumPy-like API.
• Multi GPU support via map-reduce.
• High-performance random number generators for beta, chi-square, exponential, gamma, logistic, lognormal, normal, uniform, and Wald distributions. Antithetic random numbers for uniform and normal distributions.
• Provides a GPU equivalent to SymPy's lambdify, which enables numeric evaluation of symbolic SymPy (multi-dimensional array) expressions on the GPU for vectors of input parameters in parallel.
• Adaptation of SciPy's gaussian_kde to the GPU

Table of Contents

1. Installation
2. Getting Started
3. Multi-GPU Computing
4. Memory Limitations on the GPU Device
5. Examples
   5.1. Estimating Pi via Monte Carlo
   5.2. Option Pricing in a Stochastic Volatility Model via Monte Carlo
   5.3. Numeric evaluation of SymPy array expressions on the GPU
   5.4. Kernel Density Estimation
6. Benchmark
7. Functionality
8. Limitations and Differences with NumPy
9. A Note on Hardware Configurations for Multi-GPU Computing
10. License

Installation

1. Download and install

• Windows or Linux: ArrayFire 3.6.4
• MacOS: ArrayFire 3.5.1

2. Make sure that your System is able to locate ArrayFire's libraries

ArrayFire's functionality is contained in dynamic libries, dynamic link libraries (.dll) on Windows and shared objects (.so) on Unix.

This step is to ensure that these library files can be located on your system. On Windows, this can be done by adding %AF_PATH%\lib to the path environment variable. On Linux and Mac, one can either install (or copy) the ArrayFire libraries and their dependencies to /usr/local/lib or modify the environment variable LD_LIBRARY_PATH (Linux) or DYLD_LIBRARY_PATH (MacOS) to include the ArrayFire library directory.

3. Install Cocos via PIP:

pip install cocos

or

pip3 install cocos

if not using Anaconda.

To get the latest version, clone the repository from github, open a terminal/command prompt, navigate to the root folder and install via

pip install .

or

pip3 install .

if not using Anaconda.

Getting Started

Platform Information:

Print available devices

import cocos.device as cd
cd.info()

Select a device

cd.ComputeDeviceManager.set_compute_device(0)

First Steps:


# begin by importing the numerics package
import cocos.numerics as cn

# create two arrays from lists
a = cn.array([[1.0, 2.0], [3.0, 4.0]])
b = cn.array([[5.0], [6.0]])

# print their contents
print(a)
print(b)

# matrix product of b and a
c = a @ b
print(c)

# create an array of normally distributed random numbers
d = cn.random.randn(2, 2)
print(d)

Multi-GPU Computing:

Cocos provides map-reduce as well as the related map-combine as multi-GPU programming models. The computations are separated into 'batches' and then distributed across GPU devices in a pool. Cocos implements multi-GPU support via process-based parallelism.

To run the function my_gpu_function over separate batches of input data on multiple GPUs in parallel, first create a ComputeDevicePool:

compute_device_pool = cocos.multi_processing.device_pool.ComputeDevicePool()

To construct the batches, separate the arguments of the function into

• a list of args lists and (one list per batch)
• a list of kwargs dictionaries (one dictionary per batch)

args_list = [args_list_1, arg_list_2, ..., arg_list_n]
kwargs_list = [kwargs_dict_1, kwargs_dict_2, ..., kwargs_dict_n]

Run the function in separate batches via map_reduce

result = \
    compute_device_pool.map_reduce(f=my_gpu_function,
                                   reduction=my_reduction_function,
                                   initial_value=...,
                                   host_to_device_transfer_function=...,
                                   device_to_host_transfer_function=...,
                                   args_list=args_list
                                   kwargs_list=kwargs_list)

The reduction function iteratively aggregates two results from the list of results generated by my_gpu_function from left to right, beginning at initial_value (i.e. reducing initial_value and the result of my_gpu_function corresponding to the first batch). The list of results is in the same order to the list of args and kwargs.

If the function requires input arrays on the GPU, it must be provided to map_reduce as a NumPy array. The data is then sent to the process managing the GPU assigned to this batch, where it is moved to the GPU device by a host_to_device_transfer_function. This function needs to be implemented by the user.

Likewise, results that involve GPU arrays are transferred to the host via a user-supplied device_to_host_transfer_function and are then sent back to the main process before reduction takes place.

map_combine is a variation of map_reduce, in which a combination function aggregates the list of results in a single step.

Please refer to the documentation of cocos.multi_processing.device_pool.ComputeDevicePool.map_reduce as well as cocos.multi_processing.device_pool.ComputeDevicePool.map_combine for further details. See 'examples/heston_pricing_multi_gpu_example.py' for a fully worked example.

Memory Limitations on the GPU Device

It is common for modern standard desktop computers to support up to support up to 128GB of RAM. Video cards by contrast only feature a small fraction of VRAM. The consequence is that algorithms that work well on a CPU can experience into memory limitations when run on a GPU device.

In some cases this problem can be resolved by running the computation in batches or chunks and transferring results from the GPU to the host after each batch has been processed.

Using map_reduce_single_device and map_combine_single_device found in cocos.multi_processing.single_device_batch_processing, computations on a single GPU can be split into chunks and run sequentially. The interface is modeled after the multi GPU functionality described in the previous section.

Calls to map_reduce_single_device and map_combine_single_device can be nested in a multi GPU computation, which is how multi GPU evaluation of kernel density estimates is realized in Cocos (see cocos.scientific.kde.gaussian_kde.evaluate_in_batches_on_multiple_gpus).

Packaged examples:

1. Estimating Pi via Monte Carlo
2. Option Pricing in a Stochastic Volatility Model via Monte Carlo
3. Numeric evaluation of SymPy array expressions on the GPU
4. Kernel Density Estimation

Estimating Pi via Monte-Carlo

The following code estimates Pi via Monte-Carlo simulation. Since Cocos offers a NumPy-like API, the same code works on the both the GPU and the CPU via NumPy.


import time
import cocos.device as cd

def estimate_pi(n: int, gpu: bool = True) -> float:
    if gpu:
        import cocos.numerics as np
        import cocos.numerics.random as random
    else:
        import numpy as np
        import numpy.random as random

    x = np.random.rand(n)
    y = np.random.rand(n)
    in_quarter_circle = (x * x + y * y) <= 1.0
    estimate = int(np.sum(in_quarter_circle))

    return estimate / n * 4

# initialize cocos device - the architecture is selected automatically
# the architecture can be specified explitly by providing one of
#   'cpu', 'cuda', and 'opencl'
cd.init()

# print information regarding the available devices in the machine
cd.info()

# number of draws
n = 100000000
print(f'simulating {n} draws')

# run estimation of Pi on the cpu via NumPy
pi_cpu = estimate_pi(n, gpu=False)
print(f'Estimate of Pi on cpu: {pi_cpu}')

# run estimation of Pi on the gpu via Cocos
pi_gpu = estimate_pi(n, gpu=True)
print(f'Estimate of Pi on gpu: {pi_gpu}')

# run a benchmark - repeating the simulation R times on both cpu and gpu
R = 10

# on gpu
tic = time.time()
for r in range(R):
    pi_gpu = estimate_pi(n, gpu=True)
    cd.sync()

time_on_gpu = time.time() - tic

print(f'time elapsed on gpu: {time_on_gpu}')

# on cpu
tic = time.time()
for r in range(R):
    pi_cpu = estimate_pi(n, gpu=False)

time_on_cpu = time.time() - tic

print(f'time elapsed on cpu: {time_on_cpu}')

# compute and print the speedup factor
print(f'speedup factor on gpu: {time_on_cpu/time_on_gpu}')

Option Pricing in a Stochastic Volatility Model via Monte Carlo

In this example, we are simulating sample paths of the logarithmic price of an underlying security under the risk-neutral probability measure via the Euler–Maruyama discretization method.

The stochastic process is Heston's classical 1992 setup of a security price subject to stochastic volatility. The log price and its instantanous variance are governed by the following system of stochastic differential equations (SDE):

The simulation code below demonstrates how to write code that supports both CPU and GPU computing. The complete code is available under examples.

def simulate_heston_model(T: float,
                          N: int,
                          R: int,
                          mu: float,
                          kappa: float,
                          v_bar: float,
                          sigma_v: float,
                          rho: float,
                          x0: float,
                          v0: float,
                          gpu: bool = False) -> tp.Tuple:
    """
    This function simulates R paths from the Heston stochastic volatility model
    over a time horizon of length T divided into N steps.

    :param T: time horizon of the simulation
    :param N: number of steps
    :param R: number of paths to simulate
    :param mu: expected return
    :param kappa: mean-reversion speed of volatility
    :param v_bar: long-run mean of volatility
    :param sigma_v: volatility of volatility
    :param rho: instantaneous correlation of shocks to price and to volatility
    :param x0: initial log price
    :param v0: initial volatility
    :param gpu: whether to compute on the GPU
    :return: a tuple of two R-dimensional numeric arrays for log price and
             volatility
    """
    if gpu:
        import cocos.numerics as np
        import cocos.numerics.random as random
    else:
        import numpy as np
        import numpy.random as random

    Delta_t = T / float(N - 1)

    x = [np.full((R,), x0, dtype=numpy.float32),
         np.zeros((R,), dtype=numpy.float32)]

    v = [np.full((R,), v0, dtype=numpy.float32),
         np.zeros((R,), dtype=numpy.float32)]

    sqrt_delta_t = math.sqrt(Delta_t)
    sqrt_one_minus_rho_square = math.sqrt(1 - rho ** 2)

    # m = np.array([[rho, sqrt_one_minus_rho_square]])
    m = np.zeros((2,), dtype=numpy.float32)
    m[0] = rho
    m[1] = sqrt_one_minus_rho_square
    zero_array = np.zeros((R,), dtype=numpy.float32)

    t_current = 0
    for t in range(1, N):
        t_previous = (t + 1) % 2
        t_current = t % 2

        # generate antithetic standard normal random variables
        dBt = random.randn(R, 2) * sqrt_delta_t

        sqrt_v_lag = np.sqrt(v[t_previous])
        x[t_current] = x[t_previous] \
                     + (mu - 0.5 * v[t_previous]) * Delta_t \
                     + np.multiply(sqrt_v_lag, dBt[:, 0])
        v[t_current] = v[t_previous] \
                     + kappa * (v_bar - v[t_previous]) * Delta_t \
                     + sigma_v * np.multiply(sqrt_v_lag, np.dot(dBt, m))
        v[t_current] = np.maximum(v[t_current], 0.0)

    x = x[t_current]
    v = np.maximum(v[t_current], 0.0)

    return x, v

The following code computes the option price from simulated price paths of the underlying. It demonstrates how to dynamically choose between Cocos and NumPy based on the type input array. Note that in this particular setup, one would typically use Fourier techniques to price the option rather than Monte Carlo simulation. Simulation techniques can be useful when considering stochastic processes outside the affine framework or more generally whenever the conditional characteristic function of the transition density is costly to evaluate or when considering path-dependent options.

def compute_option_price(r: float,
                         T: float,
                         K: float,
                         x_simulated,
                         num_pack: tp.Optional[types.ModuleType] = None):
    """
    Compute the function of a plain-vanilla call option from simulated
    log-returns.

    :param r: the risk-free rate
    :param T: the time to expiration
    :param K: the strike price
    :param x_simulated: a numeric array of simulated log prices of the underlying
    :param num_pack: a module - either numpy or cocos.numerics
    :return: option price
    """

    if not num_pack:
        use_gpu, num_pack = get_gpu_and_num_pack_by_dtype(x_simulated)

    return math.exp(-r * T) \
           * num_pack.mean(num_pack.maximum(num_pack.exp(x_simulated) - K, 0))

Numeric evaluation of SymPy array expressions on the GPU

Cocos can compile symbolic arrays defined using SymPy to GPU or CPU code.

As an example, consider the following vector valued function.
.
Here g is a scalar valued function that can be specified at a later point when numerical evaluation is of interest. One reason for this setup would be to retain generality. Another reason might be that a symbolic representation of this function is not available but one has access to an algorithm (a Python function) that can compute g.

The goal is to evaluate this function at many x = (x_1, x_2, x_3) in parallel on a GPU.

In order to specify this function using SumPy, begin by defining symbolic arguments

x1, x2, x3, t = sym.symbols('x1, x2, x3, t')

Separate the state symbols 'x1', 'x2', and 'x3' from the time symbol 't' and collect them in a tuple

argument_symbols = (x1, x2, x3)

Declare an as of yet unspecified function g

g = sym.Function('g')

Define the function f

f = sym.Matrix([[x1 + x2], [(g(t) * x1 + x3) ** 2], [sym.exp(x1 + x2 + g(t))]])

Compute the Jacobian of g w.r.t x1, x2, and x3 symbolically

jacobian_f = f.jacobian([x1, x2, x3])

The Jacobian is given by

Specify the concrete form of g as g(t) = ln(t)

def numeric_time_function(t: float):
    return np.log(t)

Convert the symbolic array expression to an object that can evaluated numerically on the cpu or gpu

jacobian_f_lambdified \
    = LambdifiedMatrixExpression(
        argument_symbols=argument_symbols,
        time_symbol=t,
        symbolic_matrix_expression=jacobian_f,
        symbolic_time_function_name_to_numeric_time_function_map={'g': numeric_time_function})

Generate n = 10000000 random vectors for x1, x2, and x3 at which to evaluate the function in parallel

n = 10000000
X_gpu = cn.random.rand(n, 3)
X_cpu = np.array(X_gpu)

Numerically evaluate the Jacobian on the GPU for t=1

jacobian_f_numeric_gpu = \
    (jacobian_f_lambdified
     .evaluate_with_kwargs(x1=X_gpu[:, 0],
                           x2=X_gpu[:, 1],
                           x3=X_gpu[:, 2],
                           t=1.0))

Numerically evaluate the Jacobian on the CPU for t=1

jacobian_f_numeric_gpu = \
    (jacobian_f_lambdified
     .evaluate_with_kwargs(x1=X_cpu[:, 0],
                           x2=X_cpu[:, 1],
                           x3=X_cpu[:, 2],
                           t=1.0))

Verify that the results match

print(f'numerical results from cpu and gpu match: '
      f'{np.allclose(jacobian_f_numeric_gpu, jacobian_f_numeric_cpu)}')

Kernel Density Estimation

cocos.scientific.kde import gaussian_kde is a replacement for SciPy's scipy.stats.kde.gaussian_kde class that works on the GPU. GPU support is turned on by setting gpu=True in its constructor. Evaluating a kernel density estimate from a dataset in the NumPy array points on a grid in the NumPy array grid works as follows:

from cocos.scientific.kde import gaussian_kde
gaussian_kde = gaussian_kde(points, gpu=True)
density_estimate = gaussian_kde_cocos.evaluate(grid)

To preserve GPU memory, the evaluation of the KDE can proceed sequentially in batches as follows

density_estimate = gaussian_kde_cocos.evaluate_in_batches(grid, maximum_number_of_elements_per_batch)

where the maximum_number_of_elements_per_batch is the maximum number of data points times evaluation points to process in a single batch.

The Kernel density estimate can be computed on different points on multiple GPUs in parallel using the method evaluate_in_batches_on_multiple_gpus as follows

comnpute_device_pool = ComputeDevicePool()
gaussian_kde = gaussian_kde(points, gpu=False)
density_estimate = \
    gaussian_kde_cocos.evaluate_in_batches_on_multiple_gpus(grid,
                                                            maximum_number_of_elements_per_batch,
                                                            comnpute_device_pool)

Note that the gpu parameter in the gaussian_kde constructor must be set to false for multi gpu support and points must be a a NumPy array.

Benchmark

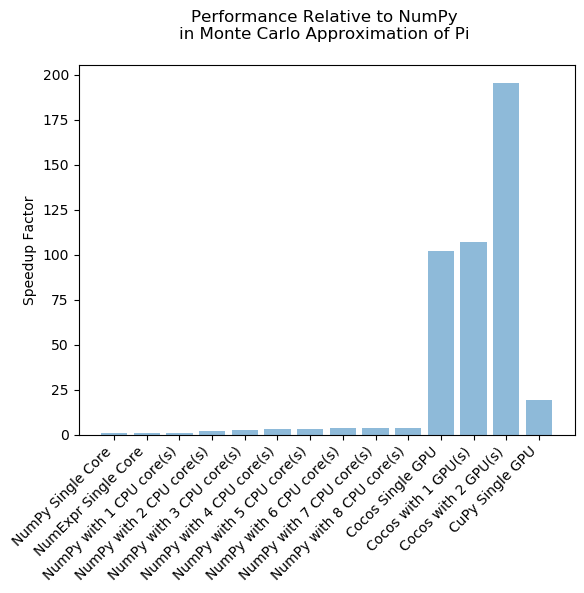

Monte Carlo Pi Benchmark

This benchmark compares the runtime performance of the Monte Carlo pi example using NumPy on 1 through 8 cpu cores as well as 1-2 GPUs using Cocos.

The results were produced on a machine with an Intel Core i7 9700K with 128GB of RAM and a NVidia GeForce GTX 1060 running Windows 10. A total of 1000000000 points are drawn in 20 batches.

	Total Time in Seconds	Speedup Compared to NumPy
Single Core NumPy	17.2867612	1.0
NumPy with 1 CPU core(s)	17.1750117	1.0065065166738723
NumPy with 2 CPU core(s)	10.494477000000003	1.6472246496895457
NumPy with 3 CPU core(s)	8.422800300000006	2.0523769511667025
NumPy with 4 CPU core(s)	7.082252900000007	2.440856242227665
NumPy with 5 CPU core(s)	6.365301000000002	2.715780636296696
NumPy with 6 CPU core(s)	5.8881023	2.935879901407284
NumPy with 7 CPU core(s)	5.609009299999997	3.081963369181793
NumPy with 8 CPU core(s)	5.667201699999993	3.0503169139012685
Cocos Single GPU	0.17866180000000043	96.75689599007711
Cocos with 1 GPU(s)	0.1841428000000036	93.87693246762655
Cocos with 2 GPU(s)	0.09644749999999647	179.23493299464096

Package versions used:

• arrayfire: 3.6.4
• arrayfire-python: 3.6.20181017
• cocos: 0.1.14
• CUDA: 9.2
• cupy-cuda92: 6.2.0
• NumPy: 1.16.4
• Python: 3.7.3

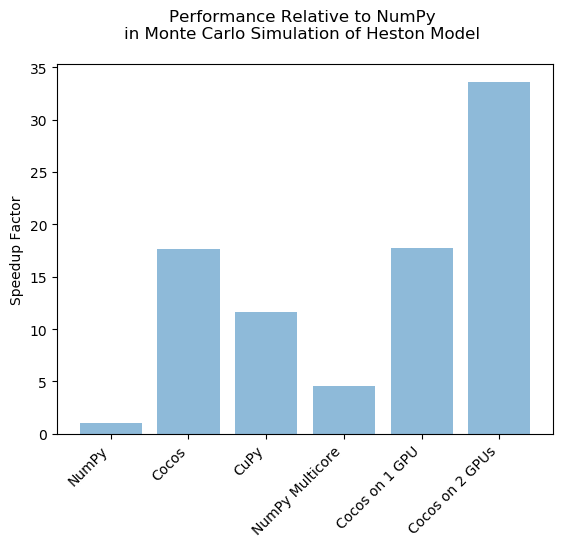

Stochastic Volatility Model Benchmark

This benchmark compares the runtime performance of the option pricing example under a Heston stochastic volatility model on the CPU using NumPy on a single core as well as on all cores simultaneously and the GPU using Cocos and CuPy. CuPy is another package that provides a NumPy-like API for GPU computing.

The results were produced on a machine with an Intel Core i7 9700K with 128GB of RAM and two NVidia GeForce GTX 1060 running Windows 10. Two Million paths are being simulated with 500 time steps per year.

	Total Time in Seconds	Speedup Compared to NumPy
NumPy	32.782310247421265	1.0
Cocos	1.856126070022583	17.661682994960795
CuPy	2.815166473388672	11.64489224964396
NumPy Multicore	7.143897294998169	4.588855199580479
Cocos on 1 GPU	1.8460988998413086	17.757613229843344
Cocos on 2 GPUs	0.9753890037536621	33.60947285776512

Package versions used:

• arrayfire: 3.6.4
• arrayfire-python: 3.6.20181017
• cocos: 0.1.14
• CUDA: 9.2
• cupy-cuda92: 6.2.0
• NumPy: 1.16.4
• Python: 3.7.3

Functionality

Most differences between NumPy and Cocos stem from two sources:

1. NumPy is row-major (C style) whereas ArrayFire is column-major (Fortran style).
2. Only part of NumPy's functionality is present in ArrayFire, which Cocos is based on.

Attributes of the ndarray class

Attribute	Description	Notes
T	Same as self.transpose(), except that self is returned if self.ndim < 2.
H	Conjugate transpose.	attribute is not present in NumPy
data	Python buffer object pointing to the start of the array’s data.	attribute not implemented
dtype	Data-type of the array’s elements.
flags	Information about the memory layout of the array.	attribute not implemented
flat	A 1-D iterator over the array.	attribute not implemented
imag	The imaginary part of the array.
real	The real part of the array.
size	Number of elements in the array.
itemsize	Length of one array element in bytes.
nbytes	Total bytes consumed by the elements of the array.
ndim	Number of array dimensions.
shape	Tuple of array dimensions.
strides	Tuple of bytes to step in each dimension when traversing an array.
ctypes	An object to simplify the interaction of the array with the ctypes module.	attribute not implemented
base	Base object if memory is from some other object.	attribute not implemented

Methods of the ndarray class

Method	Description	Notes
all(axis=None)	Returns True if all elements evaluate to True.	parameters "out" and "keepdims" are not supported
any(axis=None)	Returns True if any of the elements of a evaluate to True.	parameters "out" and "keepdims" are not supported
argmax(axis=None)	Return indices of the maximum values along the given axis.	parameter "out" is not supported
argmin(axis=None)	Return indices of the minimum values along the given axis of a.	parameter "out" is not supported
argpartition	Returns the indices that would partition this array.	method not implemented
argsort(axis=-1, ascending=True)	Returns the indices that would sort this array.	has additional parameter "ascending"; does not support parameters "kind" and "order"
astype(dtype)	Copy of the array, cast to a specified type.	does not support parameters "order", "casting", "subok", and "copy"
byteswap	Swap the bytes of the array elements	method not implemented
choose	Use an index array to construct a new array from a set of choices.	method not implemented
clip(min, max)	Return an array whose values are limited to [min, max].	parameter "out" is not supported
compress	Return selected slices of this array along given axis.	method not implemented
conj()	Complex-conjugate all elements.
conjugate()	Return the complex conjugate, element-wise.
copy()	Return a copy of the array.
cumprod	Return the cumulative product of the elements along the given axis.	method not implemented
cumsum(axis=-1)	Return the cumulative sum of the elements along the given axis.	parameters "dtype" and "out" are not supported
diagonal(offset = 0)	Return specified diagonals.	parameters "axis1" and "axis2" are not supported
dot(a, b)	Dot product of two arrays.	parameter "out" is not supported
dump	Dump a pickle of the array to the specified file.	method not implemented
dumps	Returns the pickle of the array as a string.	method not implemented
fill(value)	Fill the array with a scalar value.
flatten()	Return a copy of the array collapsed into one dimension.	parameter "order" is not supported; flattens array column by column in contrast to numpy, which operates row by row (may be changed in the future)
getfield	Returns a field of the given array as a certain type.	method not implemented
item(*args)	Copy an element of an array to a standard Python scalar and return it.	implemented indirectly and therefore slow
itemset(*args)	Insert scalar into an array (scalar is cast to array’s dtype, if possible)	implemented indirectly and therefore slow
max(axis=None)	Return the maximum along a given axis.	parameter "out" is not supported; different criterion from numpy for complex arrays
mean(axis=None)	Returns the average of the array elements along given axis.	parameters "dtype", "out", and "keepdims" are not supported
min(axis=None)	Returns the average of the array elements along given axis.	parameter "out" is not supported; different criterion from numpy for complex arrays
newbyteorder	Return the array with the same data viewed with a different byte order.	method not implemented
nonzero	Return the indices of the elements that are non-zero.	does not support arrays with more than three axis
partition	Rearranges the elements in the array in such a way that value of the element in kth position is in the position it would be in a sorted array.	method not implemented
prod(axis=None)	Return the product of the array elements over the given axis	parameters "dtype", "out", and "keepdims" are not supported
ptp	Peak to peak (maximum - minimum) value along a given axis.	parameter "out" is not supported; different output from numpy for complex arrays due to differences of min and max criteria compared to numpy
put	Set a.flat[n] = values[n] for all n in indices.	method not implemented; straightforward once the attribute "flat" has been implemented
ravel	Return a flattened array.	method not implemented
repeat(repeats, axis=None)	Repeat elements of an array.	order is reversed compared to numpy (see remarks for the method flatten)
reshape(shape)	Returns an array containing the same data with a new shape.	parameter "order" is not supported
resize(newshape)	Change shape and size of array in-place.	method not implemented
round()	Return a with each element rounded to the given number of decimals.	parameters "decimals" and "out" are not supported
searchsorted	Find indices where elements of v should be inserted in a to maintain order.	method not implemented
setfield	Put a value into a specified place in a field defined by a data-type.	method not implemented
setflags	Set array flags WRITEABLE, ALIGNED, and UPDATEIFCOPY, respectively.	method not implemented
sort(axis=-1, ascending=True)	Sort an array, in-place.	has additional parameter "ascending"; parameters "kind" and "order" are not supported
squeeze(axis=None)	Remove single-dimensional entries from the shape of a.
std(axis=None)	Returns the standard deviation of the array elements along given axis.	parameters "dtype", "out", "ddof", and "keepdims" are not supported
sum(axis=None)	Return the sum of the array elements over the given axis.	parameters "dtype", "out, and "keepdims" are not supported
swapaxes	Return a view of the array with axis1 and axis2 interchanged.	method not implemented
take	Return an array formed from the elements of a at the given indices.	method not implemented
tobytes	Construct Python bytes containing the raw data bytes in the array.	method not implemented; could be implemented by first converting to numpy array for instance
tofile	Write array to a file as text or binary (default).	method not implemented; could be implemented by first converting to numpy array for instance
tolist	Return the array as a (possibly nested) list.	method not implemented; could be implemented by first converting to numpy array for instance
tostring	Construct Python bytes containing the raw data bytes in the array.	method not implemented; could be implemented by first converting to numpy array for instance
trace(offset=0)	Return the sum along diagonals of the array.	parameters "axis1", "axis2", "dtype", and "out" are not supported
transpose()	Returns a new array with axes transposed.	parameter "*axis" is not supported; look into arrayfire function "moddims" to support *axis; new array is not a view on the old data
var(axis=None, ddof=0)	Returns the variance of the array elements, along given axis.	parameters "dtype", "out", and "keepdims" are not supported
view	New view of array with the same data.	method not implemented

Statistics Functions

Order Statistics

Function	Description	Notes
amin	Return the minimum of an array or minimum along an axis.	function not implemented
amax	Return the maximum of an array or maximum along an axis.	function not implemented
nanmin	Return minimum of an array or minimum along an axis, ignoring any NaNs.	function not implemented
nanmax	Return the maximum of an array or maximum along an axis, ignoring any NaNs.	function not implemented
ptp(a, axis=None)	Range of values (maximum - minimum) along an axis.	parameter "out" not supported
percentile	Compute the qth percentile of the data along the specified axis.	function not implemented
nanpercentile	Compute the qth percentile of the data along the specified axis, while ignoring nan values.	function not implemented

Averages and Variances

Function	Description	Notes
median	Compute the median along the specified axis.	parameters "out", "overwrite_input"=False, and "keepdims" are not supported
average(a, axis=None, weights=None)	Compute the weighted average along the specified axis.	parameter "returned" is not supported; does not work on Mac OS X with AMD chip when weights are given
mean(a, axis=None)		parameters "dtype", "out", and "keepdims" are not supported
std(a, axis=None, ddof=0)	Compute the arithmetic mean along the specified axis.	parameters "dtype", "out", and "keepdims" are not supported
var(a, axis=None, ddof=0)	Compute the variance along the specified axis.	parameters "dtype", "out", and "keepdims" are not supported
nanmedian	Compute the median along the specified axis, while ignoring NaNs.	function not implemented
nanmean	Compute the arithmetic mean along the specified axis, ignoring NaNs.	function not implemented
nanstd	Compute the standard deviation along the specified axis, while ignoring NaNs.	function not implemented
nanvar	Compute the variance along the specified axis, while ignoring NaNs.	function not implemented

Correlating

Function	Description	Notes
corrcoeff(x, bias=False, ddof=None	Return Pearson product-moment correlation coefficients.	parameters "y" and "rowvar" are not supported
correlate	Cross-correlation of two 1-dimensional sequences.	function not implemented
cov(m, bias=False, ddof=None)	Estimate a covariance matrix, given data and weights.	parameters "y", "rowvar", "fweights", and "aweights" are not supported

Histograms

Function	Description	Notes
histogram	Compute the histogram of a set of data.	function not implemented
histogram2d	Compute the bi-dimensional histogram of two data samples.	function not implemented
histogramdd	Compute the multidimensional histogram of some data.	function not implemented
bincount	Count number of occurrences of each value in array of non-negative ints.	function not implemented
digitize	Return the indices of the bins to which each value in input array belongs.	function not implemented

Array Creation Routines

Ones and Zeros

Function	Description	Notes
empty	Return a new array of given shape and type, initializing entries to zero.	in contrast to numpy it initializes entries to zero just like zeros
empty_like	Return a new array with the same shape and type as a given array.	in contrast to numpy it initializes entries to zero just like zeros
eye(N, M=None, k=0, dtype=np.float32)	Return a 2-D array with ones on the diagonal and zeros elsewhere.
identity(n, dtype=np.float32)	Return the identity array.
[ones(shape, dtype=np.float32)](https://docs.scipy.org/doc/numpy/reference/generated/numpy.ones.html#numpy.ones)	Return a new array of given shape and type, filled with ones.	parameter "order" is not supported
[ones_like(a, dtype=None)](https://docs.scipy.org/doc/numpy/reference/generated/numpy.ones.html#numpy.ones_like)	Return an array of ones with the same shape and type as a given array.	parameters "order" and "subok" are not supported
[zeros(shape, dtype=n.float32)](https://docs.scipy.org/doc/numpy/reference/generated/numpy.ones.html#numpy.zeros)	Return a new array of given shape and type, filled with zeros.	parameter "order" is not supported
[zeros_like(a, dtype=None)](https://docs.scipy.org/doc/numpy/reference/generated/numpy.ones.html#numpy.zeros_like)	Return an array of zeros with the same shape and type as a given array.	parameters "order" and "subok" are not supported
[full(shape, fill_value, dtype=n.float32)](https://docs.scipy.org/doc/numpy/reference/generated/numpy.ones.html#numpy.full)	Return a new array of given shape and type, filled with fill_value.	parameter "order" is not supported
[full_like(a, fill_value, dtype=None)](https://docs.scipy.org/doc/numpy/reference/generated/numpy.ones.html#numpy.full_like)	Return a full array with the same shape and type as a given array.	parameters "order" and "subok" are not supported

From Existing Data

Function	Description	Notes
array(object, dtype=None)	Create an array.	parameters "copy", "order", "subok", and "ndmin" are not supported
asarray	Convert the input to an array.	function not implemented
asanyarray	Convert the input to an ndarray, but pass ndarray subclasses through.	function not implemented
ascontiguousarray	Return a contiguous array in memory (C order).	function not implemented
asmatrix	Interpret the input as a matrix.	function not implemented
copy(a)	Return an array copy of the given object.	parameter "order" is not supported
frombuffer	Interpret a buffer as a 1-dimensional array.	function not implemented
fromfile	Construct an array from data in a text or binary file.	function not implemented
fromfunction	Construct an array by executing a function over each coordinate.	function not implemented
fromiter	Create a new 1-dimensional array from an iterable object.	function not implemented
fromstring	A new 1-D array initialized from raw binary or text data in a string.	function not implemented
loadtxt	Load data from a text file.	function not implemented

Building Matrices

Function	Description	Notes
diag(v, k=0)	Extract a diagonal or construct a diagonal array.
diagflat(v, k=0)	Create a two-dimensional array with the flattened input as a diagonal.
tri	An array with ones at and below the given diagonal and zeros elsewhere.	function not implemented
tril(m)	Lower triangle of an array.	parameter "k" is not supported
triu(m)	Upper triangle of an array.	parameter "k" is not supported
vander	Generate a Vandermonde matrix.	function not implemented

Array Manipulation Routines

Basic Operations

Function	Description	Notes
copyto	Copies values from one array to another, broadcasting as necessary.	function not implemented

Changing Array Shape

Function	Description	Notes
reshape(a, newshape)	Gives a new shape to an array without changing its data.	parameter "order" is not supported
ravel	Return a contiguous flattened array.	function not implemented
ndarray.flat	A 1-D iterator over the array.	function not implemented
ndarray.flatten	Return a copy of the array collapsed into one dimension.	parameter "order" is not implemented

Transpose-like Operations

function	description	notes
moveaxis	Move axes of an array to new positions.	function not implemented
rollaxis(a, axis[, start])	Roll the specified axis backwards, until it lies in a given position.	function not implemented
swapaxes(a, axis1, axis2)	Interchange two axes of an array.	function not implemented
ndarray.T	Same as self.transpose(), except that self is returned if self.ndim < 2.
transpose(a)	Permute the dimensions of an array.	parameter "axes" is not supported

Changing Number of Dimensions

function	description	notes
atleast_1d(*arys)	Convert inputs to arrays with at least one dimension.	function not implemented
atleast_2d(*arys)	View inputs as arrays with at least two dimensions.	function not implemented
atleast_3d(*arys)	View inputs as arrays with at least three dimensions.	function not implemented
broadcast	Produce an object that mimics broadcasting.	function not implemented
broadcast_to(array, shape[, subok])	Broadcast an array to a new shape.	function not implemented
broadcast_arrays(*args, **kwargs)	Broadcast any number of arrays against each other.	function not implemented
expand_dims(a, axis)	Expand the shape of an array.	function not implemented
[squeeze(a, axis=None)](https://docs.scipy.org/doc/numpy-1.13.0/reference/generated/numpy.squeeze.html)	Remove single-dimensional entries from the shape of an array.

Changing Kind of Array

function	description	notes
asarray(a[, dtype, order])	Convert the input to an array.	function not implemented
asanyarray(a[, dtype, order])	Convert the input to an ndarray, but pass ndarray subclasses through.	function not implemented
asmatrix(data[, dtype])	Interpret the input as a matrix.	function not implemented
asfarray(a[, dtype])	Return an array converted to a float type.	function not implemented
asfortranarray(a[, dtype])	Return an array laid out in Fortran order in memory.	function not implemented
ascontiguousarray(a[, dtype])	Return a contiguous array in memory (C order).	function not implemented
asarray_chkfinite(a[, dtype, order])	Convert the input to an array, checking for NaNs or Infs.	function not implemented
asscalar(a)	Convert an array of size 1 to its scalar equivalent.
require(a[, dtype, requirements])	Return an ndarray of the provided type that satisfies requirements.	function not implemented

Joining Arrays

function	description	notes
concatenate((a1, a2, ...), axis=0)	Join a sequence of arrays along an existing axis.
stack(arrays[, axis])	Join a sequence of arrays along a new axis.	function not implemented
column_stack(tup)	Stack 1-D arrays as columns into a 2-D array.	function not implemented
dstack(tup)	Stack arrays in sequence depth wise (along third axis).
hstack(tup)	Stack arrays in sequence horizontally (along second axis).
vstack(tup)	Stack arrays in sequence vertically (along first axis).
block(arrays)	Assemble an nd-array from nested lists of blocks.	function not implemented

Splitting Arrays

function	description	notes
split(ary, indices_or_sections[, axis])	Split an array into multiple sub-arrays.	function not implemented
array_split(ary, indices_or_sections[, axis])	Split an array into multiple sub-arrays.	function not implemented
dsplit(ary, indices_or_sections)	Split array into multiple sub-arrays along the 3rd axis (depth).	function not implemented
hsplit(ary, indices_or_sections)	Split an array into multiple sub-arrays horizontally (column-wise).	function not implemented
vsplit(ary, indices_or_sections)	Split an array into multiple sub-arrays vertically (row-wise).	function not implemented

Tiling Arrays

function	description	notes
tile(A, reps)	Construct an array by repeating A the number of times given by reps.
repeat(a, repeats[, axis])	Repeat elements of an array.	function not implemented

Adding and Removing Elements (not implemented)

function	description	notes
delete(arr, obj[, axis])	Return a new array with sub-arrays along an axis deleted.	function not implemented
insert(arr, obj, values[, axis])	Insert values along the given axis before the given indices.	function not implemented
append(arr, values[, axis])	Append values to the end of an array.	function not implemented
resize(a, new_shape)	Return a new array with the specified shape.	function not implemented
trim_zeros(filt[, trim])	Trim the leading and/or trailing zeros from a 1-D array or sequence.	function not implemented
unique(ar[, return_index, return_inverse, ...])	Find the unique elements of an array.	function not implemented

Rearranging Elements

function	description	notes
flip(m, axis)	Reverse the order of elements in an array along the given axis.
fliplr(m)	Flip array in the left/right direction.
flipud(m)	Flip array in the up/down direction.
reshape(a, newshape)	Gives a new shape to an array without changing its data.	parameter "order" is not supported
roll(a, shift, axis=None)	Roll array elements along a given axis.
rot90(m[, k, axes])	Rotate an array by 90 degrees in the plane specified by axes.	function not implemented

Binary Operations

Elementwise Bit Operations

function	description	notes
bitwise_and(x1, x2)	Compute the bit-wise AND of two arrays element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", and "extobj" are not supported
bitwise_or(x1, x2)	Compute the bit-wise OR of two arrays element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", and "extobj" are not supported
bitwise_xor(x1, x2)	Compute the bit-wise XOR of two arrays element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", and "extobj" are not supported
invert(x)	Compute bit-wise inversion, or bit-wise NOT, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", and "extobj" are not supported
left_shift(x1, x2)	Shift the bits of an integer to the left.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", and "extobj" are not supported
right_shift(x1, x2)	Shift the bits of an integer to the right.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", and "extobj" are not supported

Bit Packing (not implemented)

Indexing Routines

Generating Index Arrays (not implemented)

Indexing-like Operations

function	description	notes
take(a, indices[, axis, out, mode])	Take elements from an array along an axis.	function not implemented
choose(a, choices[, out, mode])	Construct an array from an index array and a set of arrays to choose from.	function not implemented
compress(condition, a[, axis, out])	Return selected slices of an array along given axis.	function not implemented
diag(v, k=0)	Extract a diagonal or construct a diagonal array.
diagonal(a[, offset, axis1, axis2])	Return specified diagonals.	function not implemented
select(condlist, choicelist[, default])	Return an array drawn from elements in choicelist, depending on conditions.	function not implemented
lib.stride_tricks.as_strided(x[, shape, ...])	Create a view into the array with the given shape and strides.	function not implemented

Inserting Data into Arrays (not implemented)

function	description	notes
place(arr, mask, vals)	Change elements of an array based on conditional and input values.	function not implemented
put(a, ind, v[, mode])	Replaces specified elements of an array with given values.	function not implemented
putmask(a, mask, values)	Changes elements of an array based on conditional and input values.	function not implemented
fill_diagonal(a, val[, wrap])	Fill the main diagonal of the given array of any dimensionality.	function not implemented

Iterating over Arrays (not implemented)

function	description	notes
nditer	Efficient multi-dimensional iterator object to iterate over arrays.	function not implemented
ndenumerate(arr)	Multidimensional index iterator.	function not implemented
ndindex(*shape)	An N-dimensional iterator object to index arrays.	function not implemented
flatiter	Flat iterator object to iterate over arrays.	function not implemented
lib.Arrayterator(var[, buf_size])	Buffered iterator for big arrays.	function not implemented

Linear Algebra

Matrix and Vector Products

function	description	notes
dot(a, b)	Dot product of two arrays.	parameter "out" is not supported
linalg.multi_dot(arrays)	Compute the dot product of two or more arrays in a single function call, while automatically selecting the fastest evaluation order.	function not implemented
vdot(a, b)	Return the dot product of two vectors.
inner(a, b)	Inner product of two arrays.	function not implemented
outer(a, b)	Outer product of two arrays.	function not implemented
matmul(a, b[, out])	Matrix product of two arrays.	only handles 2d arrays
tensordot(a, b[, axes])	Compute tensor dot product along specified axes for arrays >= 1-D.	function not implemented
einsum(subscripts, *operands[, out, dtype, ...])	Evaluates the Einstein summation convention on the operands.	function not implemented
linalg.matrix_power(M, n)	Raise a square matrix to the (integer) power n.	function not implemented
kron(a, b)	Kronecker product of two arrays.	function not implemented

Decompositions

function	description	notes
linalg.cholesky(a)	Cholesky decomposition.
linalg.qr(a)	Compute the qr factorization of a matrix.	parameter "mode" is not supported
linalg.svd(a[, full_matrices, compute_uv])	Singular Value Decomposition.

Matrix Eigenvalues (not implemented)

function	description	notes
linalg.eig(a)	Compute the eigenvalues and right eigenvectors of a square array.	function not implemented
linalg.eigh(a[, UPLO])	Return the eigenvalues and eigenvectors of a Hermitian or symmetric matrix.	function not implemented
linalg.eigvals(a)	Compute the eigenvalues of a general matrix.	function not implemented
linalg.eigvalsh(a[, UPLO])	Compute the eigenvalues of a Hermitian or real symmetric matrix.	function not implemented

Norms and Other Numbers

function	description	notes
linalg.norm(x[, ord, axis, keepdims])	Matrix or vector norm.	parameter "keepdims" is not supported
linalg.cond(x[, p])	Compute the condition number of a matrix.	function not implemented
linalg.det(a)	Compute the determinant of an array.	function not implemented
linalg.matrix_rank(M, tol=None)	Return matrix rank of array using SVD method
linalg.slogdet(a)	Compute the sign and (natural) logarithm of the determinant of an array.	function not implemented
trace(a, offset=0)	Return the sum along diagonals of the array.	parameters "axis1", "axis2", "dtype", and "out" are not supported

Solving Equations and Inverting Matrices

function	description	notes
linalg.solve(a, b)	Solve a linear matrix equation, or system of linear scalar equations.	additional parameter "trans" indicating whether the argument should be transposed
linalg.tensorsolve(a, b[, axes])	Solve the tensor equation a x = b for x.	function not implemented
linalg.lstsq(a, b[, rcond])	Return the least-squares solution to a linear matrix equation.	function not implemented
linalg.inv(a)	Compute the (multiplicative) inverse of a matrix.
linalg.pinv(a[, rcond])	Compute the (Moore-Penrose) pseudo-inverse of a matrix.	function not implemented
linalg.tensorinv(a[, ind])	Compute the ‘inverse’ of an N-dimensional array.

Logic Functions

Truth Value Testing

function	description	notes
all(a, axis=None)	Test whether all array elements along a given axis evaluate to True.	parameters "out" and "keepdims" are not supported
any(a, axis=None)	Test whether any array element along a given axis evaluates to True.	parameters "out" and "keepdims" are not supported

Array Contents

function	description	notes
isfinite(x)	Test element-wise for finiteness (not infinity or not Not a Number).	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", and "extobj" are not supported
isinf(x)	Test element-wise for positive or negative infinity.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", and "extobj" are not supported
isnan(x)	Test element-wise for NaN and return result as a boolean array.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", and "extobj" are not supported
isneginf(x)	Test element-wise for negative infinity, return result as bool array.	parameter "out" is not supported
isposinf(x)	Test element-wise for positive infinity, return result as bool array.	parameter "out" is not supported

Array Type Testing

function	description	notes
iscomplex(x)	Returns a bool array, where True if input element is complex.	function not implemented
iscomplexobj(x)	Check for a complex type or an array of complex numbers.
isfortran(a)	Returns True if the array is Fortran contiguous but not C contiguous.
isreal(x)	Returns a bool array, where True if input element is real.	function not implemented
isrealobj(x)	Return True if x is a not complex type or an array of complex numbers.
isscalar(num)	Returns True if the type of num is a scalar type.

Logical Operations

function	description	notes
logical_and(x1, x2)	Compute the truth value of x1 AND x2 element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
logical_or(x1, x2)	Compute the truth value of x1 OR x2 element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
logical_not(x)	Compute the truth value of NOT x element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
logical_xor(x1, x2)	Compute the truth value of x1 XOR x2 element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported

Comparison

function	description	notes
allclose(a, b[, rtol, atol, equal_nan])	Returns True if two arrays are element-wise equal within a tolerance.	function not implemented
isclose(a, b[, rtol, atol, equal_nan])	Returns a boolean array where two arrays are element-wise equal within a tolerance.	function not implemented
array_equal(a1, a2)	True if two arrays have the same shape and elements, False otherwise.
array_equiv(a1, a2)	Returns True if input arrays are shape consistent and all elements equal.	function not implemented
greater(x1, x2)	Return the truth value of (x1 > x2) element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
greater_equal(x1, x2)	Return the truth value of (x1 >= x2) element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
less(x1, x2)	Return the truth value of (x1 < x2) element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
less_equal(x1, x2)	Return the truth value of (x1 =< x2) element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
equal(x1, x2)	Return (x1 == x2) element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
not_equal(x1, x2)	Return (x1 != x2) element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported

Mathematical Functions

Trigonometric Functions

function	description	notes
sin(x)	Trigonometric sine, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
cos(x)	Cosine element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
tan(x)	Compute tangent element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
arcsin(x)	Inverse sine, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
arccos(x)	Trigonometric inverse cosine, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
arctan(x)	Trigonometric inverse tangent, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
hypot(x1, x2)	Given the “legs” of a right triangle, return its hypotenuse.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
arctan2(x1, x2)	Element-wise arc tangent of x1/x2 choosing the quadrant correctly.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
degrees(x, /[, out, where, casting, order, ...])	Convert angles from radians to degrees.	function not implemented
radians(x, /[, out, where, casting, order, ...])	Convert angles from degrees to radians.	function not implemented
unwrap(p[, discont, axis])	Unwrap by changing deltas between values to 2*pi complement.	function not implemented
deg2rad(x, /[, out, where, casting, order, ...])	Convert angles from degrees to radians.	function not implemented
rad2deg(x, /[, out, where, casting, order, ...])	Convert angles from radians to degrees.	function not implemented

Hyperbolic Functions

function	description	notes
sinh(x)	Hyperbolic sine, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
cosh(x)	Hyperbolic cosine, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
tanh(x)	Compute hyperbolic tangent element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
arcsinh(x)	Inverse hyperbolic sine element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
arccosh(x)	Inverse hyperbolic cosine, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
arctanh(x)	Inverse hyperbolic tangent element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported

Rounding

function	description	notes
around(a[, decimals, out])	Evenly round to the given number of decimals.	function not implemented
round_(a[, decimals, out])	Evenly round to the given number of decimals.	function not implemented
rint(x, /[, out, where, casting, order, ...])	Round elements of the array to the nearest integer.	function not implemented
fix(x[, out])	Round to nearest integer towards zero.	function not implemented
floor(x)	Return the floor of the input, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
ceil(x)	Return the ceiling of the input, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
trunc(x)	Return the truncated value of the input, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported

Sums, Products, Differences

function	description	notes
prod(a, axis=None)	Return the product of array elements over a given axis.	parameters "dtype", "out", and "keepdims" are not supported
sum(a, axis=None)	Sum of array elements over a given axis.	parameters "dtype", "out", and "keepdims" are not supported
nanprod(a[, axis, dtype, out, keepdims])	Return the product of array elements over a given axis treating Not a Numbers (NaNs) as ones.	function not implemented
nansum(a[, axis, dtype, out, keepdims])	Return the sum of array elements over a given axis treating Not a Numbers (NaNs) as zero.	function not implemented
cumprod(a[, axis, dtype, out])	Return the cumulative product of elements along a given axis.	function not implemented
cumsum(a, axis=None)	Return the cumulative sum of the elements along a given axis.	parameters "dtype" and "out" are not supported
nancumprod(a[, axis, dtype, out])	Return the cumulative product of array elements over a given axis treating Not a Numbers (NaNs) as one.	function not implemented
nancumsum(a[, axis, dtype, out])	Return the cumulative sum of array elements over a given axis treating Not a Numbers (NaNs) as zero.	function not implemented
diff(a, n=1, axis=-1)	Calculate the n-th discrete difference along given axis.
ediff1d(ary[, to_end, to_begin])	The differences between consecutive elements of an array.	function not implemented
gradient(f, *varargs, **kwargs)	Return the gradient of an N-dimensional array.	function not implemented
cross(a, b[, axisa, axisb, axisc, axis])	Return the cross product of two (arrays of) vectors.	function not implemented
trapz(y[, x, dx, axis])	Integrate along the given axis using the composite trapezoidal rule.	function not implemented

Exponents and Logarithms

function	description	notes
exp(x)	Calculate the exponential of all elements in the input array.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
expm1(x)	Calculate exp(x) - 1 for all elements in the array.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
exp2(x)	Calculate 2**p for all p in the input array.	function not implemented
log(x)	Natural logarithm, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
log10(x)	Return the base 10 logarithm of the input array, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
log2(x)	Base-2 logarithm of x.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
log1p(x)	Return the natural logarithm of one plus the input array, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
logaddexp(x1, x2, /[, out, where, casting, ...])	Logarithm of the sum of exponentiations of the inputs.	function not implemented
logaddexp2(x1, x2, /[, out, where, casting, ...])	Logarithm of the sum of exponentiations of the inputs in base-2.	function not implemented

Other Special Functions (not implemented)

function	description	notes
i0(x)	Modified Bessel function of the first kind, order 0.	function not implemented
sinc(x)	Return the sinc function.	function not implemented

Floating Point Routines (not implemented)

function	description	notes
signbit(x, /[, out, where, casting, order, ...])	Returns element-wise True where signbit is set (less than zero).	function not implemented
copysign(x1, x2, /[, out, where, casting, ...])	Change the sign of x1 to that of x2, element-wise.	function not implemented
frexp(x[, out1, out2], / [[, out, where, ...])	Decompose the elements of x into mantissa and twos exponent.	function not implemented
ldexp(x1, x2, /[, out, where, casting, ...])	Returns x1 * 2**x2, element-wise.	function not implemented
nextafter(x1, x2, /[, out, where, casting, ...])	Return the next floating-point value after x1 towards x2, element-wise.	function not implemented
spacing(x, /[, out, where, casting, order, ...])	Return the distance between x and the nearest adjacent number.	function not implemented

Arithmetic Operations

function	description	notes
add(x1, x2)	Add arguments element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
reciprocal(x)	Return the reciprocal of the argument, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
negative(x)	Numerical negative, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
multiply(x1, x2)	Multiply arguments element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
divide(x1, x2)	Divide arguments element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
power(x1, x2)	First array elements raised to powers from second array, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
subtract(x1, x2)	Subtract arguments, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
true_divide(x1, x2)	Returns a true division of the inputs, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
floor_divide(x1, x2)	Return the largest integer smaller or equal to the division of the inputs.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
float_power(x1, x2, /[, out, where, ...])	First array elements raised to powers from second array, element-wise.	function not implemented
fmod(x1, x2, /[, out, where, casting, ...])	Return the element-wise remainder of division.	function not implemented
mod(x1, x2)	Return the element-wise remainder of division.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
modf(x[, out1, out2], / [[, out, where, ...])	Return the fractional and integral parts of an array, element-wise.	function not implemented
remainder(x1, x2)	Return element-wise remainder of division.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
divmod(x1, x2[, out1, out2], / [[, out, ...])	Return element-wise quotient and remainder simultaneously.	function not implemented

Handling Complex Numbers

function	description	notes
angle(z)	Return the angle of the complex argument.	parameter "deg" is not supported
real(val)	Return the real part of the complex argument.
imag(val)	Return the imaginary part of the complex argument.
conj(x)	Return the complex conjugate, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported

Miscellaneous

function	description	notes
convolve(a, v[, mode])	Returns the discrete, linear convolution of two one-dimensional sequences.	function not implemented
convolve(a, v[, mode])	Returns the discrete, linear convolution of two one-dimensional sequences.	function not implemented
clip(a, a_min, a_max)	Clip (limit) the values in an array.	parameter "out" is not supported
sqrt(x)	Return the positive square-root of an array, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
cbrt(x)	Return the cube-root of an array, element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
square(x)	Return the element-wise square of the input.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
absolute(x)	Calculate the absolute value element-wise.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
fabs(x, /[, out, where, casting, order, ...])	Compute the absolute values element-wise.	function not implemented
sign(x)	Returns an element-wise indication of the sign of a number.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
heaviside(x1, x2, /[, out, where, casting, ...])	Compute the Heaviside step function.	function not implemented
maximum(x1, x2)	Element-wise maximum of array elements.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
minimum(x1, x2)	Element-wise minimum of array elements.	parameters "out", "where", "casting", "order", "dtype", "subok", "signature", "extobj" are not supported
fmax(x1, x2, /[, out, where, casting, ...])	Element-wise maximum of array elements.	function not implemented
fmin(x1, x2, /[, out, where, casting, ...])	Element-wise minimum of array elements.	function not implemented
nan_to_num(x[, copy])	Replace nan with zero and inf with finite numbers.	function not implemented
real_if_close(a[, tol])	If complex input returns a real array if complex parts are close to zero.	function not implemented
interp(x, xp, fp[, left, right, period])	One-dimensional linear interpolation.	function not implemented

Random Sampling

Simple Random Data

function	description	notes
rand(d0, d1, ..., dn)	Random values in a given shape.
randn(d0, d1, ..., dn)	Return a sample (or samples) from the “standard normal” distribution.
randint(low[, high, size, dtype])	Return random integers from low (inclusive) to high (exclusive).
random_integers(low[, high, size])	Random integers of type np.int between low and high, inclusive.	function not implemented
random_sample([size])	Return random floats in the half-open interval [0.0, 1.0).	function not implemented
random([size])	Return random floats in the half-open interval [0.0, 1.0).	function not implemented
ranf([size])	Return random floats in the half-open interval [0.0, 1.0).	function not implemented
sample([size])	Return random floats in the half-open interval [0.0, 1.0).	function not implemented
choice(a[, size, replace, p])	Generates a random sample from a given 1-D array	replace=False and p != None are not supported
bytes(length)	Return random bytes.	function not implemented

Permutations

function	description	notes
shuffle(x)	Modify a sequence in-place by shuffling its contents.
permutation(x)	Randomly permute a sequence, or return a permuted range.

Distributions

function	description	notes
beta(a, b, size=None)	Draw samples from a Beta distribution.
binomial(n, p[, size])	Draw samples from a binomial distribution.	function not implemented
chisquare(df, size=None)	Draw samples from a chi-square distribution.
dirichlet(alpha[, size])	Draw samples from the Dirichlet distribution.	function not implemented
exponential(scale=1.0, size=None)	Draw samples from an exponential distribution.
f(dfnum, dfden[, size])	Draw samples from an F distribution.	function not implemented
gamma(shape, scale=1.0, size=None)	Draw samples from a Gamma distribution.
geometric(p[, size])	Draw samples from the geometric distribution.	function not implemented
gumbel([loc, scale, size])	Draw samples from a Gumbel distribution.	function not implemented
hypergeometric(ngood, nbad, nsample[, size])	Draw samples from a Hypergeometric distribution.	function not implemented
laplace([loc, scale, size])	Draw samples from the Laplace or double exponential distribution with specified location (or mean) and scale (decay).	function not implemented
logistic(loc=0.0, scale=1.0, size=None)	Draw samples from a logistic distribution.
lognormal(mean=0.0, sigma=1.0, size=None)	Draw samples from a log-normal distribution.
logseries(p[, size])	Draw samples from a logarithmic series distribution.	function not implemented
multinomial(n, pvals[, size])	Draw samples from a multinomial distribution.	function not implemented
multivariate_normal(mean, cov[, size, ...)	Draw random samples from a multivariate normal distribution.	function not implemented
negative_binomial(n, p[, size])	Draw samples from a negative binomial distribution.	function not implemented
noncentral_chisquare(df, nonc[, size])	Draw samples from a noncentral chi-square distribution.	function not implemented
noncentral_f(dfnum, dfden, nonc[, size])	Draw samples from the noncentral F distribution.	function not implemented
normal(loc=0.0, scale=1.0, size=None)	Draw random samples from a normal (Gaussian) distribution.
pareto(a[, size])	Draw samples from a Pareto II or Lomax distribution with specified shape.	function not implemented
poisson([lam, size])	Draw samples from a Poisson distribution.	function not implemented
power(a[, size])	Draws samples in [0, 1] from a power distribution with positive exponent a - 1.	function not implemented
rayleigh([scale, size])	Draw samples from a Rayleigh distribution.	function not implemented
standard_cauchy([size])	Draw samples from a standard Cauchy distribution with mode = 0.	function not implemented
standard_exponential(size=None)	Draw samples from the standard exponential distribution.
standard_gamma(shape, size=None)	Draw samples from a standard Gamma distribution.
standard_normal(size=None)	Draw samples from a standard Normal distribution (mean=0, stdev=1).
standard_t(df[, size])	Draw samples from a standard Student’s t distribution with df degrees of freedom.	function not implemented
triangular(left, mode, right[, size])	Draw samples from the triangular distribution over the interval [left, right].	function not implemented
uniform(low=0.0, high=1.0, size=None)	Draw samples from a uniform distribution.
vonmises(mu, kappa[, size])	Draw samples from a von Mises distribution.	function not implemented
wald(mean, scale, size=None)	Draw samples from a Wald, or inverse Gaussian, distribution.
weibull(a[, size])	Draw samples from a Weibull distribution.	function not implemented
zipf(a[, size])	Draw samples from a Zipf distribution.	function not implemented

Random Generator

function	description	notes
seed(seed=None)	Seed the generator.
get_seed()	Returns the current seed of the generator.	function has no counterpart in numpy
get_state()	Return a tuple representing the internal state of the generator.	function not implemented
set_state(state)	Set the internal state of the generator from a tuple.	function not implemented

Limitations and Differences with NumPy

• Requires Python 3.7 or higher.
• Arrays may have no more than 4 axes.
• Cocos provides only a subset of NumPy's functions and methods. In many cases, Cocos does not support all of the parameters of its corresponding NumPy function or method.
• Trailing singleton dimensions are cut off, e.g. there is no difference between an array with shape (2, 2, 1) and an array with shape (2, 2) in Cocos.
• Matrix multiplication is not supported for integer types.

A Note on Hardware Configurations for Multi-GPU Computing

Cocos implements multi-GPU functionality via process-based parallelism (one process per GPU device). It is recommended to have at least one physical CPU core per GPU in the system in order to prevent 'starving' the GPUs.

License

MIT License

Copyright (c) 2019 Michael Nowotny

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
