concept-mapmaker

Build interactive concept maps from Markdown and a small optional YAML presentation spec. Each build creates an HTML map, a downloadable Markdown copy, and a PDF.

The HTML is a single generated file, but it loads D3 and Markmap from jsDelivr when opened.

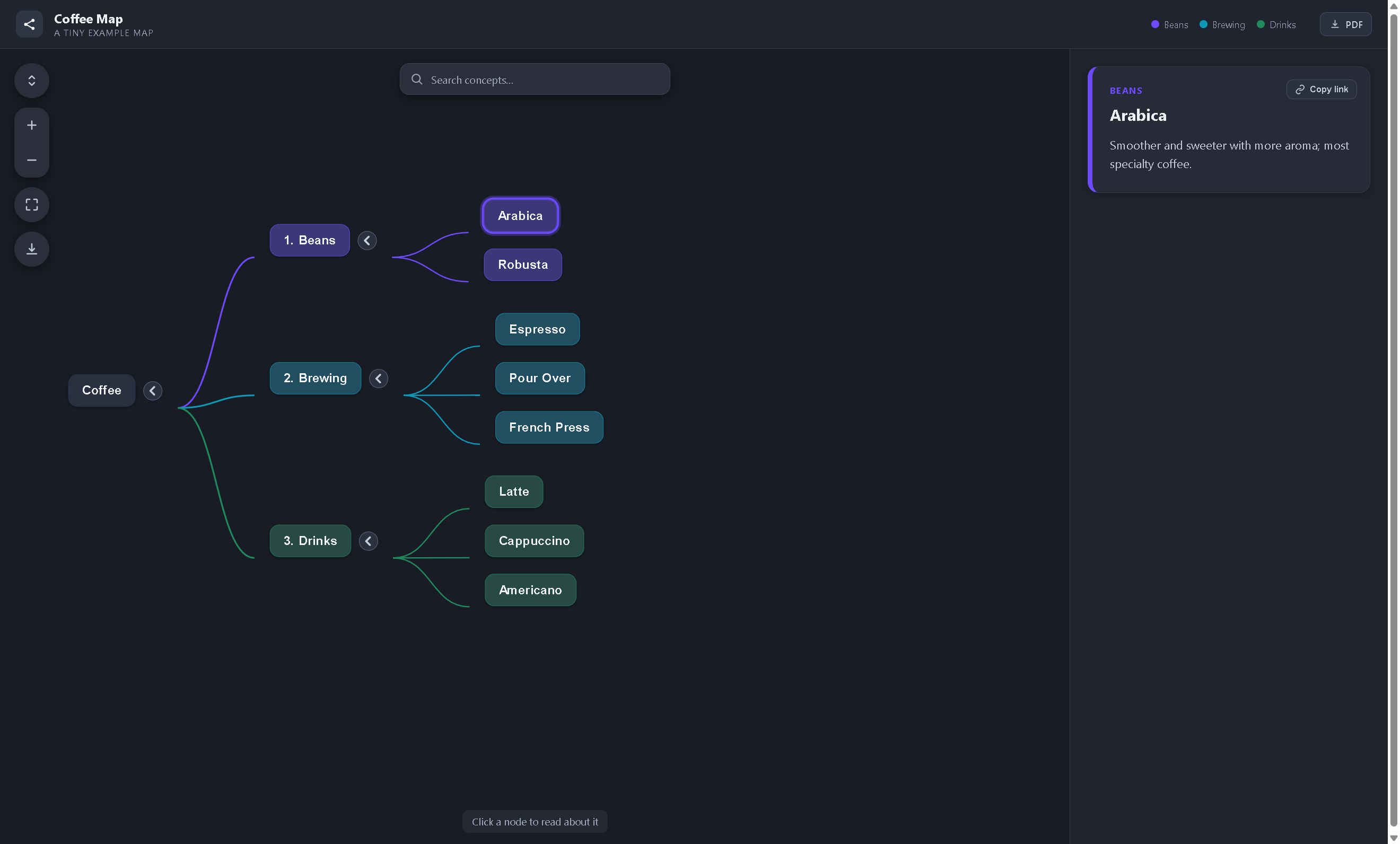

Branch types are color-coded from the legend; clicking any node reveals its description in the side panel, with a copyable deep link:

Install

pip install concept-mapmaker

Requires Python 3.10+. PDF generation is included in the default installation.

Quickstart

Run these from your content project's folder. init scaffolds a starter map, build renders it, and serve previews the result over HTTP:

concept-map init          # writes map.md + config.yaml + map.css into the current folder
concept-map build map.md  # -> web/map.html (+ web/downloads/*.md/.pdf)
concept-map serve         # preview at http://127.0.0.1:8080

A project is one flat folder — a source doc plus two optional files, and a generated web/:

my-project/
  my-map.md
  config.yaml         # optional; presentation spec, auto-discovered beside the doc
  map.css             # optional; custom colors, auto-discovered beside the doc
  web/                # generated
    my-map.html
    downloads/
      my-map.md
      my-map.pdf

CLI reference

concept-map init                                     # scaffold map.md + config.yaml + map.css
concept-map build my-map.md                          # -> web/my-map.html
concept-map build my-map.md --spec presentation.yaml # explicit spec (else config.yaml beside doc)
concept-map build my-map.md --output public/map.html # override the output path
concept-map build my-map.md --template custom.html   # custom node-display layout
concept-map serve                                    # preview the newest map in web/
concept-map serve public/map.html --port 8000        # preview a specific file / port

The bundled template is the default look; --template is a layout-only extension point for supplying your own node-display HTML. See "Python API" for passing extra __KEY__ values a custom template needs.

Markdown authoring contract

• Headings (# through ######) define structure.
• Bullets written as - **Name**: description define concepts.
• Two spaces of bullet indentation add one level beneath the current heading.
• A paragraph directly under a heading becomes that heading node's description.
• A -*- token on a heading or concept marks that node with a star.

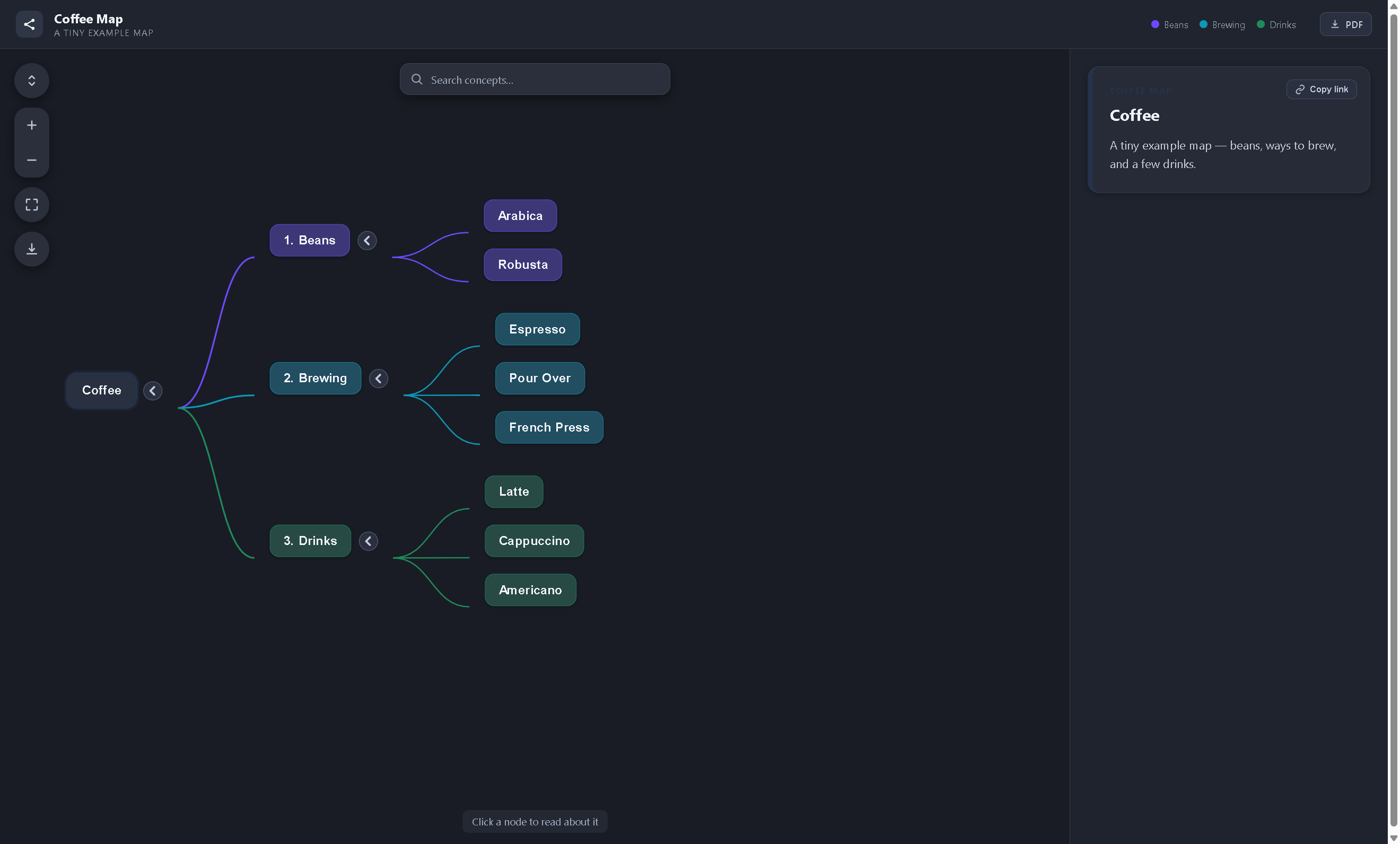

The map shown above comes straight from these rules. Its source (examples/demo.md) begins:

# Coffee

A tiny example map — beans, ways to brew, and a few drinks.

## 1. Beans

The two species behind almost all coffee.

- **Arabica**: Smoother and sweeter with more aroma; most specialty coffee.
- **Robusta**: More caffeine and a bolder, more bitter cup; common in espresso blends.

# Coffee becomes the root (its paragraph is the root's description); each ## N. heading is a branch whose numbering the legend matches on (below); and each - **Name**: description bullet is a clickable concept node with the text shown in the side panel. Build it yourself with:

concept-map build examples/demo.md --spec examples/config.yaml
concept-map serve web/demo.html

YAML spec

Every field is optional:

Example:

title: Coffee Map
subtitle: A Tiny Example Map

legend:
  - {match: '^1\.', key: beans, label: Beans}
  - {match: '^2\.', key: brewing, label: Brewing}

Each legend entry is a branch type: the first match regex that hits a node's label sets its branch, and the subtree inherits it. Branches are colored from a built-in palette in order (the palette lives in the display template). With no legend, all nodes use one neutral color and the legend is hidden.

Custom colors (map.css)

To override colors, drop a map.css beside the source doc (or in the project root). It is appended after the generated branch bindings, so its rules win. Redefine a palette slot, or a specific branch:

:root { --pal-1: #b5179e; }        /* recolor the first branch type */
:root { --branch-brewing: #0e7c86; } /* recolor one branch by key */

See examples/map.css for a copy-paste starting point (concept-map init also writes one).

Python API

from concept_mapmaker import build_map, load_spec

spec = load_spec("config.yaml")
build_map("my-map.md", spec, output="web/my-map.html")

Writable output always goes to the caller's project; package installation files are read-only. The display template is bundled inside the installed wheel.

To embed the engine, build_map exposes three optional extension seams: template (a path to a custom node-display template), parse_fn (swap in a different input parser), and extra_context (supply or override __KEY__ values your custom template consumes):

build_map("my-map.md", spec, output="web/my-map.html",
          template="custom.html", extra_context={"FOOTER": "© 2026"})

Contributing and releasing

Development setup, the test suite, and the maintainer release process (Trusted Publishing to TestPyPI/PyPI) are documented in CONTRIBUTING.md. The worked example lives in examples/.
