coordshift 0.2.0

Universal coordinate system conversion for CSV and tabular data

coordshift

⚠ Alpha software — use with caution

coordshift is in early development (pre-v1.0). APIs and output formats may change without notice. Always verify converted coordinates against a trusted independent source before using them in any survey, legal, safety-critical, or production workflow. The authors provide no warranty and accept no liability for errors in coordinate conversion results. Use at your own risk.

Universal coordinate system conversion for CSV and tabular data — built for GIS analysts, surveyors, and drone mapping workflows.

What it does

coordshift reprojects coordinate columns in CSV files from one CRS to another, using any system supported by PROJ. It ships as both a command-line tool and a Python library, plus a standalone browser-based converter (coordshift.html) that works entirely offline.

CLI

coordshift convert input.csv --from EPSG:4326 --to EPSG:6458 --x lon --y lat

Python

from coordshift import convert

df = convert("input.csv", from_crs="EPSG:4326", to_crs="EPSG:6458", x="lon", y="lat")

Browser

Open coordshift.html in any modern browser — no install required.

Why this exists

Tools like cs2cs, ogr2ogr, and raw pyproj are powerful but assume you already speak PROJ. coordshift targets practitioners who need fast, repeatable conversions without wrestling with syntax.

What's included

• Convert any EPSG/PROJ CRS to any other
• Auto-detect common column names (lat, lon, x, y, easting, northing, etc.)
• Source and target CRS via EPSG code, PROJ string, or anything else PROJ resolves; coordshift search finds USA EPSG entries by keyword
• Preserve all columns in output — original X/Y columns are always kept
• Converted coordinates written to new columns placed immediately after the originals
• Customisable output column suffix (default _converted, e.g. lon_converted, lat_converted)
• CLI for one-off conversions
• Python API for scripting and pipelines
• Browser-based converter (coordshift.html) with map preview — works offline, supports NAD83(2011) geographic (EPSG:6318) for RTK/CORS survey workflows, with datum accuracy warnings for frames that proj4.js cannot rigorously transform (e.g. NAD83(2011) ↔ ITRF2014)

Planned

• Vertical coordinate support (ellipsoidal ↔ orthometric, GEOID)
• Batch conversion across multiple files
• Output to GeoJSON or Shapefile

Installation

Install from PyPI (Python 3.10+):

pip install coordshift

From source (for development or unreleased changes):

git clone https://github.com/FultonGeo/coordshift.git
cd coordshift
pip install -e .

Usage

CLI

Basic conversion (original lon/lat columns are preserved; converted values go into lon_converted/lat_converted placed right after them):

coordshift convert input.csv --from EPSG:4326 --to EPSG:6458 --x lon --y lat

With output path:

coordshift convert input.csv --from EPSG:4326 --to EPSG:6458 --x lon --y lat --out output.csv

Custom column name suffix (produces lon_proj, lat_proj instead of the default lon_converted, lat_converted):

coordshift convert input.csv --from EPSG:4326 --to EPSG:6458 --suffix _proj

PROJ strings (use a single line on Windows, or wrap as your shell allows):

coordshift convert input.csv \
  --from "+proj=longlat +datum=WGS84" \
  --to "+proj=tmerc +lat_0=37.5 +lon_0=-85.66666667 +k=0.999966667 +x_0=100000 +y_0=250000 +ellps=GRS80" \
  --x longitude --y latitude

Search the EPSG database (filtered to USA) — one or more words, all must match:

coordshift search iowa south
coordshift search indiana east
coordshift search nad83 2011 utm zone 15

The browser file coordshift.html includes a searchable CRS catalog for convenience. The Python tools rely on EPSG/PROJ plus search as above.

Python API

from coordshift import convert, search_crs

df = convert(
    "field_points.csv",
    from_crs="EPSG:4326",
    to_crs="EPSG:6458",
    x="lon",
    y="lat",
)
# df now has lon, lon_converted, lat, lat_converted (plus any other original columns)
df.to_csv("field_points_converted.csv", index=False)

# Search returns all matching EPSG entries from the PROJ database (USA-filtered)
results = search_crs("indiana east")
for r in results:
    print(r["epsg"], "—", r["name"])

See docs/examples.md for more detailed examples.

Browser app

Open coordshift.html in any modern browser (Chrome, Firefox, Edge, Safari). No server or internet connection required after the page loads.

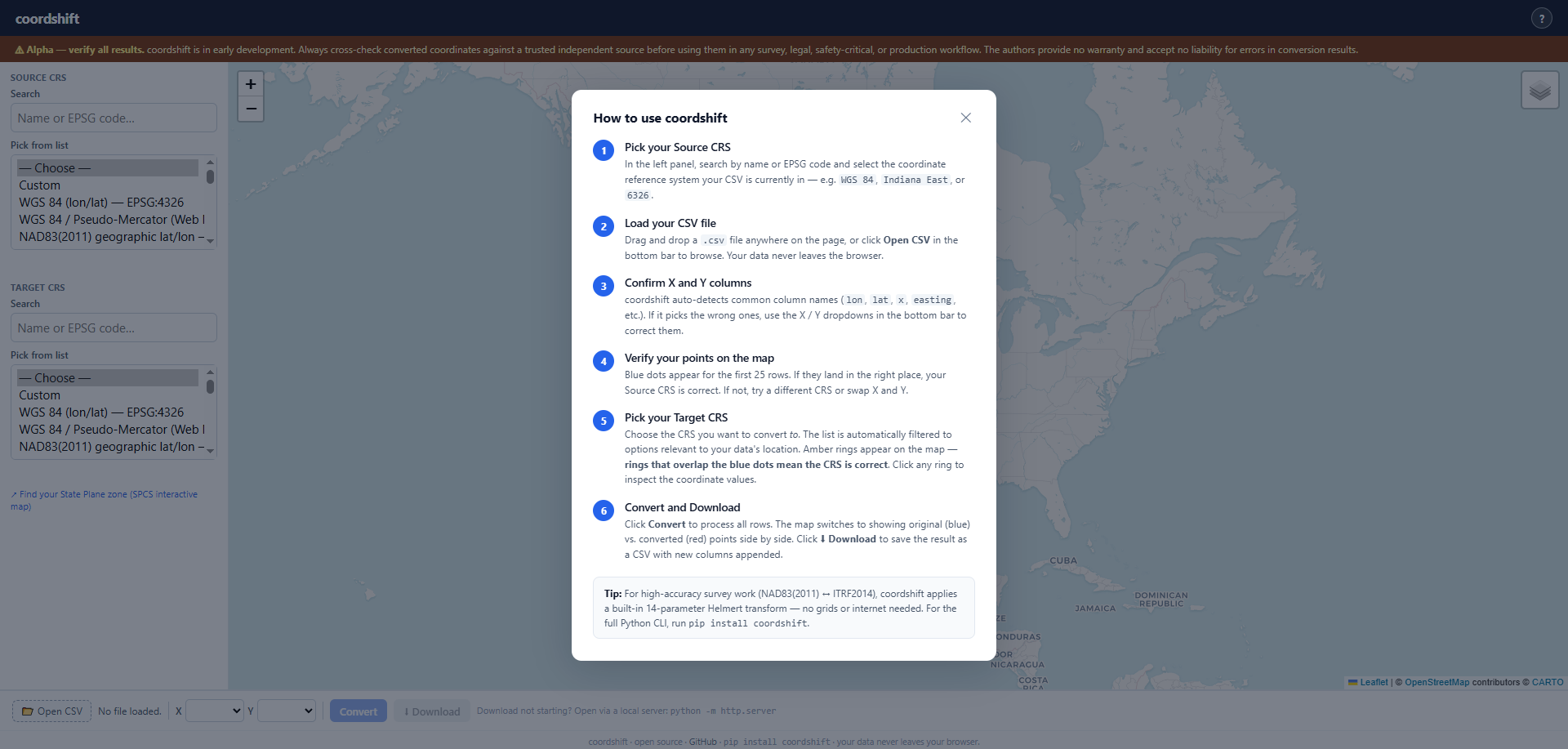

How to use — click ? in the header to open the step-by-step guide:

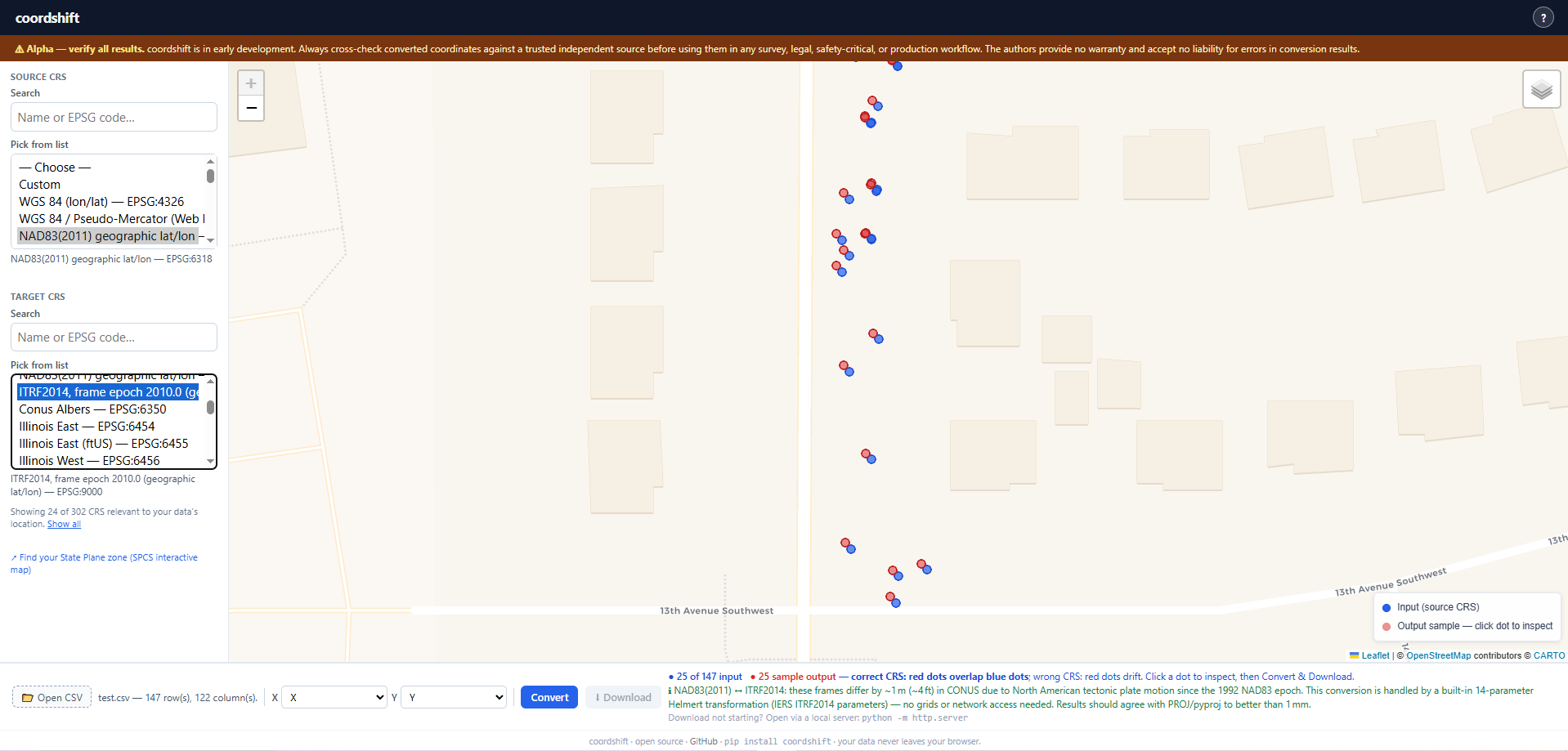

Example — map preview with input points (blue) and converted sample output (red); when the CRS pair is correct, the preview rings overlap the input dots:

Features include:

• Upload a CSV and pick coordinate columns
• Search and select source/target CRS from a built-in catalog that includes:
  • WGS 84 geographic (EPSG:4326) and Web Mercator (EPSG:3857)
  • NAD83(2011) geographic lat/lon (EPSG:6318) — the reference frame reported by RTK GNSS receivers observing from U.S. CORS networks; the correct source CRS for professional survey fieldwork in the USA
  • ITRF2014 frame epoch 2010.0 (EPSG:9000)
  • All NAD83(2011) State Plane zones for the contiguous U.S. and UTM zones
• Map preview rings for all target CRS — sample rings are back-projected to WGS 84 for display, so rings land on the input points for projected output (State Plane, UTM) just as they do for geographic output. Rings drift visibly if the wrong CRS is chosen.
• Datum accuracy warnings — an amber notice appears when the selected CRS pair has an offset that proj4.js cannot model:
  • NAD83(2011) ↔ ITRF2014: ~1 m (~4 ft) in CONUS due to tectonic plate drift since 1992
  • WGS 84 ↔ ITRF2014: <2 cm (current WGS 84 G2139); directs users to EPSG:6318 for the survey-grade NAD83 ↔ ITRF workflow
• Download the converted CSV

Project structure

coordshift/
├── coordshift/         # Python package
│   ├── __init__.py    # Public API
│   ├── core.py        # Conversion (pyproj)
│   ├── cli.py         # CLI (Click)
│   ├── io.py          # CSV I/O, column detection
│   └── crs.py         # CRS resolution and EPSG search
├── tests/
│   ├── test_core.py
│   ├── test_cli.py
│   ├── test_io.py
│   └── fixtures/
├── docs/
│   ├── examples.md
│   └── images/         # README screenshots (browser app)
├── scripts/           # Developer tooling (regenerate HTML catalog)
├── coordshift.html    # Standalone browser-based converter
├── pyproject.toml
├── README.md
└── LICENSE

Development setup

git clone https://github.com/FultonGeo/coordshift.git
cd coordshift
python -m venv venv

Activate the virtual environment:

• Windows (PowerShell): .\venv\Scripts\Activate.ps1
• macOS / Linux: source venv/bin/activate

Then:

pip install -e ".[dev]"
pytest

Run the linter:

ruff check coordshift/

Dependencies

• pyproj — PROJ bindings
• pandas — tabular data
• click — CLI

Contributing

Contributions welcome. Open an issue before large changes so direction stays aligned.

1. Fork the repo
2. Create a branch: git checkout -b feature/my-feature
3. Commit and push
4. Open a pull request

Disclaimer

coordshift is alpha software provided as-is, without warranty of any kind, express or implied. Coordinate conversion results depend on the accuracy of the underlying PROJ library, the correctness of the CRS definitions used, and the quality of the input data. Always double-check converted coordinates against an authoritative source before using them in any survey, engineering, legal, or safety-critical context. The authors and contributors are not responsible for errors, losses, or damages arising from the use of this software.

License

MIT. See LICENSE.

Author

Nick Fulton — geospatial work, FAA Part 107, drone and survey experience.

Links: PyPI · GitHub
