cppast 1.0.0

C++ AST CLI tool with AST/graph visualization and pattern matching

cppast

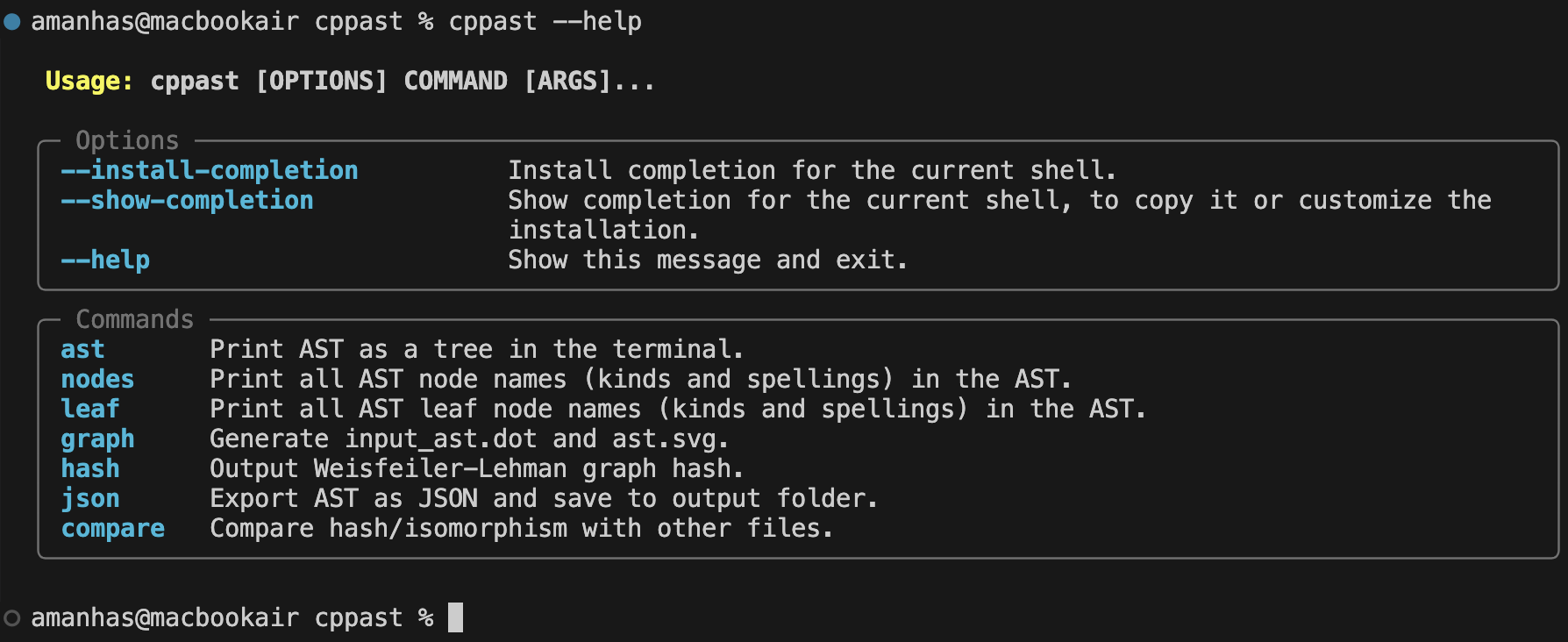

This tool serves mainly serves the purpose of generating and experimenting with AST of C/C++ code. Additional features included in cpast --help as follows:

Functionality:

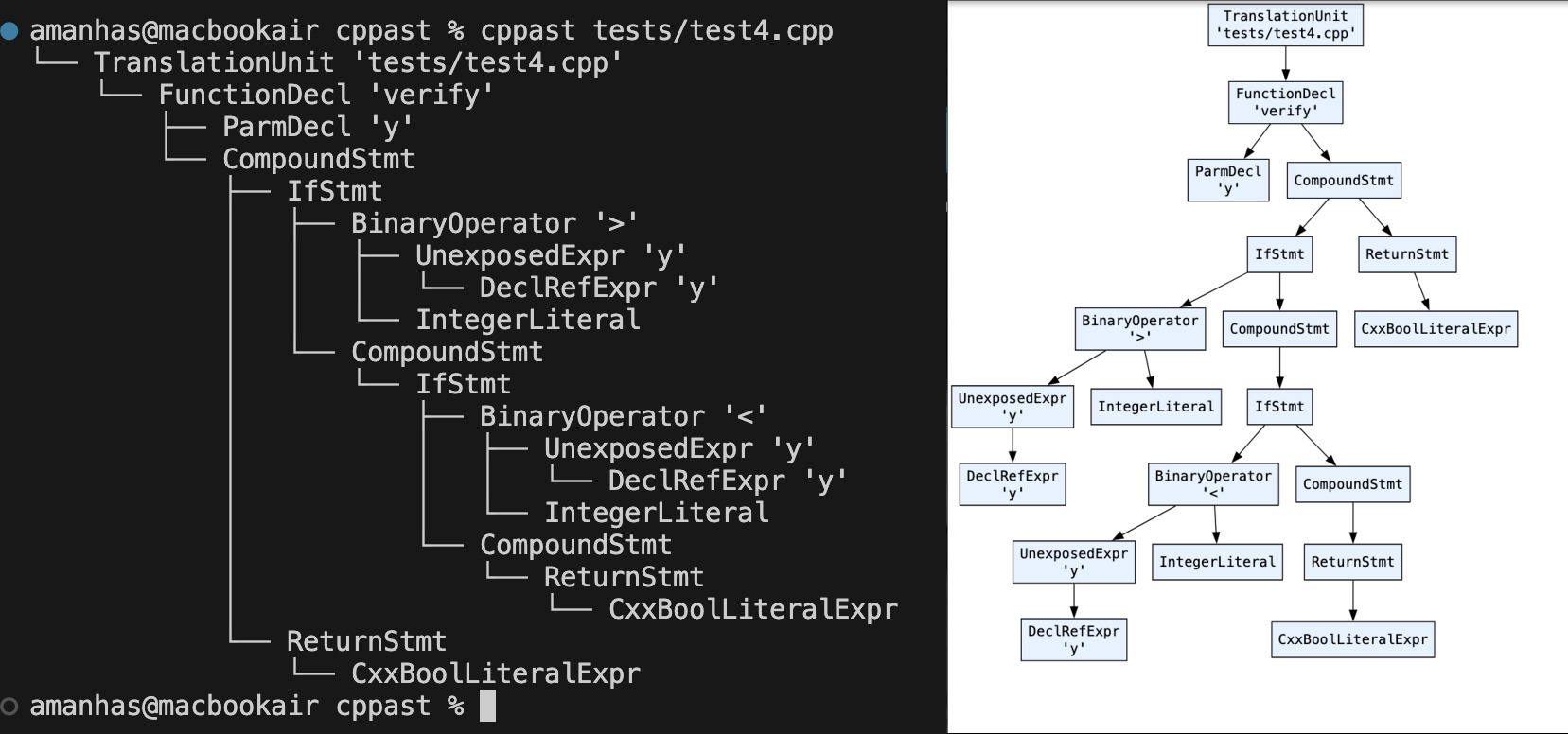

The above AST and graph are for the following C++ code-

bool verify(int y) {
    if (y > 0) {
        if (y < 10) {
            return true;
        }
    }
    return false;
}

Install through pip

Simply go with $ pip install cppast.

Install cppast through source code

Clone the github repo and to install the dependencies run:

$ pip install -r requirements.txt

Additionally, you would need $ brew install llvm libclang for some of the functions in cli.py.
