crslab 0.1.2.0

An Open-Source Toolkit for Building Conversational Recommender System(CRS)

CRSLab

Paper | Docs | 中文版

CRSLab is an open-source toolkit for building Conversational Recommender System (CRS). It is developed based on Python and PyTorch. CRSLab has the following highlights:

• Comprehensive benchmark models and datasets: We have integrated commonly-used 6 datasets and 18 models, including graph neural network and pre-training models such as R-GCN, BERT and GPT-2. We have preprocessed these datasets to support these models, and release for downloading.
• Extensive and standard evaluation protocols: We support a series of widely-adopted evaluation protocols for testing and comparing different CRS.
• General and extensible structure: We design a general and extensible structure to unify various conversational recommendation datasets and models, in which we integrate various built-in interfaces and functions for quickly development.
• Easy to get started: We provide simple yet flexible configuration for new researchers to quickly start in our library.
• Human-machine interaction interfaces: We provide flexible human-machine interaction interfaces for researchers to conduct qualitative analysis.

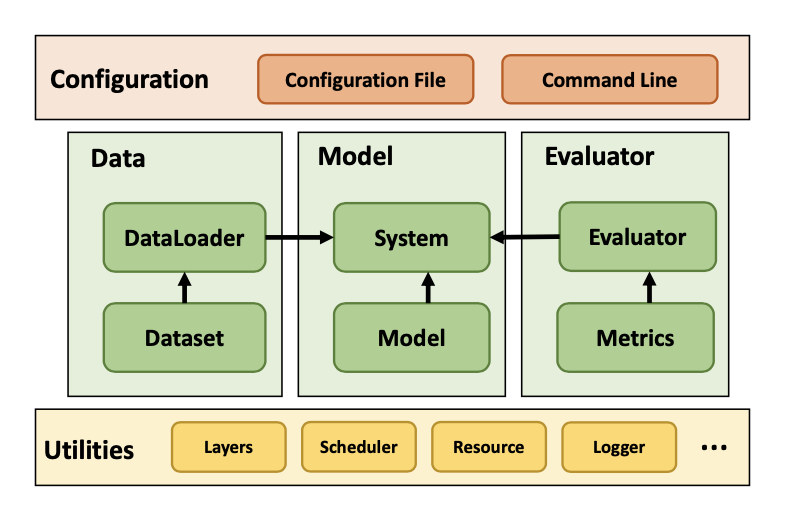

Figure 1: The overall framework of CRSLab

• Installation
• Quick-Start
• Models
• Datasets
• Performance
• Releases
• Contributions
• Citing
• Team
• License

Installation

CRSLab works with the following operating systems：

• Linux
• Windows 10
• macOS X

CRSLab requires Python version 3.6 or later.

CRSLab requires torch version 1.4.0 or later. If you want to use CRSLab with GPU, please ensure that CUDA or CUDAToolkit version is 9.2 or later. Please use the combinations shown in this Link to ensure the normal operation of PyTorch Geometric.

Install PyTorch

Use PyTorch Locally Installation or Previous Versions Installation commands to install PyTorch. For example, on Linux and Windows 10:

# CUDA 10.1
pip install torch==1.6.0+cu101 torchvision==0.7.0+cu101 -f https://download.pytorch.org/whl/torch_stable.html

# CPU only
pip install torch==1.6.0+cpu torchvision==0.7.0+cpu -f https://download.pytorch.org/whl/torch_stable.html

If you want to use CRSLab with GPU, make sure the following command prints True after installation:

$ python -c "import torch; print(torch.cuda.is_available())"
>>> True

Install PyTorch Geometric

Ensure that at least PyTorch 1.4.0 is installed:

$ python -c "import torch; print(torch.__version__)"
>>> 1.6.0

Find the CUDA version PyTorch was installed with:

$ python -c "import torch; print(torch.version.cuda)"
>>> 10.1

Install the relevant packages:

pip install torch-scatter -f https://pytorch-geometric.com/whl/torch-${TORCH}+${CUDA}.html
pip install torch-sparse -f https://pytorch-geometric.com/whl/torch-${TORCH}+${CUDA}.html
pip install torch-cluster -f https://pytorch-geometric.com/whl/torch-${TORCH}+${CUDA}.html
pip install torch-spline-conv -f https://pytorch-geometric.com/whl/torch-${TORCH}+${CUDA}.html
pip install torch-geometric

where ${CUDA} and ${TORCH} should be replaced by your specific CUDA version (cpu, cu92, cu101, cu102, cu110) and PyTorch version (1.4.0, 1.5.0, 1.6.0, 1.7.0) respectively. For example, for PyTorch 1.6.0 and CUDA 10.1, type:

pip install torch-scatter -f https://pytorch-geometric.com/whl/torch-1.6.0+cu101.html
pip install torch-sparse -f https://pytorch-geometric.com/whl/torch-1.6.0+cu101.html
pip install torch-cluster -f https://pytorch-geometric.com/whl/torch-1.6.0+cu101.html
pip install torch-spline-conv -f https://pytorch-geometric.com/whl/torch-1.6.0+cu101.html
pip install torch-geometric

Install CRSLab

You can install from pip:

pip install crslab

OR install from source:

git clone https://github.com/RUCAIBox/CRSLab && cd CRSLab
pip install -e .

Quick-Start

With the source code, you can use the provided script for initial usage of our library with cpu by default:

python run_crslab.py --config config/crs/kgsf/redial.yaml

The system will complete the data preprocessing, and training, validation, testing of each model in turn. Finally it will get the evaluation results of specified models.

If you want to save pre-processed datasets and training results of models, you can use the following command:

python run_crslab.py --config config/crs/kgsf/redial.yaml --save_data --save_system

In summary, there are following arguments in run_crslab.py:

• --config or -c: relative path for configuration file(yaml).
• --gpu or -g: specify GPU id(s) to use, we now support multiple GPUs. Defaults to CPU(-1).
• --save_data or -sd: save pre-processed dataset.
• --restore_data or -rd: restore pre-processed dataset from file.
• --save_system or -ss: save trained system.
• --restore_system or -rs: restore trained system from file.
• --debug or -d: use validation dataset to debug your system.
• --interact or -i: interact with your system instead of training.
• --tensorboard or -tb: enable tensorboard to monitor train performance.

Models

In CRSLab, we unify the task description of conversational recommendation into three sub-tasks, namely recommendation (recommend user-preferred items), conversation (generate proper responses) and policy (select proper interactive action). The recommendation and conversation sub-tasks are the core of a CRS and have been studied in most of works. The policy sub-task is needed by recent works, by which the CRS can interact with users through purposeful strategy. As the first release version, we have implemented 18 models in the four categories of CRS model, Recommendation model, Conversation model and Policy model.

Category	Model	Graph Neural Network?	Pre-training Model?
CRS Model	ReDial KBRD KGSF TG-ReDial INSPIRED	× √ √ × ×	× × × √ √
Recommendation model	Popularity GRU4Rec SASRec TextCNN R-GCN BERT	× × × × √ ×	× × × × × √
Conversation model	HERD Transformer GPT-2	× × ×	× × √
Policy model	PMI MGCG Conv-BERT Topic-BERT Profile-BERT	× × × × ×	× × √ √ √

Among them, the four CRS models integrate the recommendation model and the conversation model to improve each other, while others only specify an individual task.

For Recommendation model and Conversation model, we have respectively implemented the following commonly-used automatic evaluation metrics:

Category	Metrics
Recommendation Metrics	Hit@{1, 10, 50}, MRR@{1, 10, 50}, NDCG@{1, 10, 50}
Conversation Metrics	PPL, BLEU-{1, 2, 3, 4}, Embedding Average/Extreme/Greedy, Distinct-{1, 2, 3, 4}
Policy Metrics	Accuracy, Hit@{1,3,5}

Datasets

We have collected and preprocessed 6 commonly-used human-annotated datasets, and each dataset was matched with proper KGs as shown below:

Dataset	Dialogs	Utterances	Domains	Task Definition	Entity KG	Word KG
ReDial	10,006	182,150	Movie	--	DBpedia	ConceptNet
TG-ReDial	10,000	129,392	Movie	Topic Guide	CN-DBpedia	HowNet
GoRecDial	9,125	170,904	Movie	Action Choice	DBpedia	ConceptNet
DuRecDial	10,200	156,000	Movie, Music	Goal Plan	CN-DBpedia	HowNet
INSPIRED	1,001	35,811	Movie	Social Strategy	DBpedia	ConceptNet
OpenDialKG	13,802	91,209	Movie, Book	Path Generate	DBpedia	ConceptNet

Performance

We have trained and test the integrated models on the TG-Redial dataset, which is split into training, validation and test sets using a ratio of 8:1:1. For each conversation, we start from the first utterance, and generate reply utterances or recommendations in turn by our model. We perform the evaluation on the three sub-tasks.

Recommendation Task

Model	Hit@1	Hit@10	Hit@50	MRR@1	MRR@10	MRR@50	NDCG@1	NDCG@10	NDCG@50
SASRec	0.000446	0.00134	0.0160	0.000446	0.000576	0.00114	0.000445	0.00075	0.00380
TextCNN	0.00267	0.0103	0.0236	0.00267	0.00434	0.00493	0.00267	0.00570	0.00860
BERT	0.00722	0.00490	0.0281	0.00722	0.0106	0.0124	0.00490	0.0147	0.0239
KBRD	0.00401	0.0254	0.0588	0.00401	0.00891	0.0103	0.00401	0.0127	0.0198
KGSF	0.00535	0.0285	0.0771	0.00535	0.0114	0.0135	0.00535	0.0154	0.0259
TG-ReDial	0.00793	0.0251	0.0524	0.00793	0.0122	0.0134	0.00793	0.0152	0.0211

Conversation Task

Model	BLEU@1	BLEU@2	BLEU@3	BLEU@4	Dist@1	Dist@2	Dist@3	Dist@4	Average	Extreme	Greedy	PPL
HERD	0.120	0.0141	0.00136	0.000350	0.181	0.369	0.847	1.30	0.697	0.382	0.639	472
Transformer	0.266	0.0440	0.0145	0.00651	0.324	0.837	2.02	3.06	0.879	0.438	0.680	30.9
GPT2	0.0858	0.0119	0.00377	0.0110	2.35	4.62	8.84	12.5	0.763	0.297	0.583	9.26
KBRD	0.267	0.0458	0.0134	0.00579	0.469	1.50	3.40	4.90	0.863	0.398	0.710	52.5
KGSF	0.383	0.115	0.0444	0.0200	0.340	0.910	3.50	6.20	0.888	0.477	0.767	50.1
TG-ReDial	0.125	0.0204	0.00354	0.000803	0.881	1.75	7.00	12.0	0.810	0.332	0.598	7.41

Policy Task

Model	Hit@1	Hit@10	Hit@50	MRR@1	MRR@10	MRR@50	NDCG@1	NDCG@10	NDCG@50
MGCG	0.591	0.818	0.883	0.591	0.680	0.683	0.591	0.712	0.729
Conv-BERT	0.597	0.814	0.881	0.597	0.684	0.687	0.597	0.716	0.731
Topic-BERT	0.598	0.828	0.885	0.598	0.690	0.693	0.598	0.724	0.737
TG-ReDial	0.600	0.830	0.893	0.600	0.693	0.696	0.600	0.727	0.741

The above results were obtained from our CRSLab in preliminary experiments. However, these algorithms were implemented and tuned based on our understanding and experiences, which may not achieve their optimal performance. If you could yield a better result for some specific algorithm, please kindly let us know. We will update this table after the results are verified.

Releases

Releases	Date	Features
v0.1.1	1 / 4 / 2021	Basic CRSLab
v0.1.2	3 / 28 / 2021	CRSLab

Contributions

Please let us know if you encounter a bug or have any suggestions by filing an issue.

We welcome all contributions from bug fixes to new features and extensions.

We expect all contributions discussed in the issue tracker and going through PRs.

We thank the nice contributions through PRs from @shubaoyu, @ToheartZhang.

Citing

If you find CRSLab useful for your research or development, please cite our Paper:

@article{crslab,
    title={CRSLab: An Open-Source Toolkit for Building Conversational Recommender System},
    author={Kun Zhou, Xiaolei Wang, Yuanhang Zhou, Chenzhan Shang, Yuan Cheng, Wayne Xin Zhao, Yaliang Li, Ji-Rong Wen},
    year={2021},
    journal={arXiv preprint arXiv:2101.00939}
}

Team

CRSLab was developed and maintained by AI Box group in RUC.

License

CRSLab uses MIT License.
