crystalipf 0.0.1

Easy-to-use library for calculating the rgb values of the IPF map of cubic materials.

crystalipf

This is an easy-to-use library to create inverse pole-figures (ipf) for crystal lattices with cubic symmetry.

Installation

The library can be installed in three different ways:

1. Install it from the Python Package Index.

   pip install crystalipf


2. Clone the repository and install it.

   git clone https://github.com/silvioachilles/crystalipf.git
   cd crystalipf
   pip install .


3. Copy crystalipf/cubic.py to your project and include it in your code.

Usage

An orientation must be expressed as an orientation matrix. In the code snippet below it is shown how to retrieve the rgb color of the orientation and its position in the ipf.

import numpy as np
import matplotlib.pyplot as plt

from crystalipf.cubic import position, rgb, image, image_plt, edges

# example orientation matrix of a grain
grain = np.array([
    [ 0.71825437, -0.68019413,  0.14644661],
    [ 0.68019413,  0.6421339,  -0.35355339],
    [ 0.14644661,  0.35355339,  0.92387953]
])

# sample direction
g = np.array([0, 0, 1])

# ipf position
grain_ipf_x, grain_ipf_y = position(grain, g)

# ipf color
grain_ipf_rgb = rgb(grain, g)

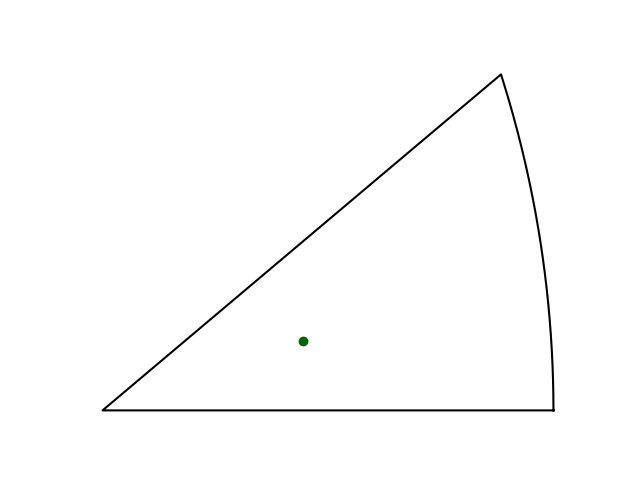

# to illustrate, the grain's orientation is plotted
# in the ipf with respective coloring
fig, ax = plt.subplots()
ax.scatter([grain_ipf_x], [grain_ipf_y], c=[grain_ipf_rgb])

# the edges of the ipf
ipf_edges_xs, ipf_edges_ys = edges()
ax.plot(ipf_edges_xs, ipf_edges_ys)

ax.axis('off')
plt.show()

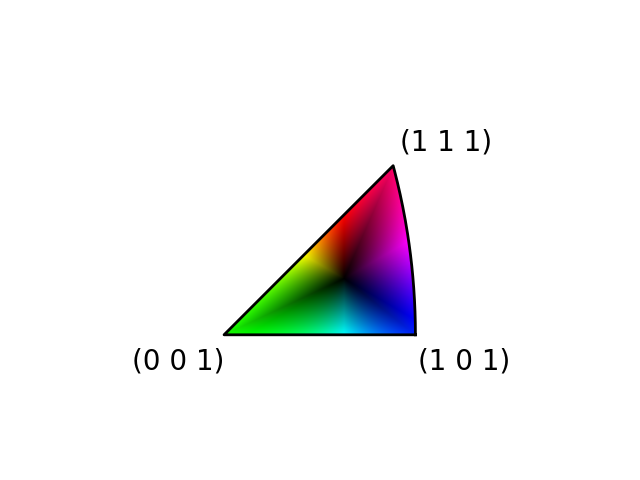

Using the image_plt function, you can create a matplotlib plot of a fully colored ipf with annotations for the corners.

fig, ax = plt.subplots()
image_plt(ax)
plt.show()

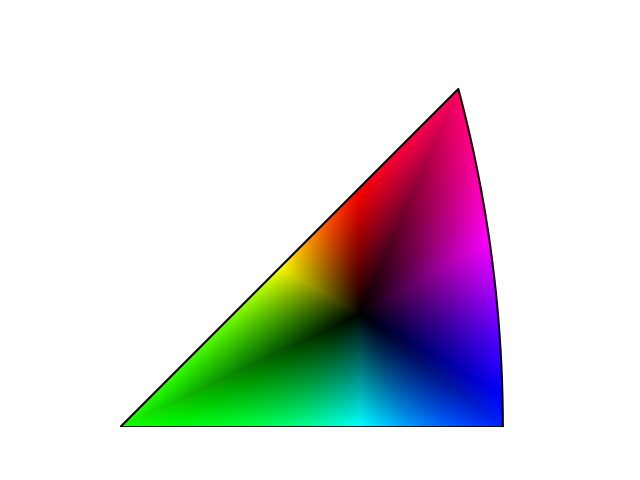

An raw image of a fully colored ipf can be retrieved with the image function, allowing to create a customized ipf plot.

fig, ax = plt.subplots()

ipf_image, xmax, ymax = image()
ax.imshow(ipf_image, extent=0, xmax, 0, ymax)
ax.plot(ipf_edges_xs, ipf_edges_ys, c='black')

plt.show()

Troubleshooting

Please open a github issue if anything appears not correct.
