cubesat-testbed 1.0.0

Deterministic CubeSat subsystem emulation and hardware-in-the-loop testbed

CubeSatTestbed

A modular CubeSat subsystem emulation and hardware-in-the-loop test framework.

Status: pre-v1, under active development. See docs/roadmap.md for what's implemented.

What this is

The framework is built around a Device Under Test (DUT) concept: any subsystem (OBC, EPS, ADCS, payload, ...) can be connected as real hardware, while every other subsystem it talks to is replaced by a configurable software peer. Switching which node is real and which is simulated is a config change, not a code change.

Why

• Commercial subsystem simulators are proprietary and tied to specific hardware.
• Full mission simulators are often too heavy for focused subsystem verification.
• Hardcoded stubs inside flight code do not exercise the real bus and do not produce scenario-level PASS/FAIL results.

Core ideas

1. Universal engine, not universal subsystem models. No single "generic EPS" can faithfully stand in for every real EPS board. The universal part is the engine: DUT/peer selection, protocol and transport adapters, deterministic scenario execution, fault injection and assertions. Concrete subsystem behavior lives in modules.
2. DUT + switchable node modes. Every node is simulated (a module inside cubesat_testbed emulates the subsystem), software (an external implementation runs as a peer), or hardware (a real board through a bus adapter).
3. Deterministic scenarios with PASS/FAIL reports. Scenarios are declarative YAML scripts: inject a fault, wait in virtual time, send a command, assert telemetry. The runner is built on virtual time and produces a PASS/FAIL report per assertion.

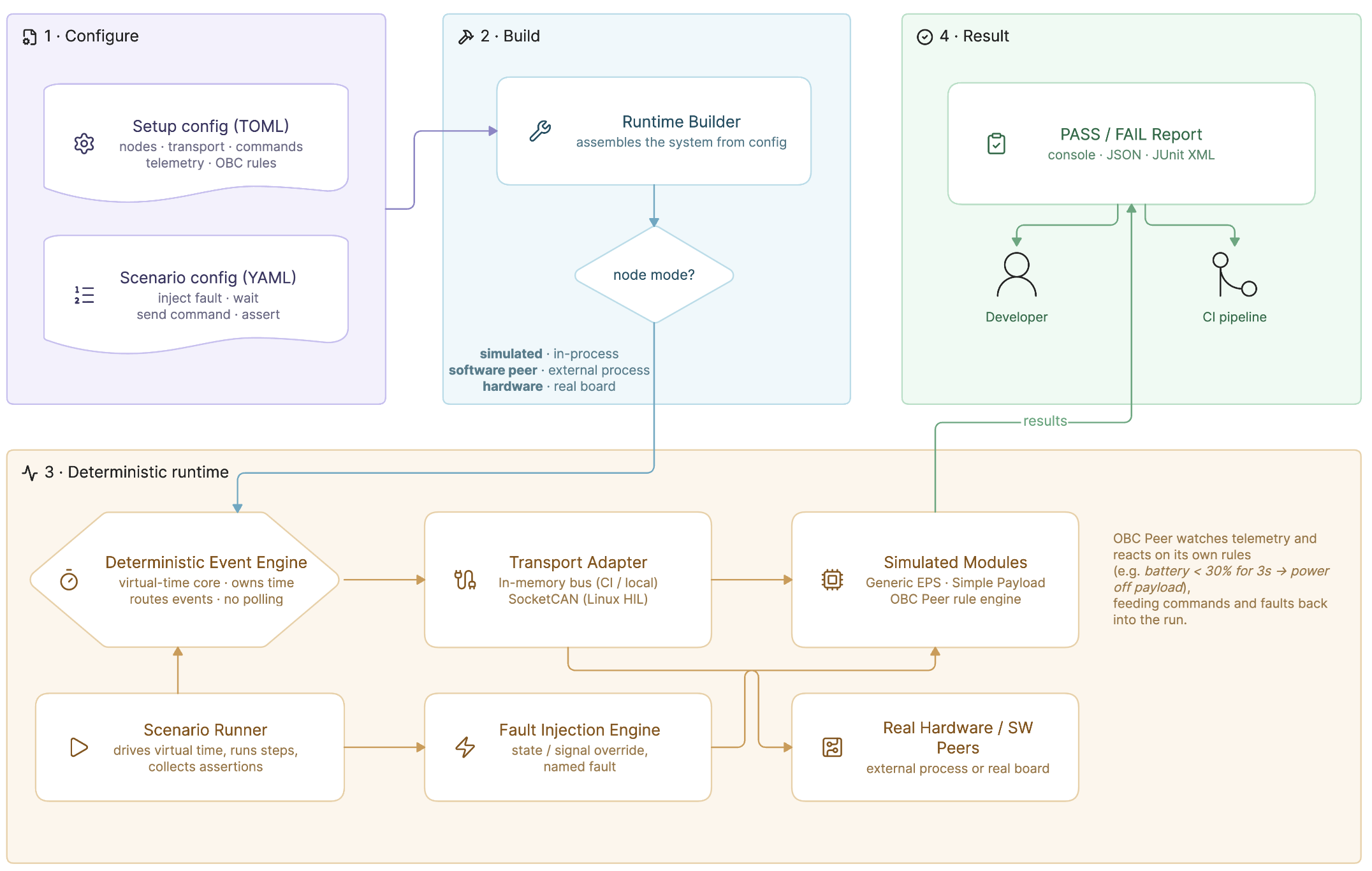

See docs/architecture.md for the full layer breakdown.

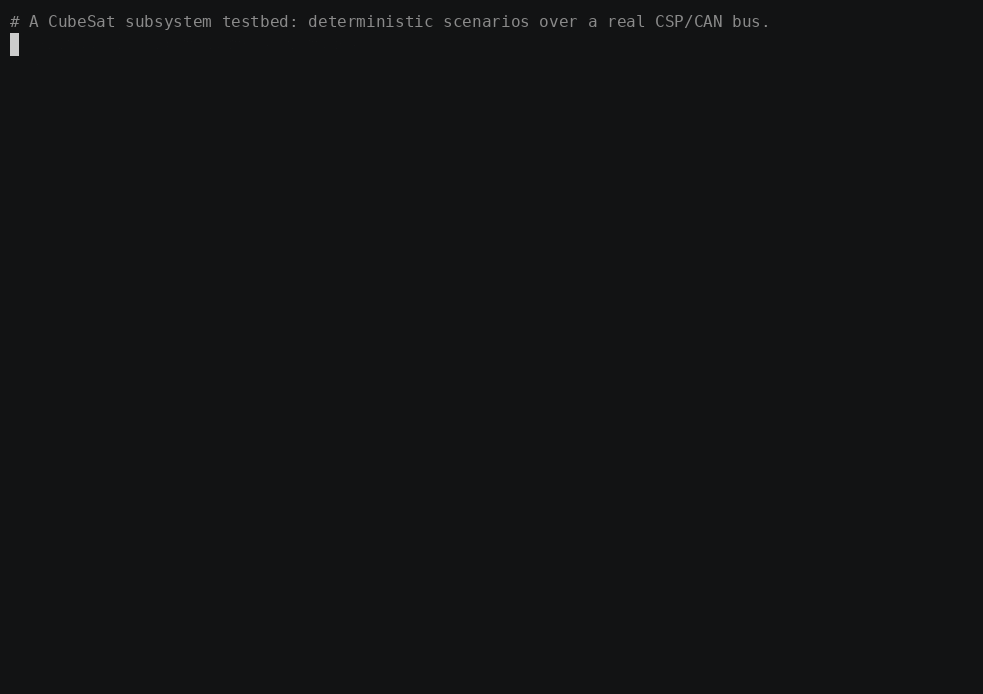

Quickstart

uv sync --extra dev
uv run cubesat-testbed run \
  --config configs/default_satellite.toml \
  --scenario configs/scenarios/low_battery.yaml

PASS t=4000000 assert_3: payload.telemetry.power_status == 'offline'; actual='offline'
SUMMARY scenario='EPS Low Battery Protection Test' assertions=1 passed=1 failed=0 started_at=0 finished_at=4000000

Walkthrough: your first scenario

Same run as Quickstart above, but step by step — what each config field means and how to read the result.

1. The CubeSat setup (configs/default_satellite.toml)

Three nodes:

[nodes.obc]
mode = "simulated"
module_type = "obc_peer"
address = 1

[nodes.eps]
mode = "simulated"
module_type = "generic_eps"
address = 2

[nodes.payload]
mode = "simulated"
module_type = "simple_payload"
address = 3

• mode = "simulated" — this node runs entirely inside the testbed. Switch to "hardware" later to point the same setup at a real board over SocketCAN — no code changes.
• address — the node's CSP address on the bus.

The behavior under test lives here:

[nodes.eps.telemetry.battery_percent]
offset = 0
length = 4
type = "float"
...

[nodes.obc.rules.low_battery_shed_payload]
signal = "eps.telemetry.battery_percent"
op = "<"
threshold = 30.0
for = "3s"

[[nodes.obc.rules.low_battery_shed_payload.actions]]
type = "send_command"
command = "payload_power_off"

EPS reports battery_percent as a 4-byte float, encoded onto the bus like a real telemetry frame, not just held in memory. OBC has one rule: if battery stays below 30% for 3 virtual seconds, send payload_power_off.

2. The scenario (configs/scenarios/low_battery.yaml)

steps:
  - action: "inject_fault"
    type: "state_override"
    target: "eps.model.battery_percent"
    value: 25
    duration: "5s"

  - action: "wait"
    virtual_time: "3s"

  - action: "assert"
    signal: "payload.telemetry.power_status"
    op: "=="
    value: "offline"
    timeout: "1s"

1. inject_fault — force EPS's battery to 25% for 5 virtual seconds (bypasses the discharge model to test the reaction, not the physics).
2. wait — advance virtual time 3s, giving the rule's for = "3s" window a chance to elapse.
3. assert — check payload.telemetry.power_status == "offline", retried against incoming telemetry for up to 1s.

3. Run it

uv run cubesat-testbed run \
  --config configs/default_satellite.toml \
  --scenario configs/scenarios/low_battery.yaml

PASS t=4000000 assert_3: payload.telemetry.power_status == 'offline'; actual='offline'
SUMMARY scenario='EPS Low Battery Protection Test' assertions=1 passed=1 failed=0 started_at=0 finished_at=4000000

4. Reading it

• t=4000000 — virtual microseconds (4s), not 3,000,000: telemetry is only re-encoded once per physical step, so the earliest honest chance to see "offline" is the beacon after the command actually lands. That one-step delay is expected, not a bug.
• assert_3 — auto-generated name (3rd, unnamed step); add name: to a step for a readable label.
• passed=1 failed=0 and exit code 0 — wire straight into CI.

5. When it fails

Drop the inject_fault step (battery never actually drops) and rerun:

FAIL t=4000000 assert_2: payload.telemetry.power_status == 'offline'; actual='online'

Exit code 1. actual='online' is the real, decoded-from-the-bus value — not a guess.

6. Machine-readable output

uv run cubesat-testbed run --config ... --scenario ... --json --quiet

{
  "scenario": "EPS Low Battery Protection Test",
  "passed": true,
  "exit_code": 0,
  "assertions": {
    "total": 1, "passed": 1, "failed": 0,
    "results": [{
      "name": "assert_3",
      "signal": "payload.telemetry.power_status",
      "expected": "offline", "actual": "offline",
      "passed": true, "evaluated_at": 4000000
    }]
  }
}

Or --junit-xml PATH for CI dashboards. Full config syntax: configs/schema/module_schema.md.

v1 scope at a glance

• Protocol: CSP v2 only, single-frame, classic CAN 2.0, extended 29-bit IDs.
• Modules: Generic EPS, OBC Peer (rule engine), Simple Payload.
• Transports: in-memory (CI/tests) and SocketCAN (Linux HIL).
• Deterministic virtual-time engine, TOML setup + YAML scenarios, PASS/FAIL CLI report with CI-friendly exit codes and JUnit XML output.

Full detail, constraints, and what's deliberately out of scope for v1: docs/v1-scope.md.

Documentation

• Architecture
• Product v1 scope
• Config schema reference
• CSP golden vectors
• Roadmap
• Contributing
• Changelog

Stack

Python >=3.11, Pydantic, PyYAML, python-can, uv for dependency/environment management, pytest + ruff + mypy for development. FastAPI/Uvicorn will be added once the Mission Control API phase lands (see docs/roadmap.md); they are not a v1 dependency.

License

Apache License 2.0. See LICENSE.
