cusvna 1.0.2

cusvna (CUDA Self-Validated Numerical Analysis) is a header-only C++17 library for CUDA providing computations with guaranteed error bounds. It implements affine arithmetic (AA), a model that keeps track of the correlations between quantities and therefore yields much tighter bounds than interval arithmetic on long computations. Two models are available: full affine arithmetic (cusvna::AA) and the cheaper fixed-size AF1 forms (cusvna::AF1), see AF1 forms.

• Rigorous: the exact real result of a computation always lies within the computed bounds, including floating point rounding errors.
• GPU friendly: no dynamic allocation, affine forms live in registers. Works in __device__ code compiled with nvcc or at runtime with NVRTC, and in host code compiled with nvcc.
• Complete: arithmetic, all usual elementary functions of the CUDA math API, signed distance helpers (min, max, hypot, smooth_min, ...) and rigorous predicates, in float and double.

Typical applications are robust root isolation and subdivision schemes (quadtrees, octrees), ray tracing of implicit surfaces and level sets, and any numerical method that must not miss a solution. A Vulkan and Slang port of the AF1 forms is available as vusvna, see vusvna.

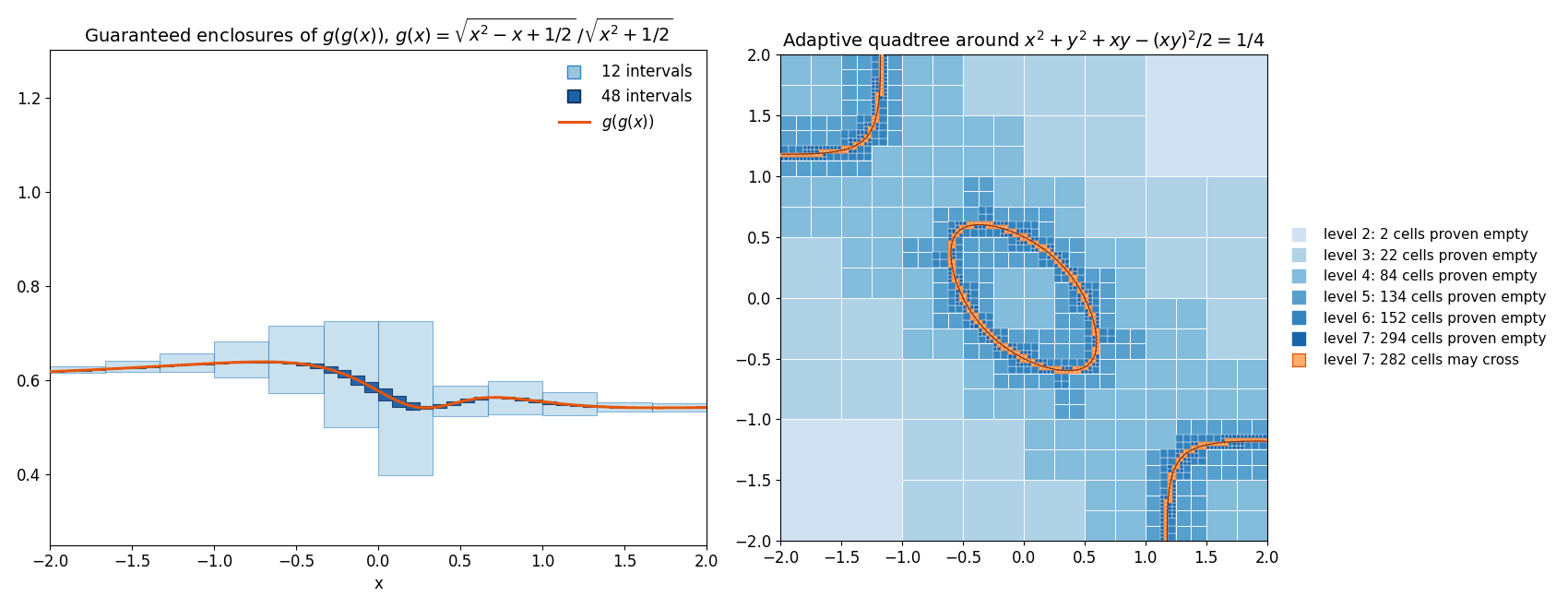

Left: guaranteed enclosures of a function on 12 and 48 intervals. Right: adaptive quadtree around an implicit curve, cells proven empty are discarded at each level. Computed on the GPU with cusvna::AA<float> (1D) and cusvna::AF1<float,2> (2D).

Getting started

The examples compile their CUDA kernels at runtime with CuPy (NVRTC) and only need an NVIDIA GPU, the CUDA toolkit and Python. The ray tracing examples (04_raytracing.py and 05_levelset.py) also need the OptiX 7.4 SDK for python-optix.

git clone --recursive https://github.com/keckj/cusvna.git
cd cusvna
python3 -m venv .venv
source .venv/bin/activate
python3 -m pip install -r examples/requirements.txt
python3 examples/02_quadtree.py   # adaptive quadtree around a 2D curve
python3 examples/05_levelset.py   # interactive ray tracing of animated level sets (needs OptiX)

See Examples for the other scripts, Installation to use cusvna in your own kernels and Tests to check it on your GPU.

Example

#include <cusvna/aa.cuh>

using Interval = cusvna::Interval<float>;
using AA = cusvna::AA<float>;

/* returns false only if the unit circle certainly does not cross the box X x Y */
__device__ bool may_contain_root(const Interval& X, const Interval& Y) {
    const auto x = AA::from_interval<0>(X);   /* input noise symbols are numbered by the user */
    const auto y = AA::from_interval<1>(Y);
    const auto f = sqr(x) + sqr(y) - 1.0f;    /* f(x, y) is guaranteed to lie in f.interval() */
    return possibly_zero(f);
}

Functions are found by argument dependent lookup, so the same templated code can be evaluated on floating point numbers and on affine forms. Replacing cusvna::AA<float> by cusvna::AF1<float, 2> (from <cusvna/af1.cuh>) evaluates the same code with AF1 forms.

Installation

cusvna is header-only: add the root of this repository to your include paths and include <cusvna/aa.cuh> and/or <cusvna/af1.cuh>.

The headers are also available as a Python package, for instance to compile kernels at runtime with NVRTC:

python3 -m pip install cusvna
python3 -m cusvna --include   # include directory to pass as -I to nvcc or NVRTC

import cusvna
options = ("--std=c++17", f"-I{cusvna.get_include()}")  # plus the CUDA include directory

Requirements:

• CUDA 11 or newer (the library uses cuda::std from libcu++, shipped with the CUDA toolkit),
• C++17 (nvcc -std=c++17, nvrtc --std=c++17),
• no fast math, even with CUSVNA_IGNORE_ROUNDING, see Guarantees and Rounding modes.

With NVRTC (for instance through CuPy), pass the CUDA include directory and the root of this repository as include paths, see examples/utils.py.

Affine arithmetic in cusvna

An affine form represents an unknown real quantity as

x = b + x_1 e_1 + ... + x_N e_N + err e_err,      e_i, e_err unknown in [-1, 1]

The noise symbols e_i are shared between forms and carry correlations: x - x is exactly zero, while interval arithmetic would return [-2r, 2r]. Nonlinear operations approximate their result by an affine function of their input and attach the approximation error to a new noise symbol. The error term err accumulates rounding errors and is independent from everything else.

In cusvna, noise symbols are identified at compile time by types: cusvna::AA<T, Is...> stores exactly sizeof...(Is) coefficients and the type of the result of an operation is computed at compile time from the types of its operands.

• Input symbols are created by AA::from_interval<K>(interval), where K identifies the input. Two forms created with the same K represent the same quantity. The macro new_aa_from_interval(interval) uses a unique K for each line of code (not available with NVRTC).
• Since the types of the symbols created by nonlinear operations only depend on the types of the operands, each of them also carries a 64-bit runtime tag: a hash of the content of the operands. Symbols with equal tags represent the same quantity, symbols with different tags are merged conservatively.

AF1 forms

cusvna::AF1<T, N> implements the AF1 model of Messine: a form has exactly N input noise symbols and a single error term,

x = b + x_1 e_1 + ... + x_N e_N + err e_err

Affine operations are exact up to rounding as in AA, but nonlinear operations (products of forms, elementary functions) add their approximation error to err instead of creating a new noise symbol. Forms have a constant size of N + 2 scalars and need no symbol types, tags or merges, which makes them cheaper. The price is that correlations between results of nonlinear operations are lost: on x = [0.1, 0.3], sin(x) - sin(x) has a radius of 1e-3 (twice the approximation error of sin) with AF1, and 2e-8 (rounding errors only) with AA.

• Input symbols are created by AF1::from_interval<K>(interval) with 0 <= K < N (checked at compile time), or AF1::variable(k, interval) with a runtime index. AF1::constant(interval) encloses an interval without any symbol.
• All the operations listed below are available with the same names and the same guarantees, forms of different models cannot be mixed.

AF1 is a good default when nonlinear subexpressions are not reused, which is the case of most signed distance functions. AA is tighter when the results of nonlinear operations appear several times in an expression. See Performance.

Supported operations

Operations	Notes
+, -, *, / between forms and with scalars
reciprocal(x)	min-range approximation, entire if 0 belongs to x
sqrt(x), exp(x), log(x)	Chebyshev approximations
sqr(x), pow(x, int n)	sqr(x) is tighter than x*x
pow(x, T y)	for x >= 0 (x > 0 if y < 0)
pow(x, y), pow(c, y) with an affine exponent	exp(y*log(x)), for x > 0
rsqrt(x), cbrt(x), rcbrt(x)
exp2(x), exp10(x), expm1(x), log2(x), log10(x), log1p(x)
sin(x), cos(x), tan(x), cot(x)	entire if a pole belongs to x
sinpi(x), cospi(x)	sin(pi*x) and cos(pi*x) without rounding pi*x, exact at integers and half-integers
atan(x), asin(x), acos(x), atan2(y, x)	atan2 returns [-pi, pi] when the input box meets the branch cut y = 0, x <= 0
sinh(x), cosh(x), tanh(x), asinh(x), acosh(x), atanh(x)
erf(x), erfc(x), normcdf(x)
tgamma(x), lgamma(x)	for x > 0 only (entire otherwise)
abs(x), positive_part(x)	positive_part(x) = max(x, 0)
min(x, y), max(x, y), fmin, fmax, clamp(x, lo, hi)	min(x, y) + max(x, y) cancels to x + y
hypot(x, y), hypot(x, y, z), norm3d, rhypot, rnorm3d
fma(x, y, z), lerp(a, b, t), smoothstep(e0, e1, x)
smooth_min(a, b, k), smooth_max(a, b, k)	polynomial smooth minimum of distances
floor, ceil, trunc, round, rint, fract, modf(x, &ip)	exact when no discontinuity is crossed, else the range of the result
fmod(x, y), remainder(x, y)	y may be a scalar or a form, exact and correlated with x and y when the integer quotient is known
remquo(x, y, &quo_lo, &quo_hi)	returns the range of the whole integer quotient rint(x/y) (not only its low bits as in C), quo_lo == quo_hi when it is known
certainly_lt, certainly_le, certainly_gt, certainly_ge, possibly_zero	rigorous predicates
x.interval(), x.sign(), x.radius(), x.is_entire()	conversions back to intervals
hull, intersect, contains, subset, is_empty	on cusvna::Interval

These cover all the operations of libaffa, which is used as a reference in the tests (inv is reciprocal, cotan is cot and half_plane is positive_part).

Guarantees

For any operation, the exact real result of the computation belongs to the range of the computed form, including rounding errors. In particular x.interval(), x.sign() and the predicates are rigorous. Bounds are never NaN.

• Rounding: bounds are rounded outward, with the directed rounding instructions of the hardware in device code and with emulated directed rounding in host code, and the rounding errors of affine operations are accumulated in the error term, see Rounding modes.
• Nonlinear functions: the residual f(x) - alpha*x is bounded with outward rounding by splitting the input range into pieces where f is convex or concave. The results of math library functions are assumed to be within twice the maximum error documented in the CUDA math API (see cusvna/approx.cuh). tgamma and lgamma are restricted to positive inputs where this assumption holds; CUDA does not bound the relative error of lgamma for negative inputs close to its zeros.
• Domains: if an input range is not entirely inside the domain of a function, the result is entire (its interval is [-inf, inf]), except for sqrt, pow(x, T y), acosh, asin and acos which are evaluated on the part of their input inside their domain when it is not empty. Overflows produce entire forms. Entire forms propagate through all operations, except through bounded functions such as sin.

These guarantees hold under the following assumptions:

• IEEE-754 binary32 (float) or binary64 (double) arithmetic in round-to-nearest mode,
• no fast math: do not compile with --use_fast_math (nvcc, nvrtc) or -ffast-math (host), -ftz=true, -prec-div=false or -prec-sqrt=false,
• host code must not contract floating point operations into fused multiply-adds (-ffp-contract=off, which is the default of gcc with -std=c++17). Device code uses non-contractible intrinsics,
• hash collisions (AA only): a collision between the runtime tags of two different values would wrongly correlate them. For non-adversarial inputs the probability is about 2^-64 per comparison of two generated symbols of the same type.

Rounding modes

The rounding errors are handled in one of three ways, selected at compile time:

Mode	Selected by	Rigorous	Speed on GPUs	Use
native	default in device code	yes	reference	GPU code
emulated	host code, or CUSVNA_EMULATED_ROUNDING in device code	yes	2 to 6 times slower	host code, tests
ignore	CUSVNA_IGNORE_ROUNDING	no	up to 2.5 times faster	visualization

• native: device code uses the directed rounding instructions of the hardware (__fadd_ru, __dmul_rd, ...), which are exact and as fast as round-to-nearest ones. The rounding errors of affine operations are computed exactly (TwoSum, fused multiply-add residuals) and accumulated in the error term, and the results of math library functions are enclosed by twice their documented maximum error.
• emulated: host code has no directed rounding instructions, so everything runs in the default round-to-nearest mode and outward rounding is emulated with error-free transformations (TwoSum, TwoProd): they detect exact operations and the sign of the rounding errors, and inexact bounds are moved outward by at least one ulp. This is the only mode of host code. Defining CUSVNA_EMULATED_ROUNDING selects it in device code too, which gives the same results as host code but is only useful for testing.
• ignore: when CUSVNA_IGNORE_ROUNDING is defined, cusvna ignores all floating point rounding errors: directed operations become round-to-nearest operations, the error terms of affine operations are not computed, the results of math library functions are taken as exact, and operations may be contracted into fused multiply-adds. Approximation errors of nonlinear functions are still bounded. The results are no longer rigorous: enclosures may miss the exact result by a few ulps, and deep subdivisions may discard cells that contain zeros. This mode is meant for visualization.

The examples select the mode with --rounding native|emulated|ignore, --fast being a shortcut for --rounding ignore. See Performance for the timings of the three modes.

Fast math is strictly discouraged, even with CUSVNA_IGNORE_ROUNDING. Its approximate math functions (__sinf, __expf, ...) are far less accurate than the CUDA math library and break the enclosures: with --use_fast_math, 05_levelset.py misses most surfaces and runs 5 times slower because interval marching cannot conclude.

Examples

The examples directory contains Python scripts that compile CUDA kernels at runtime with CuPy (NVRTC):

Script	Description
00_1d.py	enclosures of a 1D function on refined subdivisions
01_2d.py	sign classification of a 2D function on refined grids
02_quadtree.py	adaptive quadtree refinement around the zero level set of a 2D function
03_octtree.py	adaptive octree refinement around an implicit surface, meshed with marching cubes
04_raytracing.py	ray tracing of implicit surfaces with OptiX
05_levelset.py	interactive OptiX viewer of level sets

With the virtual environment of Getting started activated:

python3 examples/02_quadtree.py                       # AF1 forms
python3 examples/02_quadtree.py aa                    # AA forms
python3 examples/02_quadtree.py --rounding emulated   # AF1 forms, emulated rounding
python3 examples/02_quadtree.py --fast                # AF1 forms, rounding errors ignored

02_quadtree.py to 05_levelset.py take an optional af1 (default) or aa argument selecting the affine forms, and a --rounding option selecting the rounding mode (--fast for --rounding ignore). The examples never use fast math. The OptiX examples require the OptiX SDK and the python-optix submodule.

05_levelset.py opens a window, or renders offscreen with --output image.png (see --help for the time, mode, method, samples and size). 05_levelset.py --benchmark times the rendering offscreen at 1 spp over the animation, with the same protocol as the level set example of vusvna. The level sets are found by marching along the rays with affine forms of the ray parameter, either by a sign test on the interval of the function or with a root window that skips the parts of the ray where the affine form proves that there is no root. The shapes cast shadows and are antialiased by accumulating jittered samples while the scene is paused.

Key	Action
ENTER	rendering mode: shaded, normals, marching steps
M	marching method: sign test, root window
A	samples per pixel
SPACE	pause the animation (images accumulate while paused)
+/-, UP/DOWN	animation speed
left / right mouse button, wheel	orbit, look around, zoom
Q, ESC	quit

Performance

Time of the evaluations on an RTX 5090 (float) in the three rounding modes, for AF1 and AA forms. 05_levelset.py is timed with --benchmark (1024x768, 1 sample per pixel, root window marching, median over the animation).

Benchmark	AF1 native	AF1 emulated	AF1 ignore	AA native	AA emulated	AA ignore
02_quadtree.py, level 22	0.24 ms	0.58 ms	0.12 ms	0.29 ms	0.64 ms	0.12 ms
02_quadtree.py, level 25	2.4 ms	6.3 ms	0.70 ms	2.9 ms	7.0 ms	0.74 ms
03_octtree.py, level 11 (20M active cells)	1.7 ms	9.4 ms	0.70 ms	4.2 ms	12 ms	3.2 ms
03_octtree.py, level 12 (81M active cells)	7.0 ms	37 ms	2.8 ms	17 ms	48 ms	13 ms
05_levelset.py, shaded	7.2 ms	22 ms	6.3 ms	8.3 ms	24 ms	6.9 ms
05_levelset.py, marching steps	4.4 ms	13.3 ms	3.7 ms	5.1 ms	14.6 ms	4.2 ms

Both models produce the same numbers of active cells up to a few cells and the same images. Marching with the sign test instead of the root window is about 1.5 times slower.

Ignoring rounding errors keeps fewer cells in the quadtree (8.4M instead of 9.5M at level 22, 57M instead of 126M at level 25): in single precision, the rounding errors of deep levels are larger than the cells. The octree keeps 0.02% fewer cells and the images of 05_levelset.py are the same.

vusvna

vusvna is a port of cusvna to Vulkan, as a Slang module usable in any shader stage, with the same examples run by slangpy. It is a partial port:

• it only provides the AF1 forms (Slang generics cannot express the symbol types of cusvna::AA),
• it works in single precision only,
• Vulkan has no directed rounding and the driver may fuse operations, so vusvna bounds rounding errors with the standard model of floating point arithmetic instead of exact error terms; VUSVNA_IGNORE_ROUNDING ignores them as CUSVNA_IGNORE_ROUNDING does,
• some functions are missing (asin, acos, the hyperbolic functions, erf, tgamma, ...).

The two libraries give the same images and nearly the same cells. On the same RTX 5090, with the same scenes and benchmark protocol:

Benchmark	vusvna	cusvna AF1	cusvna AA	vusvna, ignore	cusvna AF1, ignore	cusvna AA, ignore
03_octtree.py, level 11	1.0 ms	1.7 ms	4.2 ms	0.69 ms	0.70 ms	3.2 ms
03_octtree.py, level 12	4.2 ms	7.0 ms	17 ms	3.0 ms	2.8 ms	13 ms
05_levelset.py, shaded	2.2 ms	7.2 ms	8.3 ms	1.6 ms	6.3 ms	6.9 ms
05_levelset.py, marching steps	1.5 ms	4.4 ms	5.1 ms	1.1 ms	3.7 ms	4.2 ms

Tests

The tests compare cusvna against libaffa, which must be cloned in ext/libaffa (git submodule update --init ext/libaffa), and check the soundness of all operations against extended precision evaluations, for AA and AF1 forms, in float and double, in host code (emulated rounding) and in device code (hardware rounding and CUDA math library).

cmake -S . -B build -DCMAKE_BUILD_TYPE=Release && cmake --build build && ctest --test-dir build

Add -DCMAKE_CUDA_COMPILER=/usr/local/cuda/bin/nvcc if nvcc is not in your PATH.

Defects found in libaffa

The following libaffa functions do not return enclosures, they have been fixed in cusvna:

Function	Input	libaffa	Exact range
exp	[0, 1]	[0.682, 2.612]	[1, 2.718]
sin	[-4.41, 1.21]	[-0.951, 0.996]	[-1, 0.955]
abs	[-1, 1]	[-0.5, 0.5]	[0, 1]

In addition, exp only uses the tangent intercept instead of the mean of the secant and tangent intercepts, sin estimates its approximation error from 8 samples, atanh is not implemented (no return value) and no operation accounts for rounding errors.

License

cusvna is released under the MIT License.
