cutmap 0.2.0

Turn any video into a browsable, searchable storyboard — and auto-extract its B-roll. Local ffmpeg + perceptual hashing, no LLM.

cutmap

Read a video like a document. Skim a long video in minutes to learn fast — or study it frame-by-frame to see exactly how it's cut.

Watching a video is slow and linear — you can't skim it the way you skim an article, and you can't Ctrl-F a moment. cutmap fixes that. Give it a video (and subtitles if you have them) and it builds a single HTML page you can actually read: every visually distinct frame laid out in order, each captioned with what was being said. Click a frame to jump the player there; search the subtitles to find a moment.

_{Demo footage: @林亦LYi — 《一个视频搞懂 DeepSeek V4！》, all rights reserved by the creator}

Two things people use it for:

• 📖 Learn faster. Turn a one-hour talk or tutorial into a page you scroll in a few minutes. See the whole structure at a glance, search the transcript, and only play the parts you actually need.
• 🎬 Study the edit ("拉片"). If you make videos, see exactly how someone cut theirs — every shot change, every B-roll insert, every on-screen graphic — laid out as one storyboard.

It runs entirely on your machine. No LLM, no API key, no network.

---

Quick start

The easy way — just ask your AI agent

cutmap ships with a Claude Code skill. Install it once, then talk in plain language — the agent downloads the video, runs cutmap, reads the result, and answers you:

pip install cutmap yt-dlp          # cutmap + video downloader
brew install ffmpeg                # the video engine  (Linux: apt install ffmpeg)

# install the bundled skill for Claude Code
git clone https://github.com/xykong36/cutmap
cp -r cutmap/skills/cutmap ~/.claude/skills/

Then just say things like:

Download https://youtu.be/… and use cutmap to summarize what it covers

Use cutmap on lecture.mp4 and give me the section-by-section breakdown

What's on screen around 3:41 in that video? (process it with cutmap first)

The agent handles the download, the flags, and reading the frames for you — you never touch the command line.

The manual way — command line

pip install cutmap
brew install ffmpeg                # macOS   (Linux: apt install ffmpeg)

cutmap video.mp4 --srt video.srt   # or just: cutmap video.mp4  (finds video.srt)
open video/browse.html             # ← open this in your browser

That's it. Everything you need is in the video/ folder next to your file.

---

What you get

Output lands in a directory named after the video:

video/
├── browse.html        ← open this: the interactive storyboard
├── frames/            every distinct frame, labelled #index timecode seconds
├── sheet_01..NN.jpg   4×4 contact sheets for scanning at a glance
├── index.json         frame timestamps + aligned subtitles (machine readable)
└── broll/             extracted B-roll clips + broll.json

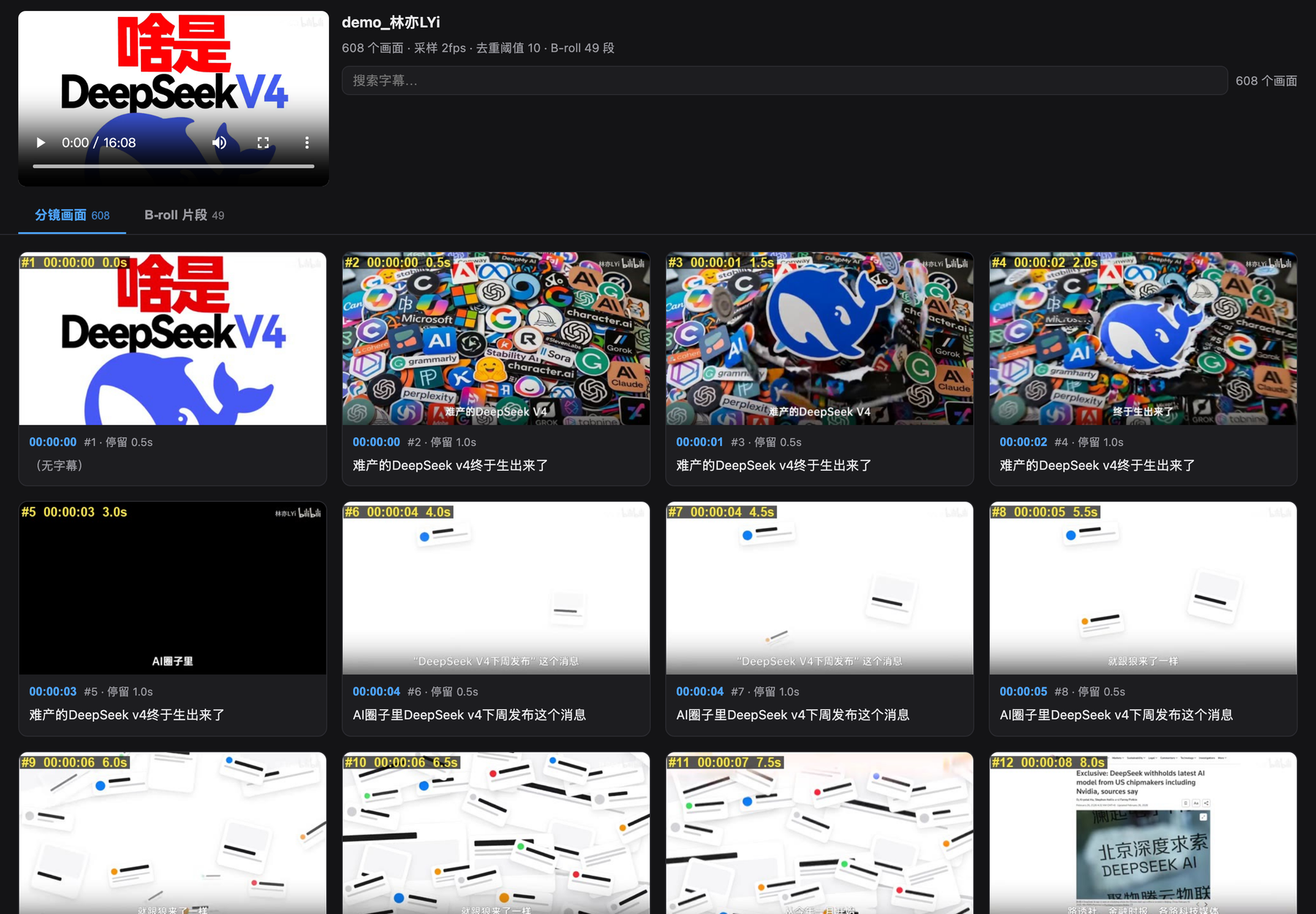

The browse page

One self-contained HTML file — all CSS and JS inlined. Two tabs:

Storyboard — every distinct frame with its caption B-roll — auto-looping clips (reads like a GIF wall)

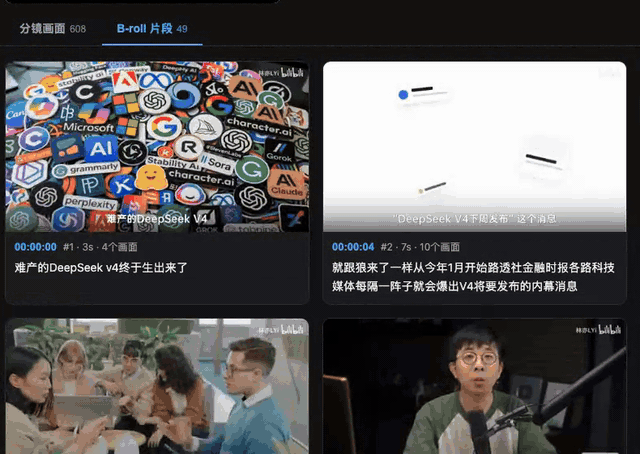

_{The B-roll tab in motion: clips auto-loop like a GIF wall, but they are MP4 under the hood — 1/24 the size of actual GIFs}

What you can do on it:

• Click any frame or timecode to seek the embedded player there (local file, no network)
• Search the subtitles — matches the normalised text, so searching DeepSeek also finds frames where the auto-transcription wrote deep sick
• Long captions collapse behind …expand
• Follows your system light / dark mode

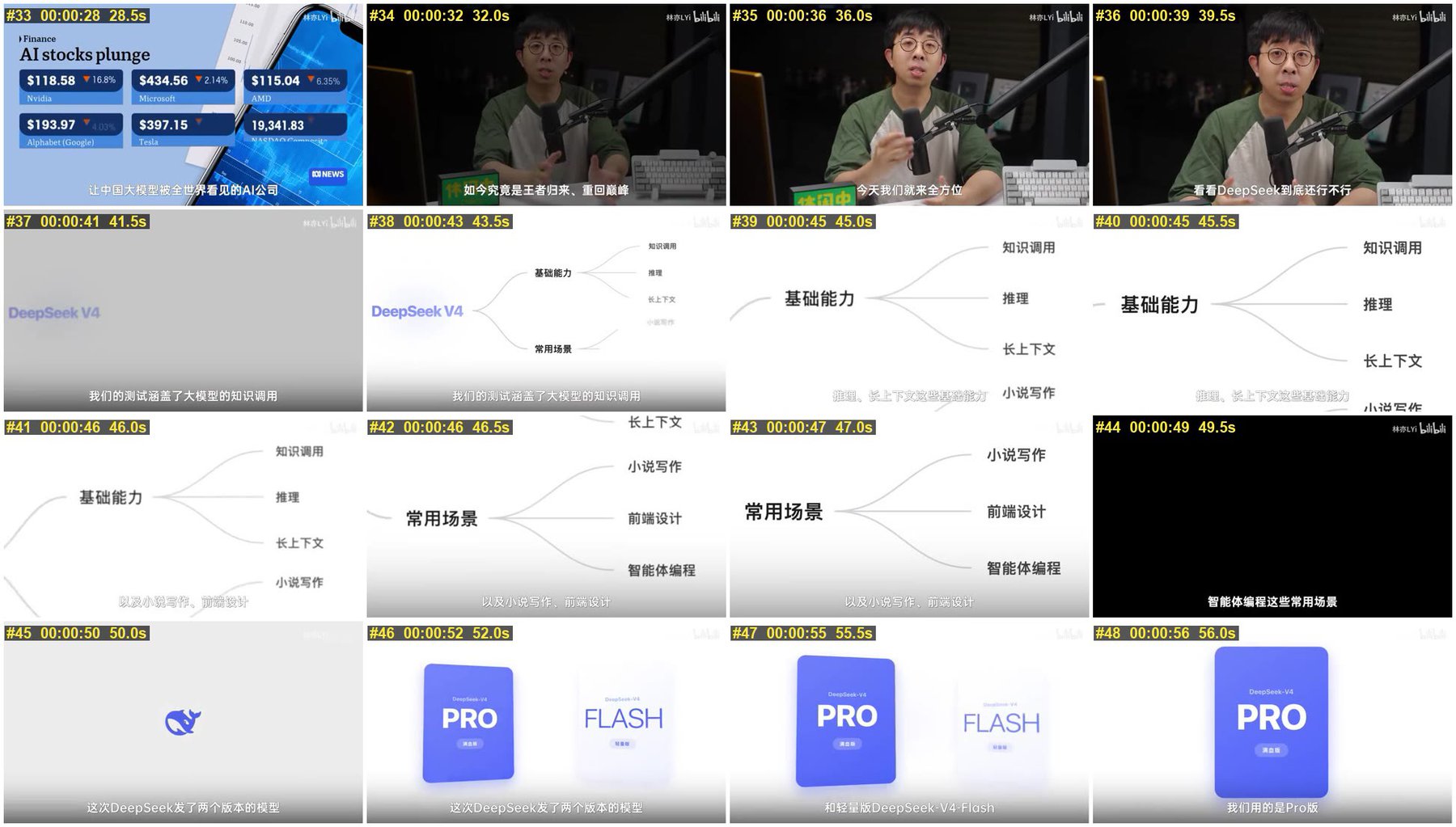

Contact sheets are also written on their own, for scanning a whole video in a few images:

---

How it works

The interesting part is which frames it keeps. Sampling every N seconds is both redundant and lossy: a 30-second talking-head passage gives you ten identical stills; a fast montage cutting five shots in three seconds gives you one.

cutmap asks a different question — not "how often should I sample" but "which frames actually differ":

dense sample  →  perceptual hash each frame  →  compare against last kept frame
                                             →  keep only if different enough

Static passages collapse to a single frame. Every visual change gets one.

Why not ffmpeg's built-in scene detection?

select='gt(scene,0.3)' only catches hard cuts. Two things slip past it:

1. Low-contrast transitions — white slide to white webpage. Similar overall luminance structure, so the difference score never crosses the threshold.
2. Intra-shot evolution — text appearing line by line, charts animating, table rows highlighting. Not a "cut" by any definition, but visually distinct.

Measured on one 16-minute video: scene detection found 104 frames, perceptual dedup found 608. One 25-second stretch that scene detection called a single shot actually contained three completely different pages.

The algorithm's blind spot

dHash compares relative brightness between adjacent pixels, so it measures spatial structure, not colour. Two different flat colours produce an identical (all-zero) fingerprint and cannot be told apart. Footage that is largely flat-coloured or near-black will therefore dedup more aggressively than you might expect. (This is also why transition cards are detected by mean luminance rather than by hash.)

---

Options

Most people never need these — the defaults are tuned for slides, screencasts, and talks. Reach for them when the frame count comes out too dense or too sparse.

Flag	Meaning
--threshold N	Frame density. Lower = more frames. 6 dense / 10 default / 14 sparse / 24 structure-only
--fps N	Dense sampling rate (default 2 — finest resolvable gap is 0.5s)
--seg-max N	Max seconds per B-roll segment (default 45)
--clip-format	mp4 (default) / gif / webp
--no-broll	Skip B-roll extraction (much faster)
--no-frames	Keep only contact sheets, drop individual frames
--cols/--rows	Contact sheet grid (default 4×4)
--thumb-width	Thumbnail width in px (default 480)
--terms FILE	Custom subtitle term-normalisation table

Rule of thumb for density: screencasts and slides → keep the default 10. Real handheld / vlog / interview footage → start at --threshold 20 (camera shake makes every frame look "different" otherwise).

Density, measured

On a 969-second video (2 fps sampling → 1936 raw frames):

Threshold	Kept	Avg gap	Good for
6	892	1.1s	Reconstructing every visual step (tutorial walkthroughs)
10	597	1.6s	Default — balances coverage and readability
14	463	2.1s	Style study, quick scanning
24	241	4.0s	Structure only, close to a traditional shot list

The curve is smooth — there is no natural breakpoint. This is an aesthetic choice, not a parameter with a computable optimum.

---

B-roll detection

Frames are sorted into three buckets by three plain rules — no model involved:

Bucket	Rule
Main shot	A cluster of near-identical frames recurring across >50% of the runtime — i.e. a locked-off camera
Transition card	Mean luminance below 8 (black) or above 245 (white)
B-roll	Everything else

Screencast-style videos with no talking head degrade gracefully — no main shot is found, everything becomes B-roll, and --seg-max keeps it segmented.

Clips default to MP4 (loop muted), which looks identical to a GIF in the page but is ~24× smaller (0.08 MB vs 1.96 MB for a 9-second segment). Use --clip-format gif only when pasting into chat apps or note tools.

---

Subtitle term normalisation

Auto-transcription mangles proper nouns. A built-in table normalises them:

大家对deep sick新模型的期待值   →   大家对DeepSeek新模型的期待值
用grock测试                    →   用Grok测试

The real payoff is search: querying DeepSeek finds every frame whose subtitle was transcribed as deep sick. The default table targets AI / tech content; bring your own with --terms my_terms.txt (one regex => replacement per line, see src/cutmap/terms.txt).

This is term normalisation, not proofreading — it will not fix grammar or one-off errors.

---

Getting footage manually

If you're not using the agent skill, cutmap itself doesn't download anything — it works on local files. For YouTube / Bilibili, grab the video and subtitles with yt-dlp:

yt-dlp --write-auto-subs --sub-langs "en,zh-Hans" --convert-subs srt \
       -f "bv*[height<=720]+ba/b" -o "%(id)s.%(ext)s" "<URL>"
cutmap <id>.mp4

Respect the terms of service and copyright of wherever your footage comes from; use downloaded material for personal study and research only.

---

Troubleshooting — bugs I hit building this

Most of these never raised an error — they just quietly produced wrong output:

\b word boundaries fail in mixed CJK/Latin text. CJK characters are \w in Python, so in 用grock测试 there is no boundary between 用 and g. \bgrock\b never matches. The term table uses (?<![A-Za-z0-9])…(?![A-Za-z0-9]) instead.

Flat frames can't be detected by standard deviation. Black transition cards usually have burned-in white subtitles, pushing stddev to 23–33. Use mean luminance, kept tight (<8): loosening to <25 misclassifies merely-dark footage as transitions.

Subtitle time windows must not overlap. A look-back to avoid empty captions makes adjacent frames claim the same cue. Hence two fields: subtitle (display, may repeat) and subtitle_own (concatenation, strict half-open).

ffmpeg concat resolves relative paths against the list file's directory — contact sheet file lists must contain absolute paths.

-v error suppresses showinfo output — any ffmpeg statistics gathered with it silently come back as zero.

Multi-threaded downloads corrupt files on exFAT. Pre-allocating and writing at multiple offsets over exFAT-on-USB yields files with the right size and wrong contents (moov atom not found). Download to local disk, then move.

---

Credits

Built on ffmpeg and Pillow.

Special thanks to @林亦LYi. This project started as an attempt to study the editing in his videos — dense cutting, interleaved infographics and animated demos — exactly the material naive interval-screenshotting handles worst. The screenshots in this README are from 《一个视频搞懂 DeepSeek V4！》, used solely to demonstrate this tool's output; all rights remain with the original creator. If he would prefer them removed, please open an issue and they will be replaced immediately.

Source video	https://www.youtube.com/watch?v=WDQjRzVcX-A
Creator	YouTube https://www.youtube.com/@lyi · Bilibili https://space.bilibili.com/4401694

License

MIT
