cv2-gui 0.6.7

A library to create buttons using OpenCV (cv2)

cv2_gui

cv2_gui is a Python library for creating GUI elements using OpenCV.

Table of Contents

1. Introduction
2. Installation
3. Button Types
   1. Toggle Button
   2. Cycle Button
   3. Slider
   4. Eyedropper
   5. D-Pad

Introduction

cv2_gui simplifies creating GUI elements, such as buttons, sliders, and more, with OpenCV.

Installation

pip install cv2_gui

This will also install dependencies such as cv2 and numpy.

Button Types

Button Type	Description	Example Usage
Toggle Button	Switch between two states.	create_toggle_button
Cycle Button	Cycle through a list of options.	create_cycle_button
Slider	Adjust a value within a range.	create_slider
Eyedropper	Select a color from an image.	create_eyedropper
D-Pad	Control directional movements.	create_dpad

Toggle Button

Toggle button can switch between on and off state performing 1 of 2 actions based on current state.

Parameters for create_toggle_button

Parameter Name	Description	Type
on_text	The text displayed on the button when it is in the "on" state.	str
off_text	The text displayed on the button when it is in the "off" state.	str
on_callback	The function that will run when the button is in the "on" state.	function
off_callback	The function that will run when the button is in the "off" state.	function or None
toggle_once	If True, will run the callback function every update; otherwise, it runs the callback only when the state changes.	bool
on_color	The color of the button in the "on" state, represented as a list of RGB values.	List[float, float, float]
off_color	The color of the button in the "off" state, represented as a list of RGB values.	List[float, float, float]
keybind	This is a shortcut key which will trigger the button.	str
tooltip	The text displayed when you hover over the button, providing additional information about the button's state.	str

example

a basic function that will be executed based on button state

def display_image(img):
    return img[0]

import toggle button, button manager and dependecies from library.

from cv2_gui import create_button_manager, create_toggle_button
import cv2
import numpy as np

toggle=create_toggle_button('ON','OFF',display_image,display_image,tooltip="A simple on-off button")

this will create a button which when pressed will display the passed image.

sample = cv2.imread('sample.png')
while 1:
    output = toggle.update([sample],[None])
    output = create_button_manager.update(output)

first argument of update is argument_on which will be passed to on_callabck and second argument is argument_off passed to off_callback these are run when the corresponding state is active.

You can press q to close the window and stop execution, Hovering over the button will display the tooltip.

Pressing keybind on the keyboard will switch between the states.

Toggle Button Demo

Cycle Button

Cycle button can switch between multiple states performing various actions based on current state.

Parameters for create_cycle_button

Parameter	Description	Type
modes	The text that will be displayed on the button when in a particular mode.	List of Strings
callbacks	The functions that will run when the button is in a selected mode.	List of Functions
toggle_once	If True, the callback function runs every update; if False, runs once per state change.	Boolean
tooltip	Text displayed when you hover the mouse on the button, providing further information.	String

example

a basic function that will be executed based on button state

def convert_img(arguments):
    type,frame=arguments

    if type.lower()=="hsv":
        frame=cv2.cvtColor(frame,cv2.COLOR_BGR2HSV)
    elif type.lower()=="rgb":
        frame=cv2.cvtColor(frame,cv2.COLOR_BGR2RGB)
    elif type.lower()=="bw":
        frame=cv2.cvtColor(frame,cv2.COLOR_BGR2GRAY)
        frame=cv2.merge([frame, frame, frame])

    return frame

import cycle button, button manager and dependecies from library.

from cv2_gui import create_button_manager, create_cycle_button
import cv2
import numpy as np

cycle=cycle=create_cycle_button(["BGR","RGB","BW"],[convert_img,convert_img,convert_img],tooltip="convert image color format")

this will create a button which when cycled will convert image formats of the passed image.

sample = cv2.imread('sample.png')
while 1:
    output = cycle.update([["BGR",output],["RGB",output],["BW",output]])
    output = create_button_manager.update(output)

first argument of update is arguments the first element of argument will be passed to first callback function and so on.

You can press q to close the window and stop execution, Hovering over the button will display the tooltip.

Cycle Button Demo

Slider

A slider allows users to adjust a value by dragging a handle along a track, with the value returned for use in other actions or settings.

Parameters for create_slider

Parameter	Type	Description
text	String	The text displayed as the label for the slider and its window.
lower_range	int / float	The lower threshold or minimum value of the slider range.
upper_range	int / float	The upper threshold or maximum value of the slider range.
steps	int	The step size for the slider, which determines the granularity of adjustments.
initial_value	int / float	The initial value that the slider starts with. If not provided, it defaults to the lower_range.
ranged	Boolean	If True, creates a dual slider to select both minimum and maximum values within the range. If False, creates a single slider.
return_int	Boolean	If True, ensures the slider's output is an integer. If False, allows for floating-point values (based on steps).
return_odd_int	Boolean	If True, ensures the slider's output is an odd integer. Useful for tasks like setting kernel sizes in image processing.
on_color	List (1x3)	RGB values defining the color of the slider's border or track when active.
toggle_once	Boolean	If True, runs the associated callback function only once per state change. If False, continuously triggers the callback as the slider is adjusted.
tooltip	String	The tooltip text shown when hovering over the slider or its associated label, providing additional information about its function.

example with ranged = False

import slider, button manager and dependecies from library.

from cv2_gui import create_button_manager, create_slider
import cv2
import numpy as np

slider = create_slider("Blur",0,100,100,return_odd_int=True,tooltip="define values for blur amount")

this will create a slider which will store the current value and when we drag the slider update the value.

Alternatively you can use left and right arrow keys to move the last selected slider

while 1:
    sample = cv2.imread('sample.png')
    slider_val=slider.value
    sample = cv2.blur(sample, (slider_val,slider_val))
    create_button_manager.update(sample)

The value of the slider is stored in slider.value and is updated everytime button_manager.update() is called.

You can press q to close the window and stop execution, Hovering over the button will display the tooltip.

Pressing r on the keyboard will reset all sliders to default state

Slider Demo

example with ranged = True

a basic function that will be executed with slider value.

def brightness_filter(frame,bounds):
    lower=bounds[0]
    upper=bounds[1]

    gray=cv2.cvtColor(frame.copy(),cv2.COLOR_BGR2GRAY)
    mask = cv2.inRange(gray, lower, upper)
    mask_3channel = cv2.merge([mask, mask, mask])
    filtered_image = cv2.bitwise_and(frame, mask_3channel)

    return filtered_image

import slider, button manager and dependecies from library.

from cv2_gui import create_button_manager, create_slider
import cv2
import numpy as np

slider = create_slider("Light Filter",0,255,200,ranged=True,return_odd_int=True,tooltip="define values for blur amount")

this will create a slider which will store the lower and upper value and when we drag the slider update the value.

Alternatively you can use left and right arrow keys to move the last selected slider

while 1:
    sample = cv2.imread('sample.png')
    lower=int(slider.value[0])
    upper=int(slider.value[1])
    output=brightness_filter(sample,[lower,upper])
    create_button_manager.update(output)

The value of the slider is stored in slider.value as a list where slider.value[0] is lower value, slider.value[1] is upper value and it is updated everytime button_manager.update() is called.

You can press q to close the window and stop execution, Hovering over the button will display the tooltip.

Pressing r on the keyboard will reset all sliders to default state

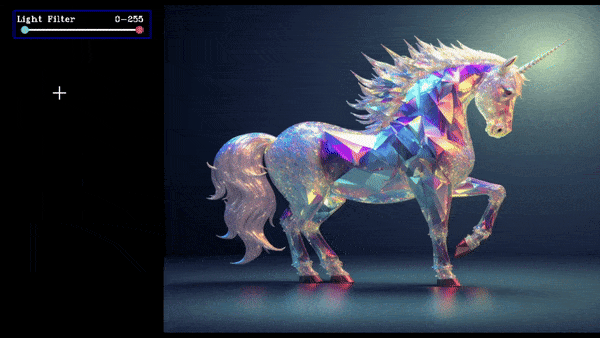

Slider Ranged Demo

Eyedropper

An eyedropper tool allows users to select a color from an image by clicking on the required pixel, displaying the selected color value.

Parameters for create_eyedropper

Parameter	Type	Description
text	String	The text displayed on the button.
toggle_duration	Float	The duration (in seconds) for which the commanded function will execute before resetting. Overrides and resets if another key is pressed.
toggle_once	Boolean	If true, the callback function will run on every update. If false, it will run once when the state changes.
on_color	List(1x3)	The color of the button when it is pressed (RGB values).
off_color	List(1x3)	The color of the button when it is released (RGB values).
tooltip	String	The text displayed when hovering over the button, providing additional information about its states.

example

import eyedropper, button manager and dependecies from library.

from cv2_gui import create_button_manager, create_eyedropper
import cv2
import numpy as np

dropper=create_eyedropper()

this will create an eyedropper tool which will show the pixel values in BGR and HSV of the clicked pixel.

while 1:
    sample = cv2.imread('sample.png')
    create_button_manager.update(sample)

You can press q to close the window and stop execution, Hovering over the button will display the tooltip.

i is the shortcut key for eyedropper

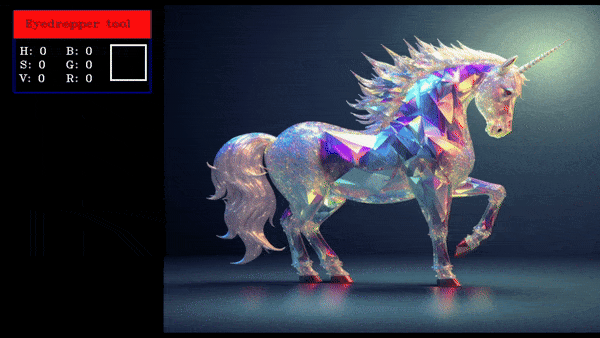

Eyedropper Demo

D-pad

A D-pad (Directional pad) allows users to provide directional input (e.g., up, down, left, right) for navigation or control, with the selected direction respective action will be performed.

Parameters for create_dpad

Parameter	Type	Description
text	String	The text displayed on the button.
toggle_duration	Float	The duration (in seconds) for which the commanded function will execute before resetting. Overrides and resets if another key is pressed.
actions	List[functions]	A list of functions corresponding to actions for None, w (up), a (left), s (down), and d (right) key presses.
toggle_once	Boolean	If true, the callback function will run on every update. If false, it will run once when the state changes.
on_color	List(1x3)	The color of the button when it is pressed (RGB values).
off_color	List(1x3)	The color of the button when it is released (RGB values).
tooltip	String	The text displayed when hovering over the button, providing additional information about its states.

example

Basic functions which will be executed when corresponding button in pressed.

global x,y
x=100
y=100
def w_action():
    global x,y
    y-=2

def a_action():
    global x,y
    x-=2

def s_action():
    global x,y
    y+=2

def d_action():
    global x,y
    x+=2

import Dpad, button manager and dependecies from library.

from cv2_gui import create_button_manager, create_dpad
import cv2
import numpy as np

dpad=create_dpad(actions=[None,w_action,a_action,s_action,d_action])

this will create a Dpad which moves a ball up, down, left, right according to direction pressed.

while 1:
    black_image=np.zeros((600,800,3))
    cv2.circle(black_image,(x,y),10,(1,1,1),-1)
    create_button_manager.update(black_image)

Corresponding key will highlight on the window to indicate which key is pressed.

You can press q to close the window and stop execution, Hovering over the button will display the tooltip.

Dpad Demo
