What is Data.Rentgen?
Data.Rentgen is a Data Motion Lineage service, compatible with OpenLineage specification.
Currently we support consuming lineage from:
Apache Spark
Apache Airflow
Apache Hive
Apache Flink
dbt
SyncMaster (proprietary integration, part of MWS Data Bridge)
StarRocks (proprietary integration, part of MWS Data Engine)
Note: service is under active development, so API can be unstable.
Goals
Collect lineage events produced by OpenLineage clients & integrations.
Store operation-grained events for better detalization.
Provide API for fetching both job/run ↔ dataset lineage and dataset ↔ dataset lineage.
Features
Support consuming large amounts of lineage events, use Apache Kafka as event buffer.
Store data in tables partitioned by event timestamp, to speed up lineage graph resolution.
Lineage graph is build with user-specified time boundaries.
Lineage graph can be build with different granularity. e.g. merge all individual Spark commands into Spark applicationId or Spark applicationName.
Column-level lineage support.
Authentication support.
Non-goals
This is not a Data Catalog. DataRentgen doesn’t track dataset schema change, owner and so on. Use Datahub or OpenMetadata instead.
Static Data Lineage like view → table is not supported.
Limitations
OpenLineage have integrations with Trino, Debezium and some other lineage sources. DataRentgen support may be added later.
DataRentgen parses only limited set of OpenLineage facets, and doesn’t store custom facets. This can be changed in future.
Documentation
Screenshots
Lineage graph

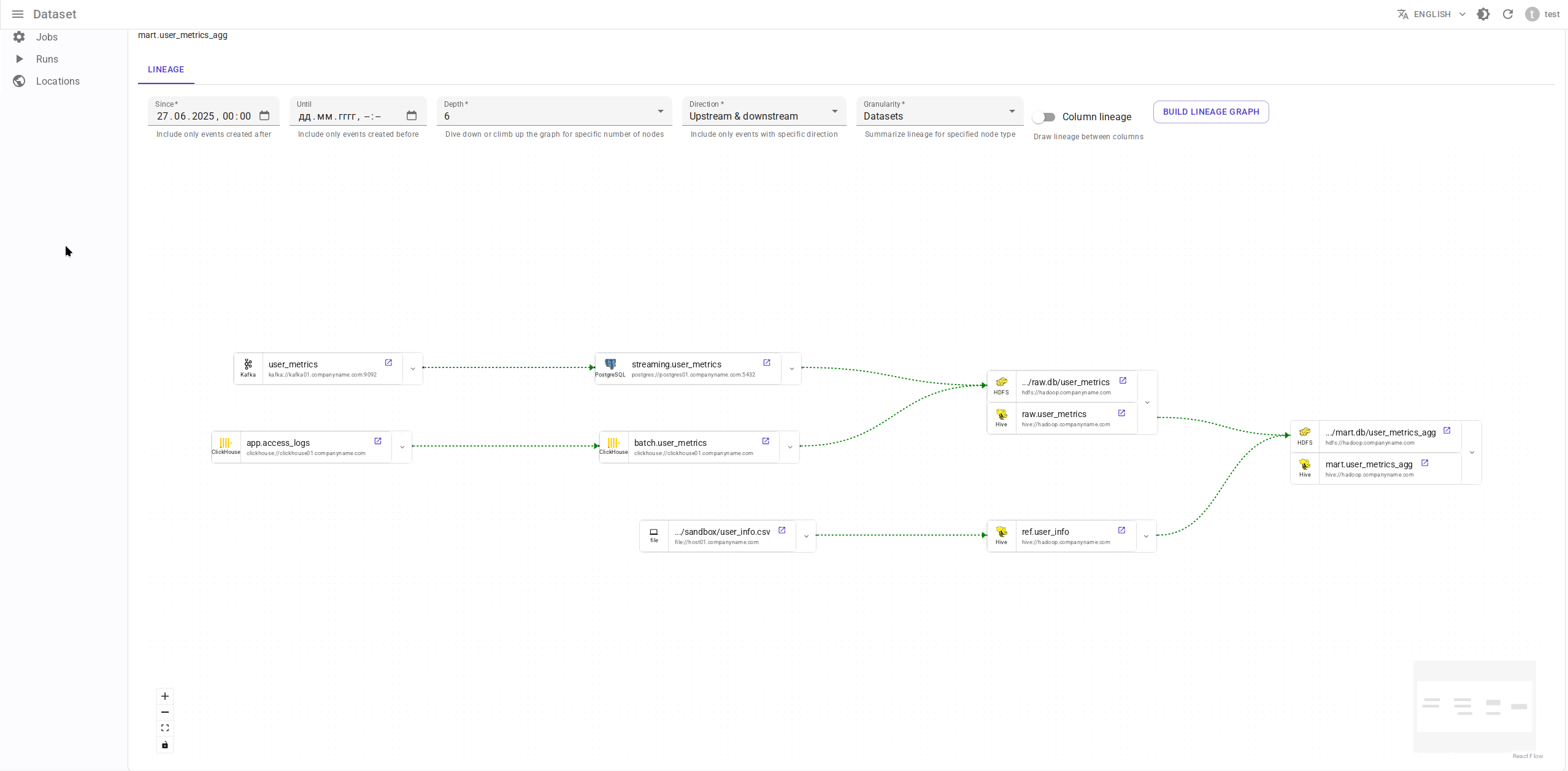

Dataset-level lineage graph

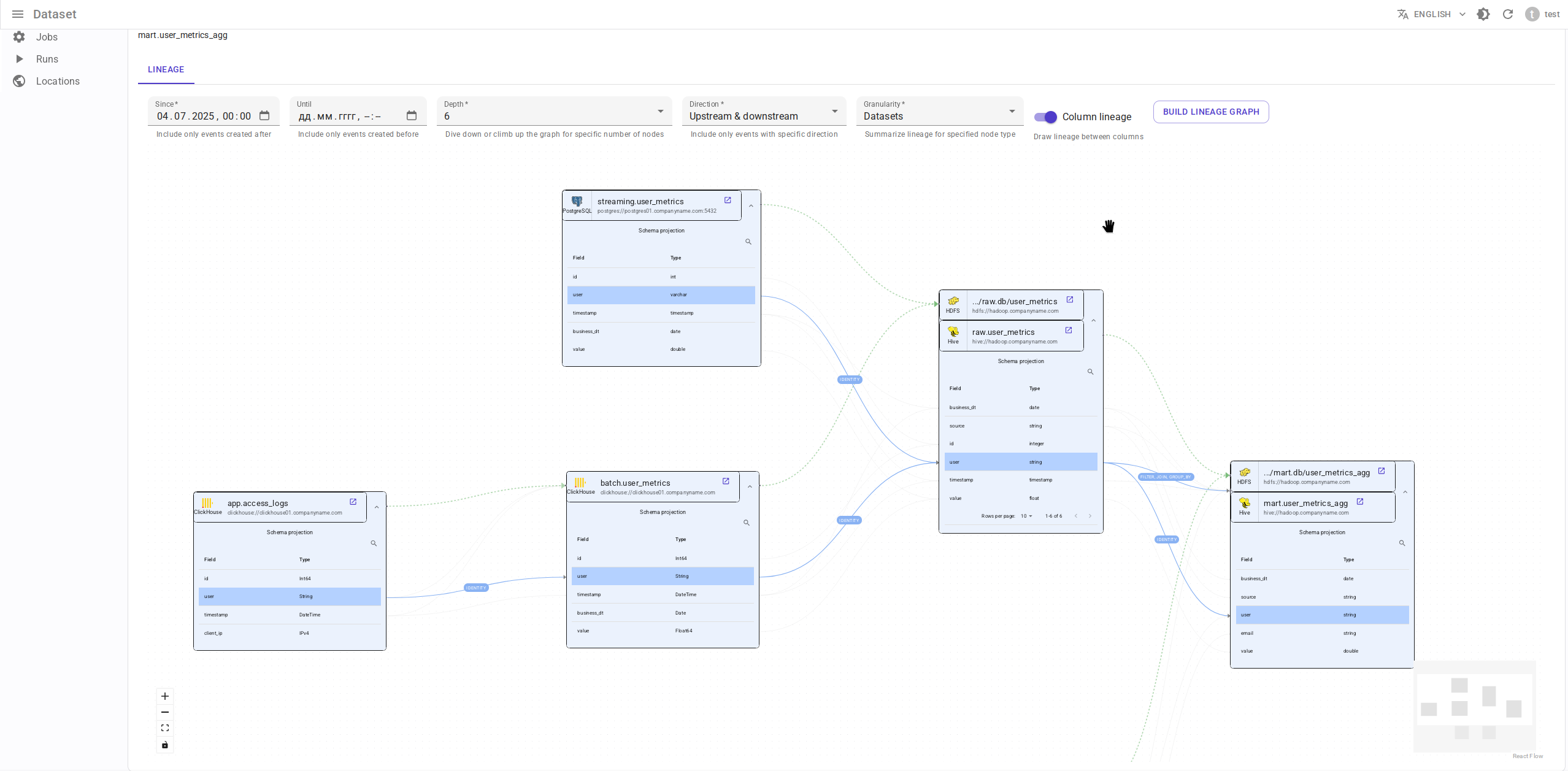

Dataset column-level lineage graph

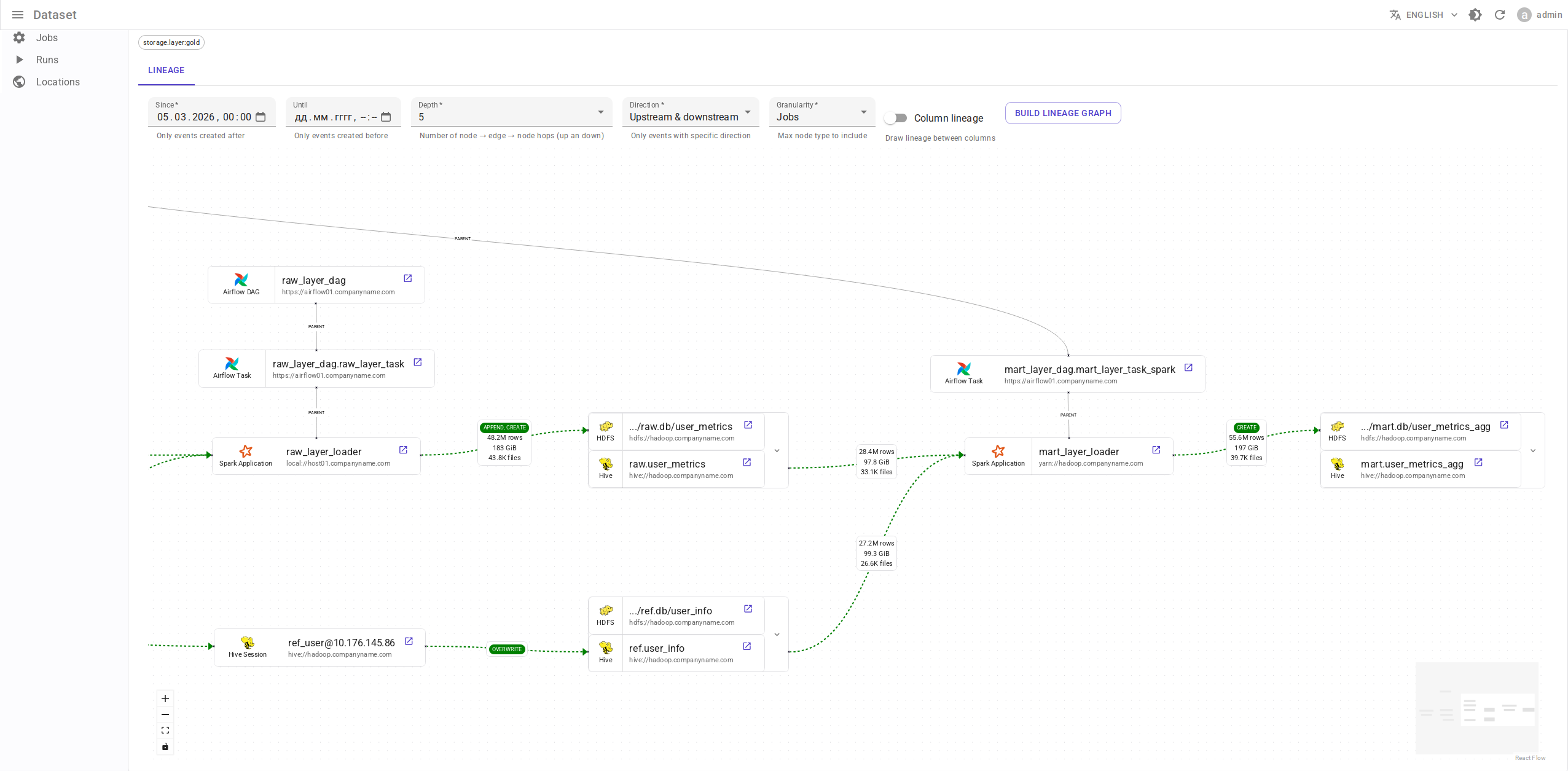

Job-level lineage graph

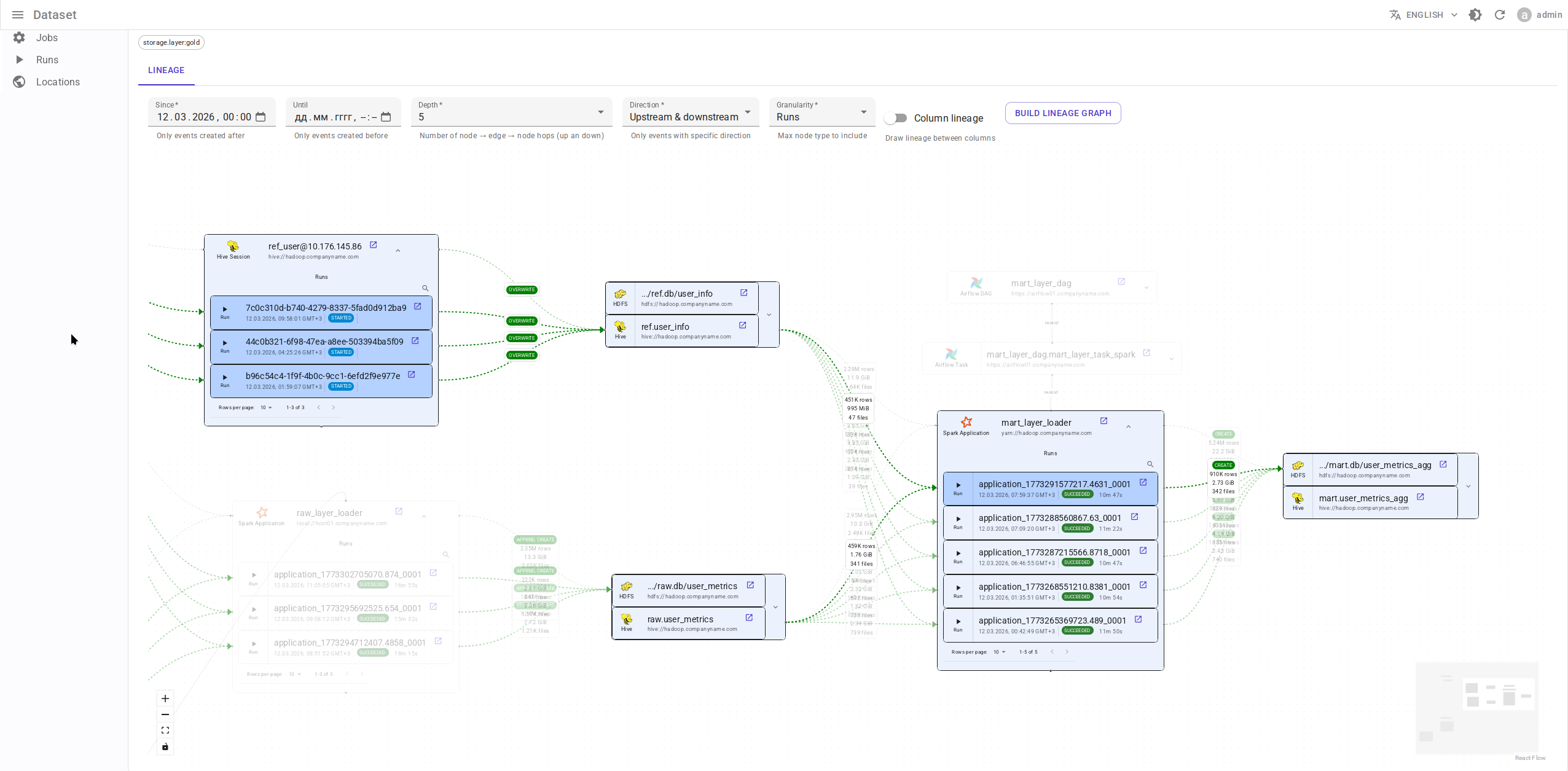

Run-level lineage graph

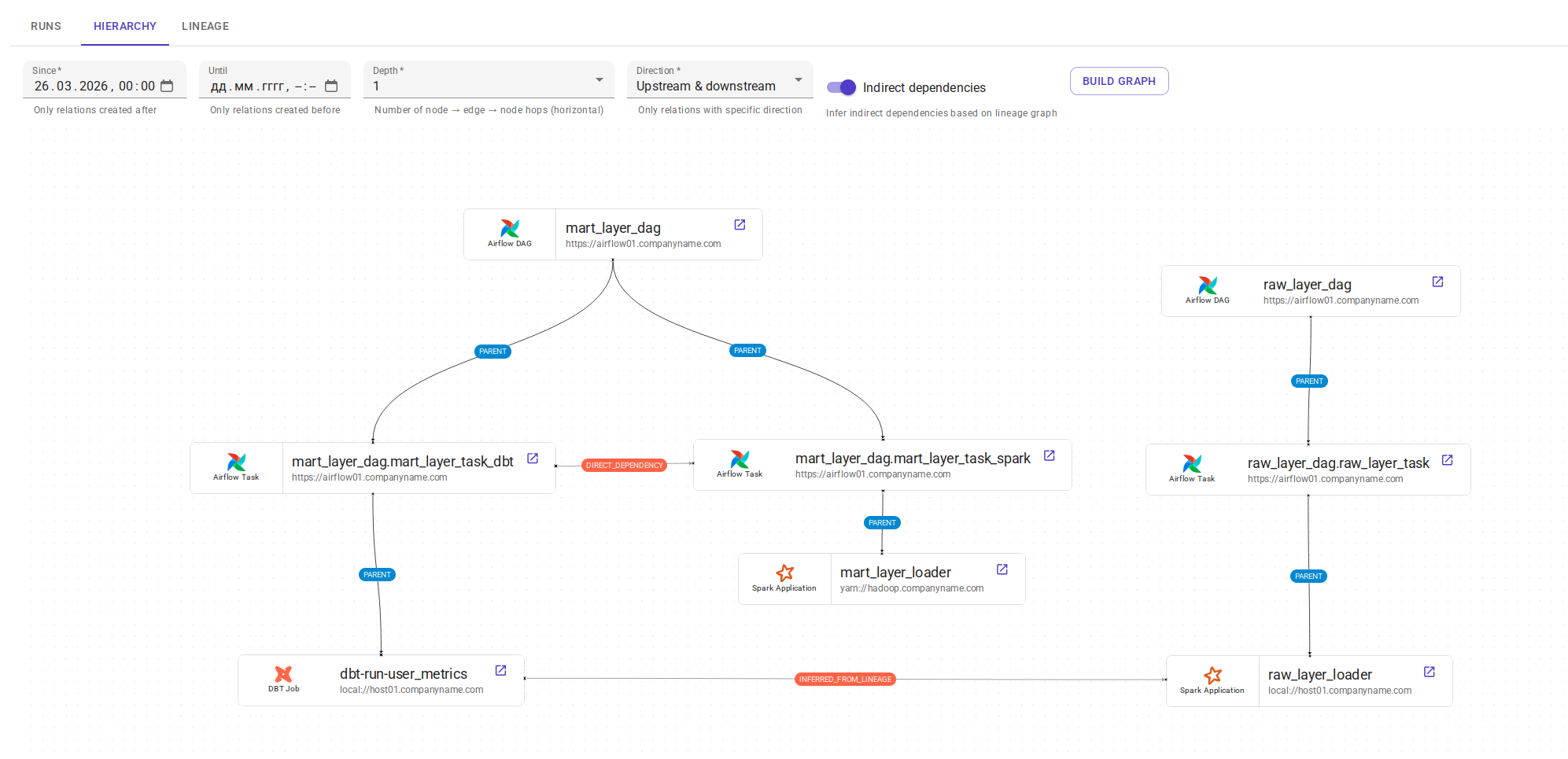

Hierarchy graph

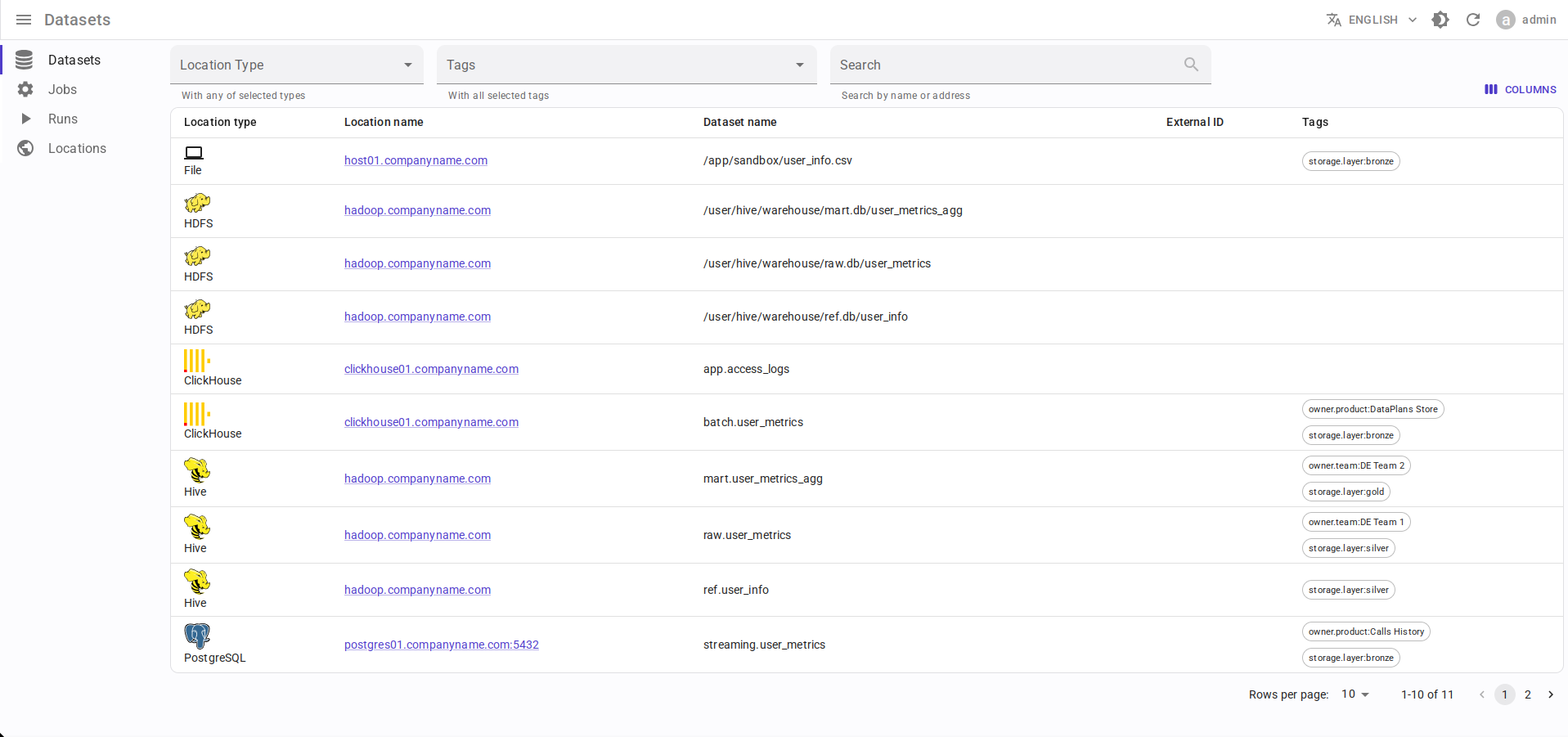

Datasets

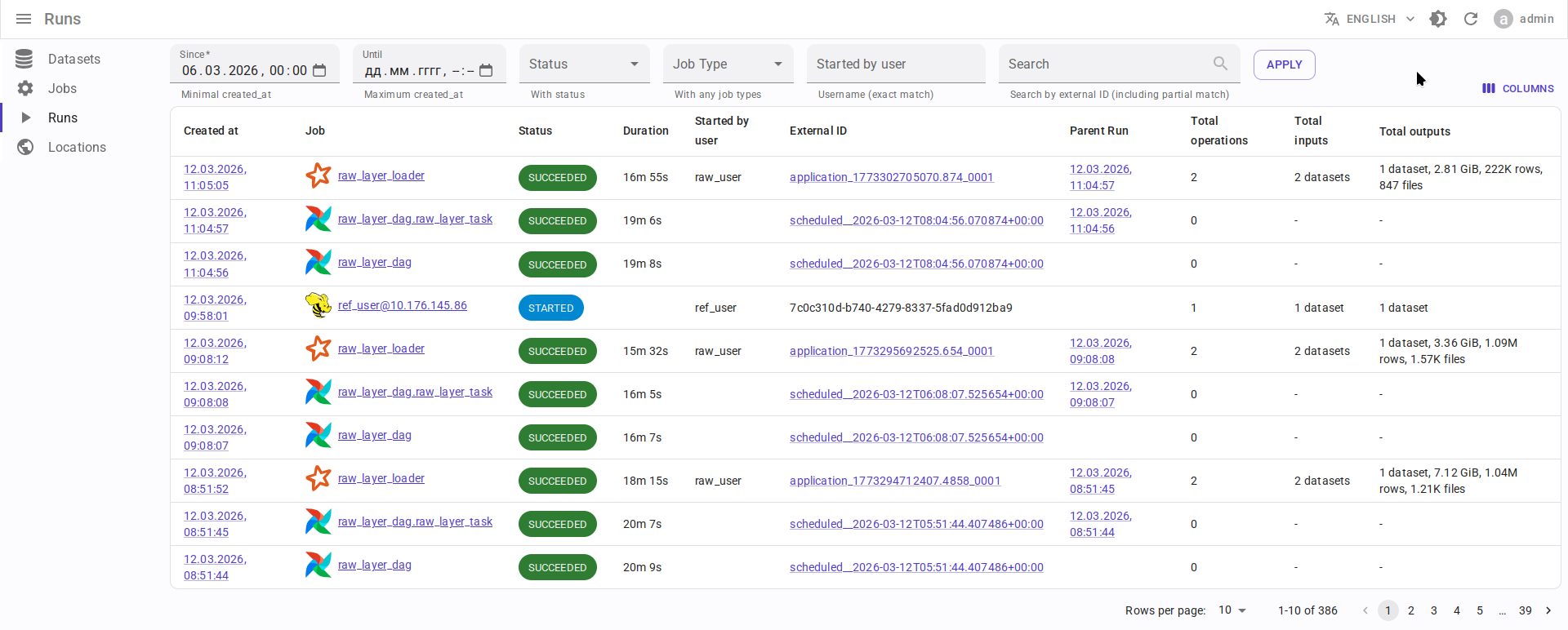

Runs

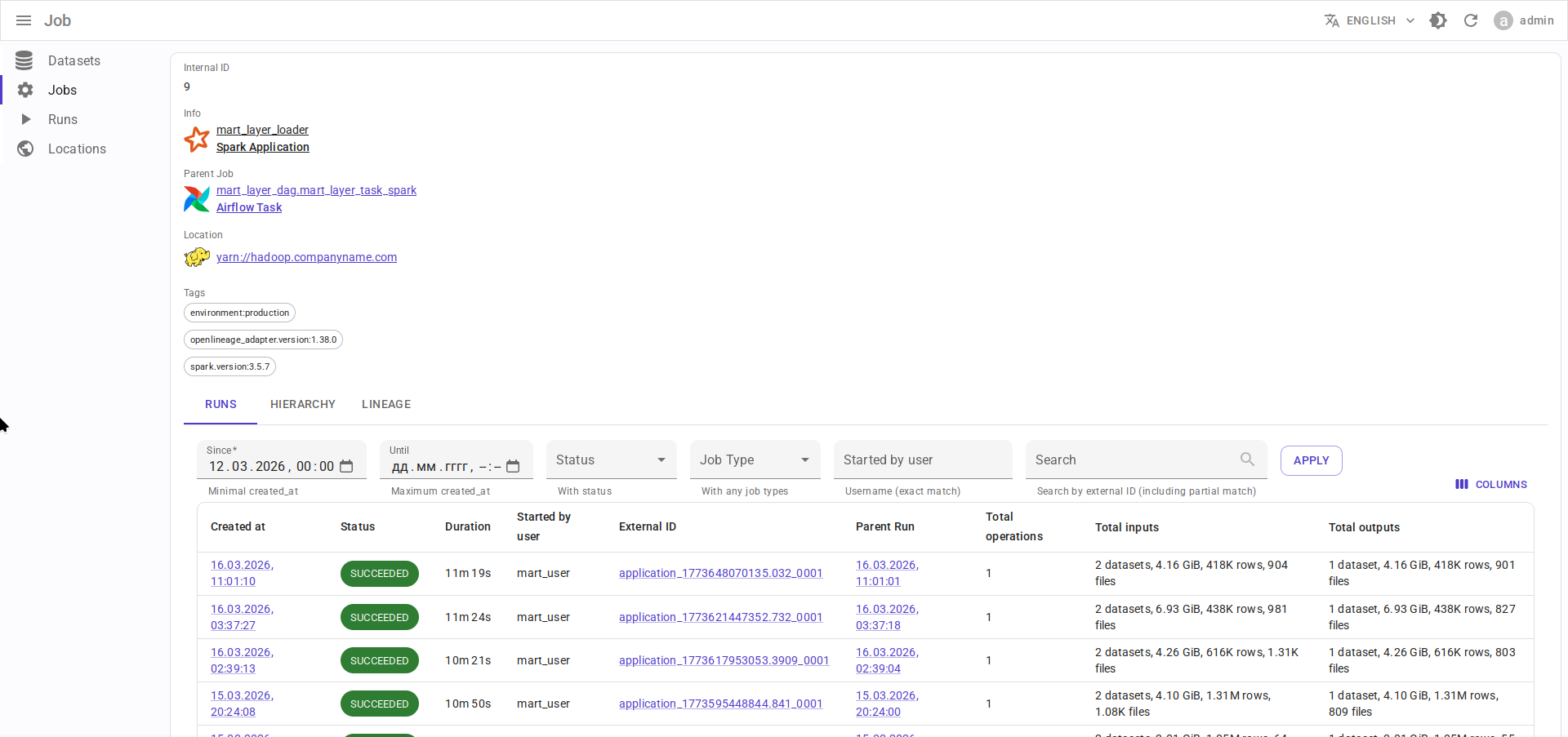

Spark application

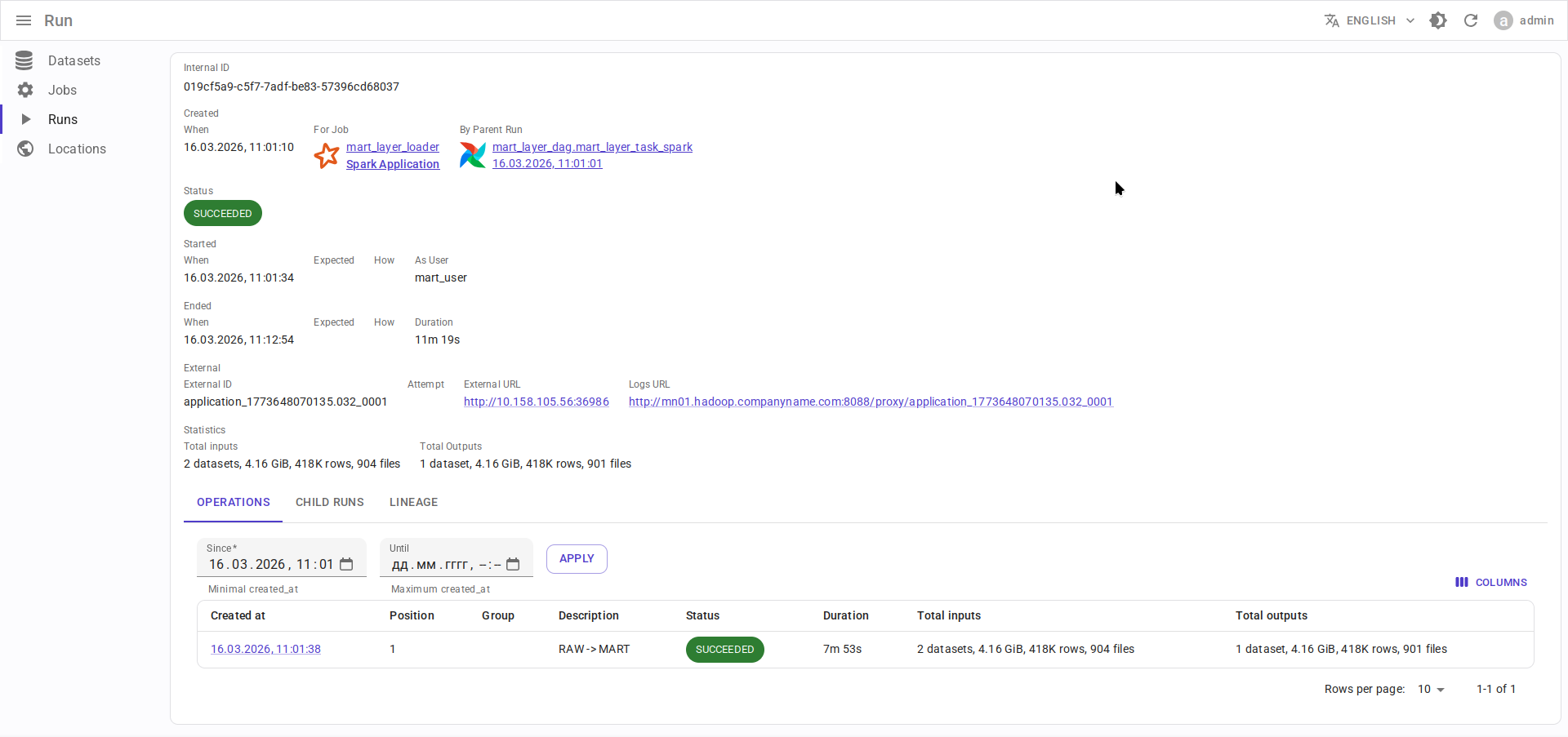

Spark run

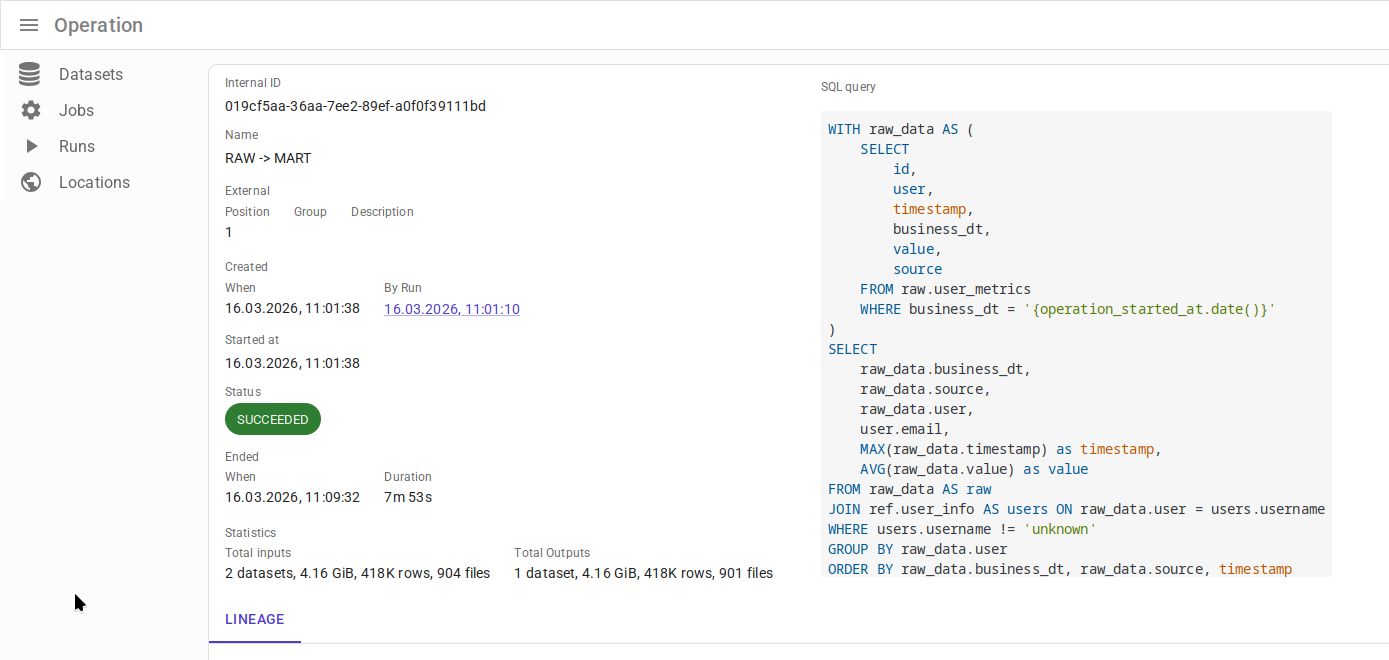

Spark command

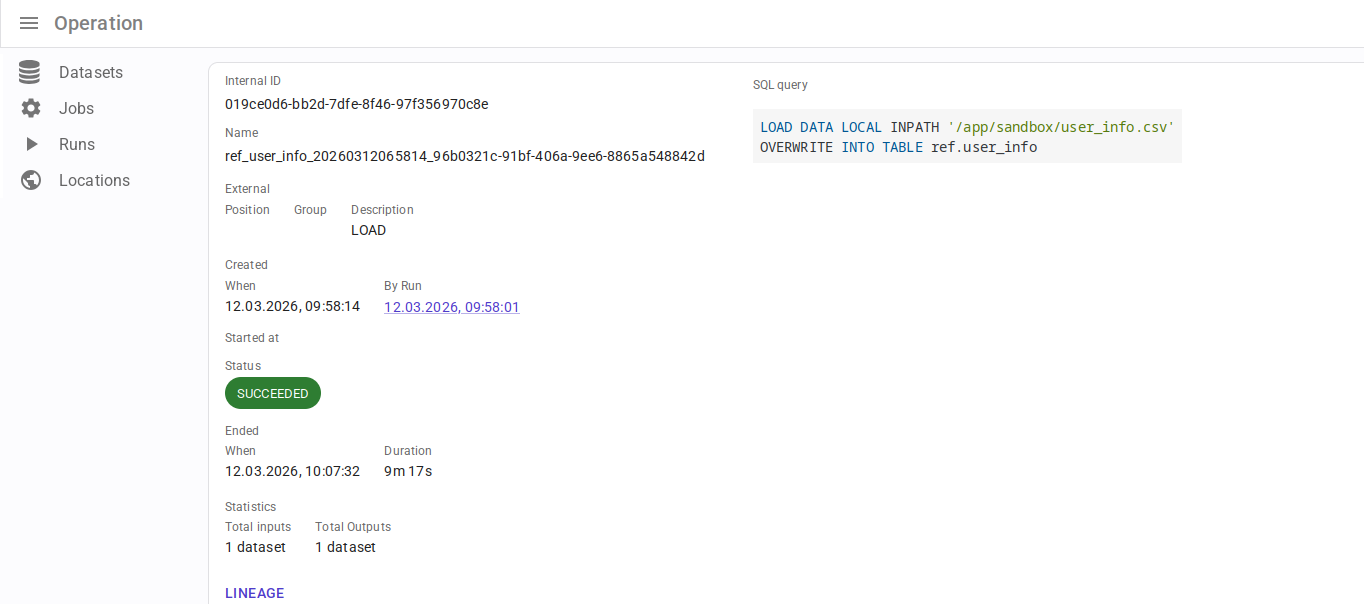

Hive query

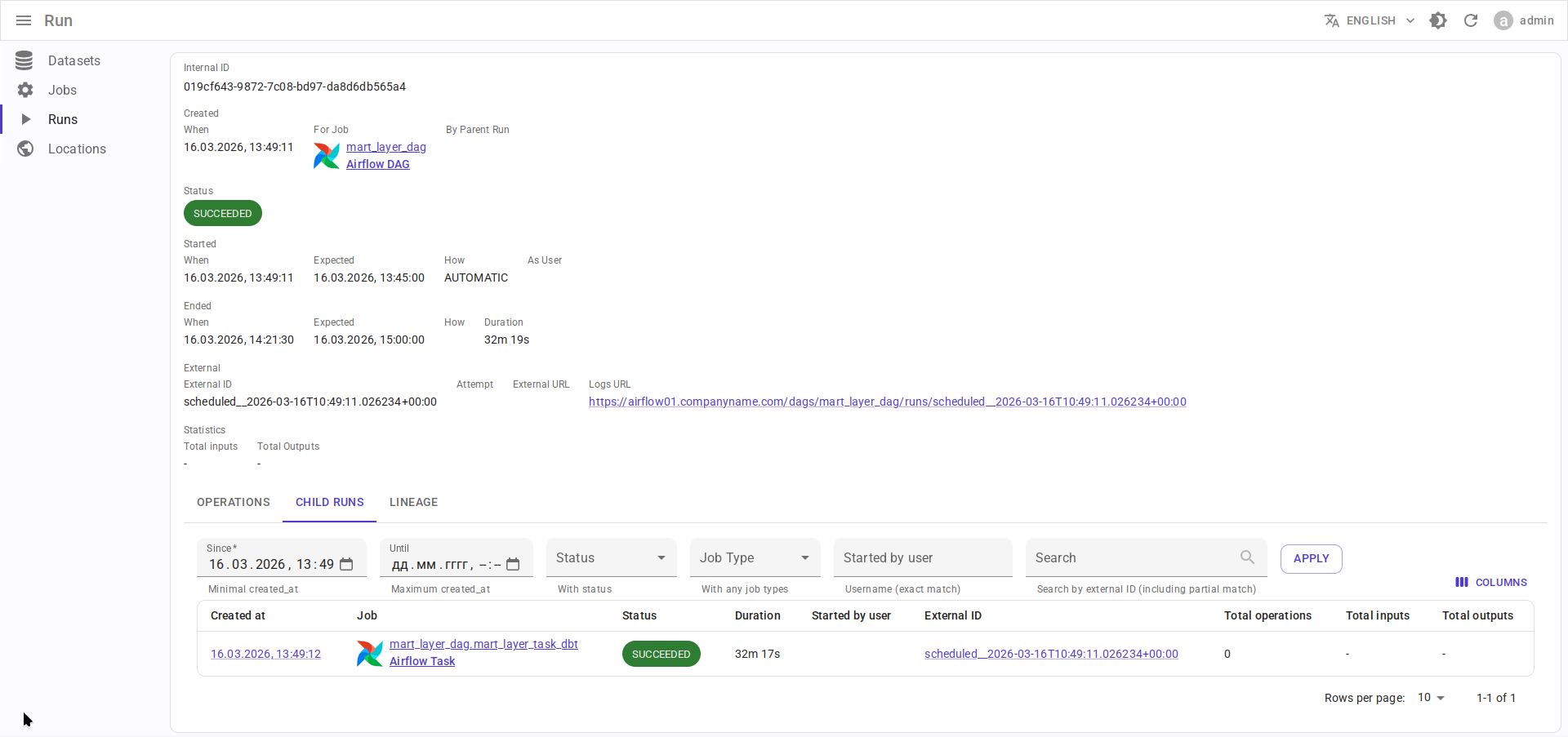

Airflow DagRun

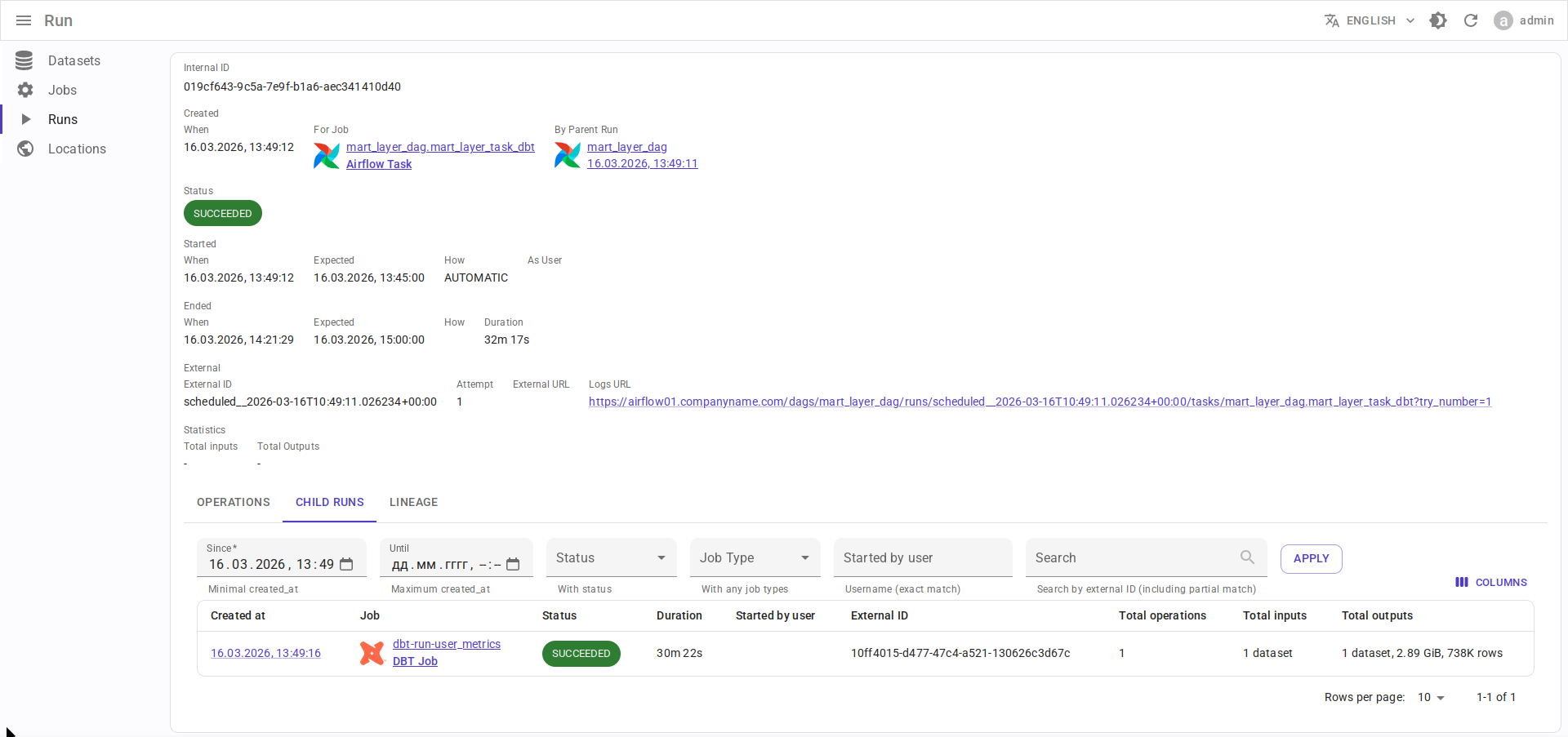

Airflow TaskInstance
