DCT-Autoencoder

A PyTorch-based implementation of a 2D Discrete Cosine Transform (DCT) autoencoder for RGB images.

Overview

dct-autoencoder is a non-trainable, analytically defined autoencoder that reproduces the core ideas behind JPEG compression:

1. Convert RGB to YCbCr to separate luminance from chrominance.
2. Partition each channel into non-overlapping blocks and apply the 2-D DCT via strided convolution.
3. Optionally zero high-frequency coefficients for lossy compression.

The transform is fully differentiable and integrates cleanly into PyTorch pipelines. Encoding is lossless by default; compression is opt-in at construction time.

Project structure

dct-autoencoder/
├── src/dct_autoencoder/       # Package source
│   ├── __init__.py            # Public API exports
│   ├── basis.py               # DCTBasis, get_dct_basis()
│   ├── core.py                # DCTAutoencoder (nn.Module)
│   └── utils.py               # RGB ↔ YCbCr conversions
├── notebooks/
│   ├── quick_start.ipynb      # Minimal getting-started example
│   ├── full_tutorial.ipynb    # In-depth walkthrough
│   ├── visualization.py       # DCT basis-function plotting helpers
│   └── test_images/           # Sample images for notebooks
├── assets/figures/            # Diagrams and figures
├── pyproject.toml
└── README.md

Installation

Requires Python 3.12+.

1. Install PyTorch

Install PyTorch and torchvision first, following the official PyTorch installation guide. Choose the build that matches your hardware (CPU, CUDA, ROCm, etc.).

2. Install this package

Then install dct-autoencoder from PyPI:

pip install dct-autoencoder

PyTorch is required to use DCTAutoencoder but is not bundled so you can pick the correct build for your system.

Development setup

This project uses uv for dependency management:

git clone https://github.com/dariush-bahrami/dct-autoencoder.git
cd dct-autoencoder
uv sync --group dev

Quick start

import torch
from dct_autoencoder import DCTAutoencoder

model = DCTAutoencoder(
    block_size=8,
    num_luminance_compressed_channels=10,   # optional low-pass on Y
    num_chrominance_compressed_channels=5,  # optional low-pass on Cb/Cr
)

# Input: (batch, 3, H, W), values in [0, 1]; H and W must be divisible by block_size
images = torch.rand(1, 3, 256, 256)

encoded = model.encode(images)
compressed = model.compress(encoded)
reconstructed = model.decode(model.decompress(compressed))

Public API

Notebooks

Visualizations

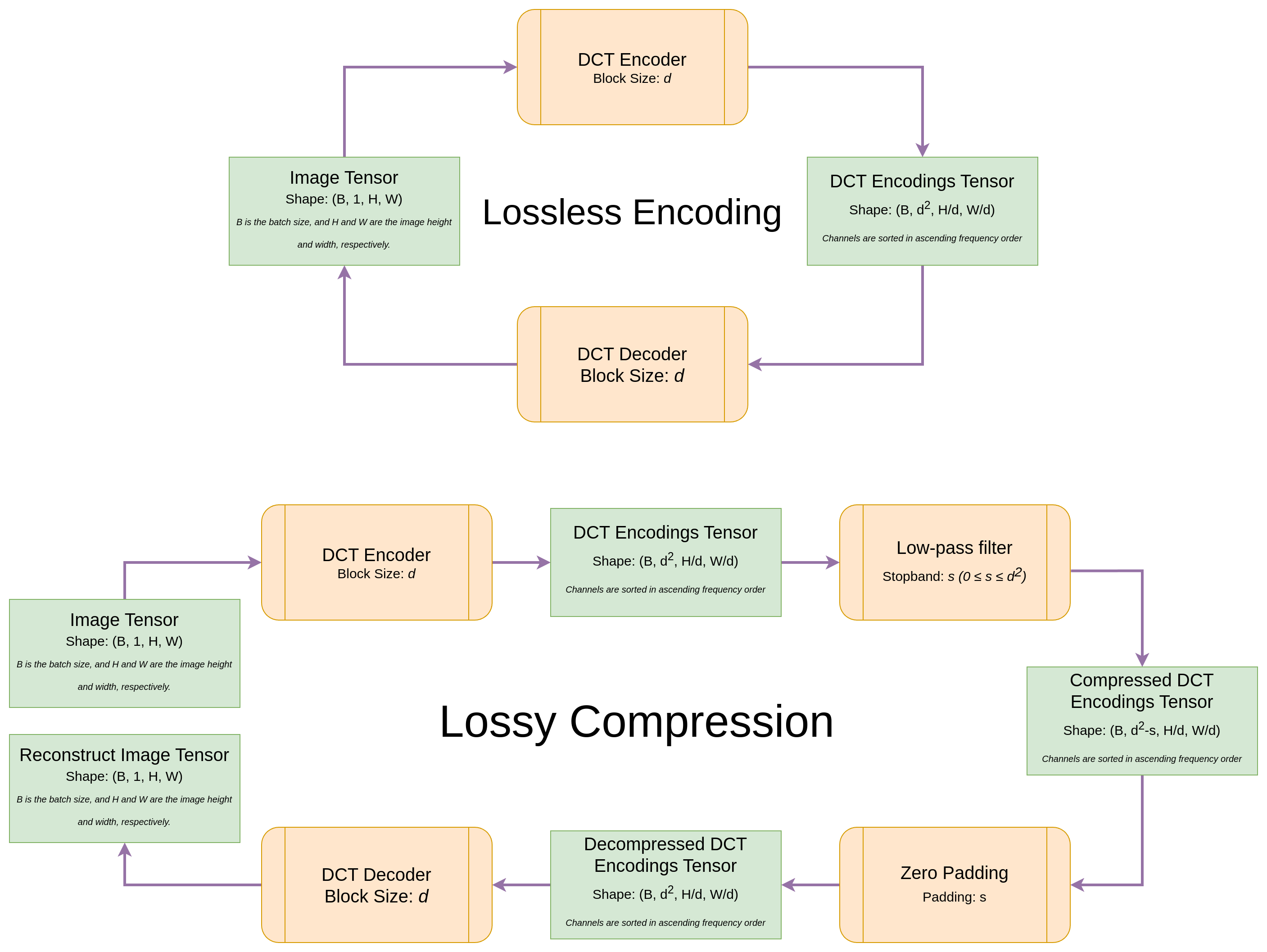

Computation graph

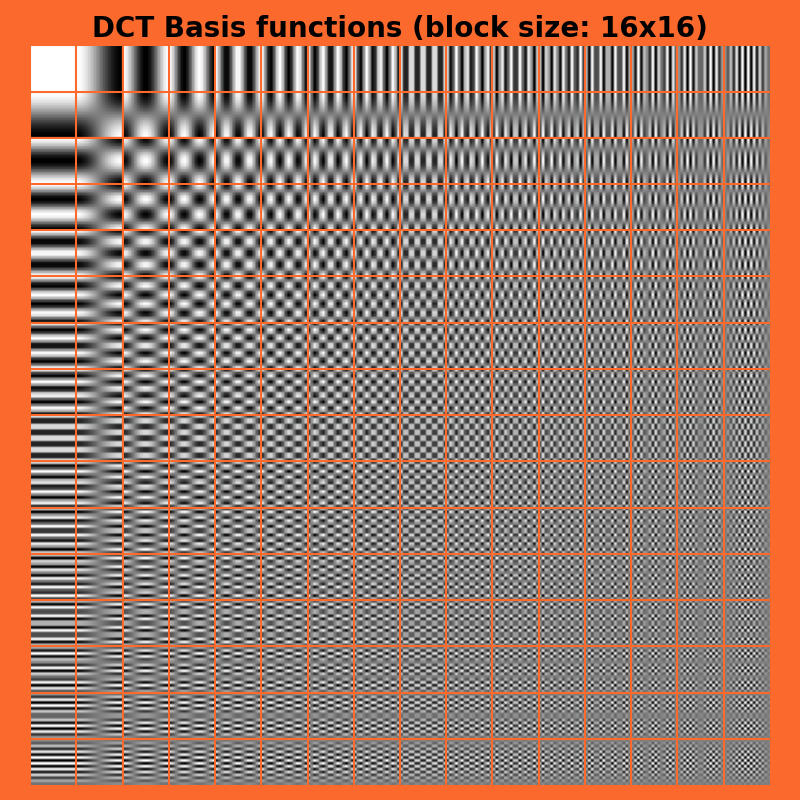

DCT basis functions

DCT basis functions for a block size of 16:

You can regenerate basis-function plots locally with notebooks/visualization.py and get_dct_basis().

License

MIT — see LICENSE.
