DepAtlas

(Originally released as DepGraph — renamed to DepAtlas. The original design doc in docs/SPEC.pdf predates the rename and still uses the old name.)

DepAtlas reads your codebase and builds a living dependency graph across services, teams, and repositories — so blockers surface before they cost you a sprint.

Engineering organizations above a certain size develop an invisible coordination tax: teams block each other without knowing it, status updates are written from memory, and nobody has a system that actually knows what depends on what. DepAtlas reads the code itself — the one source of truth that can't drift out of date — and turns it into a queryable graph, automatically.

Full original design in docs/SPEC.pdf.

Status

v1 core complete. Three language parsers, three code sources, a persisted queryable graph with history and diffing, full ownership resolution, all five spec'd alert types (including signature-level breaking-change detection), and both JSON and DOT export — all covered by 184 passing tests. Some gaps are known and listed in Known limitations.

Quick start

pip install -e ".[dev]"

# Scan a local repo, resolving ownership from CODEOWNERS:
depatlas scan \
  --repo tests/fixtures/sample_repo/payments \
  --services tests/fixtures/payments_services.json \
  --codeowners tests/fixtures/sample_repo/payments/CODEOWNERS

# Query what it found:
depatlas query --service payments-service --direction downstream
depatlas query --team @payments-team

# See what changed since the last scan (run the scan above twice to
# see this produce real output; on a first scan there's nothing yet
# to compare against):
depatlas diff --last 2 --repo tests/fixtures/sample_repo/payments

# Check for cross-team dependencies, breaking changes, and more:
depatlas alerts

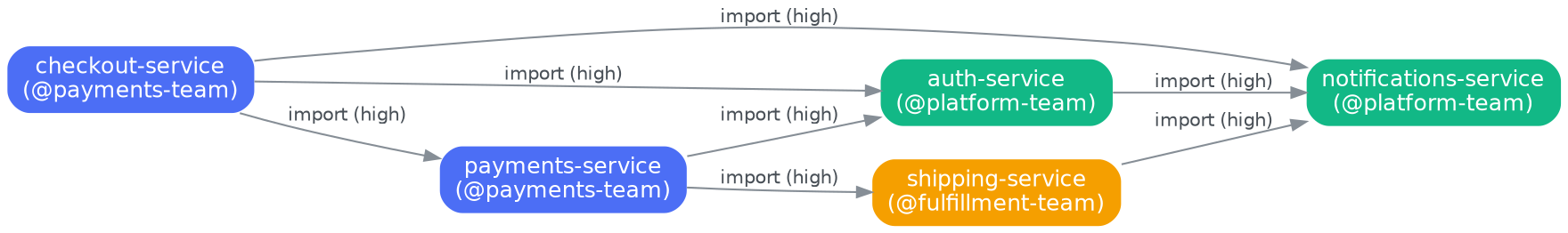

# Export the whole graph:
depatlas export --format dot --output graph.dot

# A repo that mixes languages is still one service -- scan them together:
depatlas scan --repo . --services services.json --language all
#   (or repeat the option: --language java --language javascript;
#    with no --language, languages are detected from file extensions)

# Exit with status 3 if an alert at or above a severity is raised (status 1
# means the tool itself failed). This needs a graph database that persists
# between runs, so it suits a shared database; on a fresh CI runner use
# `depatlas check` instead (see "Using it in CI"):
depatlas scan --repo . --services services.json --fail-on high

The --services file is a small JSON manifest mapping importable module names to service names, plus a special __self__ key naming the service being scanned:

{
  "__self__": "payments-service",
  "auth_client": "auth-service",
  "endpoints": {
    "auth.internal": "auth-service"
  }
}

More usage examples — Java, JS/TS, GitHub, CodeCommit, ownership manifests — are in Full usage below.

CLI reference

Every command supports --help for full option details.

How it works

Language parsers

Each parser walks a real AST (never regex) and extracts dependencies at three confidence levels — high (an explicit, unambiguous signal), medium (a configured endpoint match), and low (a heuristic match) — plus public function/method signatures for breaking-change detection.

• Python (ast): import/from...import statements (high); requests.get/post/etc. calls resolved via an endpoint registry (medium) or name heuristic (low).
• Java (tree-sitter): import statements resolved against known package namespaces (high); @FeignClient annotations, an explicit dependency declaration (high); RestTemplate/WebClient-style calls (medium/low, same scheme as Python).
• JavaScript/TypeScript (esprima): import/require(...) (high); fetch/axios.<method>/got.<method> calls (medium/low); package.json dependencies as shared_library edges (high).

Tests: tests/test_parsers/.

Code sources

depatlas scan takes exactly one of:

• --repo <path> — a local directory.
• --github-repo owner/repo — downloaded via the GitHub REST API's zipball endpoint (no git clone dependency). Requires DEPATLAS_GITHUB_TOKEN.
• --codecommit-repo <name> — needs the optional AWS extra (pip install "depatlas[aws]"); downloaded via boto3, walking the repo tree with get_folder/get_file (CodeCommit has no bulk-download endpoint). Uses the AWS profile in DEPATLAS_AWS_PROFILE, or the default credential chain.

Tests: tests/test_connectors/ (all network/AWS calls mocked — no real credentials needed to run the suite).

Persistence and diffing

Every scan persists to a local SQLite store (default .depatlas/graph.db) and saves an immutable snapshot of that scan's edges. Rescanning a repo replaces its live edges (so the graph always reflects current code) while snapshots accumulate, giving depatlas diff a timeline to compare. Services known only as a dependency (not yet scanned directly) get a placeholder node, filled in once their own repo is scanned.

Tests: tests/test_graph/, tests/test_intelligence/test_diff.py.

Ownership

Resolved in priority order: CODEOWNERS (majority owner across a repo's files, last-matching-rule-wins) → depatlas.yaml manifest fallback (explicit service→team mapping) → unowned.

Tests: tests/test_ownership/.

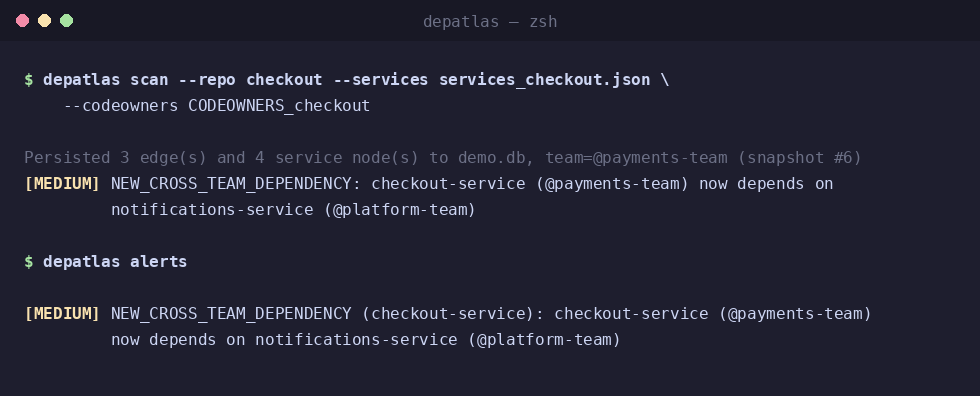

Alerts

All five SPEC.pdf alert types, checked automatically after every scan (--no-alerts to disable) or on demand via depatlas alerts:

• BREAKING_CHANGE (high) — a public function removed, its parameter count changed, or a parameter's type changed at the same position (only when both old and new have a known type) — on a service with at least one known dependent. A pure parameter rename is deliberately not flagged, since most real callers invoke positionally.
• NEW_CROSS_TEAM_DEPENDENCY (medium) — a new edge crossing a team boundary.
• HIGH_FAN_IN (medium) — a service's distinct dependent count crosses a threshold (default 10).
• ORPHANED_SERVICE (low) — no dependents and no dependencies.
• UNOWNED_SERVICE (low) — no resolved team.

Tests: tests/test_intelligence/test_alerts.py.

Using it in CI

A fresh CI runner has no stored history and has only your repo, so scan

• alerts cannot see what changed or who depends on you. depatlas check does the before/after comparison in one run, with no database:

depatlas check --base origin/main --services services.json \
  --graph org-graph.json --fail-on high

It finds the merge-base of --base and HEAD, scans that commit and your working tree, and reports BREAKING_CHANGE and NEW_CROSS_TEAM_DEPENDENCY for what changed. org-graph.json is the output of depatlas export --format json, produced by a scheduled job that scans every repo; it supplies the teams and the services that depend on you (which one repo cannot know). Without --graph the check still runs but says that no alert can fire. Exit status: 0 clean, 3 an alert reached --fail-on, 1 the check could not run. --repo can point at a subfolder of a monorepo.

# .github/workflows/depatlas.yml
on: pull_request
jobs:
  depatlas:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
        with: { fetch-depth: 0 }   # check needs history to find the merge-base
      - uses: actions/setup-python@v5
        with: { python-version: "3.12" }
      - run: pip install depatlas
      - run: depatlas check --base origin/${{ github.base_ref }} --services services.json --graph org-graph.json --fail-on high

The point-in-time alerts (HIGH_FAN_IN, ORPHANED_SERVICE, UNOWNED_SERVICE) describe the whole graph rather than a change, so they stay in depatlas alerts.

Full usage

# Scan a Java repo:
depatlas scan \
  --repo tests/fixtures/sample_repo_java/payments \
  --services tests/fixtures/payments_services_java.json \
  --language java

# Scan a JS/TS repo:
depatlas scan \
  --repo tests/fixtures/sample_repo_js/payments \
  --services tests/fixtures/payments_services_js.json \
  --language javascript

# Scan a real GitHub repo (requires DEPATLAS_GITHUB_TOKEN):
depatlas scan \
  --github-repo sshafeeq84/DepAtlas \
  --services tests/fixtures/payments_services.json

# Scan a real AWS CodeCommit repo (requires an AWS profile):
depatlas scan \
  --codecommit-repo my-payments-repo \
  --region us-east-1 \
  --services tests/fixtures/payments_services.json

# Resolve ownership from a depatlas.yaml manifest instead of CODEOWNERS:
depatlas scan \
  --repo tests/fixtures/sample_repo/payments \
  --services tests/fixtures/payments_services.json \
  --ownership-manifest tests/fixtures/depatlas.yaml

# List and diff snapshots explicitly:
depatlas snapshots --repo tests/fixtures/sample_repo/payments
depatlas diff --from 1 --to 2

# Filter alerts by severity:
depatlas alerts --severity medium

Tried on a real project

Run against the Java services of Spring PetClinic Microservices (one depatlas scan per service, with a small services/endpoints JSON):

DepAtlas found the API gateway's calls to the customers and visits services (Spring WebClient) and the GenAI service's call to the vets service. Running it on a real project also exposed bugs that the unit tests had missed (a crash on modern Java syntax and undetected WebClient calls), which are now fixed and covered by tests.

Known limitations

Known gaps, documented in the relevant modules and in docs/CONTRIBUTING.md:

• Full TypeScript syntax — esprima parses JavaScript, not TypeScript-specific syntax (type annotations, interfaces). A .ts file using real TS syntax is skipped with a warning, not crashed on. Moving the JS/TS parser to tree-sitter (as Java already uses) would fix this.

• Python signature rules — a parameter's kind (keyword-only, default value, *args/**kwargs) is not modelled yet, so adding an optional parameter can be flagged as breaking, and a keyword-argument rename is not flagged.

• Dependents of a breaking change — every dependent is counted, not only those that import the changed code (HTTP callers depend on routes, which are not extracted yet).

• Service manifest — --services must be written by hand; inferring module-to-service mappings is not built.

• CI graph — depatlas check needs the org-wide graph file from somewhere: a scheduled job that scans every repo and runs depatlas export. DepAtlas does not run that job for you, and the file is only as fresh as its last run. scan --fail-on still needs a database that persists between runs.

• HTTP calls that name no service — only the hostname of an absolute URL is matched against service names. Calls routed through a gateway (https://api.company.com/payments/...) or made through a base-URL client (webClient.uri("/owners")) need endpoints entries in the manifest.

• Test code — edges found in test files are stored and tagged (from_test) but ignored by alerts.

• Not built yet: boto3/grpc call detection, Maven/Gradle shared-library detection, and the watch and init commands.

• The CodeCommit connector is tested against a mocked AWS API but has not been exercised against a real AWS account.

Running tests

pytest tests/ -v

Repository structure

depatlas/
├── depatlas/
│   ├── cli/            # CLI entry point (click)
│   ├── connectors/       # GitHub, AWS CodeCommit
│   ├── parsers/          # python_parser (ast), java_parser (tree-sitter),
│   │                       js_ts_parser (esprima)
│   ├── graph/             # Models, graph builder, SQLite store
│   ├── ownership/          # CODEOWNERS + depatlas.yaml manifest
│   ├── intelligence/        # Diff engine, alerts
│   └── output/                # JSON and DOT exporters
├── tests/                       # Mirrors the structure above, 1:1
├── docs/
│   ├── SPEC.pdf                  # Original v0.1 spec
│   └── CONTRIBUTING.md
└── pyproject.toml

Contributing

See docs/CONTRIBUTING.md for setup, testing conventions, and known scope boundaries.
