dianna 1.5.0

Deep Insight And Neural Network Analysis

Deep Insight And Neural Network Analysis

DIANNA is a Python package that brings explainable AI (XAI) to your research project. It wraps carefully selected XAI methods in a simple, uniform interface. It's built by, with and for (academic) researchers and research software engineers working on machine learning projects.

Why DIANNA?

DIANNA software is addressing needs of both (X)AI researchers and mostly the various domains scientists who are using or will use AI models for their research without being experts in (X)AI. DIANNA is future-proof: one of the very few XAI library supporting the Open Neural Network Exchange (ONNX) format.

After studying the vast XAI landscape we have made choices in the parts of the XAI Taxonomy on which methods, data modalities and problems types to focus. Our choices, based on the largest usage in scientific literature, are shown graphically in the XAI taxonomy below:

The key points of DIANNA:

• Provides an easy-to-use interface for non (X)AI experts
• Implements well-known XAI methods (LIME, RISE and Kernal SHAP) chosen by systematic and objective evaluation criteria
• Supports the de-facto standard format for neural network models - ONNX.
• Includes clear instructions for export/conversions from Tensorflow, Pytorch, Keras and scikit-learn to ONNX.
• Supports images, text and time series data modalities. Tabular data and even embeddings support is planned.
• Comes with simple intuitive image and text benchmarks
• Easily extendable to other XAI methods

For more information on the unique strengths of DIANNA with comparison to other tools, please see the context landscape.

Installation

DIANNA can be installed from PyPI using pip on any of the supported Python versions (see badge):

python3 -m pip install dianna

To install the most recent development version directly from the GitHub repository run:

python3 -m pip install git+https://github.com/dianna-ai/dianna.git

If you get an error related to OpenMP when importing dianna, have a look at this issue for possible workarounds.

Pre-requisites only for Macbook Pro with M1 Pro chip users

• To install TensorFlow you can follow this tutorial.
• To install TensorFlow Addons you can follow these steps. For further reading see this issue. Note that this temporary solution works only for macOS versions >= 12.0. Note that this step may have changed already, see https://github.com/dianna-ai/dianna/issues/245.
• Before installing DIANNA, comment tensorflow requirement in setup.cfg file (tensorflow package for M1 is called tensorflow-macos).

Getting started

You need:

• your trained ONNX model (convert my pytorch/tensorflow/keras/scikit-learn model to ONNX)
• 1 data item to be explained

You get:

• a relevance map overlayed over the data item

In the library's documentation, the general usage is explained in How to use DIANNA

Demo movie

Text example:

model_path = 'your_model.onnx'  # model trained on text
text = 'The movie started great but the ending is boring and unoriginal.'

Which of your model's classes do you want an explanation for?

labels = [positive_class, negative_class]

Run using the XAI method of your choice, for example LIME:

explanation = dianna.explain_text(model_path, text, 'LIME')
dianna.visualization.highlight_text(explanation[labels.index(positive_class)], text)

Image example:

model_path = 'your_model.onnx'  # model trained on images
image = PIL.Image.open('your_image.jpeg')

Tell us what label refers to the channels, or colors, in the image.

axis_labels = {0: 'channels'}

Which of your model's classes do you want an explanation for?

labels = [class_a, class_b]

Run using the XAI method of your choice, for example RISE:

explanation = dianna.explain_image(model_path, image, 'RISE', axis_labels=axis_labels, labels=labels)
dianna.visualization.plot_image(explanation[labels.index(class_a)], original_data=image)

Time-series example:

model_path = 'your_model.onnx'  # model trained on images
timeseries_instance = pd.read_csv('your_data_instance.csv').astype(float)

num_features = len(timeseries_instance)  # The number of features to include in the explanation.
num_samples = 500  # The number of samples to generate for the LIME explainer.

Which of your model's classes do you want an explanation for?

class_names= [class_a, class_b] # String representation of the different classes of interest
labels = np.argsort(class_names) # Numerical representation of the different classes of interest for the model

Run using the XAI method of your choice, for example LIME with the following additional arguments:

explanation = dianna.explain_timeseries(model_path, timeseries_data=timeseries_instance , method='LIME',
					labels=labels, class_names=class_names, num_features=num_features,
                                	num_samples=num_samples, distance_method='cosine')

For visualization of the heatmap please refer to the tutorial

Tabular example:

model_path = 'your_model.onnx'  # model trained on tabular data
tabular_instance = pd.read_csv('your_data_instance.csv')

Run using the XAI method of your choice. Note that you need to specify the mode, either regression or classification. This case, for instance a regression task using KernelSHAP with the following additional arguments:

explanation = dianna.explain_tabular(run_model, input_tabular=data_instance, method='kernelshap',
                                     mode ='regression', training_data = X_train,
                                     training_data_kmeans = 5, feature_names=input_features.columns)
plot_tabular(explanation, X_test.columns, num_features=10)  # display 10 most salient features

IMPORTANT: Sensitivity to hyperparameters

The XAI methods (explainers) are sensitive to the choice of their hyperparameters! In this work, this sensitivity to hyperparameters is researched and useful conclusions are drawn. The default hyperparameters used in DIANNA for each explainer as well as the values for our tutorial examples are given in the Tutorials README.

Dashboard

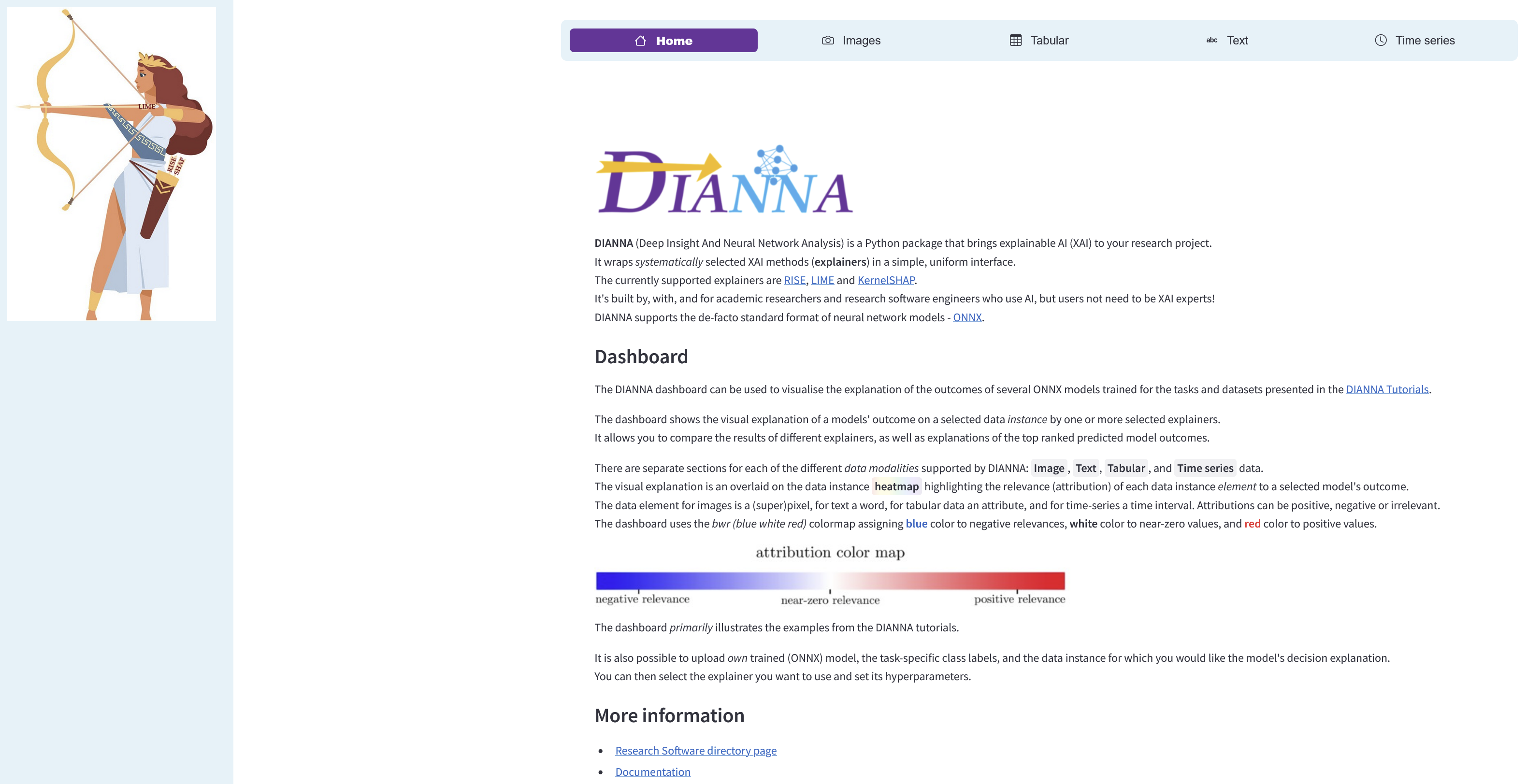

Explore the explanations of your trained model using the DIANNA dashboard (for now images, text and time series classification is supported). Click here for more information.

Datasets

DIANNA comes with simple datasets. Their main goal is to provide intuitive insight into the working of the XAI methods. They can be used as benchmarks for evaluation and comparison of existing and new XAI methods.

Images

Dataset	Description	Examples	Generation
Binary MNIST	Greyscale images of the digits "1" and "0" - a 2-class subset from the famousMNIST dataset for handwritten digit classification.		Binary MNIST dataset generation
Simple Geometric (circles and triangles)	Images of circles and triangles for 2-class geometric shape classificaiton. The shapes of varying size and orientation and the background have varying uniform gray levels.		Simple geometric shapes dataset generation
Simple Scientific (LeafSnap30)	Color images of tree leaves - a 30-class post-processed subset from the LeafSnap dataset for automatic identification of North American tree species.		LeafSnap30 dataset generation

Text

Dataset	Description	Examples	Generation
Stanford sentiment treebank	Dataset for predicting the sentiment, positive or negative, of movie reviews.	This movie was actually neither that funny, nor super witty.	Sentiment treebank

Time series

Dataset	Description	Examples	Generation

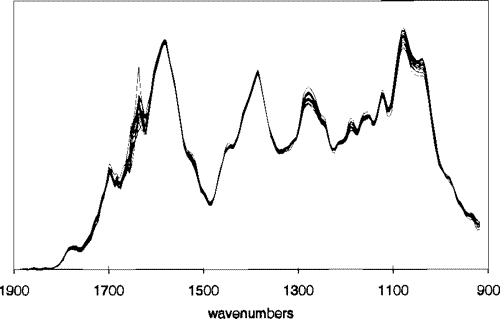

Coffee dataset	Food spectographs time series dataset for a two class problem to distinguish between Robusta and Arabica coffee beans.		data source

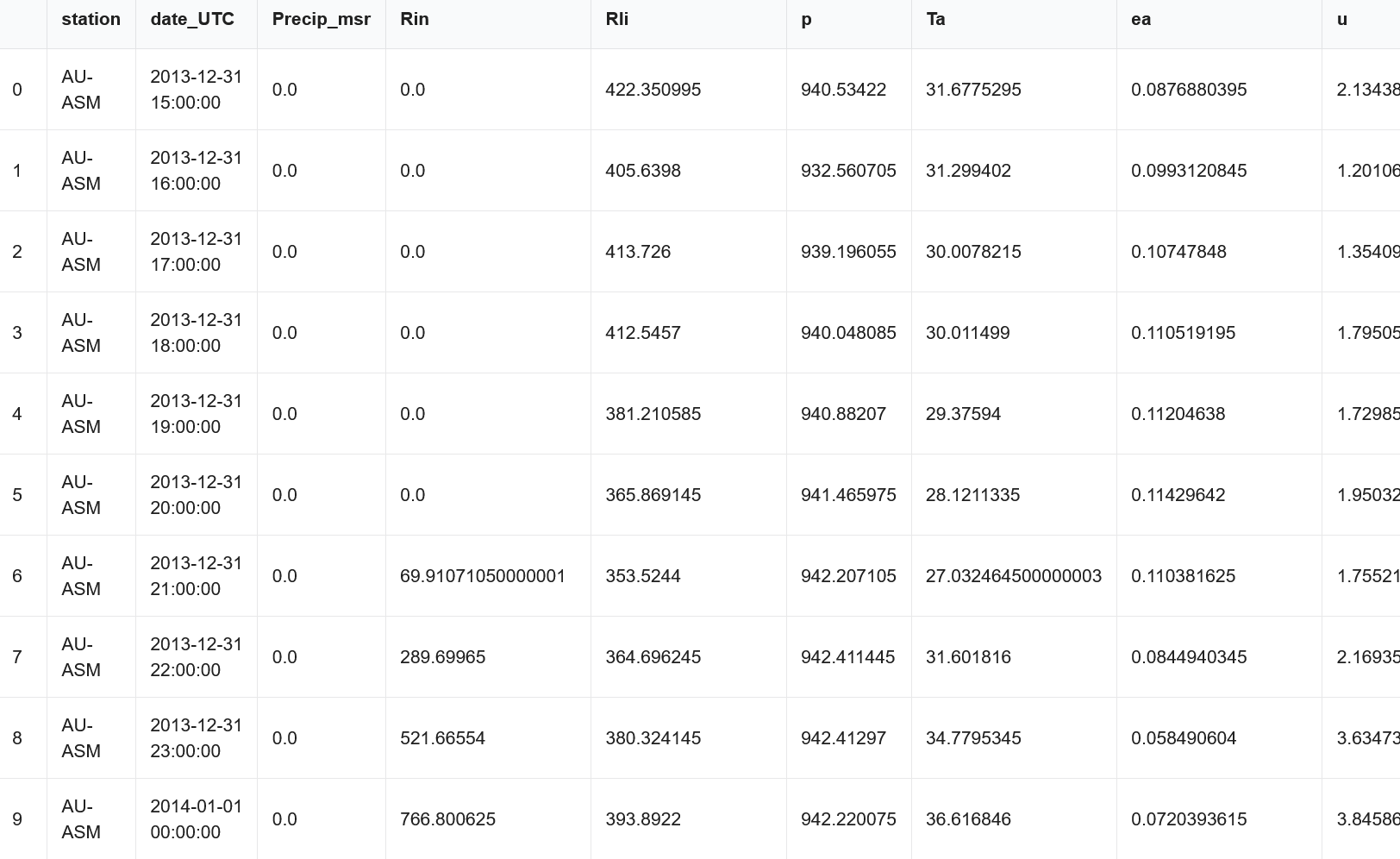

Weather dataset	The light version of the weather prediciton dataset, which contains daily observations (89 features) for 11 European locations through the years 2000 to 2010.		data source

Tabular

Dataset	Description	Examples	Generation
Pengiun dataset	Palmer Archipelago (Antarctica) penguin dataset is a great intro dataset for data exploration & visualization similar to the famous Iris dataset.		data source
Weather dataset	The light version of the weather prediciton dataset, which contains daily observations (89 features) for 11 European locations through the years 2000 to 2010.		data source

ONNX models

We work with ONNX! ONNX is a great unified neural network standard which can be used to boost reproducible science. Using ONNX for your model also gives you a boost in performance! In case your models are still in another popular DNN (deep neural network) format, here are some simple recipes to convert them:

• pytorch and pytorch-lightning - use the built-in torch.onnx.export function to convert pytorch models to onnx, or call the built-in to_onnx function on your LightningModule to export pytorch-lightning models to onnx.
• tensorflow - use the tf2onnx package to convert tensorflow models to onnx.
• keras - same as the conversion from tensorflow to onnx, the tf2onnx package also supports keras.
• scikit-learn - use the skl2onnx package to scikit-learn models to onnx.

More converters with examples and tutorials can be found on the ONNX tutorial page.

And here are links to notebooks showing how we created our models on the benchmark datasets:

Images

Models	Generation
Binary MNIST model	Binary MNIST model generation
Simple Geometric model	Simple geometric shapes model generation
Simple Scientific model	LeafSnap30 model generation

Text

Models	Generation
Movie reviews model	Stanford sentiment treebank model generation

Time series

Models	Generation
Coffee model	Coffee model generation
Season prediction model	Season prediction model generation
Fast Radio Burst classification model	Fast Radio Burst classification model generation

Tabular

Models	Generation
Penguin model (classification)	Penguin model generation
Sunshine hours prediction model (regression)	Sunshine hours prediction model generation

We envision the birth of the ONNX Scientific models zoo soon...

Tutorials

DIANNA supports different data modalities and XAI methods (explainers). We have evaluated many explainers using objective criteria (see the How to find your AI explainer blog-post). The table below contains links to the relevant XAI method's papers (for some explanatory videos on the methods, please see tutorials). The DIANNA tutorials cover each supported method and data modality on a least one dataset using the default or tuned hyperparameters. Our plans to expand DIANNA with more data modalities and explainers are given in the ROADMAP.

Data \ XAI	RISE	LIME	KernelSHAP
Images	✅	✅	✅
Text	✅	✅
Timeseries	✅	✅
Tabular	planned	✅	✅
Embedding	planned	planned	planned
Graphs*	work in progress	work in progress	work in progress

LRP and PatternAttribution also feature in the top 5 of our thoroughly evaluated explainers. Contributing by adding these and more (new) post-hoc explainability methods on ONNX models is very welcome!

Reference documentation

For detailed information on using specific DIANNA functions, please visit the documentation page hosted at Readthedocs.

Contributing

If you want to contribute to the development of DIANNA, have a look at the contribution guidelines. See our developer documentation for information on developer installation, running tests, generating documentation, versioning and making a release.

How to cite us

If you use this package for your scientific work, please consider citing directly the software as:

Ranguelova, E., Bos, P., Liu, Y., Meijer, C., Oostrum, L., Crocioni, G., Ootes, L., Chandramouli, P., Jansen, A., Smeets, S. (2023). dianna (*[VERSION YOU USED]*). Zenodo. https://zenodo.org/record/5592606

or the JOSS paper as:

Ranguelova et al., (2022). DIANNA: Deep Insight And Neural Network Analysis. Journal of Open Source Software, 7(80), 4493, https://doi.org/10.21105/joss.04493

See also the Zenodo page or the JOSS page for exporting the software citation to BibTteX and other formats.

Credits

This package was created with Cookiecutter and the NLeSC/python-template.
