dicom-ai-router

Get imaging AI into a live radiology workflow and back out again, without leaking PHI or slowing the scanner.

A working reference implementation of the part of clinical AI that usually breaks: the plumbing between the modality, the AI model and PACS. It receives studies over DICOM, routes them by header rules, de-identifies them, calls a model, rebuilds the answer as DICOM inside the patient's original study, and delivers it to PACS. Every hop is audited.

flowchart LR
    CT["CT scanner<br/>(C-STORE)"] -->|DICOM :11112| R
    subgraph R["AIROUTER"]
      direction TB
      RX["receive &amp; ack<br/>immediately"] --> Q["study-complete<br/>quiet timer"] --> RU["routing rules<br/>(YAML)"]
      RU --> DI["de-identify<br/>PS3.15 subset"] --> RE["re-identify via<br/>local crosswalk"] --> B["build SR +<br/>key image"]
    end
    DI -->|"HTTP, de-identified"| AI["AI model"]
    AI -->|"findings JSON"| RE
    B -->|DICOM C-STORE| PACS["PACS<br/>(Orthanc / mini-PACS)"]
    RU -.->|no rule matched| X["IGNORED<br/>nothing leaves"]

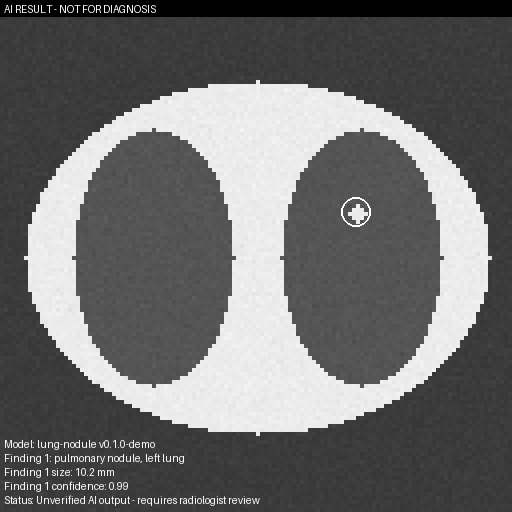

Key image as it lands in PACS: the finding is circled, "NOT FOR DIAGNOSIS" is burned in, and the image sits in the real patient's study. The model itself only ever saw pseudonymous UIDs.

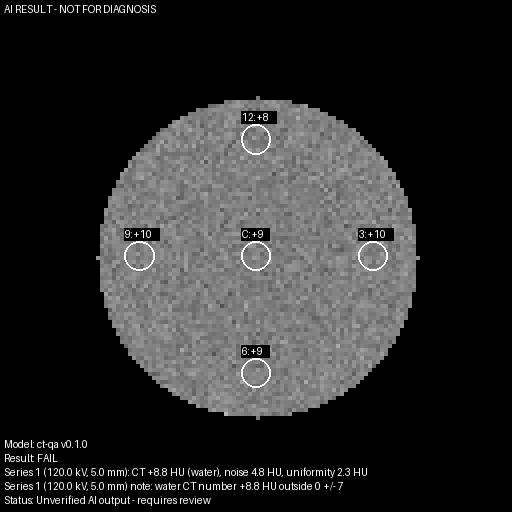

A daily-QA phantom with a +9 HU CT-number drift: five ROIs, a FAIL verdict and the reason, returned to PACS as a key image and SR.

Run it (about 2 minutes)

Requires Python 3.11+.

git clone https://github.com/seth2177/dicom-ai-router && cd dicom-ai-router
python -m pip install -r requirements.txt        # Windows: py -3.12 -m pip install -r requirements.txt
python run_demo.py                               # Windows: py -3.12 run_demo.py

That one command starts a mini-PACS, the model server and the router. A synthetic CT scanner then sends a mix of chest CTs, head CTs and daily-QA water phantoms (some with injected CT-number drift or cupping):

  patient            truth                router   AI said                                            PACS got
  QA^DAILY           QA FAIL (+9/2)       DONE     FAIL; CT +8.8 HU (water), noise 4.8 HU, uniformity OT,SR
  SYNTHETIC^CARLOS   8mm right GGO        DONE     no finding                                         OT,SR
  SAMPLE^CARLOS      18mm left            DONE     pulmonary nodule, left lung; 17.2 mm; 0.99         OT,SR
  TESTCASE^JANE      head CT              IGNORED  no routing rule matched                            -
  TESTCASE^ROBERT    14mm left GGO        DONE     no finding                                         OT,SR
  ...
  AI round-trip: median 175 ms over 11 studies

Phantoms go to ct-qa and chests go to the nodule model; the head CT matches no rule and never leaves the router. The nodule misses are on purpose. The mock model can't see ground-glass nodules and under-measures some solid ones, and because every study carries ground truth, those errors can be measured (see Next stages).

Other things to try:

python run_demo.py --fail-rate 0.4     # flaky AI endpoint: watch retries with backoff keep studies flowing
python -m airouter status              # state of every study (after a demo run)
python -m pip install -r requirements-dev.txt && python -m pytest -q
                                       # PHI + site scrub, audit incl. negative control, receiver security,
                                       # SR structure, QA model, routing, end to end over real DICOM networking
docker compose up --build              # router + mock AI + Orthanc PACS at http://localhost:8042 (set AIROUTER_DEID_SALT first)

What it handles, and why

Walkthrough of every hop: docs/HOW-IT-WORKS.md

Layout

airouter/          the router: receive, route, de-identify, infer, build results, send, audit
                   site_scrub.py + phi_audit.py: publish-grade site scrub and its independent audit
airouter/mock_ai/  model server: lung-nodule (explainable stand-in) and ct-qa (real phantom QA measurement)
airouter/tools/    synthetic CT scanner and mini-PACS
config/            router.yaml: AE titles, ports, endpoints, rules, de-id salt
tests/             unit and end-to-end tests over real DICOM networking on localhost
run_demo.py        the whole pipeline in one command

Next stages

llm-eval-radiology. Every processed study leaves data/results/<uid>.json (what the AI said) next to data/truth/<uid>.json (what was really there). Stage 2 adds an LLM that drafts a report impression from the findings, then scores both layers against ground truth:

• Detector: sensitivity and specificity by size and density, laterality errors, measurement error
• LLM report: hallucinated or omitted findings, flipped laterality, altered measurements, missing follow-up language

hl7v2-fhir-bridge. The orders and reports around those studies still travel as HL7 v2. The bridge turns the radiology feed (ADT, ORM/OMI, ORU) into FHIR R4, so the order, the report and the imaging study the router worked on end up as linked FHIR resources.

Running the router for real

export AIROUTER_DEID_SALT=$(python -c "import secrets; print(secrets.token_hex(32))")   # keep this secret, and stable
python -m airouter serve --config config/router.yaml

Windows PowerShell:

$env:AIROUTER_DEID_SALT = py -3.12 -c "import secrets; print(secrets.token_hex(32))"
py -3.12 -m airouter serve --config config/router.yaml

The demo generates a throwaway salt on every run. The service refuses to start without a real one.

Quality

• The test suite runs in CI on Linux and Windows, Python 3.11 and 3.12, plus ruff.
• Every SR and Secondary Capture the router produces validates against the DICOM standard (2026d IOD definitions, dicom-validator).
• Adversarial testing, including attacking my own scrubber and audit, found real problems: a default salt that made pseudonyms reversible, a multi-valued name that leaked past the audit, person names nested in sequences reaching the model, a path traversal in the receiver, SR evidence grouped wrongly for multi-series studies, and a dose SR that could stop a study being routed. Each is fixed and has a regression test that fails on the old code (tests/test_security.py). Known limits are listed under Scope and safety.

Scope and safety

Known limits: the de-identification is a documented subset of PS3.15, not a certified profile. It retains study and series descriptions, which are pattern-scrubbed. Pixel data is never altered, so burned-in images are dropped. The model transport is multipart/form-data, not STOW-RS. A revised result (after late images) is a new instance in the same series; the SR does not yet reference its predecessor (PredecessorDocumentsSequence).

This is a demonstration and reference build, not a medical device. All patients, identifiers and images in the repo are synthetic. The de-identification covers a documented subset of the standard and does not alter pixel data. Don't point it at production PHI without a formal review.

Built by Seth Turnbo: 23 years on MRI/CT (GE, Philips, Siemens), multi-vendor DICOM/HL7/PACS integration. LinkedIn
