Diffinite

Forensic source-code comparison tool for IP litigation and code audit.

Diffinite compares two directories of source code and produces professional PDF/HTML reports with syntax-highlighted side-by-side diffs. It uses Winnowing fingerprints (Schleimer et al., 2003 — the algorithm behind Stanford MOSS) for N:M cross-matching to detect code reuse even across renamed, split, or merged files.

Design Principle: Diffinite reports how similar and where similar. It does not classify the type of copying — that is the expert witness's job.

---

VS Code Extension

The recommended way to use Diffinite is through the VS Code extension, which bundles an embedded Python runtime — no separate Python installation required.

Features

• Visual directory picker — Select two directories and configure options via a GUI panel
• Real-time progress bar — Live percentage tracking during analysis
• Pre-analysis time estimation — Scans file sizes upfront and estimates Simple/Deep mode duration
• Dynamic CPU calibration — Benchmarks Phase 1 performance to refine Phase 2 time predictions
• OOM defense — Warns before analyzing file pairs exceeding 5MB
• Interactive tree viewer — Review matched pairs and selectively export
• One-click PDF/HTML export — With Bates numbering, page numbers, and filename annotations

Install from Source

cd vscode-extension
npm install
npm run compile
# Press F5 in VS Code to launch Extension Development Host

---

CLI Installation

pip install diffinite

Or from source:

git clone https://github.com/nash-dir/diffinite.git
cd diffinite
pip install -e ".[dev]"

Requirements: Python ≥ 3.10

Dependencies: RapidFuzz, Pygments, xhtml2pdf, pypdf, reportlab, charset-normalizer

---

Quick Start

# Compare two directories → PDF report
diffinite original/ suspect/ -o report.pdf

# With comment stripping and Bates numbering (forensic use)
diffinite original/ suspect/ -o report.pdf \
    --strip-comments --bates-number --page-number --filename

# HTML report (single self-contained file, opens in browser)
diffinite original/ suspect/ --report-html report.html

---

How It Works

Diffinite runs a two-stage pipeline:

Stage 1: 1:1 File Matching (simple mode)

1. Fuzzy name matching — Pairs files across dir_a and dir_b using RapidFuzz string similarity (configurable threshold).
2. Comment stripping — Optionally removes comments using a 5-state finite state machine parser supporting 30+ file extensions.
3. Side-by-side diff — Computes line-by-line (or word-by-word) diffs using Python's difflib.SequenceMatcher with autojunk=True for O(n) performance on large files.
4. Report generation — Renders syntax-highlighted HTML diffs via Pygments, then converts to PDF with xhtml2pdf.

Stage 2: N:M Cross-Matching (deep mode, default)

5. Winnowing fingerprint extraction — Extracts position-independent code fingerprints using the Winnowing algorithm (K-gram → rolling hash → window selection).
6. Inverted index construction — Builds a hash-to-file mapping for all B-directory fingerprints.
7. Jaccard similarity computation — For each A-file, queries the index to find all B-files sharing fingerprints, then computes Jaccard similarity |A∩B| / |A∪B|.
8. Cross-match reporting — Appends an N:M similarity matrix to the report, showing which files from A are similar to which files in B.

---

Output Report

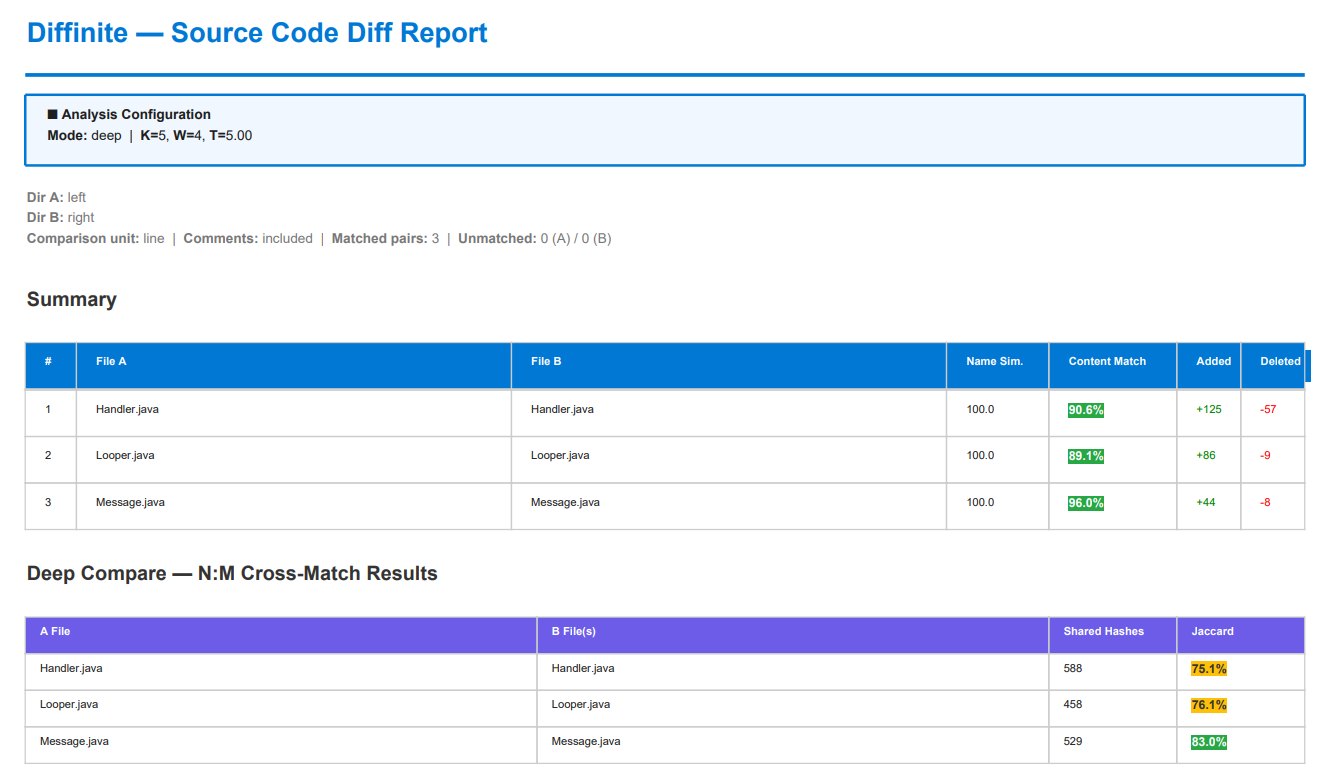

Cover Page

The cover page contains a summary table for each matched file pair:

Column	Description
File A / File B	Matched file paths
Name Sim.	Fuzzy filename similarity score (0–100)
Content Match	difflib.SequenceMatcher.ratio() — proportion of matching content. 1.0 = identical.
Added / Deleted	Number of lines (or words) added to or deleted from File A to produce File B.

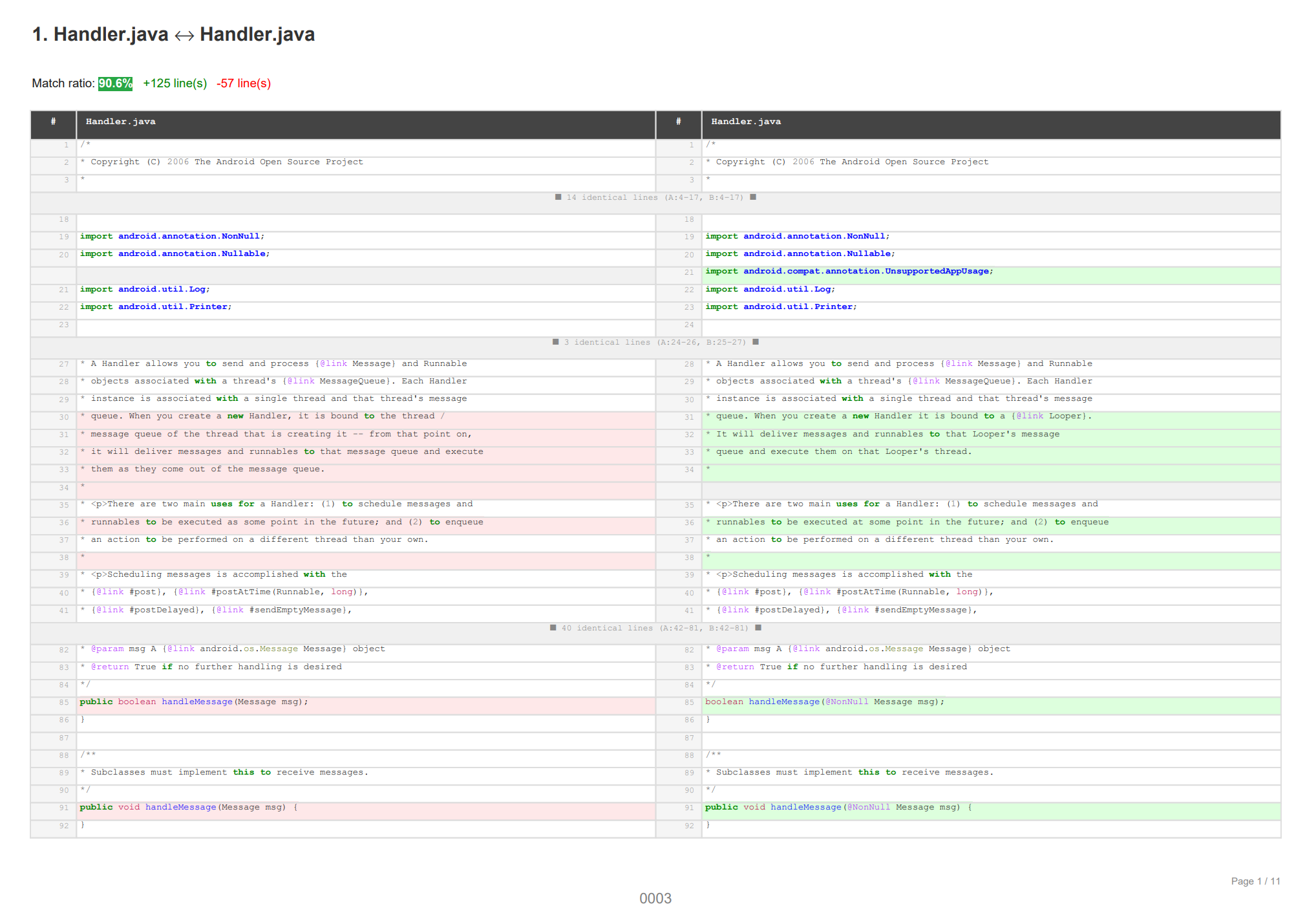

Diff Pages

Each matched pair gets a side-by-side diff page with:

• Green highlight — Lines present only in File B (additions)
• Red highlight — Lines present only in File A (deletions)
• Yellow highlight — Lines changed between A and B (word-level diff in --by-word mode)
• Purple highlight — Lines moved from this position (--detect-moved)
• Blue highlight — Lines moved to this position (--detect-moved)
• No highlight — Identical lines (with configurable context folding)

Deep Compare Section

When running in deep mode (default), the report includes an N:M cross-matching table:

Column	Description
File A	Source file from directory A
Matched Files (B)	All files from directory B that share fingerprints above the Jaccard threshold
Jaccard	`

Jaccard similarity is a well-defined set metric. Its interpretation depends on the domain, code size, and language. Diffinite reports the raw value without attaching qualitative labels.

Page Annotations

Option	Annotation	Position
--page-number	Page 3 / 47	Bottom-right
--file-number	File 2 / 12	Bottom-left
--bates-number	TEST-000003-CONF	Bottom-center
--filename	com/example/Foo.java	Top-right

---

CLI Reference

Positional Arguments

dir_a    Path to the original source directory (A)
dir_b    Path to the comparison source directory (B)

Execution Mode

Option	Default	Description
--mode {simple,deep}	deep	simple = 1:1 file matching only. deep = 1:1 + N:M Winnowing cross-matching.

Output Options

Option	Description
-o, --output-pdf PATH	Output PDF path (default: report.pdf). Ignored when --report-* is specified.
--report-pdf PATH	Generate merged PDF report
--report-html PATH	Generate standalone HTML report (single file, no external deps)
--report-md PATH	Generate Markdown summary report
--report-json PATH	Generate machine-readable JSON report (used by VS Code extension)
--no-merge	Generate individual PDFs per file instead of one merged PDF
--preserve-tree / --no-preserve-tree	Preserve directory tree structure in individual output (default: on)

Diff Options

Option	Default	Description
--strip-comments	off	Strip comments before comparison (5-state FSM parser, 30+ extensions)
--by-word	off	Compare by word instead of by line
--squash-blanks	off	Collapse runs of 3+ blank lines. ⚠️ Changes line numbers — not recommended for forensic line-tracing.
--threshold N	60	Fuzzy file-name matching threshold (0–100). Lower = more aggressive matching.
--collapse-identical	off	Fold unchanged code blocks (3 context lines around each change)
--detect-moved	off	Detect moved code blocks and highlight with distinct colors
--encoding ENC	auto	Force file encoding (e.g. euc-kr, utf-8). Default: auto-detect via charset-normalizer.

Deep Compare Options

Option	Default	Description
--k-gram N	5	K-gram size for Winnowing. Larger K = fewer but more specific fingerprints. (Schleimer 2003, §4.2)
--window N	4	Winnowing window size. Guarantees detection of any shared sequence ≥ K+W−1 = 8 tokens.
--threshold-deep F	0.05	Minimum Jaccard similarity to include in results. Below 5% is considered noise.
--normalize	off	Normalize identifiers → ID, literals → LIT before fingerprinting. Improves Type-2 clone detection (renamed variables).
--workers N	4	Number of parallel worker processes for diff rendering and fingerprint extraction.

Forensic Options

Option	Default	Description
--no-autojunk	off	Disable SequenceMatcher's autojunk heuristic. Treats all tokens equally — slower but more precise for forensic analysis.
--max-index-entries N	10,000,000	Memory cap for inverted index. Prevents OOM on large corpora. ~800MB at 10M entries.
--max-file-size-mb N	10.0	Skip files exceeding this size (MB). Prevents OOM on large binary/generated files.
--hash	off	Embed SHA-256 evidence integrity hashes for all analyzed files in the report.
--uncompared-mode {inline,separate,none}	inline	Control how unmatched files are displayed: inline in main report, as separate appendix, or omitted.

Page Annotation Options

Option	Description
--page-number	Show Page n / N at the bottom-right
--file-number	Show File n / N at the bottom-left
--bates-number	Stamp sequential Bates numbers at the bottom-center
--bates-prefix TEXT	Bates number prefix (e.g. PLAINTIFF-). Combined as: {prefix}{number}{suffix}
--bates-suffix TEXT	Bates number suffix (e.g. -CONFIDENTIAL)
--bates-start N	Starting Bates number (default: 1). Useful for continuing numbering across reports.
--filename	Show filename at the top-right

---

Usage Examples

Basic IP Litigation Report

# Full forensic report with all annotations
diffinite plaintiff_code/ defendant_code/ -o exhibit_A.pdf \
    --strip-comments \
    --bates-number --bates-prefix "CASE2026-" --bates-suffix "-CONFIDENTIAL" \
    --bates-start 1 --page-number --file-number --filename \
    --collapse-identical --detect-moved --hash

Code Audit (Quick HTML)

# HTML report for browser viewing (no PDF dependency issues)
diffinite vendor_v1/ vendor_v2/ --report-html audit.html --strip-comments

Maximum Sensitivity (Type-2 Clones)

# Detect renamed-variable copies
diffinite original/ suspect/ -o report.pdf \
    --normalize --no-autojunk --strip-comments

Simple Mode (Fast, No Cross-Matching)

# 1:1 matching only — faster for quick comparisons
diffinite dir_a/ dir_b/ --mode simple -o quick_report.pdf

Multiple Output Formats

# Generate all formats at once
diffinite dir_a/ dir_b/ \
    --report-pdf report.pdf \
    --report-html report.html \
    --report-md report.md \
    --report-json report.json

Tuning Sensitivity

# Larger K-gram = fewer false positives, may miss short matches
diffinite dir_a/ dir_b/ --k-gram 7 --window 5

# Lower Jaccard threshold = show weaker matches
diffinite dir_a/ dir_b/ --threshold-deep 0.02

# Stricter file name matching
diffinite dir_a/ dir_b/ --threshold 80

---

Comment Stripping Support

The --strip-comments flag removes comments using a 5-state finite state machine parser:

Extensions	Comment Styles
.py	# line comments, """docstrings"""
.js, .ts, .jsx, .tsx	// line, /* block */, `template literals`
.java, .c, .cpp, .h, .cs, .go, .rs, .kt, .scala	// line, /* block */
.html, .xml, .svg, .htm	<!-- block -->
.css, .scss, .less	/* block */
.sql	-- line, /* block */
.rb	# line
.sh, .bash, .zsh	# line
.lua	-- line, --[[ block ]]
.r	# line

---

Project Structure

diffinite/
├── src/diffinite/
│   ├── cli.py              # CLI entry point & argument parsing
│   ├── pipeline.py         # Orchestration (simple/deep modes, parallel rendering)
│   ├── collector.py        # File collection & fuzzy name matching
│   ├── parser.py           # 5-state comment stripping FSM
│   ├── differ.py           # Diff computation, moved-block detection & HTML rendering
│   ├── fingerprint.py      # Winnowing fingerprint extraction
│   ├── deep_compare.py     # N:M cross-matching (inverted index + Jaccard)
│   ├── evidence.py         # SHA-256 integrity hashing & manifest generation
│   ├── models.py           # Data classes (DiffResult, DeepMatchResult, etc.)
│   ├── pdf_gen.py          # PDF/HTML report generation (xhtml2pdf)
│   └── languages/          # Per-language comment specs (30+ extensions)
├── vscode-extension/
│   ├── src/                # TypeScript extension source
│   │   ├── extension.ts    # Extension activation & command registration
│   │   ├── compareCommand.ts  # Directory selection, time estimation, pipeline orchestration
│   │   ├── dirScanner.ts   # Pre-analysis file scanning & OOM heuristic
│   │   ├── runner.ts       # Python backend spawner with progress bar integration
│   │   ├── optionsPanel.ts # GUI options webview (mode, comments, Bates, etc.)
│   │   ├── treeViewer.ts   # Interactive matched-pair tree for selective export
│   │   └── resultViewer.ts # HTML report preview inside VS Code
│   ├── bin/python/          # Embedded Python 3.12 runtime (gitignored)
│   └── package.json
├── example/                # Benchmark datasets (see below)
├── pyproject.toml
├── LICENSE                 # Apache 2.0
└── NOTICE

---

Benchmarks

Download the example datasets first, then run the benchmarks yourself:

python example/download_examples.py          # download all datasets
python example/download_examples.py --dataset aosp  # or download one

Pre-generated benchmark reports (Markdown) are in example/benchmark/.

1. Google v. Oracle — API Header Similarity

Why this dataset: The Oracle v. Google case is the landmark SSO (Structure, Sequence, Organization) copyright dispute. Google's Android reimplemented Java API declarations. The code bodies are independently written, but the API signatures are necessarily similar.

diffinite example/Case-Oracle/AOSP_Google example/Case-Oracle/OpenJDK_Oracle \
    --strip-comments --report-md example/benchmark/case_oracle.md

File	Match (difflib)	Deep Cross-Match
ArrayList.java	9.0%	—
Collections.java	4.5%	—
List.java	6.3%	—
Math.java	5.2%	—
String.java	3.3%	—

Observation: Low Match scores and no Jaccard cross-matches above 5% confirm these are independent implementations of the same API specification. The structural similarity comes from identical method signatures, not copied logic.

2. Eclipse Collections v. OpenJDK — Negative Control

Why this dataset: Eclipse Collections and OpenJDK solve similar problems (collection frameworks) but are developed by different teams with no code sharing. This is the expected baseline for independent work in the same domain.

diffinite example/Case-NegativeControl/Eclipse_Collections example/Case-NegativeControl/OpenJDK \
    --strip-comments --report-md example/benchmark/case_negative.md

File A	File B	Match	Deep Cross-Match
StringIterate.java	String.java	2.4%	—
FastList.java	ArrayList.java	1.5%	—

Observation: No cross-matches above the 5% Jaccard threshold. This is the correct result — independent projects should show near-zero similarity.

3. IR-Plag Case 01 — Known Plagiarism

Why this dataset: IR-Plag is a publicly available plagiarism corpus with labeled modification levels (L1=verbatim copy through L6=heavy restructuring).

diffinite example/plagiarism/case-01/original example/plagiarism/case-01/plagiarized \
    --normalize --strip-comments --report-md example/benchmark/plagiarism_case01.md

Original	Plagiarized	Jaccard
T1.java	L2/04/hellow.java	100.0%
T1.java	L1/04/T1.java	100.0%
T1.java	L1/05/HelloWorld.java	90.0%
T1.java	L4/05/hellow.java	56.2%
T1.java	L5/02/Main.java	38.1%
T1.java	L6/07/PrintJava.java	34.8%
T1.java	L6/01/L6.java	26.1%
T1.java	L6/05/HelloWorld.java	17.9%

Observation: Jaccard decreases monotonically as the plagiarism level increases (L1→L6). Verbatim copies score 100%. Heavily restructured copies (L5, L6) still show 18–38% shared fingerprints — well above the negative control baseline.

4. AOSP Framework — Same Codebase, Minor Edits

Why this dataset: Two versions of Android's Handler/Looper/Message framework. Small evolutionary changes between versions.

diffinite example/aosp/left example/aosp/right \
    --strip-comments --report-md example/benchmark/aosp.md

File	Match (difflib)
Handler.java	88.6%
Looper.java	90.0%
Message.java	96.3%

Observation: High Match scores correctly reflect that these are minor revisions of the same codebase.

---

Winnowing Algorithm

Diffinite uses the Winnowing algorithm (Schleimer, Wilkerson, Aiken. "Winnowing: Local Algorithms for Document Fingerprinting." SIGMOD 2003), which also forms the basis of Stanford MOSS.

Pipeline: source → tokenize → K-gram → rolling hash → winnow → fingerprint set

The algorithm provides a density guarantee: any shared token sequence of length ≥ K + W − 1 (default: 8) will always be detected, regardless of its position in the file.

Parameters:

Parameter	Default	Rationale
K (k-gram)	5	Schleimer 2003 §4.2 recommended range. 5 consecutive tokens per fingerprint unit.
W (window)	4	Window of 4 fingerprints → minimum detectable sequence = 8 tokens.
HASH_BASE	257	Standard Rabin hash base (prime).
HASH_MOD	2⁶¹ − 1	Mersenne prime — efficient modular arithmetic, minimal collision probability.

---

Limitations

• General-purpose tokenizer: Uses a single regex tokenizer for all languages, not language-specific parsers. Accuracy may vary across languages.
• Position-independent: Winnowing fingerprints are order-independent within a window. Code with reordered functions may produce higher similarity than expected.
• No corpus-based analysis: Each comparison is pairwise. There is no built-in corpus-wide frequency weighting (e.g., TF-IDF) to down-weight common idioms.
• Binary and obfuscated code: Not supported. Diffinite operates on source code text only.
• Not a legal opinion: Similarity scores are mathematical measurements, not legal conclusions. Professional review is required before use in any legal proceeding.

---

License

Apache License 2.0

See NOTICE for attribution.
