disvoice-prosody 0.0.5

A pip installable version of the prosody function from jcvazquezc's DisVoice library

Prosody features

prosody.py

Compute prosody features from continuous speech based on duration, fundamental frequency and energy.

Static or dynamic features can be computed:

Static matrix is formed with 103 features and include

Num Feature Description

                            Features based on F0

---

1-6 F0-contour Avg., Std., Max., Min., Skewness, Kurtosis

7-12 Tilt of a linear estimation of F0 for each voiced segment Avg., Std., Max., Min., Skewness, Kurtosis

13-18 MSE of a linear estimation of F0 for each voiced segment Avg., Std., Max., Min., Skewness, Kurtosis

19-24 F0 on the first voiced segment Avg., Std., Max., Min., Skewness, Kurtosis

25-30 F0 on the last voiced segment Avg., Std., Max., Min., Skewness, Kurtosis

---

                            Features based on energy

---

31-34 energy-contour for voiced segments Avg., Std., Skewness, Kurtosis

35-38 Tilt of a linear estimation of energy contour for V segments Avg., Std., Skewness, Kurtosis

39-42 MSE of a linear estimation of energy contour for V segment Avg., Std., Skewness, Kurtosis

43-48 energy on the first voiced segment Avg., Std., Max., Min., Skewness, Kurtosis

49-54 energy on the last voiced segment Avg., Std., Max., Min., Skewness, Kurtosis

55-58 energy-contour for unvoiced segments Avg., Std., Skewness, Kurtosis

59-62 Tilt of a linear estimation of energy contour for U segments Avg., Std., Skewness, Kurtosis

63-66 MSE of a linear estimation of energy contour for U segments Avg., Std., Skewness, Kurtosis

67-72 energy on the first unvoiced segment Avg., Std., Max., Min., Skewness, Kurtosis

73-78 energy on the last unvoiced segment Avg., Std., Max., Min., Skewness, Kurtosis

---

                            Features based on duration

---

79 Voiced rate Number of voiced segments per second

80-85 Duration of Voiced Avg., Std., Max., Min., Skewness, Kurtosis

86-91 Duration of Unvoiced Avg., Std., Max., Min., Skewness, Kurtosis

92-97 Duration of Pauses Avg., Std., Max., Min., Skewness, Kurtosis

98-103 Duration ratios Pause/(Voiced+Unvoiced), Pause/Unvoiced, Unvoiced/(Voiced+Unvoiced), Voiced/(Voiced+Unvoiced), Voiced/Puase, Unvoiced/Pause

---

The dynamic feature matrix is formed with 13 features computed for each voiced segment and contains:

• 1 Duration of the voiced segment
• 2-7. Coefficients of 5-degree Lagrange polynomial to model F0 contour
• 8-13. Coefficients of 5-degree Lagrange polynomial to model energy contour

Dynamic prosody features are based on Najim Dehak, "Modeling Prosodic Features With Joint Factor Analysis for Speaker Verification", 2007

Notes:

1. The fundamental frequency is computed the PRAAT algorithm. To use the RAPT method, change the "self.pitch method" variable in the class constructor.

2. When Kaldi output is set to "true" two files will be generated, the ".ark" with the data in binary format and the ".scp" Kaldi script file

Runing

Script is called as follows

python prosody.py <file_or_folder_audio> <file_features> <static (true or false)> <plots (true or false)> <format (csv, txt, npy, kaldi, torch)>

Examples:

Extract features in the command line

python prosody.py "../audios/001_ddk1_PCGITA.wav" "prosodyfeaturesAst.txt" "true" "true" "txt"
python prosody.py "../audios/001_ddk1_PCGITA.wav" "prosodyfeaturesUst.csv" "true" "true" "csv"
python prosody.py "../audios/001_ddk1_PCGITA.wav" "prosodyfeaturesUdyn.pt" "false" "true" "torch"

python prosody.py "../audios/" "prosodyfeaturesst.txt" "true" "false" "txt"
python prosody.py "../audios/" "prosodyfeaturesst.csv" "true" "false" "csv"
python prosody.py "../audios/" "prosodyfeaturesdyn.pt" "false" "false" "torch"
python prosody.py "../audios/" "prosodyfeaturesdyn.csv" "false" "false" "csv"

KALDI_ROOT=/home/camilo/Camilo/codes/kaldi-master2
export PATH=$PATH:$KALDI_ROOT/src/featbin/
python prosody.py "../audios/001_ddk1_PCGITA.wav" "prosodyfeaturesUdyn" "false" "false" "kaldi"

python prosody.py "../audios/" "prosodyfeaturesdyn" "false" "false" "kaldi"

Extract features directly in Python

from prosody import Prosody
prosody=Prosody()
file_audio="../audios/001_ddk1_PCGITA.wav"
features1=prosody.extract_features_file(file_audio, static=True, plots=True, fmt="npy")
features2=prosody.extract_features_file(file_audio, static=True, plots=True, fmt="dataframe")
features3=prosody.extract_features_file(file_audio, static=False, plots=True, fmt="torch")
prosody.extract_features_file(file_audio, static=False, plots=False, fmt="kaldi", kaldi_file="./test")

Jupyter notebook

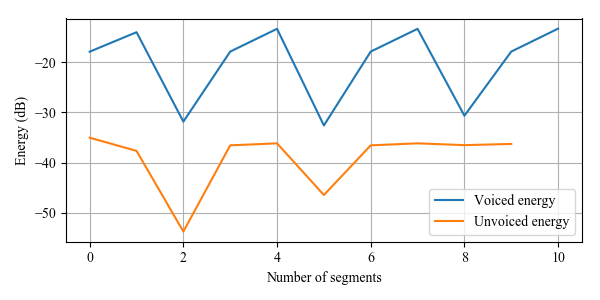

Results:

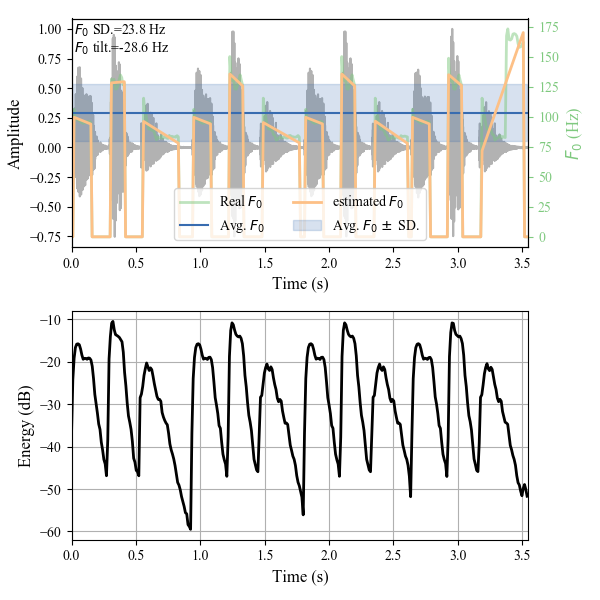

Prosody analysis from continuous speech static

References

[1]. N., Dehak, P. Dumouchel, and P. Kenny. "Modeling prosodic features with joint factor analysis for speaker verification." IEEE Transactions on Audio, Speech, and Language Processing 15.7 (2007): 2095-2103.

[2]. J. R. Orozco-Arroyave, J. C. Vásquez-Correa et al. "NeuroSpeech: An open-source software for Parkinson's speech analysis." Digital Signal Processing (2017).
