dithering 0.2.0

Fast image dithering for Python, written in Rust. One call, sane defaults, every classic algorithm:

• Error diffusion — Floyd–Steinberg, Jarvis–Judice–Ninke, Stucki, Atkinson, Burkes, Sierra, Two-Row Sierra, Sierra Lite, False Floyd–Steinberg — with optional serpentine scanning.
• Ordered (Bayer) — 2×2 to 16×16 generated matrices, or bring your own threshold matrix.
• Random (white noise) — seedable.
• Palettes — dither straight to any color set (["#0f380f", "#306230", ...]), not just black & white.
• Multi-level — quantize to N gray/color levels per channel, not just 2.
• Gamma-correct mode — linear=True does the math in linear light and preserves perceived brightness (most libraries get this wrong).
• Ergonomics — numpy in → numpy out, PIL in → PIL out, alpha channels preserved, forgiving names ("fs", "Floyd-Steinberg", "BAYER8X8" all work, and ordered_dither takes the matrix size as an int), typed stubs, helpful error messages.
• Fast — the hot loops release the GIL; ~550 MP/s ordered and ~120 MP/s Floyd–Steinberg on an M-series laptop.

Installation

pip install dithering

Wheels are published for Linux (glibc + musl), macOS and Windows — one abi3 wheel per platform covers CPython 3.9 and everything newer. PyPy installs from the source distribution (needs a Rust toolchain).

Quickstart

from PIL import Image
import dithering

img = Image.open("photo.jpg")

# Classic black & white Floyd-Steinberg (the default):
bw = dithering.dither(img)

# Ordered dithering with an 8x8 Bayer matrix:
retro = dithering.dither(img, "bayer8x8")

# Dither to a Game Boy palette:
gameboy = dithering.dither(img, "atkinson", palette=["#0f380f", "#306230", "#8bac0f", "#9bbc0f"])

gameboy.save("gameboy.png")

Everything also works directly on numpy arrays (2-D grayscale or H×W×C uint8), and returns arrays in that case:

import numpy as np
import dithering

arr = np.asarray(Image.open("photo.jpg"))
out = dithering.error_diffusion(arr, "stucki", serpentine=True, levels=4)

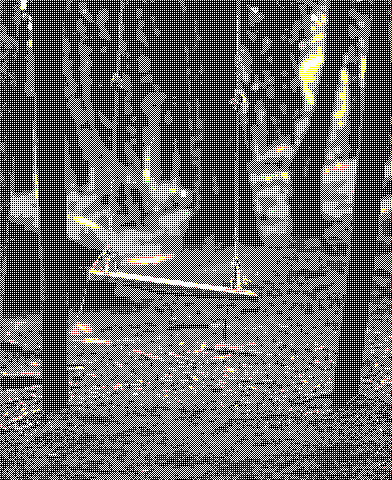

Gallery

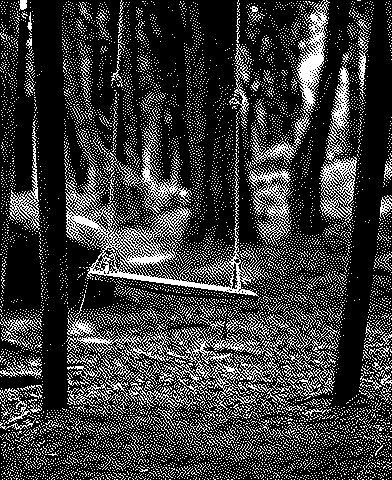

Original	Floyd–Steinberg	Atkinson

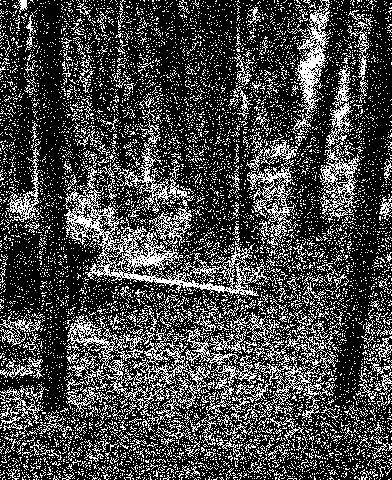

Bayer 2×2	Bayer 8×8	Random

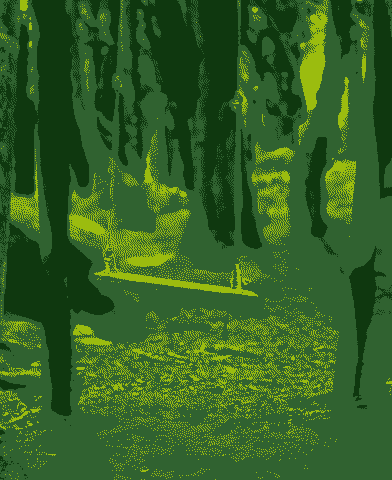

RGB Floyd–Steinberg	Game Boy palette	16-color palette, Bayer 8×8

API

The one-stop entry point dispatches on the method name:

dithering.dither(image, method="floyd_steinberg", *, levels=2, palette=None,
                 serpentine=False, seed=None, strength=1.0, linear=False,
                 preserve_alpha=True)

Or call the specific functions — same parameters, minus the ones that don't apply:

All names are case-insensitive and -/_ are interchangeable. available_methods() and available_matrices() list the valid names at runtime.

Common parameters

Input/output contract

• Accepts uint8 numpy arrays — 2-D grayscale or 3-D (H, W, C) — and PIL images (any mode; exotic modes are converted to RGB first).
• Returns a new uint8 array of the same shape, or a PIL image if you passed one. The input is never modified.
• Float arrays are rejected with a hint ((img * 255).clip(0, 255).astype(np.uint8)), invalid names raise ValueError listing the valid ones.

Performance

2048×2048 grayscale (4.2 MP) on an Apple M-series laptop:

Pillow's single hard-coded binary-grayscale Floyd–Steinberg loop is still faster than our general engine — but it can't do other kernels, serpentine, levels, palettes, strength or linear light. Pure-Python libraries are typically 100–1000× slower. The hot loops release the GIL, so other Python threads keep running.

Correctness notes

• Bayer thresholds use the mean-preserving (index + 0.5) / n² convention: a 50 % gray dithers to exactly 50 % white pixels, solid black stays black, solid white stays white.
• Error-diffusion kernels are the canonical published coefficients; error falling off the image edge is discarded.
• Atkinson intentionally diffuses only 6/8 of the error — deep shadows and highlights clip to solid black/white. That's the classic Mac look, not a bug.
• The test suite (44 Rust + 82 Python tests) asserts mean preservation, palette exactness, alpha preservation and reproducibility for every algorithm.

Development

cargo test                                    # Rust unit tests
maturin develop --release                     # build into the active venv
pytest tests/ -v                              # Python end-to-end tests

Contributing

Contributions are welcome! Fork the repository, create a branch from main, make your changes (please add tests), and open a pull request.

License

MIT — see LICENSE.

Contact

Questions, suggestions, feedback: open an issue on GitHub or email patrik@tensorhead.com.
