django-model2puml app is a generator of project models structure in PlantUML class notation.
Quick start
Add “uml_generator” to your INSTALLED_APPS setting like this:
INSTALLED_APPS = [ ... 'puml_generator', ... ]Run django management command generate_puml like this ./manage.py generate_puml
Params:
--file - output file --title - provide a title for diagram --title-font-size - provide a custom title font size (default is 72) --add-help - add models docstrings to diagram --add-choices - add Choices description of fields to diagram --split-choices - split Choices into per-model classes --add-legend - include explanation of the symbols used --add-omitted-headers - add a header stub for omitted foreign app --omit-history - omit Historical* tables from django-simple-history --omit - specify apps to be omitted in diagram --include - specify apps to be included in diagram; other will be omitted --headers-only - use only model header and relations, omit fields list --url - generate URL to plantuml.com/plantuml/svg/YOUR_DIAGRAM
Check generated PlantUML file!

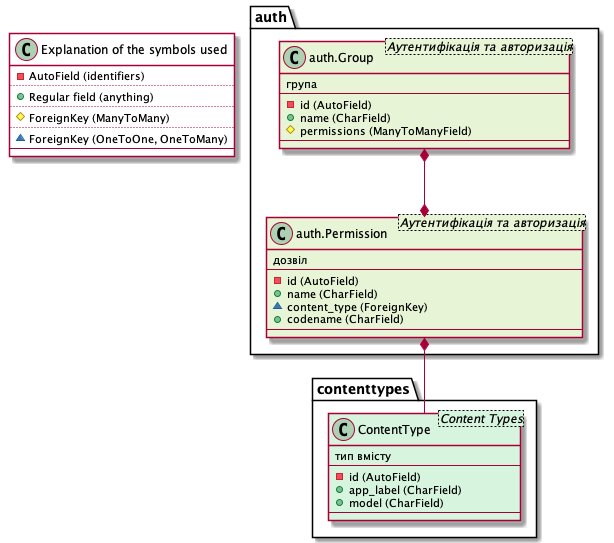

./manage.py generate_puml --file diagram.puml --include auth contenttypes --add-help --add-legend
Release notes
v0.6.1 (2025-03-31)
Fix skip-choices-fields param to not fail if not provided
v0.6.0 (2024-10-20)
Add skip-choices-fields param to skip specified choices fields
Fix block direction to try to decrease mess in huge diagrams
v0.5.1 (2024-06-16)
Fix collect_choices to collect list[tuple] choices
v0.5.0 (2024-06-16)
Add split-choices flag to split choices into per-model classes
v0.4.1 (2023-02-13)
Fix usage of empty title not to break output filename
v0.4.0 (2023-02-11)
Add title-font-size param
v0.3.0 (2023-02-11)
Add URL to plantuml.com generation
v0.2.1 (2022-06-05)
Refine README.rst
v0.2.0 (2022-04-17)
Add omit-history flag for omit django-simple-history library models
v0.1.14 (2021-03-15)
Fix ImportError in utils.py
v0.1.13 (2020-10-17)
Add documentation to generator
Limit docstrings length
Fix choices generation issues
v0.1.12 (2020-10-15)
Use UTF-8 for saving output
v0.1.11 (2020-10-15)
Add headers-only flag to use only model header and relations, omit fields list in UML
Releases earlier than v0.1.11 yanked due to significant settings issues and must not be used
