dji-geotagger 2.0.1

A precise PPK + MRK-based geotagging tool for DJI RTK drones

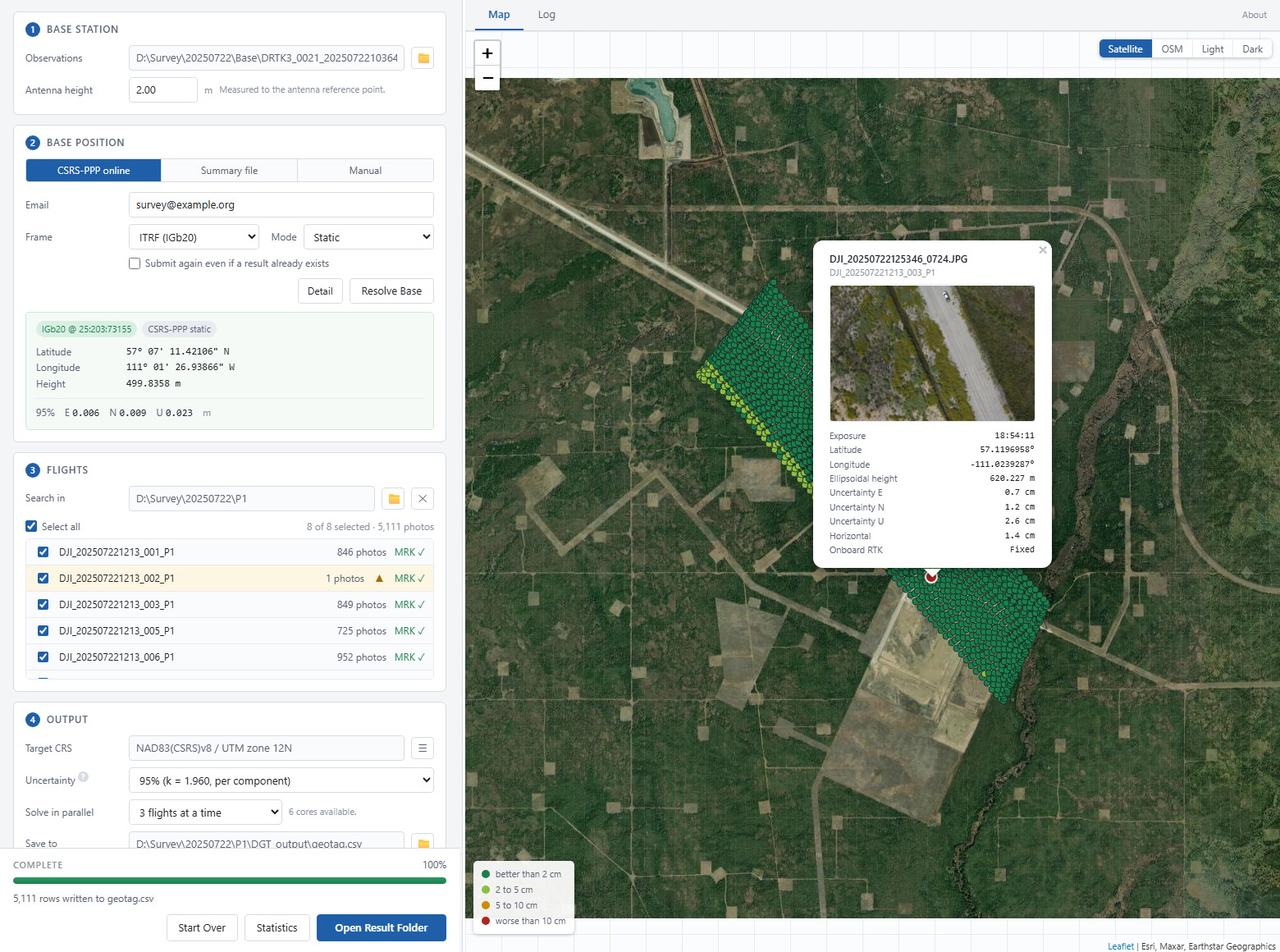

DJI Geotagger

A precise PPK + MRK-based geotagging tool for DJI RTK drones

This Python library enables centimetre-level camera geotagging by combining PPK .pos solutions, DJI .MRK gimbal offset corrections, and EXIF/XMP metadata from DJI RTK drone images. It is designed for photogrammetry and remote sensing workflows that require accurate EOPs.

Features

• Convert raw GNSS logs (.bin, .dat) to RINEX format using RTKLIB convbin
• Download precise ephemeris data (SP3/CLK) automatically from IGS
• Perform precise point positioning (PPK) with optional base station refinement from CSRS-PPP .sum files
• Parse DJI .MRK gimbal offset files and interpolate corrections to camera center (ECEF)
• Match images by GPS time, apply PPK + MRK corrections with full covariance propagation
• Export geotagged results in ECEF/ENU/UTM with estimated 3D precision (1-sigma)
• Support for DJI P1, M300, and other RTK-enabled drones
• Batch processing of multiple flight folders

Installation

pip install dji-geotagger

Or from source:

git clone https://github.com/RayPan-UC/dji-geotagger.git
cd dji-geotagger
pip install -e .

Dependencies

• Python ≥ 3.9
• pillow - Image processing and EXIF reading
• pandas - Data manipulation and CSV export
• numpy - Numerical computations
• tqdm - Progress bars
• requests - HTTP requests for ephemeris download
• georinex - RINEX file parsing
• astropy - Time and coordinate utilities
• pymap3d - Geodetic coordinate conversions
• scipy - Scientific computing (interpolation, linear algebra)
• RTKLIB (convbin, rnx2rtkp) - Auto-downloaded on first use

Workflow Overview

1. Convert raw GNSS to RINEX - Convert base station (.dat) and rover (.bin) logs to standard RINEX format
2. Optional: Download precise ephemeris - Automatic IGS SP3/CLK download based on observation dates
3. Optional: Resolve base station position - Use CSRS-PPP .sum file or manual ECEF coordinates
4. Run PPK batch processing - Execute rnx2rtkp for each flight folder
5. Parse image metadata - Extract capture time, gimbal attitude, and camera orientation from EXIF/XMP
6. Parse and interpolate MRK - Convert gimbal offset vectors from NED → ENU → ECEF
7. Compute geotagged positions - Match images to PPK solutions, apply MRK offset, propagate covariance
8. Export CSV - Generate timestamped CSV with positions, attitudes, and uncertainties

Example Usage

Basic Workflow

import dji_geotagger as dgt

# === 1. Convert GNSS raw data to RINEX ===
base_obs, base_nav = dgt.raw2rinex(
    input_path=r"path/to/base/DRTK3_20250730.dat",
    antenna_height_in_meter=2.0
)

# === 2. (Optional) Use PPP base position from CSRS-PPP ===
ppp_sum_file = r"path/to/DRTK3_20250730.sum"  # or leave as None for manual base position

# === 3. Define flight folders to process ===
flight_folders = [
    r"P1/DJI_202507301227_011_LOCATION",
    r"P1/DJI_202507301227_012_LOCATION",
    r"P1/DJI_202507301256_013_LOCATION"
]

# === 4. Process all flights at once ===
geotag_df = dgt.geotag(
    flight_folders=flight_folders,
    base_obs=base_obs,
    base_nav=base_nav,
    sum_file_path=ppp_sum_file,  # Optional CSRS-PPP base position
    output_dir="output/geotags"
)

# === 5. Save to CSV ===
geotag_df.to_csv("geotagged_results.csv", index=False)
print(f"Geotagged {len(geotag_df)} images")

Advanced: Manual Base Station Position

If you don't have a CSRS-PPP .sum file, provide base station coordinates manually:

import dji_geotagger as dgt

user_config = {
    'ant2-postype': 'xyz',
    'ant2-pos1': -2418456.789,  # X (metres), ECEF
    'ant2-pos2':  5385936.123,  # Y (metres), ECEF
    'ant2-pos3':  2405716.456,  # Z (metres), ECEF
}

geotag_df = dgt.geotag(
    flight_folders=flight_folders,
    base_obs=base_obs,
    base_nav=base_nav,
    user_conf=user_config  # Use manual base position instead of sum_file_path
)

Step-by-Step: Manual Control Over Each Flight

For detailed control and debugging of the geotagging pipeline for each flight:

import dji_geotagger as dgt
from pathlib import Path

# === Setup ===
base_obs, base_nav = dgt.raw2rinex(
    r"DRTK3/DRTK3_0038_20250730102537.dat",
    antenna_height_in_meter=2.0
)
ppp_sum_file = r"DRTK3/PPP/DRTK3_0038_20250730102537.sum"

flight_folders = [
    r"P1/DJI_202507301227_011_SynopticSite3",
    r"P1/DJI_202507301227_012_SynopticSite3",
]

# === Process each flight manually ===
all_results = []

for flight_dir in flight_folders:
    flight_dir = Path(flight_dir)
    print(f"\n=== Processing {flight_dir.stem} ===")

    # Step 1: Find and convert rover GNSS raw → RINEX
    rover_raws = list(flight_dir.glob("*_PPKRAW.bin"))
    if not rover_raws:
        print(f"No *_PPKRAW.bin found in {flight_dir}, skipping...")
        continue

    rover_raw = rover_raws[0]
    print(f"Converting {rover_raw.name}...")
    rover_obs, rover_nav = dgt.raw2rinex(rover_raw)

    # Step 2: Run PPK solver
    print(f"Running PPK for {flight_dir.stem}...")
    pos_df = dgt.process_ppk(
        base_obs=base_obs,
        base_nav=base_nav,
        rover_obs=rover_obs,
        sum_file_path=ppp_sum_file
    )
    print(f"✓ PPK solution: {len(pos_df)} poses")

    # Step 3: Parse MRK gimbal offsets
    mrks = list(flight_dir.glob("*.MRK"))
    if not mrks:
        print(f"No *.MRK found in {flight_dir}, skipping...")
        continue

    mrk = mrks[0]
    print(f"Parsing {mrk.name}...")
    mrk_df = dgt.mrk2df(mrk)
    print(f"✓ MRK data: {len(mrk_df)} exposure records")

    # Step 4: Parse image metadata (XMP/EXIF)
    print(f"Parsing image metadata from {flight_dir.name}...")
    img_df = dgt.parse_img_dir(flight_dir)
    print(f"✓ Images found: {len(img_df)}")

    # Step 5: Compute camera center positions
    print(f"Computing geotagged camera positions...")
    result = dgt.compute_camera_position(
        pos_df=pos_df,
        mrk_df=mrk_df,
        img_df=img_df,
        full_output=False  # Set to True for all intermediate columns
    )
    result["flight"] = flight_dir.stem
    print(f"✓ Geotagged {len(result)} images")

    all_results.append(result)

# === Combine all flights ===
if all_results:
    geotag_df = dgt.pd.concat(all_results, ignore_index=True)
    print(f"\n{'='*50}")
    print(f"Total geotagged images: {len(geotag_df)}")
    print(f"Flights processed: {geotag_df['flight'].nunique()}")

    # === Transform to UTM ===
    print(f"\nTransforming to UTM Zone 12N...")
    geotag_df = dgt.transform_coordinates(
        geotag_df,
        target_crs=32612,
        cov_ecef2enu=True,
        drop_original=False
    )

    # === Export ===
    geotag_df.to_csv("SynopticSite3_manual.csv", index=False)
    print(f"✓ Results saved to SynopticSite3_manual.csv")
else:
    print("No flights were successfully processed.")

Debugging: Inspect Intermediate Results

import dji_geotagger as dgt
import pandas as pd

# After running PPK
print("PPK Solution Statistics:")
print(f"  X range: {pos_df['x'].min():.2f} to {pos_df['x'].max():.2f} m")
print(f"  Y range: {pos_df['y'].min():.2f} to {pos_df['y'].max():.2f} m")
print(f"  Z range: {pos_df['z'].min():.2f} to {pos_df['z'].max():.2f} m")
print(f"  Std Dev X: {pos_df['sx'].mean():.4f} m")
print(f"  Std Dev Y: {pos_df['sy'].mean():.4f} m")
print(f"  Std Dev Z: {pos_df['sz'].mean():.4f} m")

# Inspect MRK data
print("\nMRK Gimbal Offsets (first 5 records):")
print(mrk_df[['gps_week', 'gps_tow', 'offset_x', 'offset_y', 'offset_z']].head())

# Inspect image metadata
print("\nImage Metadata (first 5 images):")
print(img_df[['file_name', 'gps_tow', 'roll', 'pitch', 'yaw']].head())

# Inspect final geotagged results
print("\nGeotagged Results (first 5 images):")
print(result[['file_name', 'x_ecef', 'y_ecef', 'z_ecef', 'sd_x_ecef', 'sd_y_ecef', 'sd_z_ecef']].head())

Output Format

The output CSV contains the following columns (aligned with your actual flight data):

Sequence & Time Information

Column	Description
seq	Sequence number of the image
GPS_time	GPS time-of-week (seconds)
GPS_week	GPS week number
UTCAtExposure	UTC datetime of exposure
FileName	Image filename

ECEF Coordinates (IGb20)

Column	Description
cam_X	Camera center ECEF X (metres)
cam_Y	Camera center ECEF Y (metres)
cam_Z	Camera center ECEF Z (metres)
cov_total_ECEF	Full 3×3 ECEF covariance matrix (m²)
sigma_total_ECEF	Diagonal covariances [σX, σY, σZ] (metres)
coord_sys	Reference frame (IGb20)

Geodetic Coordinates (Lat/Lon/Height)

Column	Description
cam_lat	Camera latitude (decimal degrees)
cam_lon	Camera longitude (decimal degrees)
cam_h	Camera altitude WGS84 ellipsoid (metres)

Positional Uncertainties (1-sigma)

Column	Description
sigma_E	Uncertainty in East direction (metres)
sigma_N	Uncertainty in North direction (metres)
sigma_U	Uncertainty in Up direction (metres)

RTK Solution Quality

Column	Description
rtk_status	RTK solution status ("Fixed", "Float", etc.)
stddev	Position standard deviation (metres)

Gimbal/DJI Offsets (NED frame)

Column	Description
gimbal_dN	Gimbal offset North (metres)
gimbal_dE	Gimbal offset East (metres)
gimbal_dD	Gimbal offset Down (metres)
gimbal_dX	Gimbal offset ECEF X (metres)
gimbal_dY	Gimbal offset ECEF Y (metres)
gimbal_dZ	Gimbal offset ECEF Z (metres)

Aircraft Attitude (Body Frame)

Column	Description
FlightYawDegree	Aircraft body yaw (degrees from North)
FlightPitchDegree	Aircraft body pitch (degrees)
FlightRollDegree	Aircraft body roll (degrees)

Gimbal Attitude (Stabilized)

Column	Description
GimbalYawDegree	Gimbal-reported yaw (degrees)
GimbalPitchDegree	Gimbal-reported pitch (degrees, -90=nadir)
GimbalRollDegree	Gimbal-reported roll (degrees)

Camera Attitude (Photogrammetry Angles)

Column	Description
DGT_YawDegree	Camera yaw (degrees)
DGT_PitchDegree	Camera pitch (degrees)
DGT_RollDegree	Camera roll (degrees)

Image Metadata (from EXIF/XMP)

Column	Description
GpsLatitude	Image EXIF GPS latitude (decimal degrees)
GpsLongitude	Image EXIF GPS longitude (decimal degrees)
AbsoluteAltitude	Image EXIF absolute altitude (metres)

Full ECEF Covariance (Alternative Storage)

Column	Description
X, Y, Z	Alternative ECEF coordinates (metres)
cov_ecef_flat	Flattened 3×3 covariance as nested array

Flight Grouping

Column	Description
flight	Flight folder name (Path.stem) for filtering

---

Example Interpretation

For a single row in the output CSV:

seq=1, GPS_time=325923.89, GPS_week=2377, FileName=DJI_20250730123142_0001.JPG
cam_X=-1516923.93, cam_Y=-3308803.73, cam_Z=5220764.04 (ECEF coords)
cam_lat=55.2959°, cam_lon=-114.6291°, cam_h=678.89 m (geodetic)
sigma_E=0.0076 m, sigma_N=0.0112 m, sigma_U=0.0290 m (uncertainties)
DGT_YawDegree=91.2°, DGT_PitchDegree=0.1°, DGT_RollDegree=0.0° (camera angles)

The camera center position (cam_X/Y/Z, cam_lat/lon/h) is the final geotagged location after:

1. Interpolating PPK solution to exposure time
2. Applying gimbal offset correction (NED → ECEF)
3. Propagating full covariance through transformations

Key Functions

Core Geotagging

• geotag(flight_folders, base_obs, base_nav, ...) - Batch process multiple flight folders (recommended)
• load_and_compute_camera_positions(...) - Compute geotagged positions for a single batch of images

Raw Data Processing

• raw2rinex(input_path, ...) - Convert .bin/.dat to RINEX observation (.obs) and navigation (.nav) files
• process_ppk(base_obs, base_nav, rover_obs, ...) - Run precise point positioning with RTKLIB

Ephemeris & Configuration

• download_igs_data(...) - Download IGS precise orbits and clocks (SP3/CLK)
• pause_for_PPP_sum_file() - Interactive prompt for CSRS-PPP .sum file
• override_rtklib_config(user_conf, ...) - Merge and export RTKLIB configuration

Coordinate Transformation

• transform_coordinates(df, target_crs, ...) - Convert ECEF → projected CRS (e.g., UTM)
• save_csv(df) - Export results to timestamped CSV file

Configuration

RTKLIB Settings

Default PPK configuration is in dji_geotagger/config/default_ppk_dict.py. Override using:

user_config = {
    'pos1-posmode': 'kinematic',
    'pos1-frequency': '1',
    'pos1-soltype': 'forward',
    # ... any other RTKLIB parameters
}

dgt.geotag(flight_folders, base_obs, base_nav, user_conf=user_config)

Base Station Position Options

Option 1: CSRS-PPP (Recommended)

geotag_df = dgt.geotag(..., sum_file_path="path/to/base.sum")

Option 2: Manual ECEF Coordinates

user_config = {
    'ant2-postype': 'xyz',
    'ant2-pos1': X_meters,
    'ant2-pos2': Y_meters,
    'ant2-pos3': Z_meters,
}
geotag_df = dgt.geotag(..., user_conf=user_config)

Troubleshooting

RTKLIB Not Found

The library will automatically prompt to download RTKLIB binaries on first use. To skip the prompt:

dgt.download_rtklib_bins()

No PPP Sum File Available

If you don't have access to CSRS-PPP:

1. Ensure base station coordinates are accurate (use surveyed position or local PPP)
2. Provide coordinates via user_conf dictionary
3. Accept slightly higher positional uncertainty (typically ±0.5–1.0 m without PPP refinement)

Image-Time Mismatch

Ensure:

• Camera clock is synchronized within ±1 second of GPS
• EXIF/XMP timestamps are in UTC (not local time)
• MRK files cover the same time period as images

Performance Tips

• Use IGS Rapid orbits (available ~17–18 hours after end-of-day UTC) for faster processing
• Process multiple flights with geotag([flight1, flight2, ...]) for efficiency
• For large datasets, filter low-confidence solutions using covariance thresholds

References

• RTKLIB: https://www.rtklib.com/
• CSRS-PPP: https://webapp.geod.nrcan.gc.ca/geod/tools-outils/ppp.php
• IGS Data: https://www.igs.org/products/
• DJI Documentation: https://enterprise.dji.com/

License

This project is licensed under the BSD 2-Clause (see LICENSE for details).

Acknowledgments

• Developed at the University of Calgary, Applied Geospatial Research Group (appliedgrg.ca)
• Inspired by real-world field workflows involving DJI Matrice 350 RTK + Zenmuse P1, Hemisphere base stations, and CSRS-PPP post-processing
• RTKLIB by Tomoji Takasu
