dnv-bladed-results 2.2.0

An API for working with results from any Bladed version.

Bladed Results API Version 2

The Bladed Results API v2 is an easy, fast, and robust way to access Bladed results using Python.

It provides features for:

• Searching a directory tree for Bladed runs.
• Returning variables and data.
• Reporting run, group, and variable metadata.
• Writing user-defined output groups.

The API is able to read results from any Bladed version.

The API depends on the numpy package, version 2.0.2 or later.

Currently only Windows is supported.

Bladed Results API v2 replaces Results API 1.x which has been discontinued.

Pre-requisites

• Requires a 32- or 64-bit Windows installation of any Python version from 3.9 to 3.14 inclusive.

64-bit Python is recommended.

• The Results API has been tested on Windows 11.

Quick Start

pip install --upgrade dnv-bladed-results

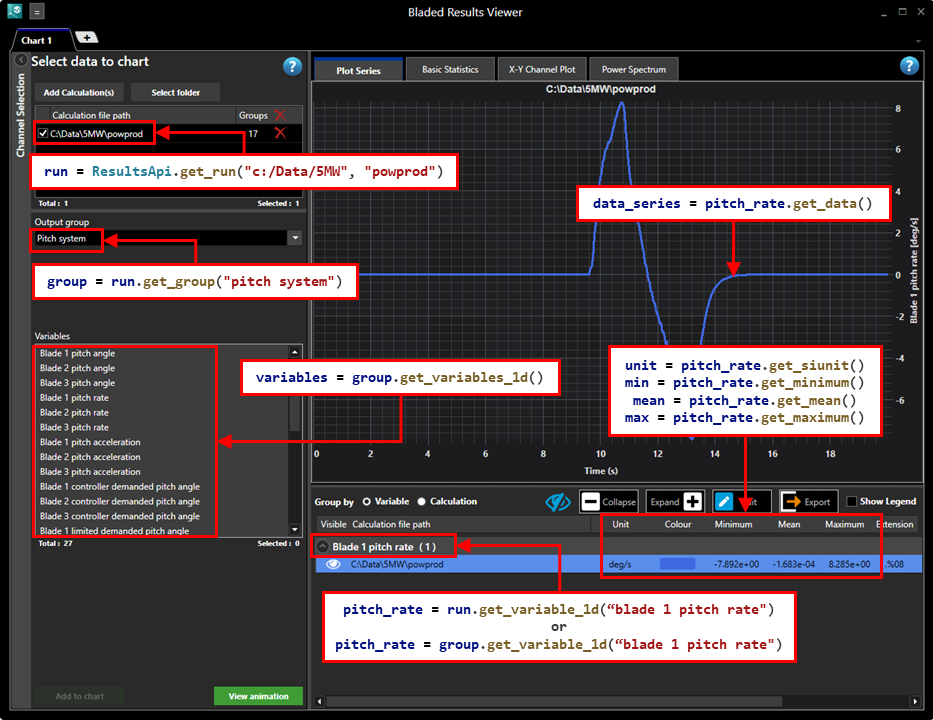

from dnv_bladed_results import ResultsApi

run = ResultsApi.get_run("c:/Data/5MW", "powprod")

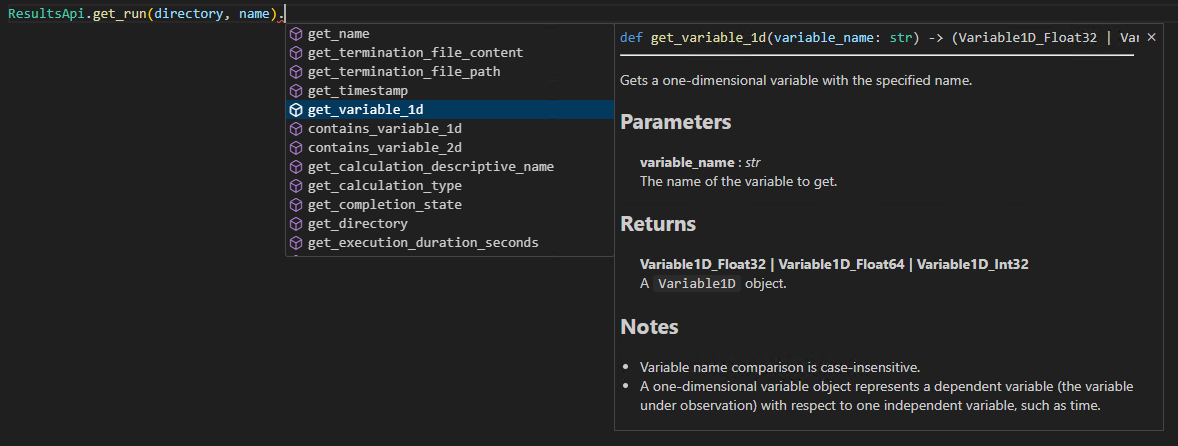

var_1d = run.get_variable_1d("rotating hub mx")
print(var_1d.get_data())

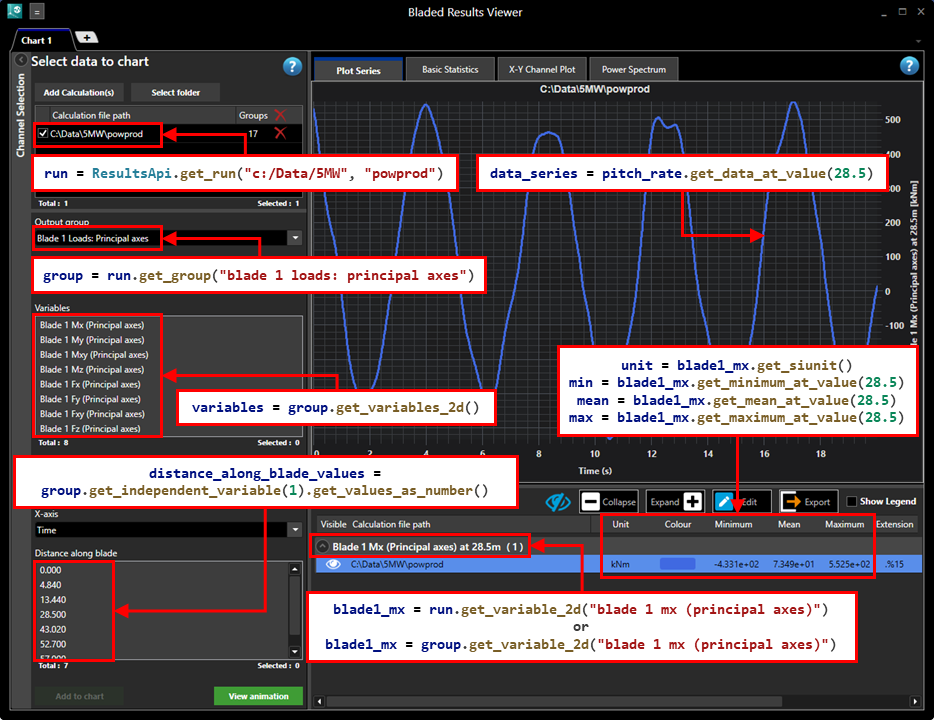

var_2d = run.get_variable_2d("blade 1 mx (principal elastic axes)")
# Print loads 28.5m from root:
print(var_2d.get_data_at_value(28.5))
# Equivalent using blade station index:
print(var_2d.get_data_at_index(3))

Learn More

Visit the Knowledge Centre for more information about the Results API v2.
