Writing dot language and render in jupyter.

Project description

Dot Kernel

The dot kernel for jupyter!

There is an awesome dot language tutorial in Chinese: learn-dot.


Install

You should have graphviz first.

  • Install by brew: brew install graphviz.
  • or sudo apt-get inatall graphviz for ubuntu

Then,

pip install dot_kernel

Add kernel to your jupyter:

install-dot-kernel

ALL DONE! 🎉🎉🎉

Run using:

jupyter notebook

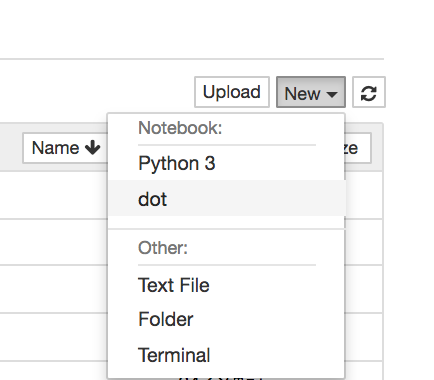

Select new -> dot


and try run this:

 // The graph name and the semicolons are optional
 graph graphname {
     a -- b -- c;
     b -- d;
 }

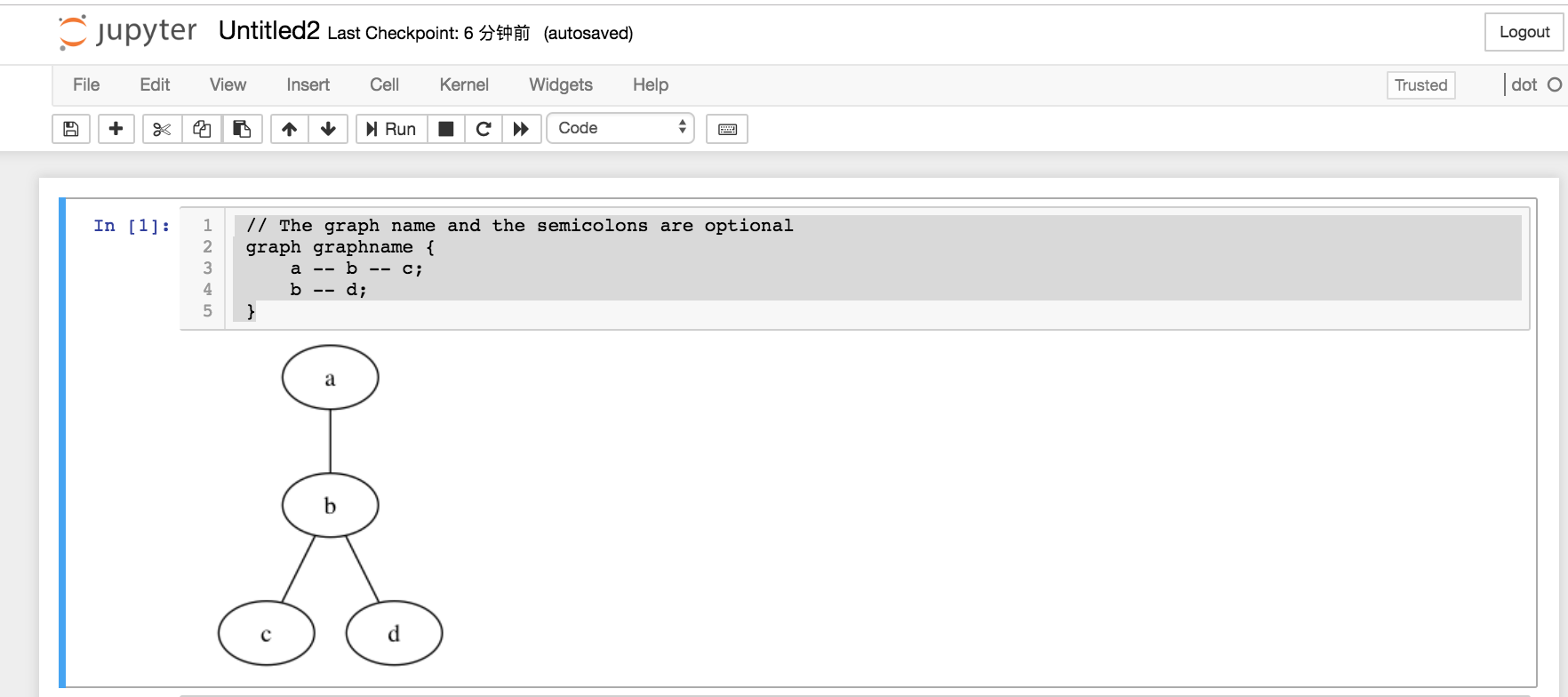

You will see:


TODO

  1. update this.
  2. add more render tools not just dot
  3. add more filetype support not just png
  4. auto indent
